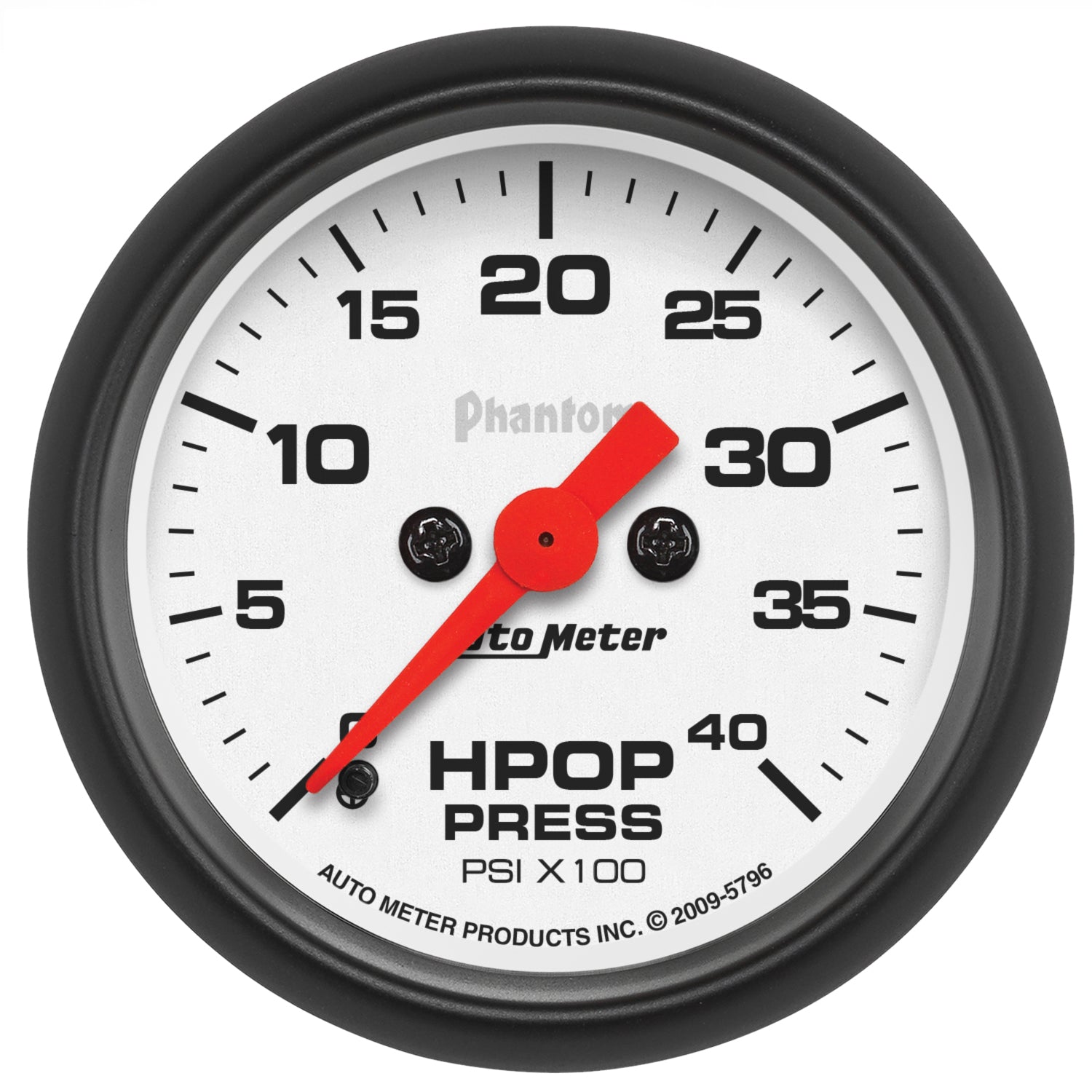

AutoMeter 5796 Engine Oil Pressure Gauge
Product Availability Request
Fill the form and our team will contact you.
2-1/16" HPOP PRESSURE, 0-4K PSI, PHANTOM
Ultra high pressures in modern direct injected diesel applications require precise monitoring to assure the longevity and power output of your engine. Using AutoMeterβs advanced Digital Stepper Motor Drive, this gauge provide the most accurate possible reading, professional grade reliability and smooth pointer movement. Connects directly to your factory sensor with an included wiring harness.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Gauge kit includes wiring harness, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Included wiring harness connects to original equipment High Pressure Oil Pump sensor wiring.
- For use with 1994-2003 7.3L & 2003-2007 6.0L Ford Powerstroke Engines ONLY
- AutoMeterβs race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Range | 0-4K PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL |
| Includes Mounting Hardware | 2230 |
| Includes Bulb & Socket | 3220 |
| Cross Sell | 3288, 3286, 3285, 3284, 3287 |
| Upsell | 3288, 3286, 3285, 3284, 3287 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Black |
| Includes Wire Harness | Call Auto Meter Technical Support At 1-866-248-6357 |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Gauge Type | HPOP Pressure |
| Lighting Type | Incandescent |
| Series | PHANTOM |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: 2" HPOP PRESS
Invoice Description: 2" HPOP PRESS, 0-4K PSI, FSE
Definition: Engine Oil Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
| Year | Make | Model | Engine |
|---|---|---|---|
| 1997 | Ford | F-250 HD | 7.3L V8 |
| 2003 | Ford | F-250 Super Duty | 5.4L V8 |
| 2003-2007 | Ford | F-250 Super Duty | 6.0L V8 |
| 2003 | Ford | F-250 Super Duty | 6.8L V10 |
| 1999-2003 | Ford | F-250 Super Duty | 7.3L V8 |
| 1994-1996 | Ford | F-250 | 7.3L V8 |
| 2003 | Ford | F-350 Super Duty | 5.4L V8 |
| 2003-2007 | Ford | F-350 Super Duty | 6.0L V8 |
| 2003 | Ford | F-350 Super Duty | 6.8L V10 |
| 1999-2003 | Ford | F-350 Super Duty | 7.3L V8 |
| 1994-1997 | Ford | F-350 | 7.3L V8 |
| 2003-2007 | Ford | F-450 Super Duty | 6.0L V8 |
| 2003 | Ford | F-450 Super Duty | 6.8L V10 |
| 1999-2003 | Ford | F-450 Super Duty | 7.3L V8 |
| 2003-2007 | Ford | F-550 Super Duty | 6.0L V8 |
| 2003 | Ford | F-550 Super Duty | 6.8L V10 |
| 1999-2003 | Ford | F-550 Super Duty | 7.3L V8 |
