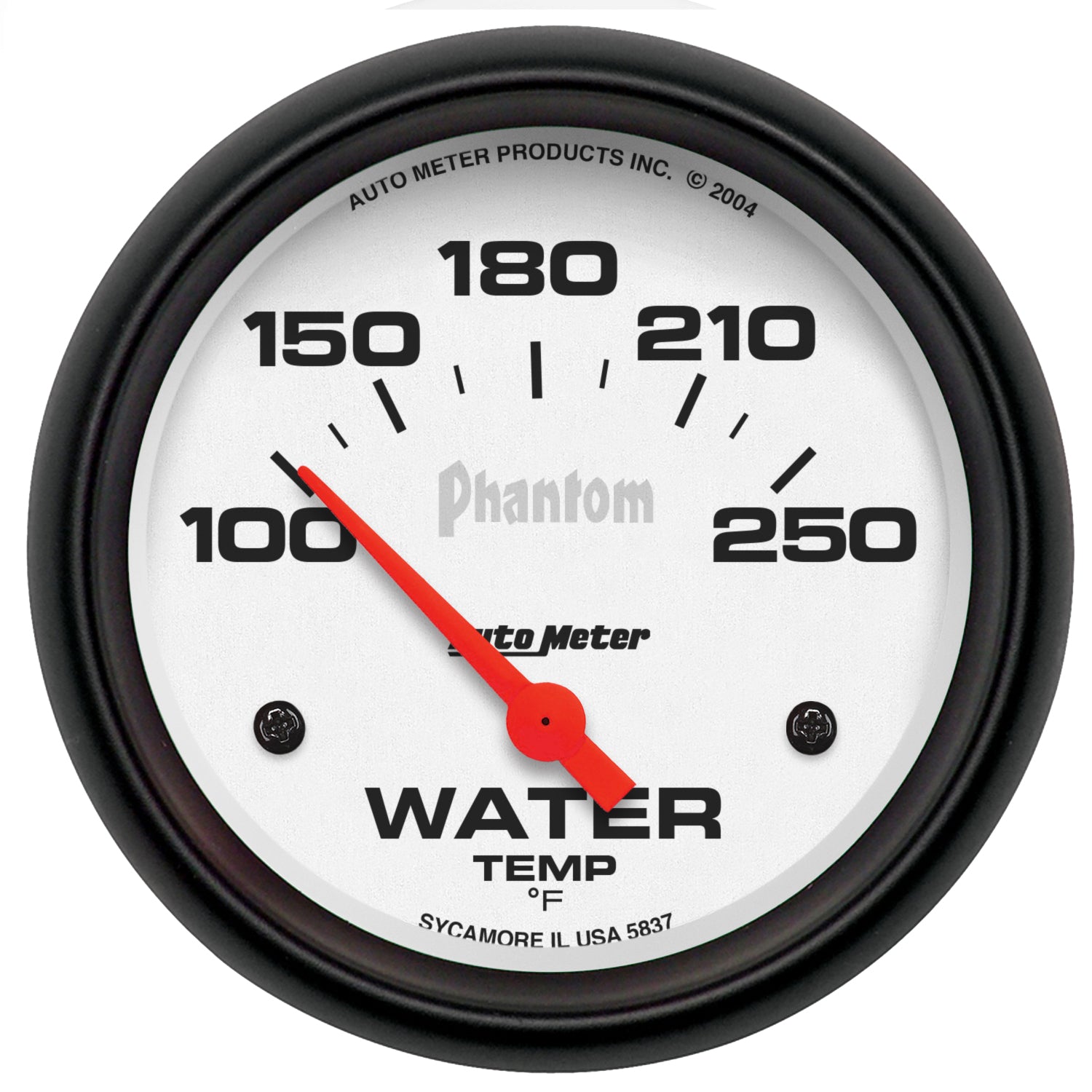

AutoMeter 5837 - GAUGE, WATER TEMP, 2 5/8", 100-250?F, ELECTRIC, PHANTOM
Product Availability Request
Fill the form and our team will contact you.
2-5/8" WATER TEMPERATURE, 100-250 F, PHANTOM
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.
Features
- Traditional incandescent lighting illuminates around the perimeter of the dial
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter | 2-7/8" IN |
| Related Item | 2160, BEX-1500, EP-800, 0424XL |
| Includes Sensor Unit | 2258 |
| Cross Sell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Upsell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Bulb & Socket | 3220 |
| Includes Mounting Hardware | 3245 |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Size - Metric - MM | 66.7mm MM |
| Bezel Color | Black |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | Incandescent |
| Series | PHANTOM |
| Includes Light Covers | Red 3214 & Green 3215 |
| Bezel Style | Super Bezel |
| Range | 100-250 °F |
| Gauge Type | Water Temperature |
| Dial Color | White |
| Lighting Color | White Incandescent |
Short Description: 2-5/8" WATER TEMP
Invoice Description: 2-5/8" WATER TEMP, 100- 250`F, SSE
Definition: Engine Coolant Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
