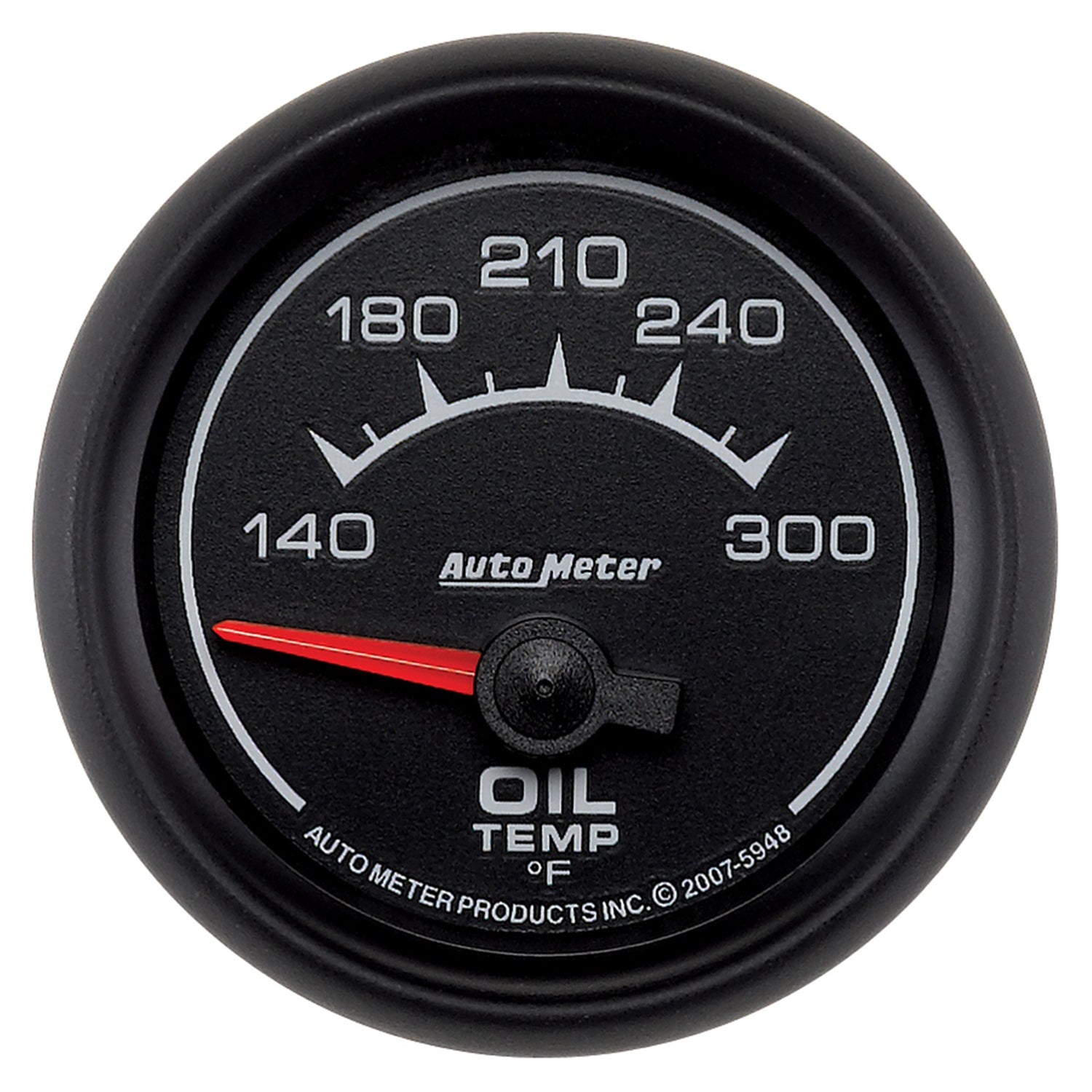

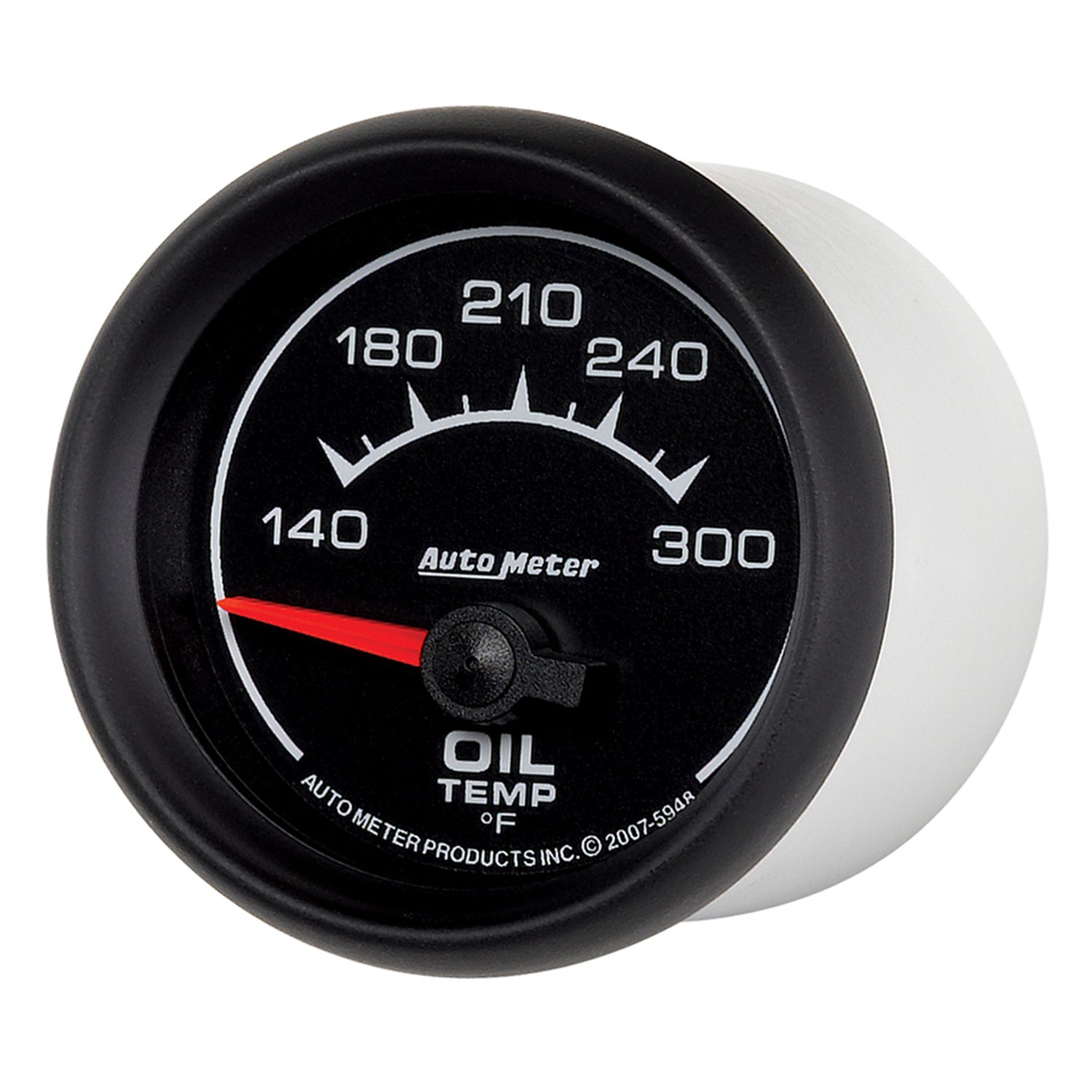

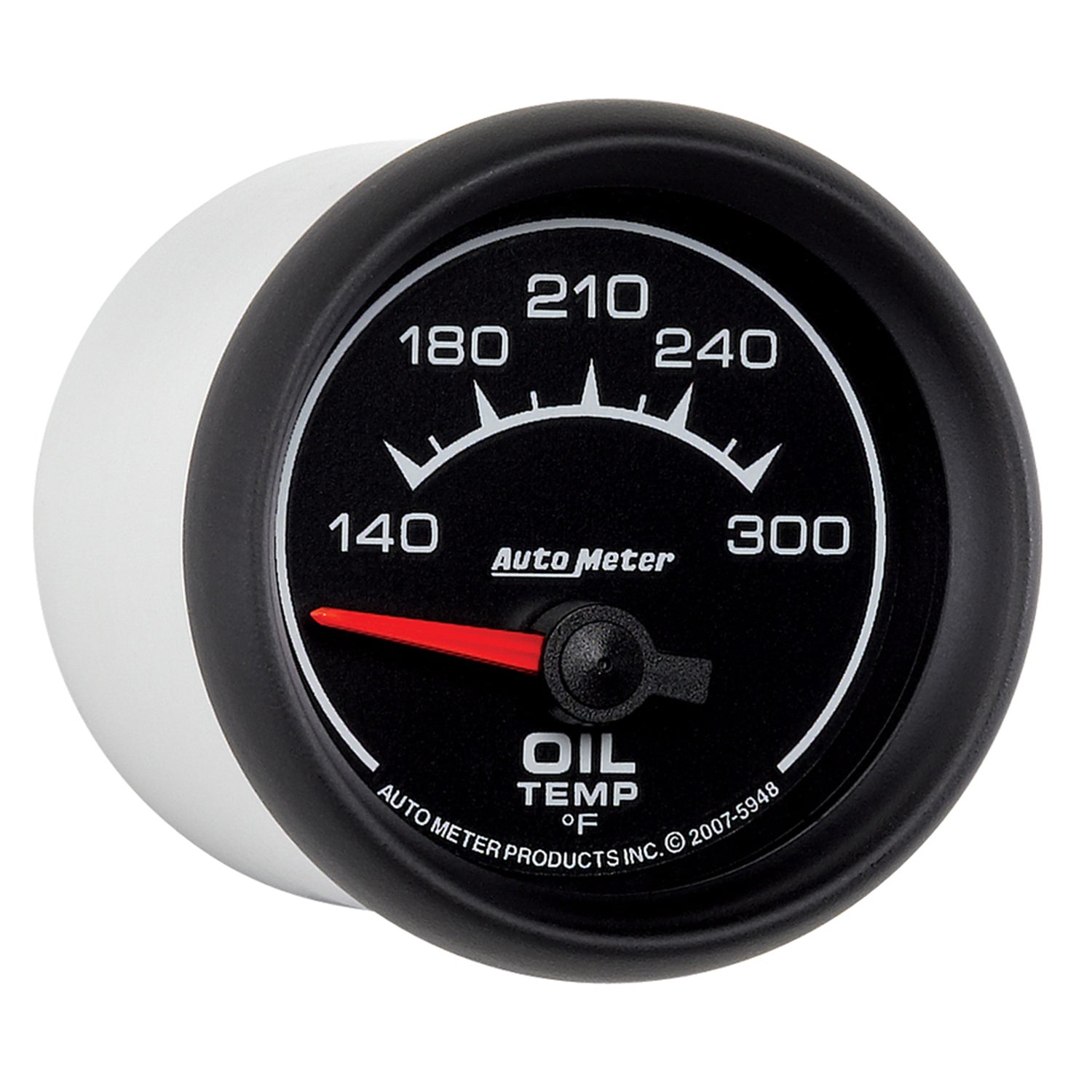

AutoMeter 5948 - GAUGE, OIL TEMP, 2 1/16", 140-300?F, ELECTRIC, ES
Product Availability Request
Fill the form and our team will contact you.
2-1/16" OIL TEMPERATURE, 140-300 F, ES
An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender is included.
Features
- Modern red LED through-the-dial lighting provides clear visibility during nighttime use
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 140-300 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800 |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Cross Sell | 9114, 2268, 2266, 2267, 5927, 5937 |
| Upsell | 9114, 2268, 2266, 2267, 5927, 5937 |
| Bezel Color | Black |
| Dial Color | Black |
| Movement | Electric, Air-Core |
| Series | ES |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Gauge Type | Oil Temperature |
| Lighting Color | Red |
| Bezel Style | Super Bezel |
Short Description: GA 2" OILT 300F E ES
Invoice Description: 2-1/16" OIL TEMP, 140- 300`F, SSE, ES
Definition: Engine Oil Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
