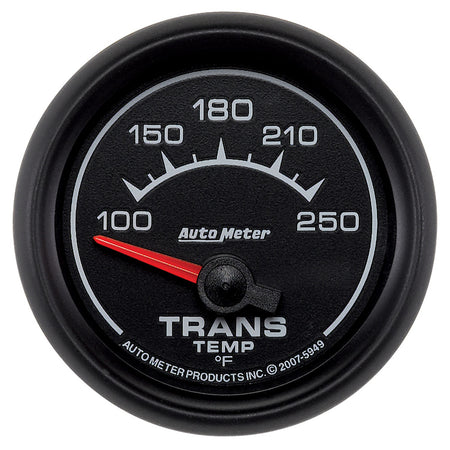

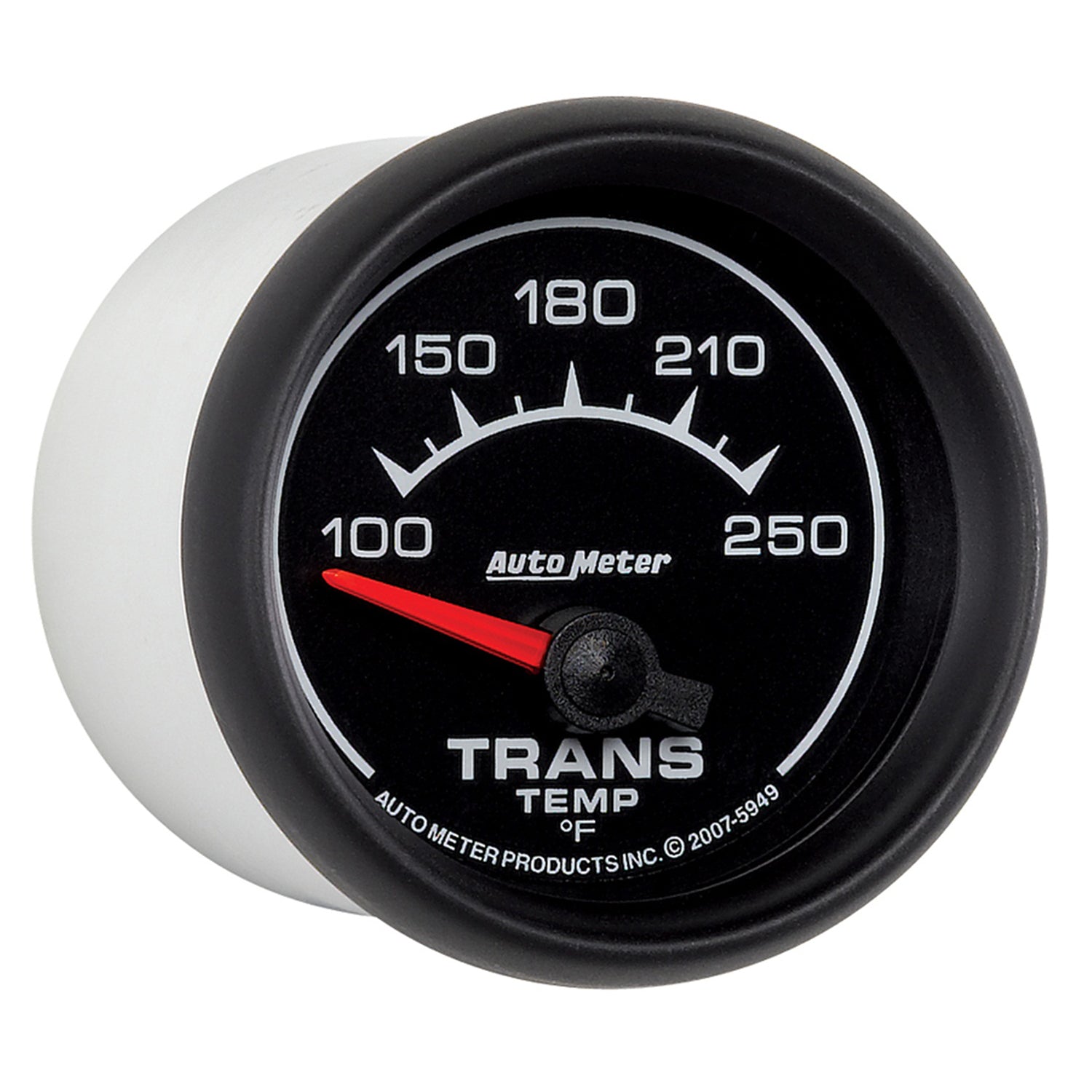

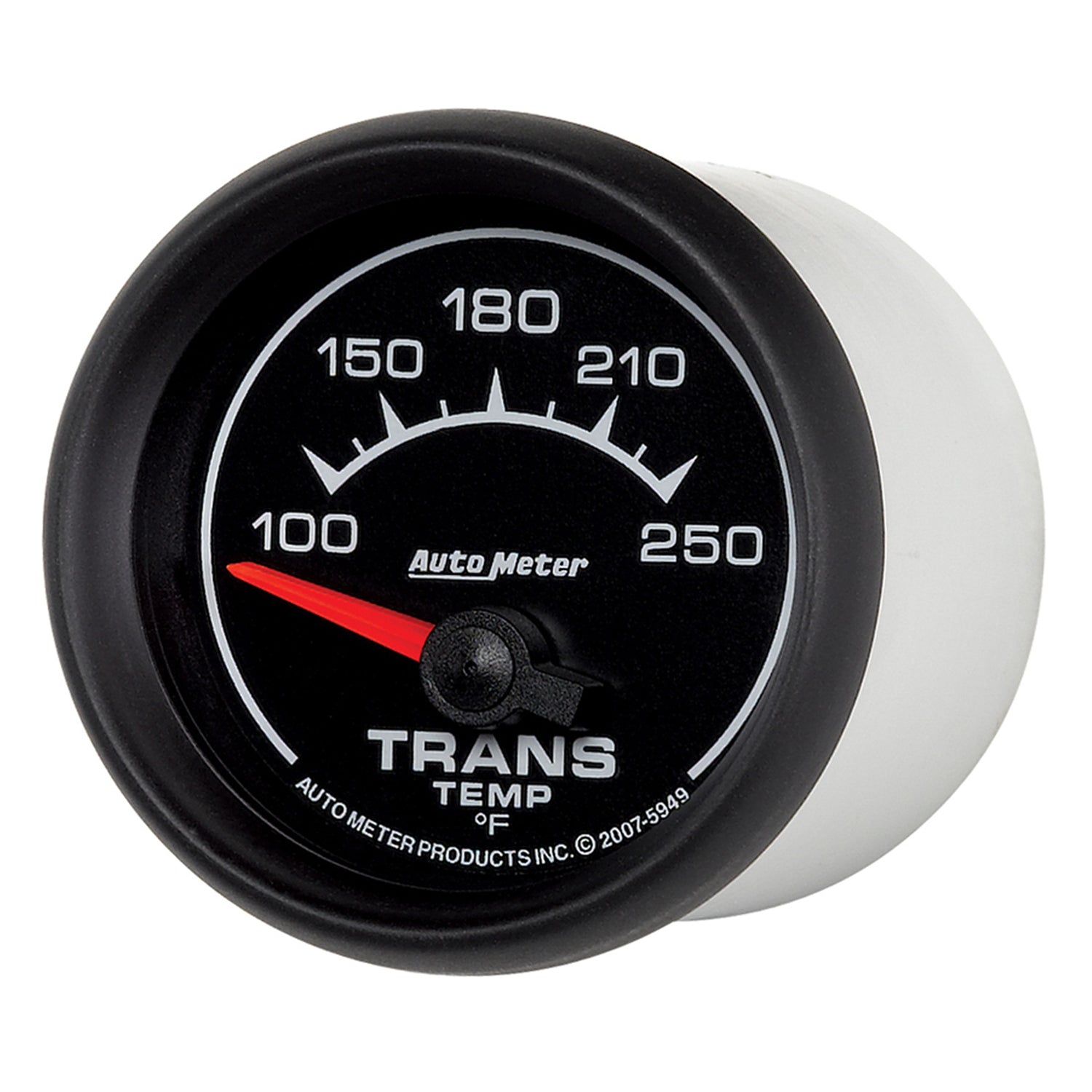

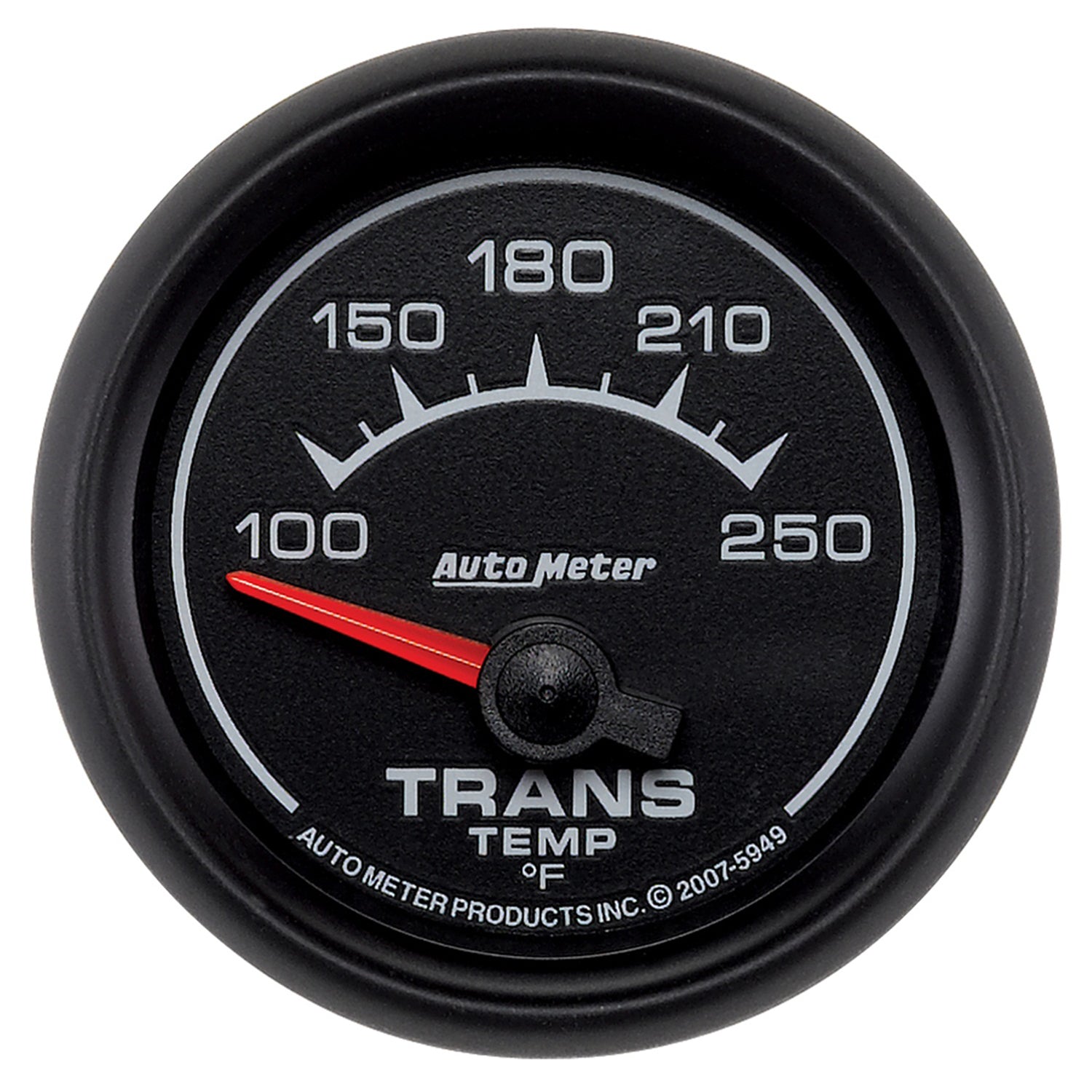

AutoMeter 5949 - GAUGE, TRANSMISSION TEMP, 2 1/16", 100-250?F, ELECTRIC, ES

2-1/16" TRANSMISSION TEMPERATURE, 100-250 F, ES

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Features

• Modern red LED through-the-dial lighting provides clear visibility during nighttime use
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
• AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

Specifications

Short Description: GA 2" TRNS 250F E ES

Invoice Description: 2-1/16" TRANS TEMP, 100- 250`F, SSE, ES

Definition: Automatic Transmission Oil Temperature Gauge

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
