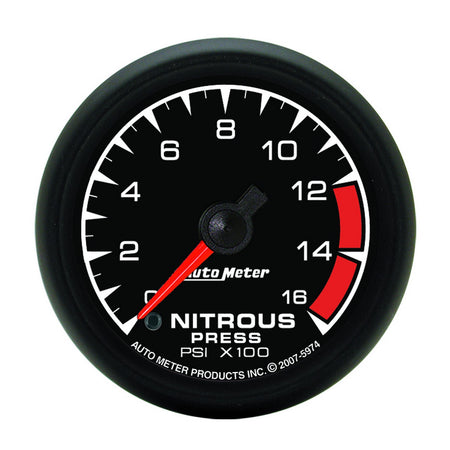

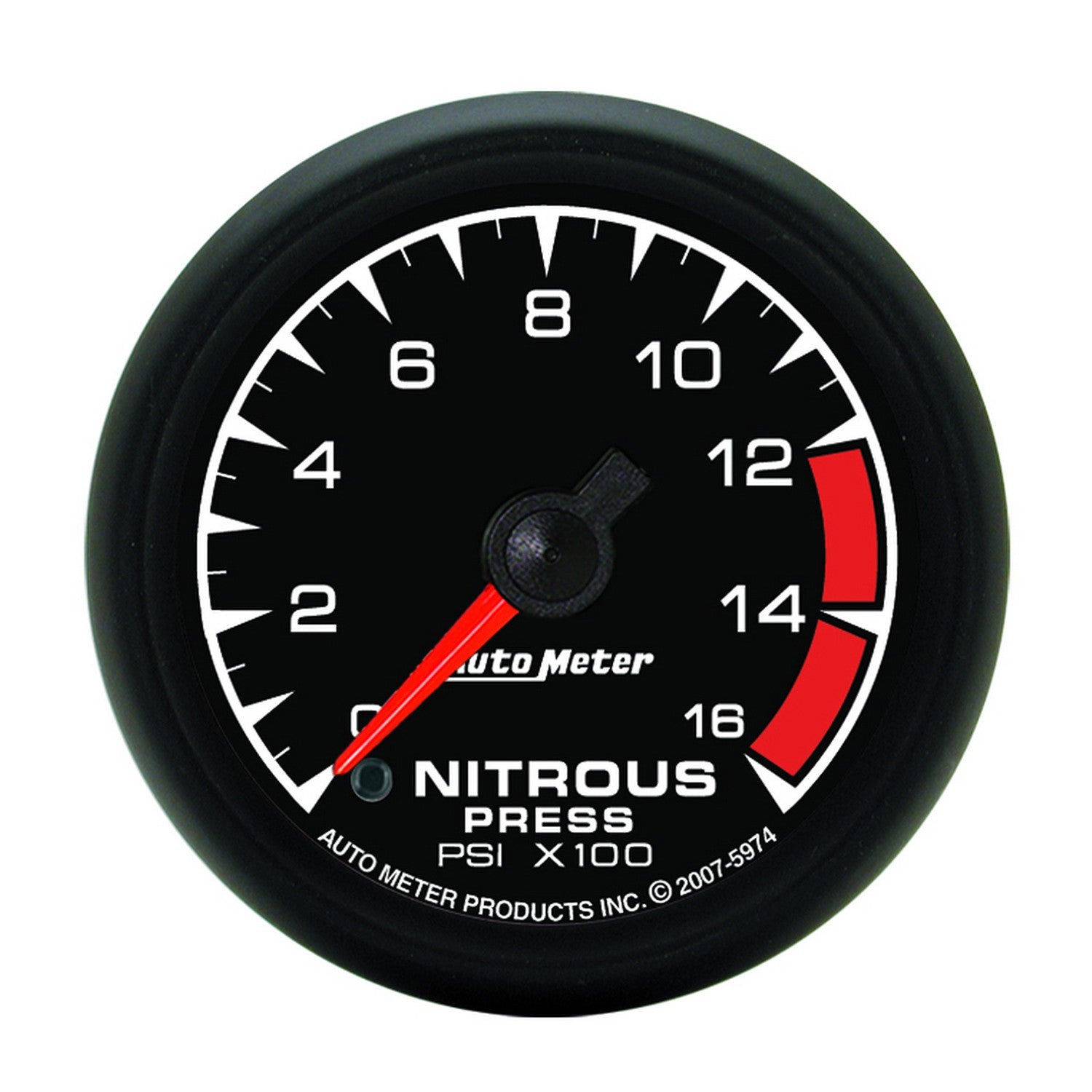

2-1/16" NITROUS PRESSURE, 0-1600 PSI, ES
Proper nitrous pressure is the difference between extracting maximum power from your engine and finishing second. AutoMeter’s Digital Stepper Motor Nitrous Pressure Gauge uses our advanced 1/8” NPT solid state pressure transducer to give you the most precise possible reading of your system pressure ,up to 1600 psi. Built with the accuracy and durability required by the professional racer, there simply isn’t a better possible solution. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
Features
- Modern red LED through-the-dial lighting provides clear visibility during nighttime use
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- Gauge kit includes 1/8” NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Range | 0-1600 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800 |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2240 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5227 |
| Cross Sell | 9114, 5978, 5963, 5955, 5953, 5903 |
| Upsell | 9114, 5978, 5963, 5955, 5953, 5903 |
| Bezel Color | Black |
| Dial Color | Black |
| Movement | Electric, Digital Stepper Motor |
| Series | ES |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Gauge Type | Nitrous Pressure |
| Lighting Color | Red |
| Bezel Style | Super Bezel |
Short Description: GA 2" N2O 1600PSI ES
Invoice Description: 2-1/16" NITROUS, 0-1600 PSI, FSE, ES
Definition: Nitrous Oxide Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
