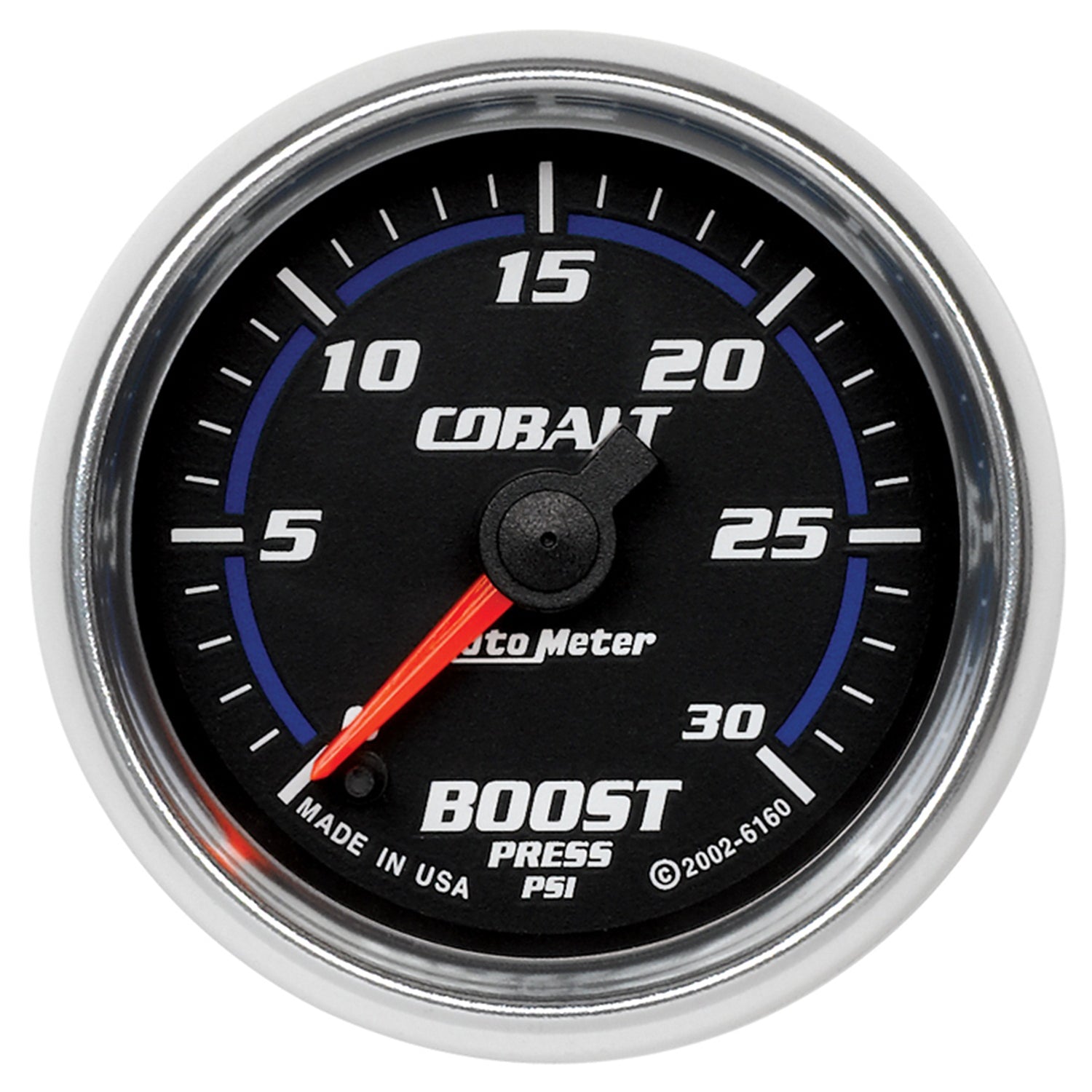

AutoMeter 6160 - GAUGE, BOOST, 2 1/16", 30PSI, DIGITAL STEPPER MOTOR, COBALT
Product Availability Request
Fill the form and our team will contact you.
2-1/16" BOOST, 0-30 PSI, COBALT
Forced induction applications require precise monitoring of the boost pressure being created by your turbo or supercharger to get the most power safely from your engine. AutoMeter’s Digital Stepper Motor Boost Gauge provides the most accurate reading available, unparalleled response time and smooth needle movement. Designed for diesel or extreme boost applications, these gauges include a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
Features
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Includes data acquisition grade solid-state MAP Sensor, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Gauge kit includes MAP Sensor, T-Fitting, nylon tubing, vacuum fittings, wiring harness, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-30 PSI |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Upsell | 9114, 6197, 6144, 6149, 6163, 6162 |
| Dial Color | Black |
| Lighting Color | Blue |
| Gauge Type | Boost |
| Bezel Color | Bright Anodized |
| Series | COBALT |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Bezel Style | Super Bezel |
| Includes Adapter/Fitting | T - Fitting |
| Related Item | 2160, BEX-3000, EP-800 |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2249 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5229 |
| Cross Sell | 9114, 6197, 6144, 6149, 6163, 6162 |
Short Description: GA 2" BST 30 STPR CB
Invoice Description: 2" BOOST, 0-30 PSI, FSE, COBALT
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
