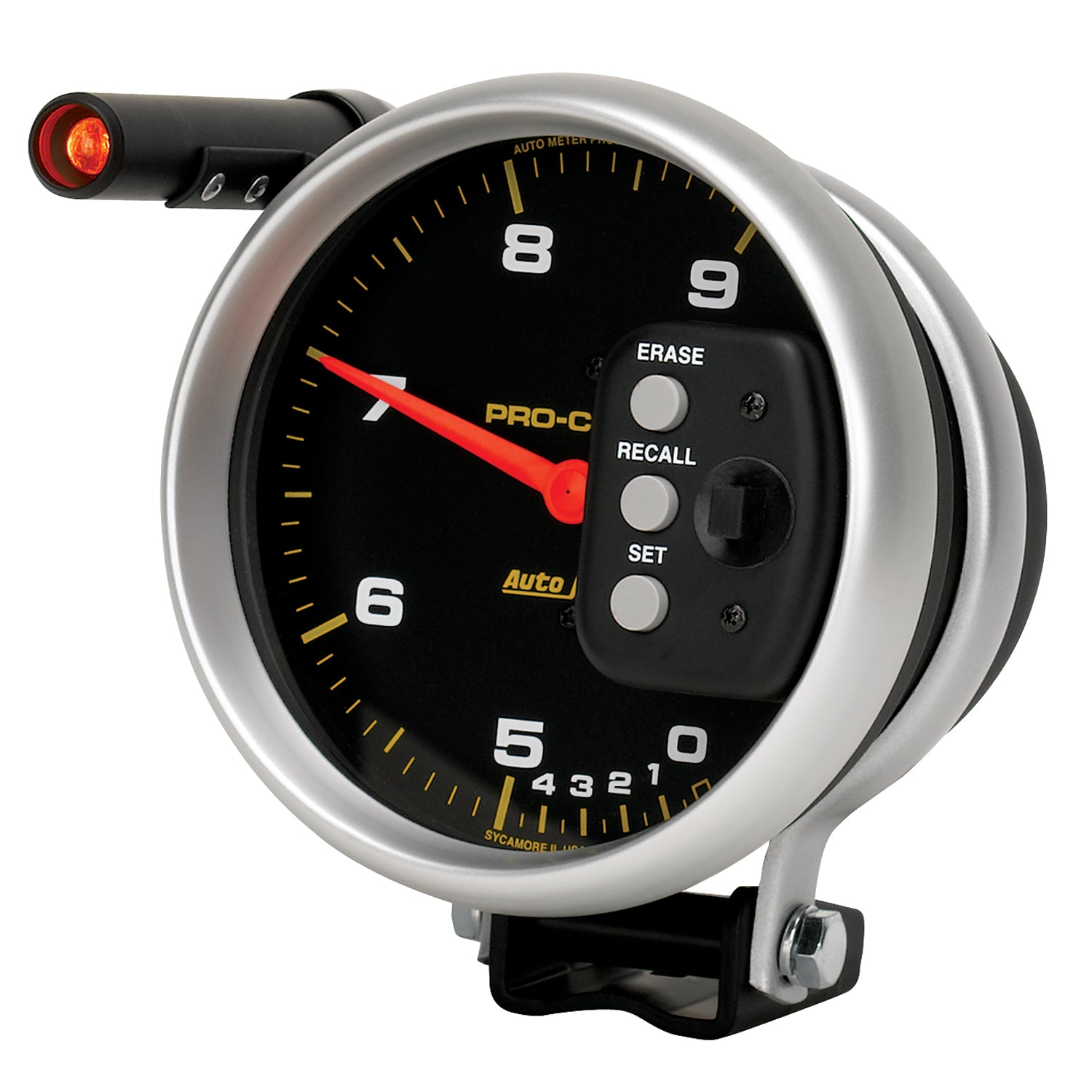

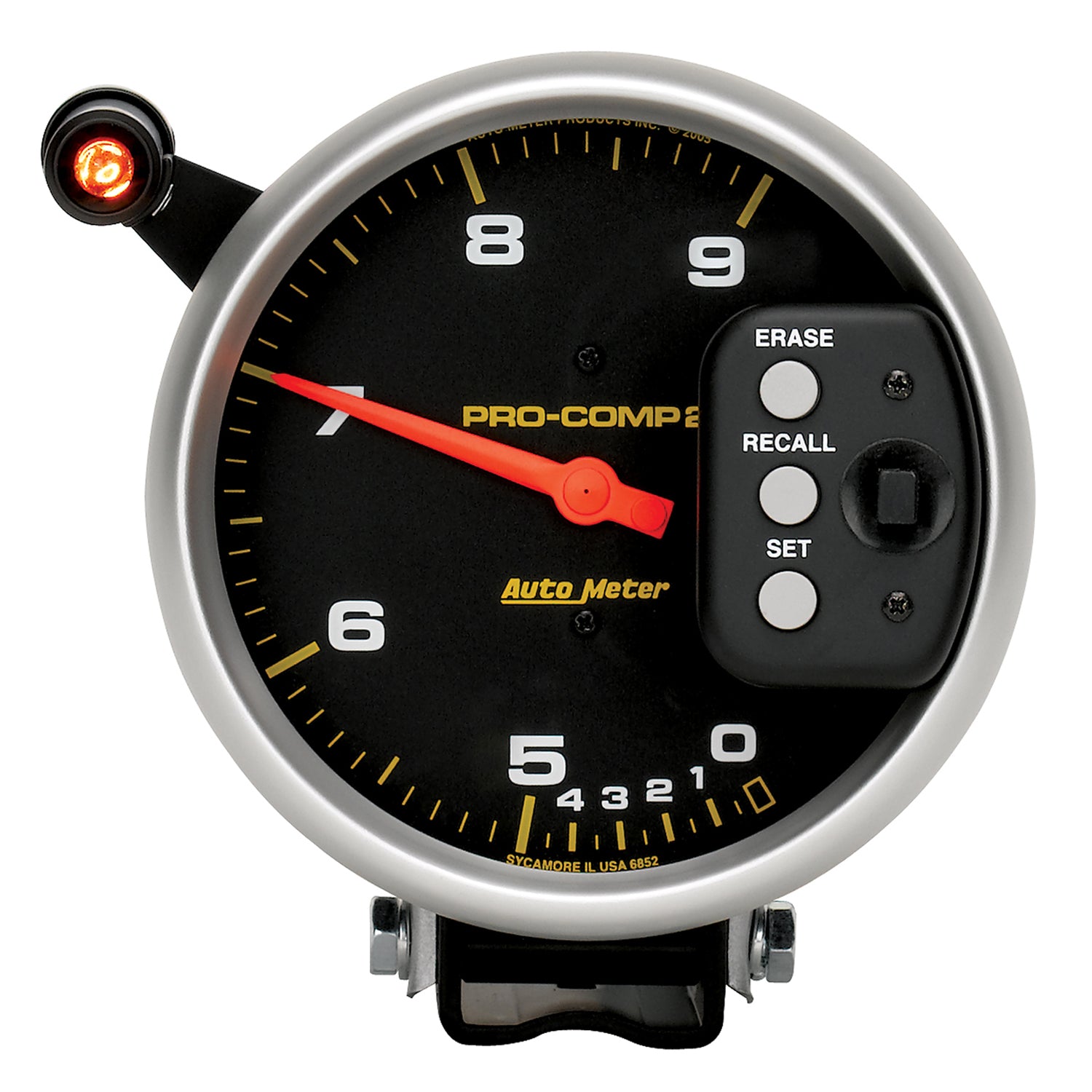

AutoMeter 6852 - GAUGE, TACH, 5", 9K RPM, PEDESTAL DUAL RANGE W/ QUICK LITE & PEAK MEM, PRO-COMP

Measures engine RPM with a 0-9,000 RPM range and displays readings on a seven-segment LED panel with Peak RPM Memory capability, the AutoMeter 6852 is a 5" pedestal tachometer from the PRO-COMP series. It operates on 12 and 16 volt electrical systems and is compatible with 1-12 cylinder engines using 0.5-6 pulse ignition signals with points, electronic, or most 12V high-performance racing ignitions. The gauge features an air-core electric movement with 333 milliseconds needle response, dual-range dial scale for improved visibility at high RPM, traditional incandescent dial lighting with a brushed aluminum super bezel and fluorescent red pointer, and a programmable two-stage LED shift light for optimized engine management and driver performance.

• Gauge Type: Pedestal Tachometer
• Series: PRO-COMP
• Size: 5"
• Size (Metric): 127mm
• RPM Range: 0-9,000
• Movement: Electric, Air-Core
• Needle Response: 333 milliseconds
• Bezel Color: Brushed Aluminum
• Bezel Style: Super Bezel
• Dial Color: Black
• Pointer Color: Fluorescent Red
• Lens Style: Flat, Clear
• Lighting Type: Incandescent
• Lighting Color: White Incandescent
• Voltage Compatibility: 12V and 16V
• Compatible Cylinder Count: 1-12
• Compatible Pulse Signals: 0.5-6 pulse
• Compatible Ignition Types: Points, electronic, most 12V high-performance racing ignitions
• Dial Scale: Dual Range
• Peak RPM Memory: Yes
• LED Shift Light: Two-stage programmable (Lo-Hi)
• LED Display: Seven bar segment digital
• Includes Mounting Hardware: Model 3209
• Includes Bulb and Socket: Model 3219
• Size - Metric - MM: 127mm
• Size - Standard - IN: 5" IN
