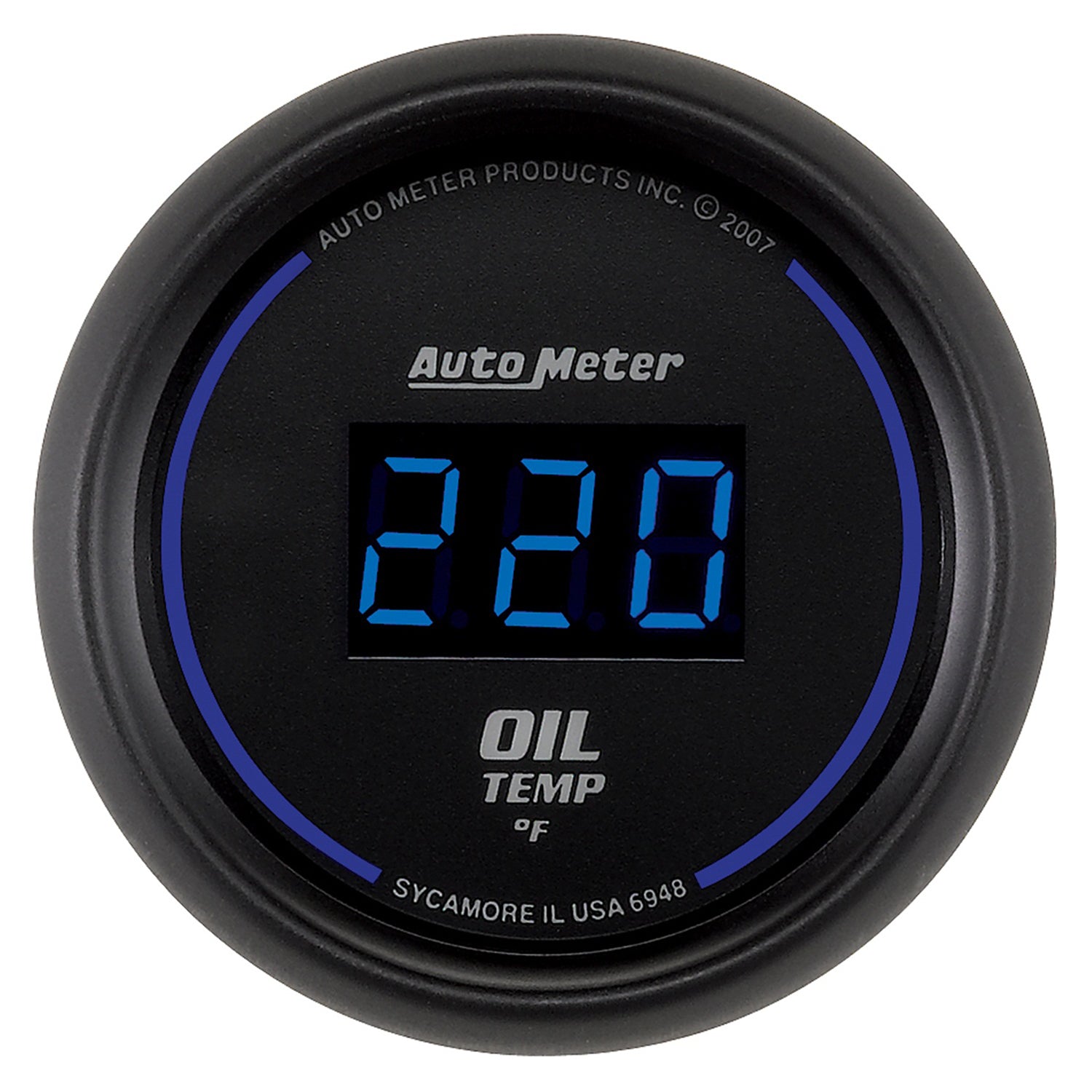

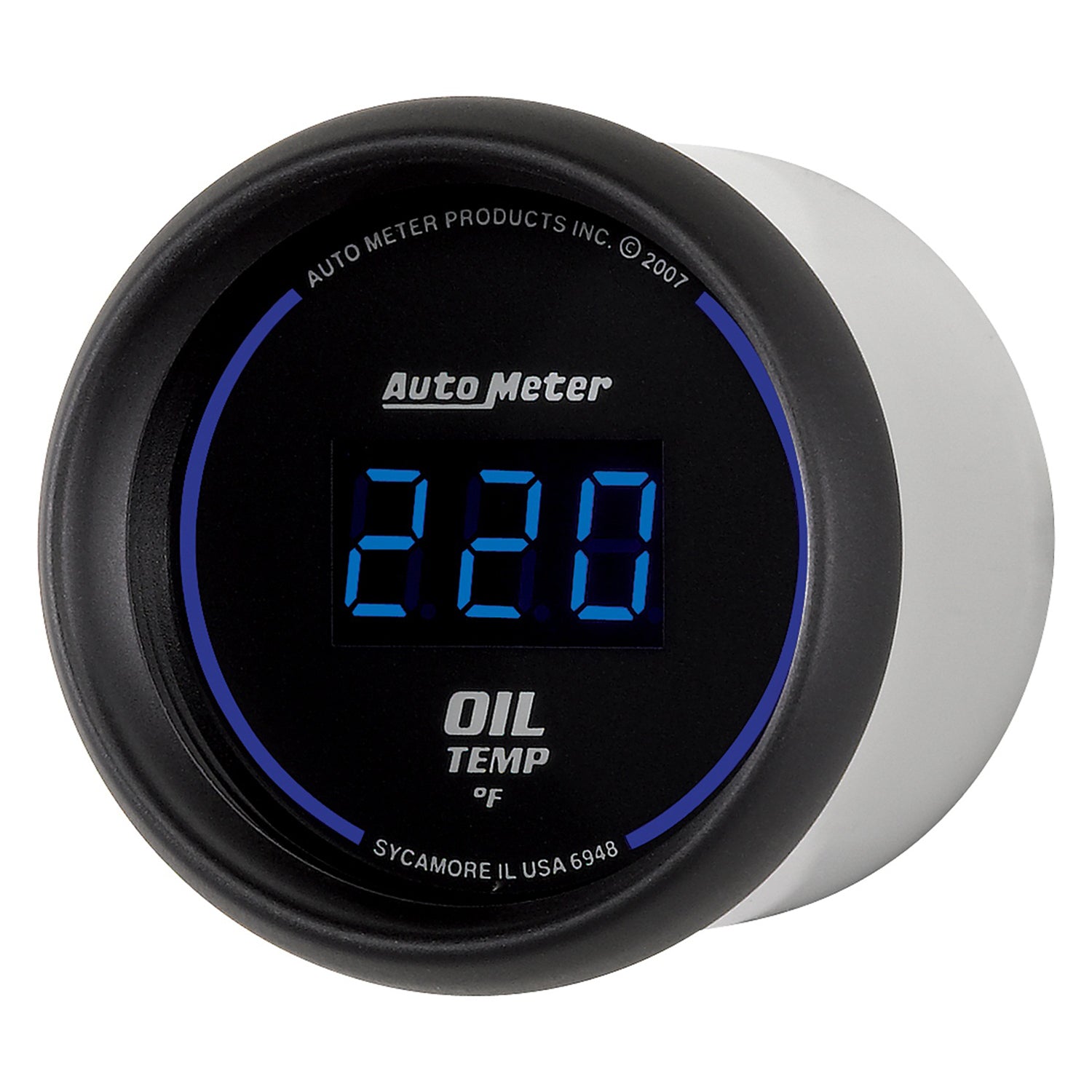

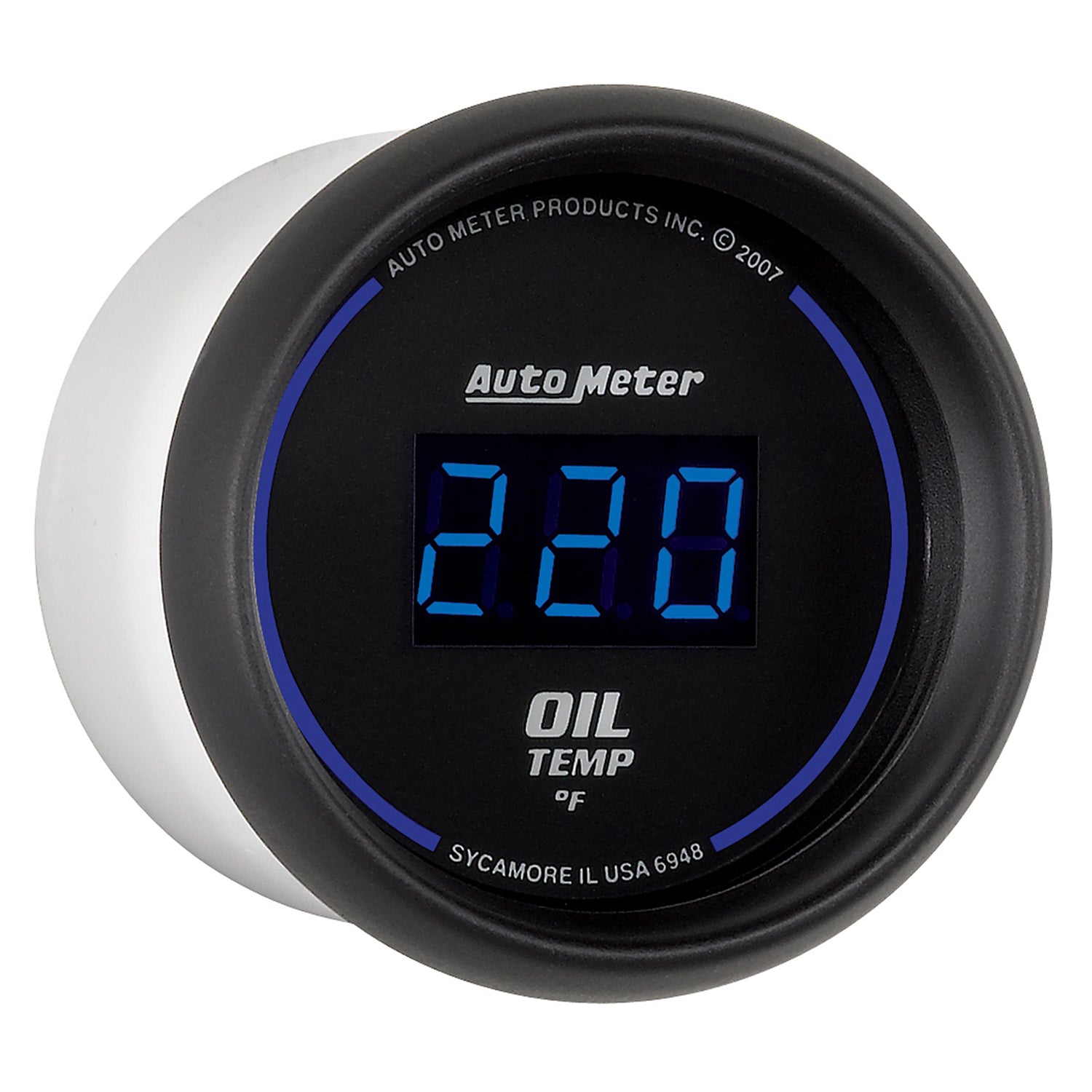

AutoMeter 6948 - GAUGE, OIL TEMP, 2 1/16", 340?F, DIGITAL, BLACK DIAL W/ BLUE LED
Product Availability Request
Fill the form and our team will contact you.
2-1/16" OIL TEMPERATURE, 0-340 F, COBALT DIGITAL
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Using AutoMeter’s advanced 1/8” NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. A direct plug in wiring harness is included for ease of installation.
Features
- Features AutoMeter's E-Z View Digital LED Display System which maximizes readability and minimizes distracting high speed digit changes
- Includes data acquisition grade solid-state temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Specifications
| Range | 0-340 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800 |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5226 |
| Cross Sell | 9114, 2268, 2266, 2267, 6927, 6937 |
| Upsell | 9114, 2268, 2266, 2267, 6927, 6937 |
| Bezel Color | Black |
| Dial Color | Black |
| Lighting Color | Blue |
| Series | COBALT DIGITAL |
| Movement | Digital |
| Lighting Type | Digital LED |
| Lens Style | Flat, Clear |
| Gauge Type | Oil Temperature |
| Bezel Style | Super Bezel |
Short Description: GA 2" OILT 340F CBD
Invoice Description: 2-1/16" OIL TEMP, 0- 340`F, DIGITAL
Definition: Engine Oil Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
