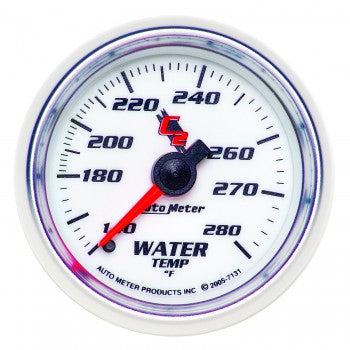

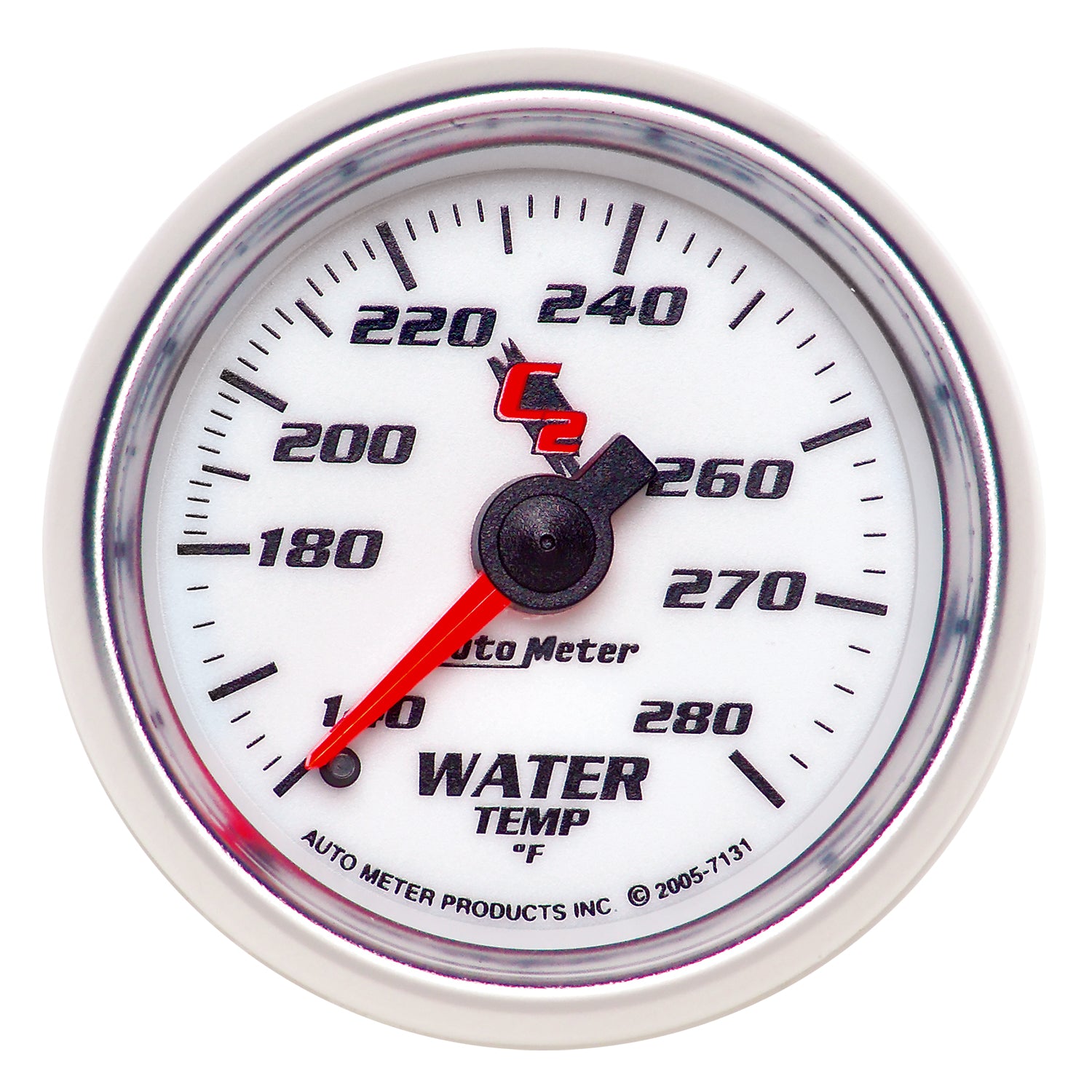

AutoMeter 7131 - GAUGE, WATER TEMP, 2 1/16", 140-280?F, MECHANICAL, C2

Mechanical water temperature measurement is provided by the AutoMeter part number 7131, which uses a 6 foot capillary tube and bourdon tube mechanical movement to display engine coolant temperature from 140-280 °F. The C2 series gauge features a 2-1/16 inch face with blue LED through-the-dial lighting for nighttime visibility and requires no electrical system to operate. The flat clear lens has a fluorescent red pointer and white dial, while the bright anodized bezel utilizes a super bezel style. Installation is straightforward with included 1/2 inch NPT adapter and mounting hardware.

• Range: 140-280 °F
• Size - Standard - IN: 2-1/16"
• Cup/Hole Size - Standard - IN: 2-1/16"
• Outer Bezel Diameter - Standard: 2-1/16"
• Cup/Hole Size - Metric - MM: 52.4mm
• Size - Metric - MM: 52.4mm
• Movement: Mechanical
• Lighting Type: LED
• Lighting Color: Blue
• Bezel Color: Bright Anodized
• Bezel Style: Super Bezel
• Lens Style: Flat, Clear
• Pointer Color: Fluorescent Red
• Dial Color: White
• Series: C2
• Gauge Type: Water Temperature

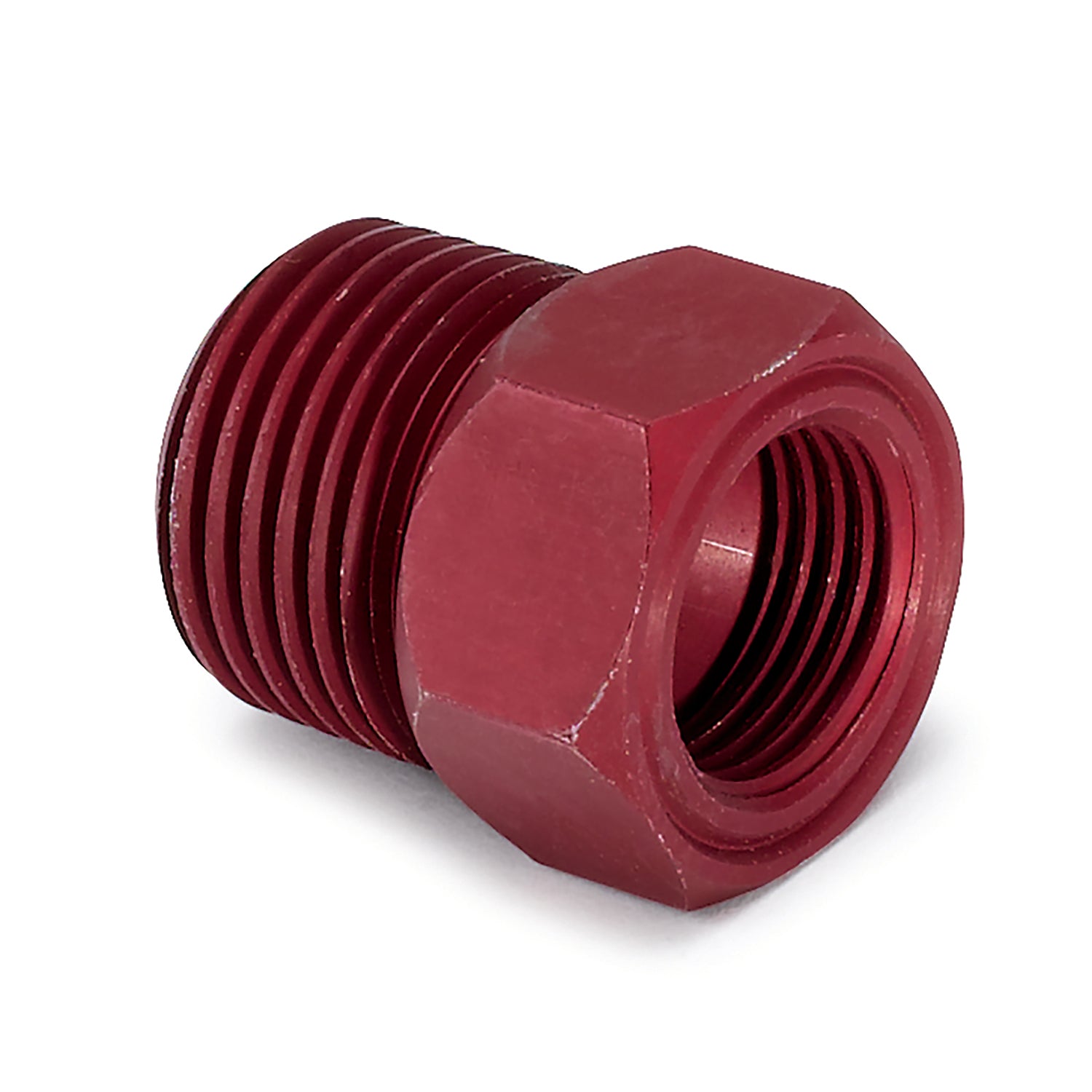

• Includes Adapter/Fitting: 1/2" NPT adapter/fitting
• Includes Mounting Hardware: 2230
• Includes Tubing: 6 ft. Capillary Tube
• Related Item: 2160, BEX-3000, EP-800, 0423XL
• Outer Bezel Diameter: 2-1/4"
• Outer Bezel Diameter: 2-1/4" IN
