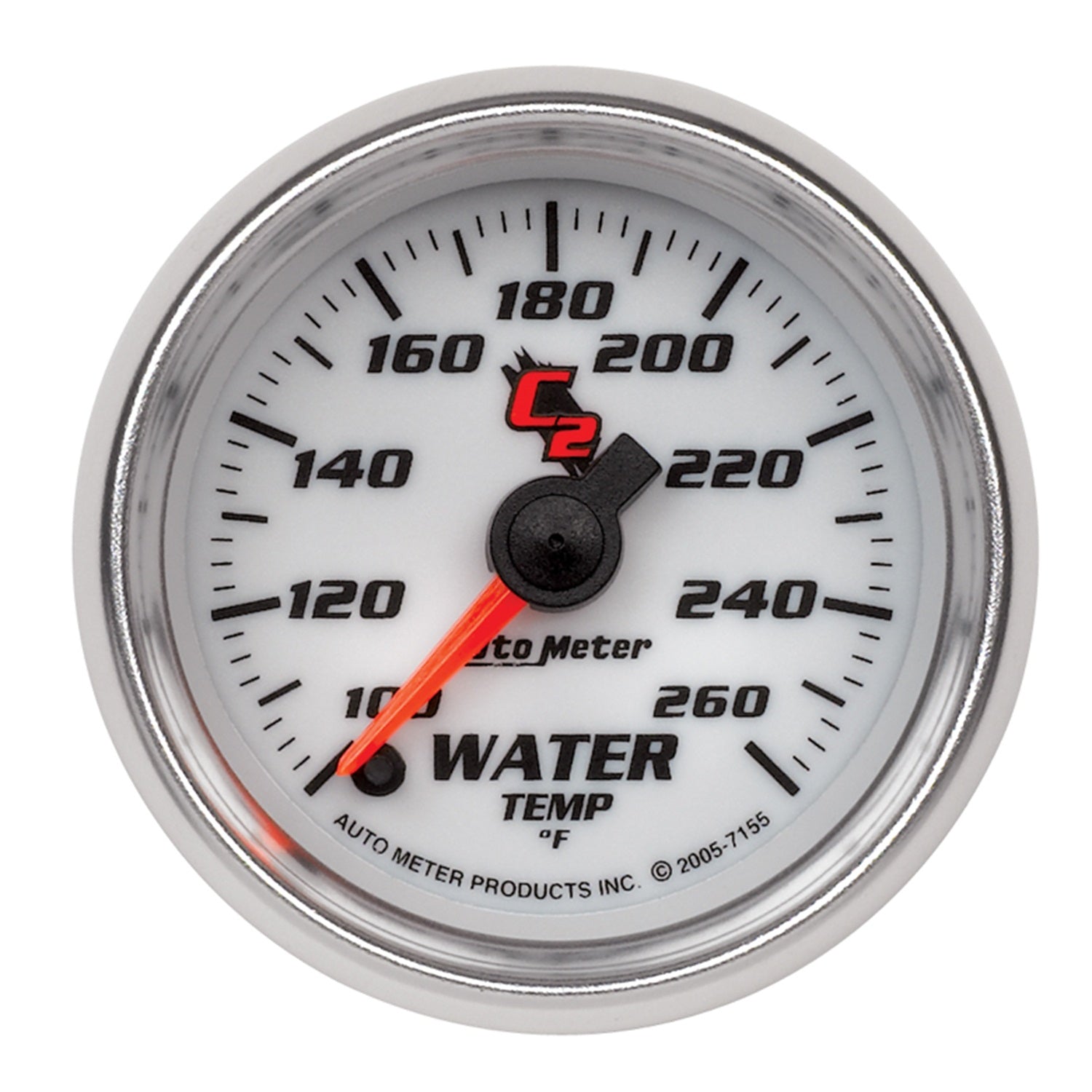

AutoMeter 7155 - GAUGE, WATER TEMP, 2 1/16", 100-260?F, DIGITAL STEPPER MOTOR, C2
Product Availability Request
Fill the form and our team will contact you.
2-1/16" WATER TEMPERATURE, 100-260 F, C2
Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Features
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Specifications
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |

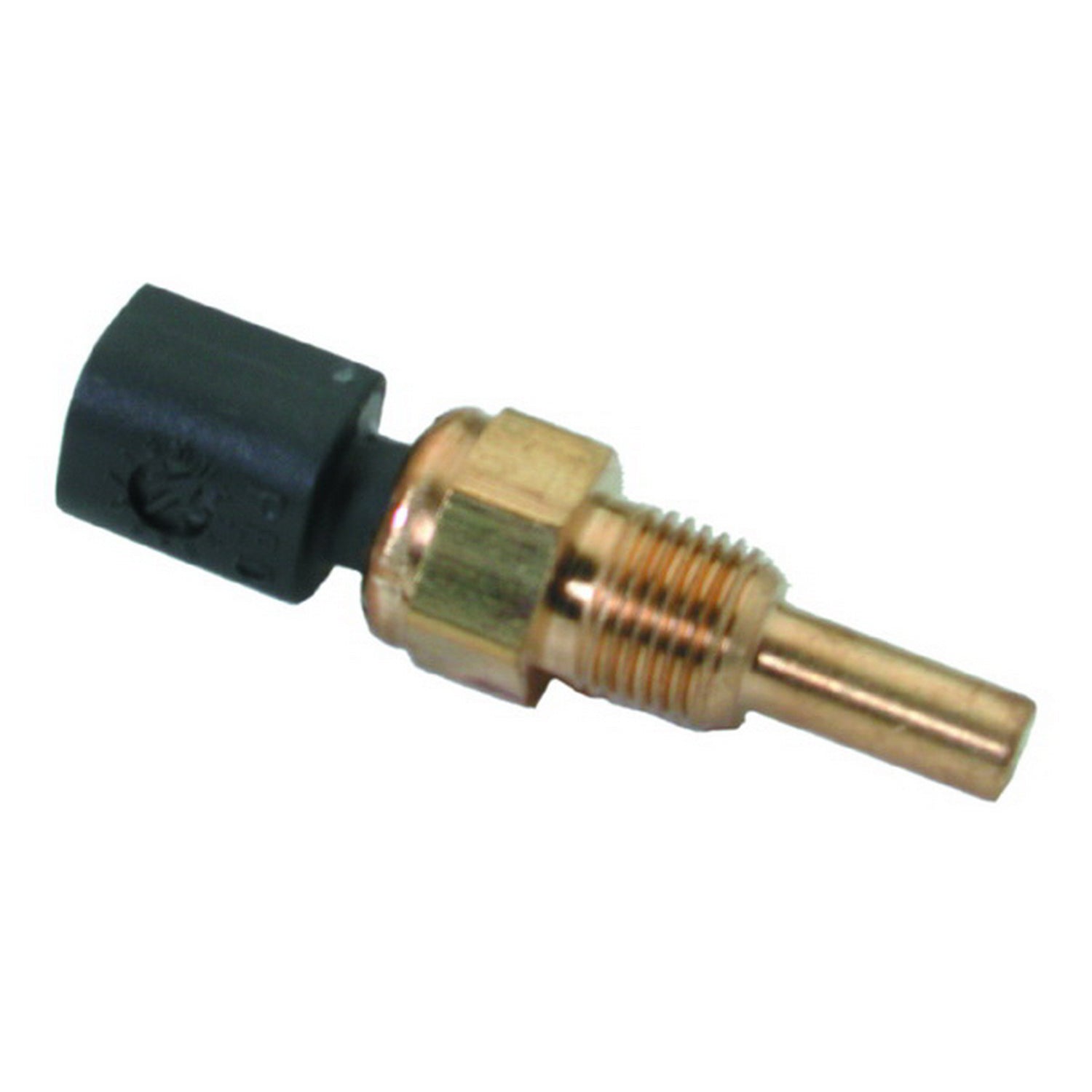

| Includes Sensor Unit | 2252 |
| Cross Sell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Upsell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |

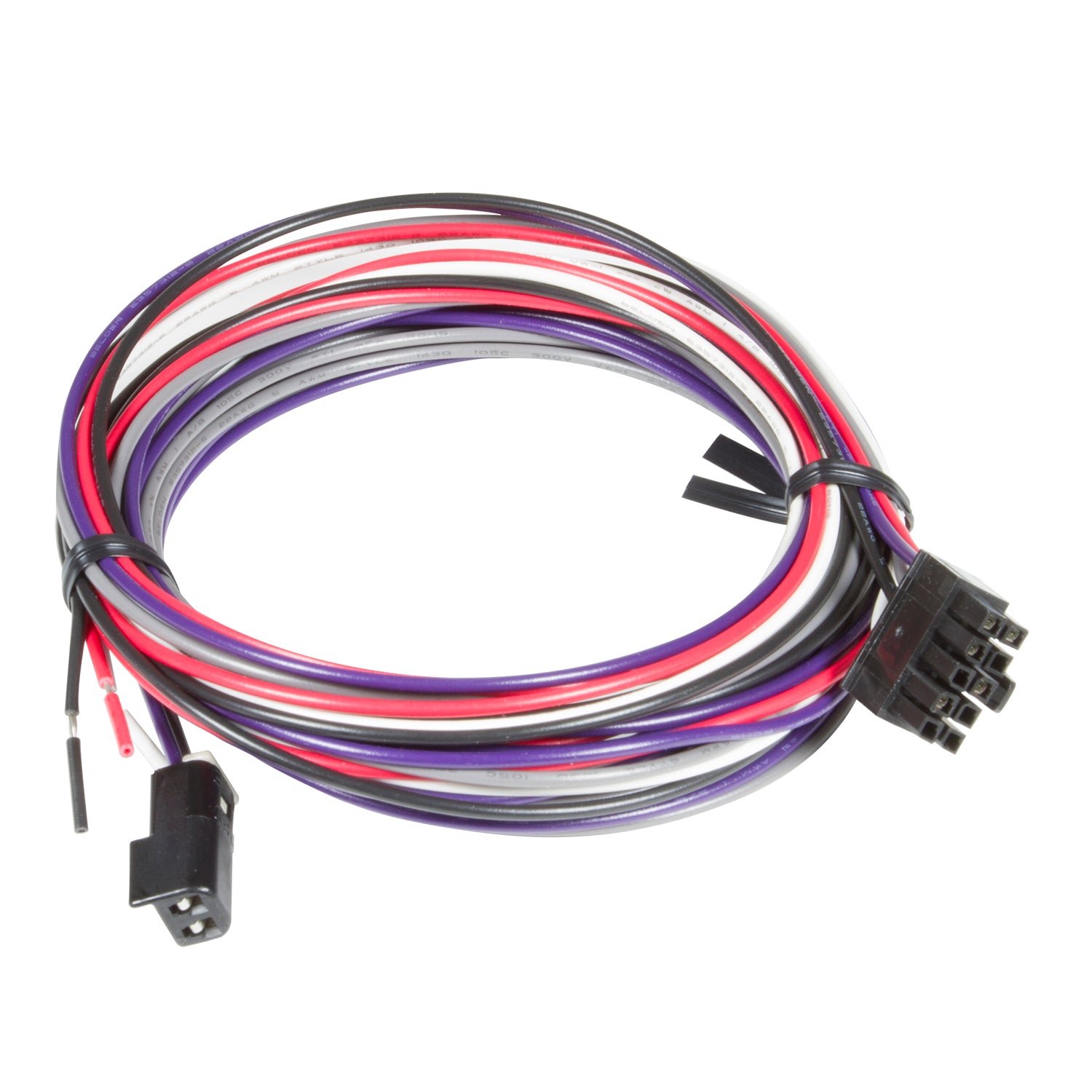

| Includes Wire Harness | 5226 |
| Lighting Color | Blue |
| Bezel Color | Bright Anodized |
| Series | C2 |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Bezel Style | Super Bezel |
| Gauge Type | Water Temperature |
| Dial Color | White |
| Range | 100-260 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
Short Description: GA 2" WTEMP STEPR C2
Invoice Description: 2" WATER TEMP, 100-260`F FSE, C2
Definition: Engine Coolant Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
