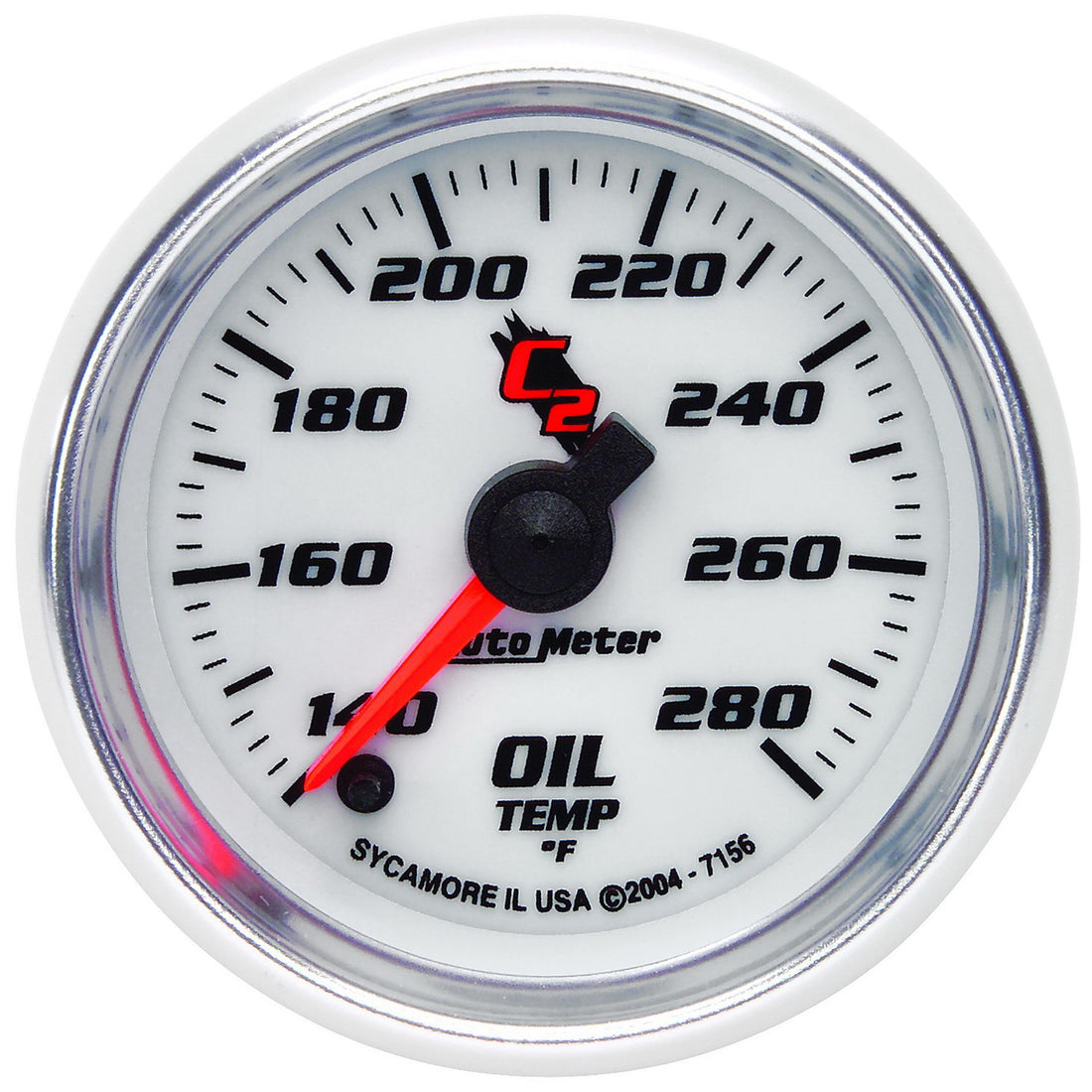

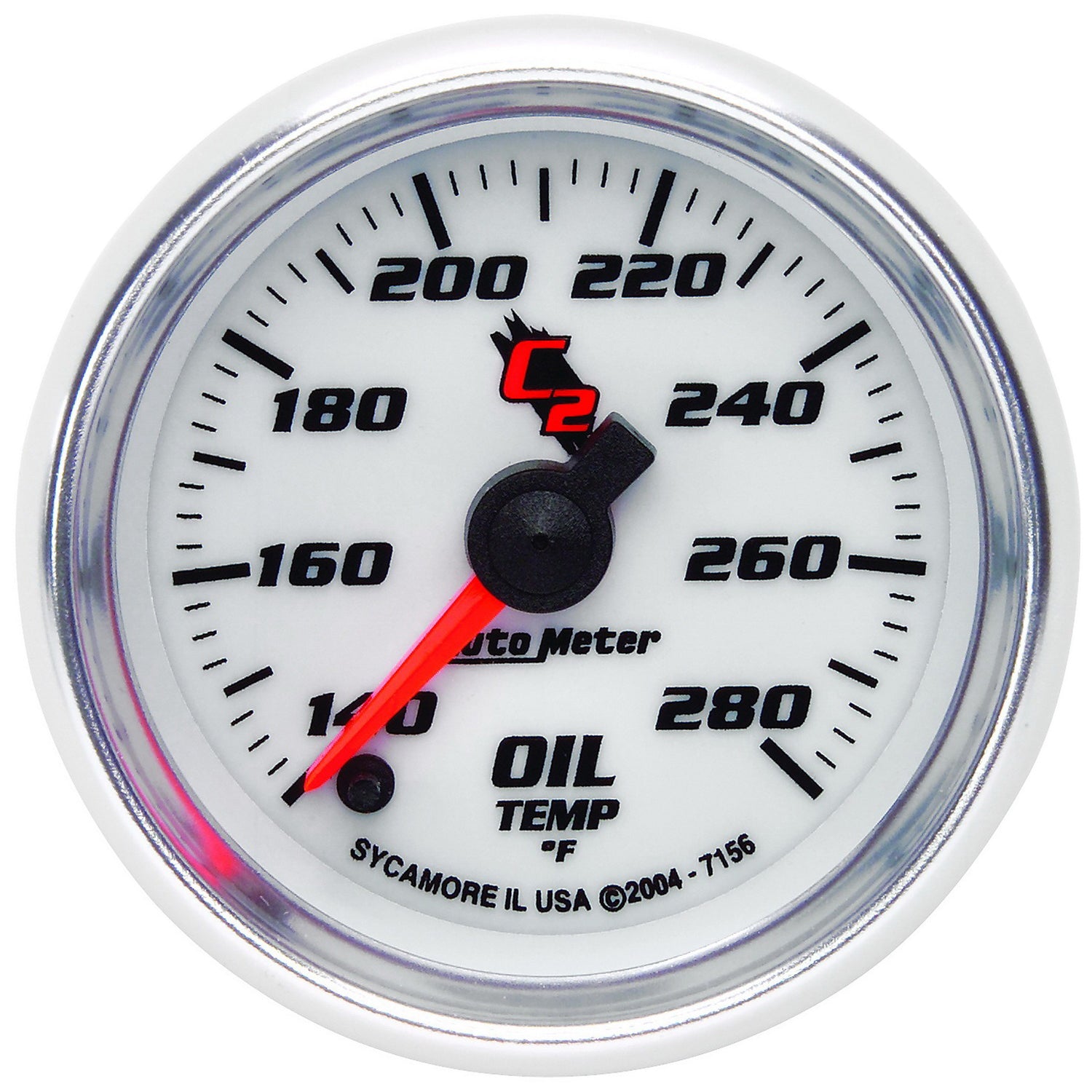

AutoMeter 7156 Engine Oil Temperature Gauge
Product Availability Request
Fill the form and our team will contact you.
2-1/16" OIL TEMPERATURE, 140-280 F, C2
One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Using AutoMeter’s advanced 1/8” NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.
Features

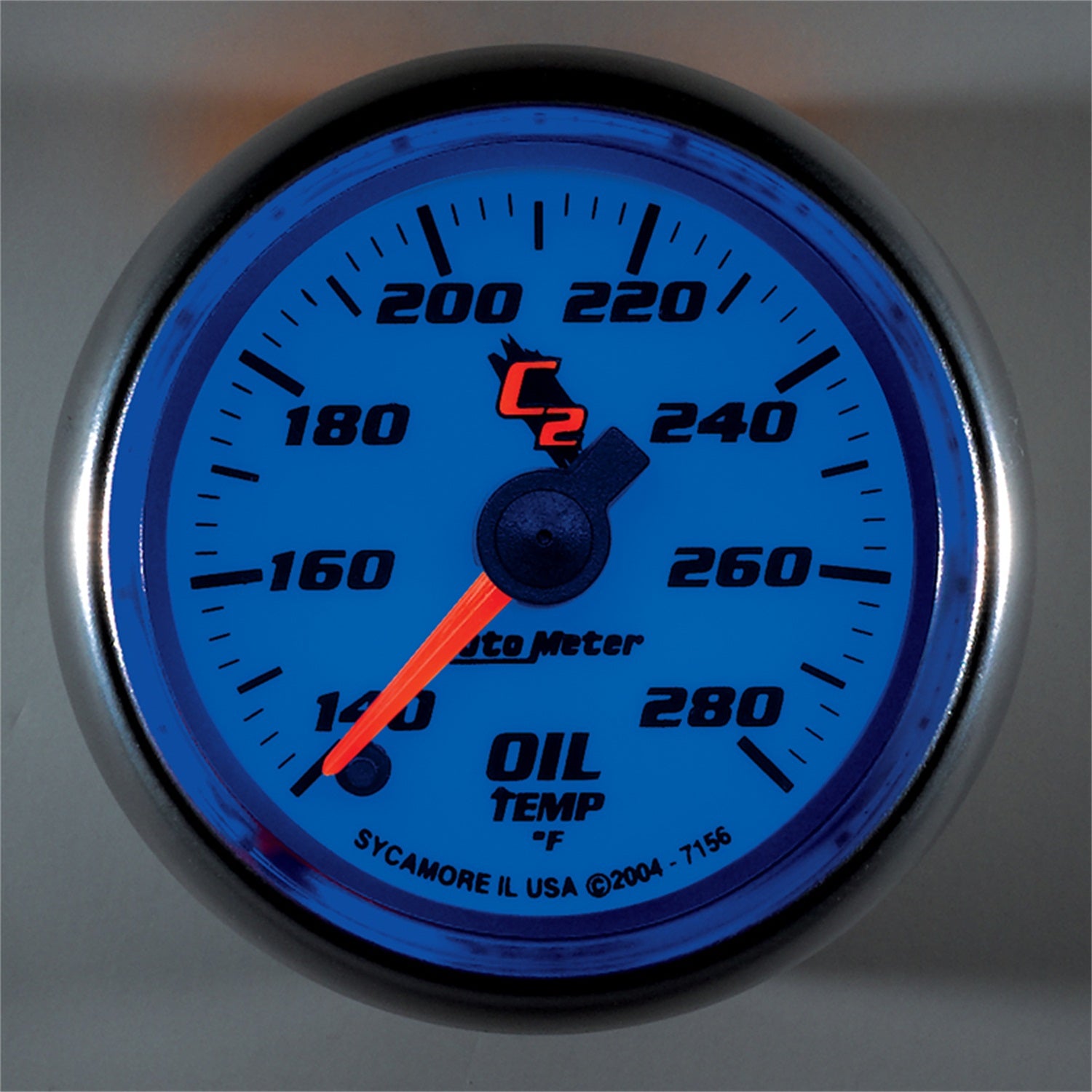

- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Includes Mounting Hardware | 2230 |

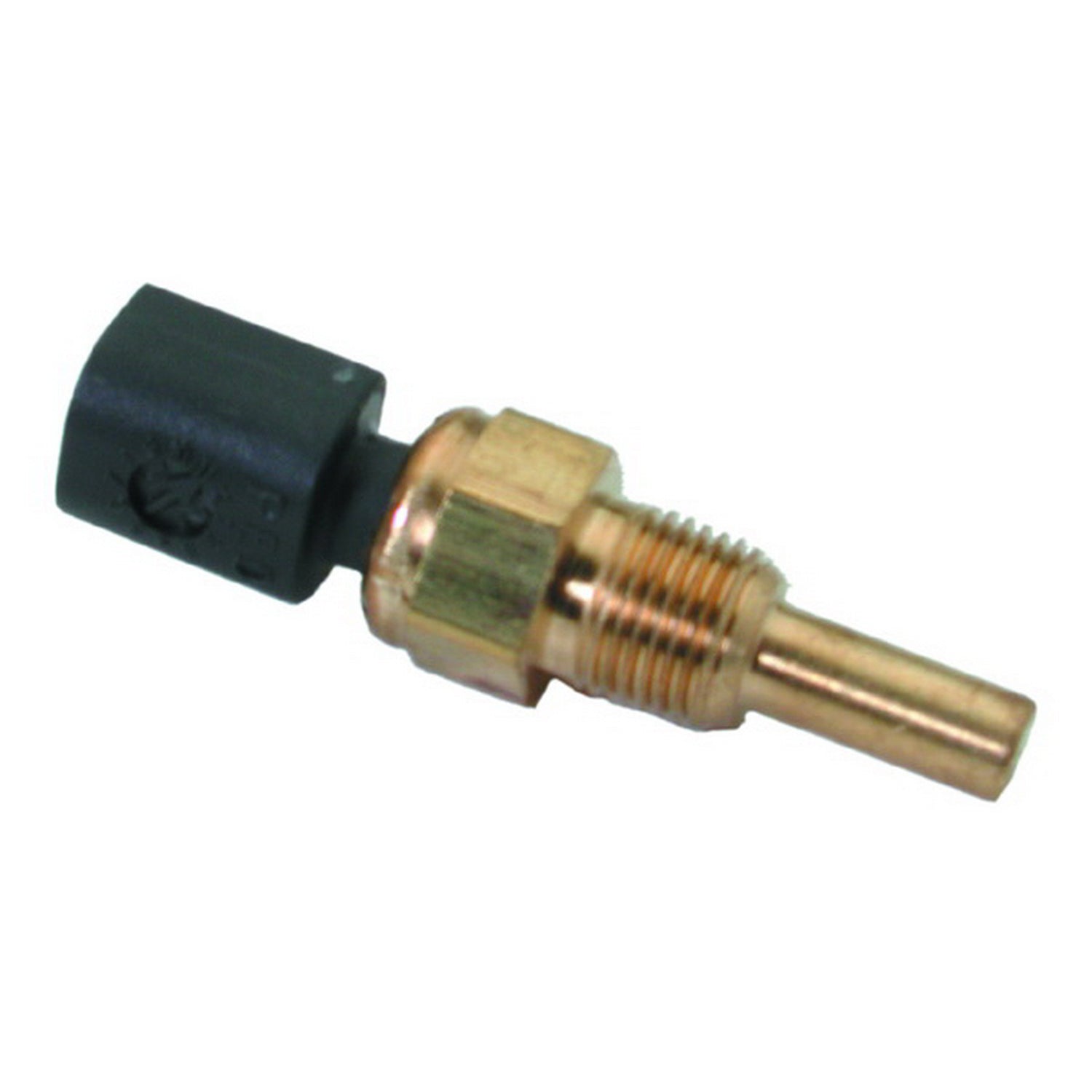

| Includes Sensor Unit | 2252 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |

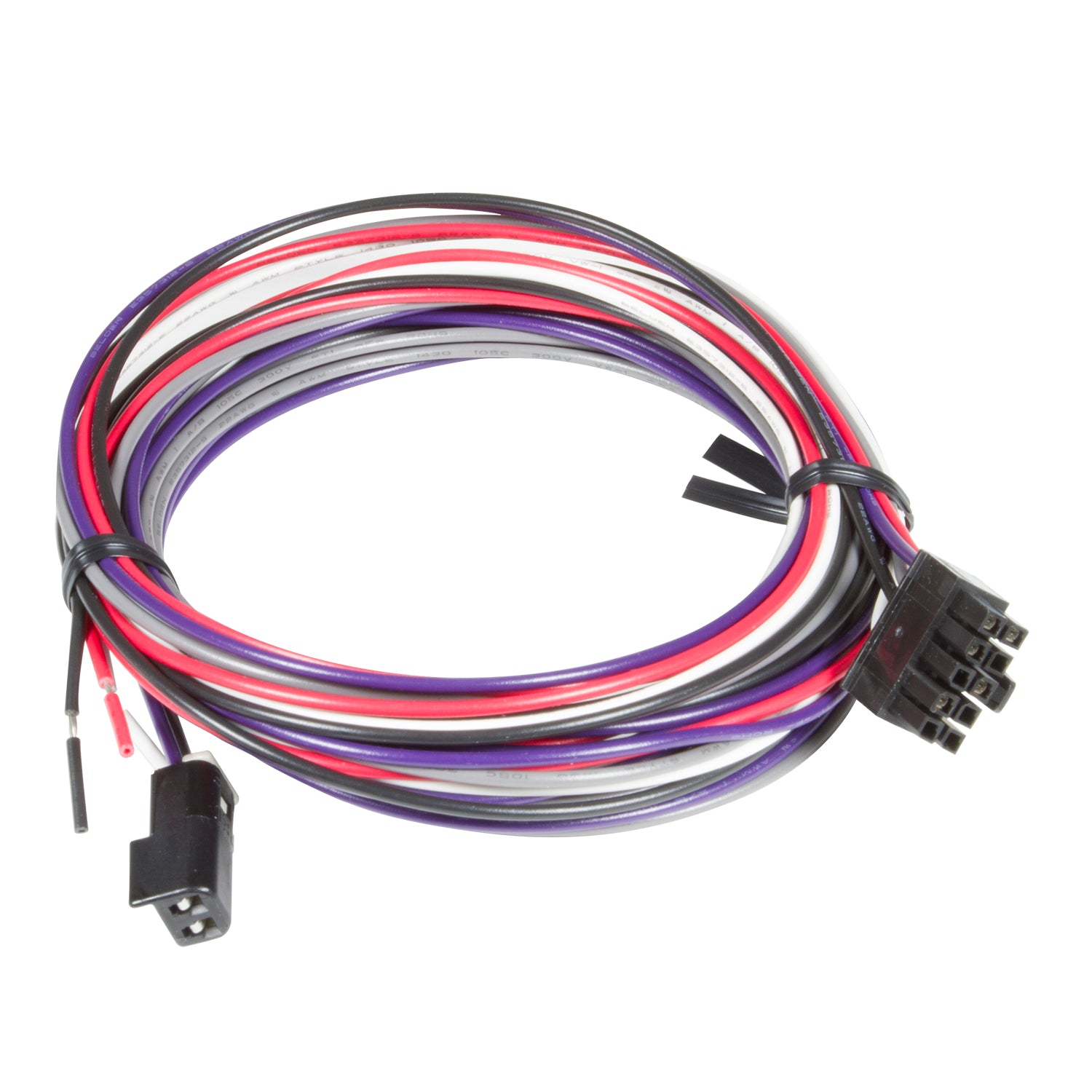

| Includes Wire Harness | 5226 |
| Cross Sell | 9114, 2268, 2266, 2267, 7153, 7155 |
| Upsell | 9114, 2268, 2266, 2267, 7153, 7155 |
| Lighting Color | Blue |
| Bezel Color | Bright Anodized |
| Series | C2 |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Gauge Type | Oil Temperature |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Range | 140-280 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
Short Description: GA 2" OILT STEPPR C2
Invoice Description: 2" OIL TEMP, 140-280`F, FSE, C2
Definition: Engine Oil Temperature Gauge
Installation Guide: Download PDF
