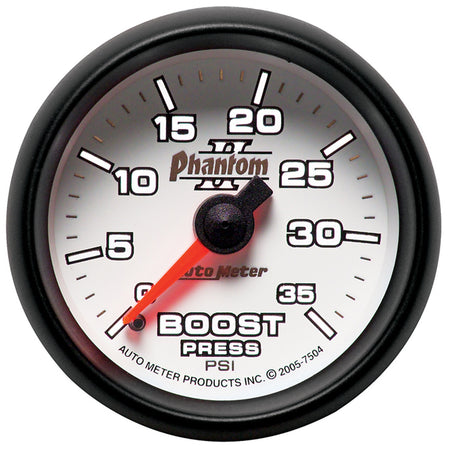

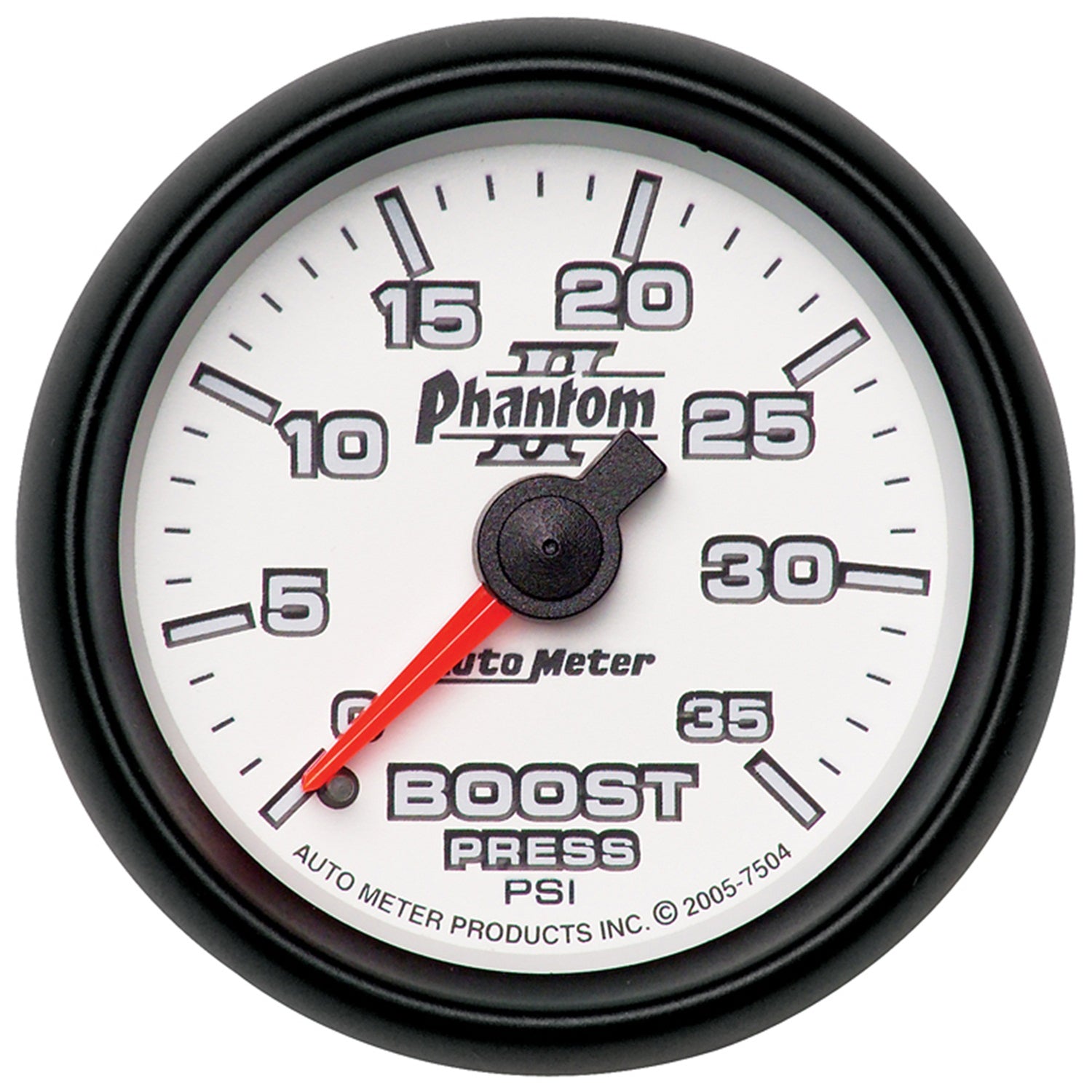

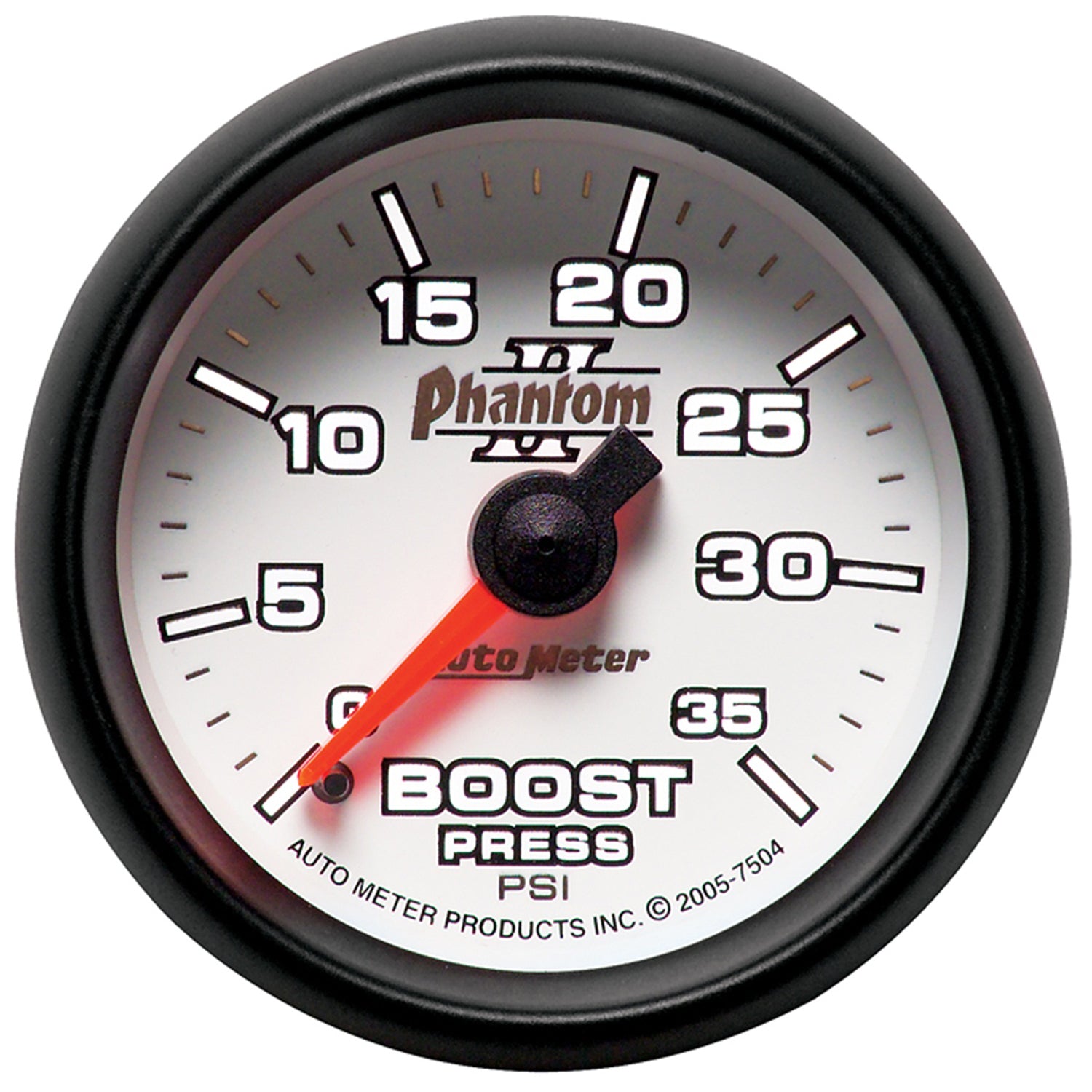

AutoMeter 7504 - GAUGE, BOOST, 2 1/16", 35PSI, MECHANICAL, PHANTOM II
Product Availability Request
Fill the form and our team will contact you.
2-1/16" BOOST, 0-35 PSI, PHANTOM II
Mechanical boost gauges have become the staple in boost pressure monitoring for all types of engines, gasoline, diesel, or otherwise. Ultra-precise bourdon tube meter movement ensures accuracy and durability not seen anywhere else in the industry. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Features
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, 1/8” NPT compression fittings, 1/4” NPT adapter, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-35 PSI |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Cross Sell | 3224, 3227, 3228, 3229, 3226 |
| Upsell | 3224, 3227, 3228, 3229, 3226 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Black |
| Gauge Type | Boost |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Movement | Mechanical |
| Series | PHANTOM II |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White |
Short Description: 2-1/16" BOOST
Invoice Description: 2-1/16" BOOST, 0-35 PSI, MECH
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
