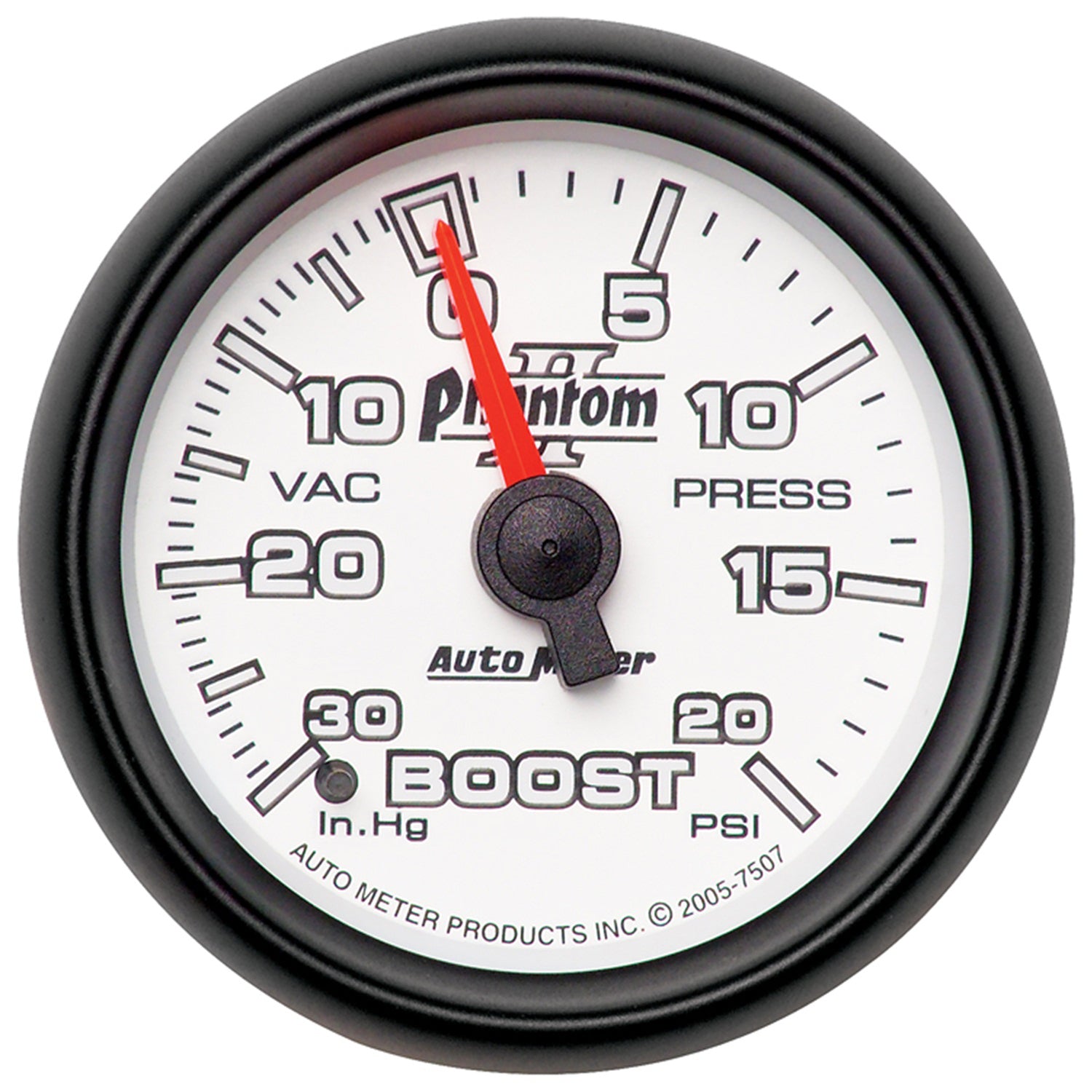

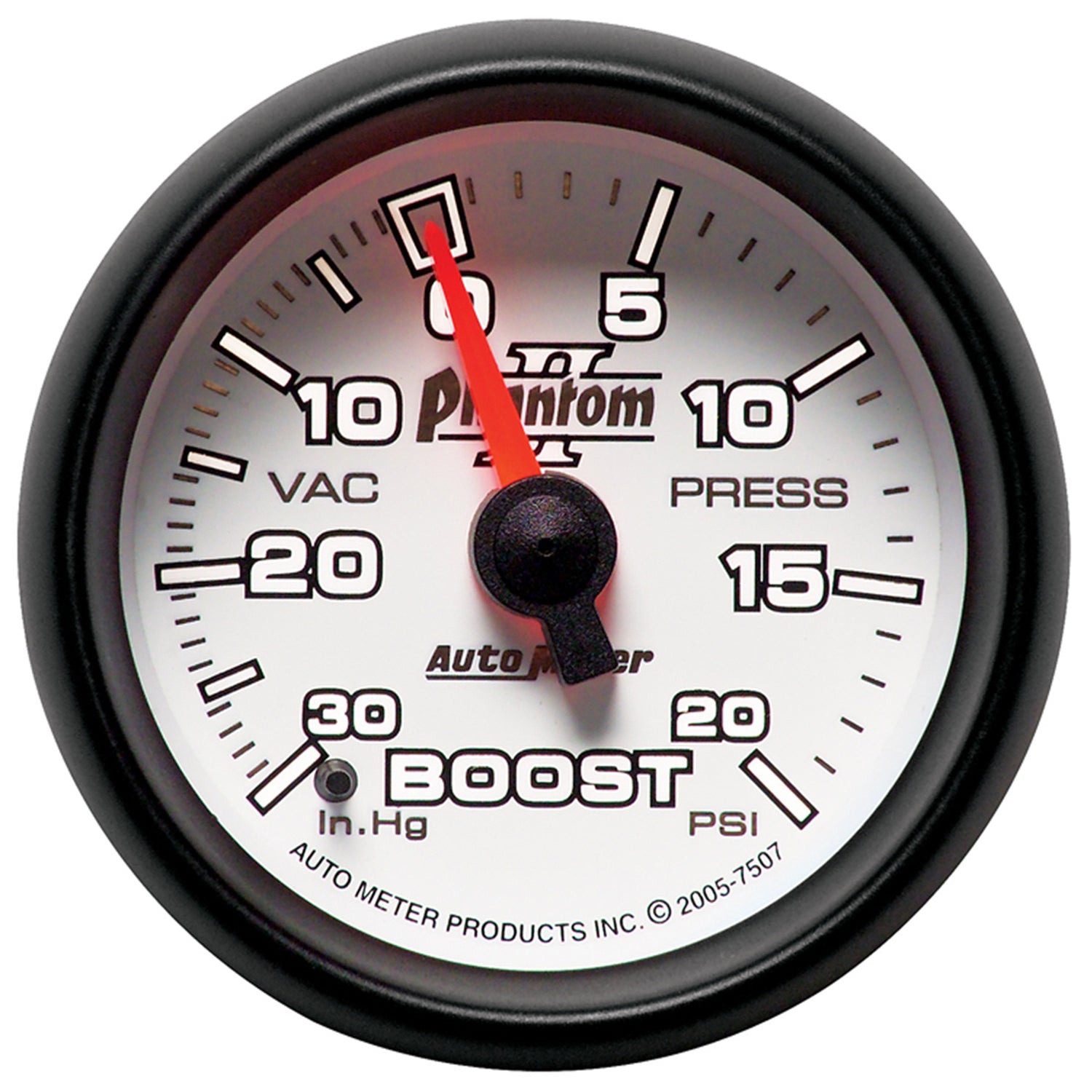

AutoMeter 7507 - GAUGE, VAC/BOOST, 2 1/16", 30INHG-20PSI, MECHANICAL, PHANTOM II
Product Availability Request
Fill the form and our team will contact you.
2-1/16" BOOST/VACUUM, 30 IN HG/20 PSI, PHANTOM II
The standard in the industry, AutoMeter’s Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Includes 1/8” NPT fittings and nylon line kit.
Features
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, mounting hardware, and detailed instructions for installation
- Mechanical movements provide accuracy and durability even in the harshest environments
Specifications
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Range | 30 IN HG/20 PSI |
| Cross Sell | 3224, 3227, 3228, 3229, 3226 |
| Upsell | 3224, 3227, 3228, 3229, 3226 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Black |
| Gauge Type | Boost/Vacuum |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Movement | Mechanical |
| Series | PHANTOM II |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White |
Short Description: 2-1/16" BOOST-VAC
Invoice Description: 2-1/16" BOOST-VAC, 30 IN HG/20 PSI, MECH
Definition: Boost Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
