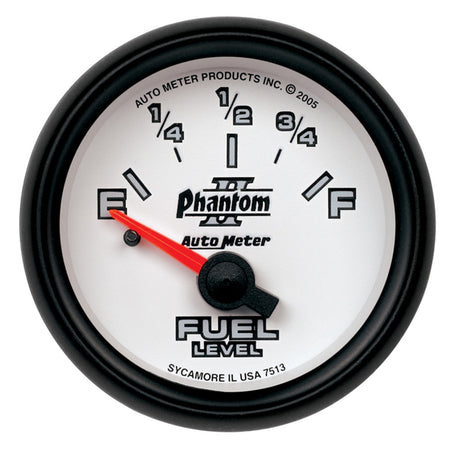

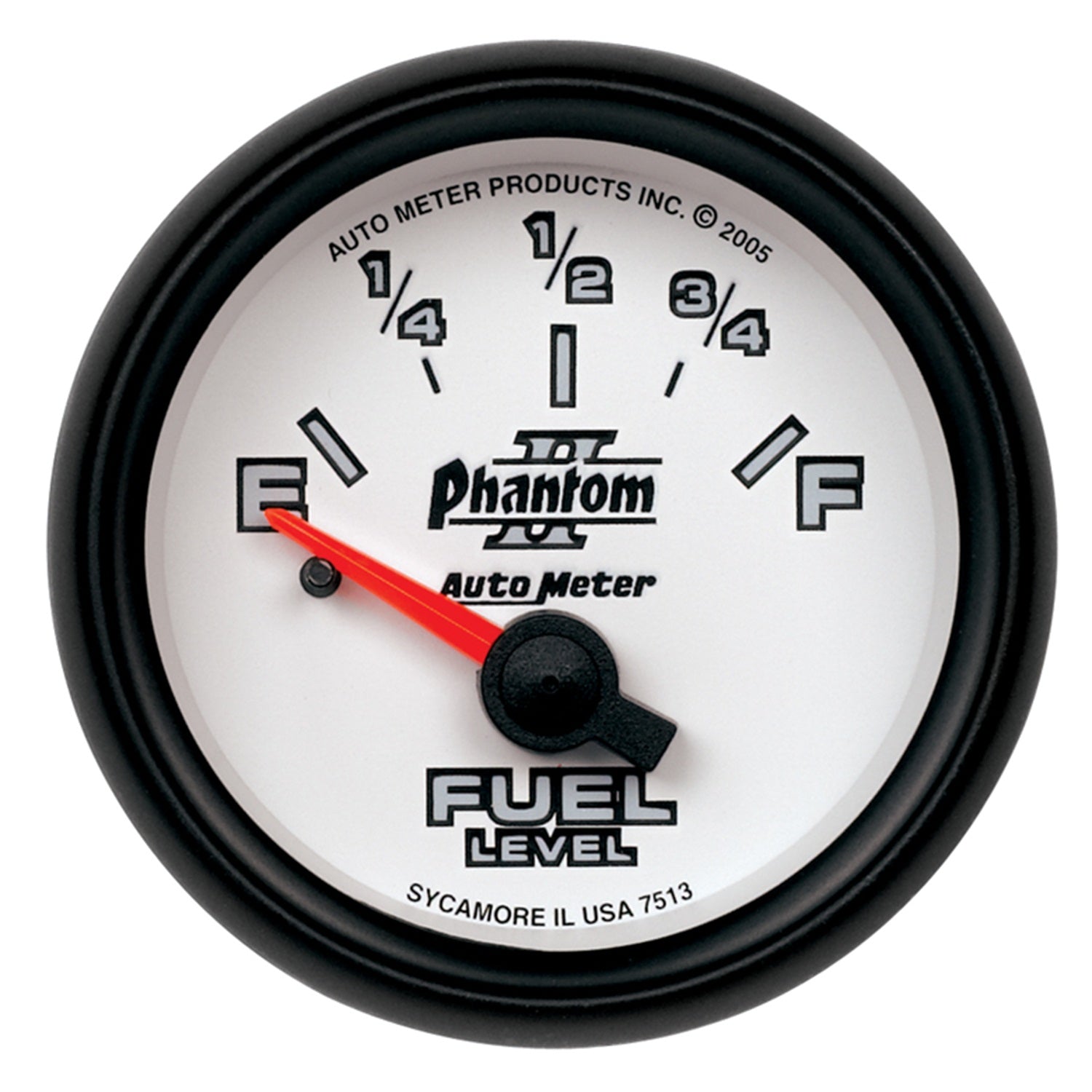

AutoMeter 7513 - GAUGE, FUEL LEVEL, 2 1/16", 0OE TO 90OF, ELEC, PHANTOM II
Product Availability Request
Fill the form and our team will contact you.
2-1/16" FUEL LEVEL, 0-90 Ohm, SSE, GM
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
Features

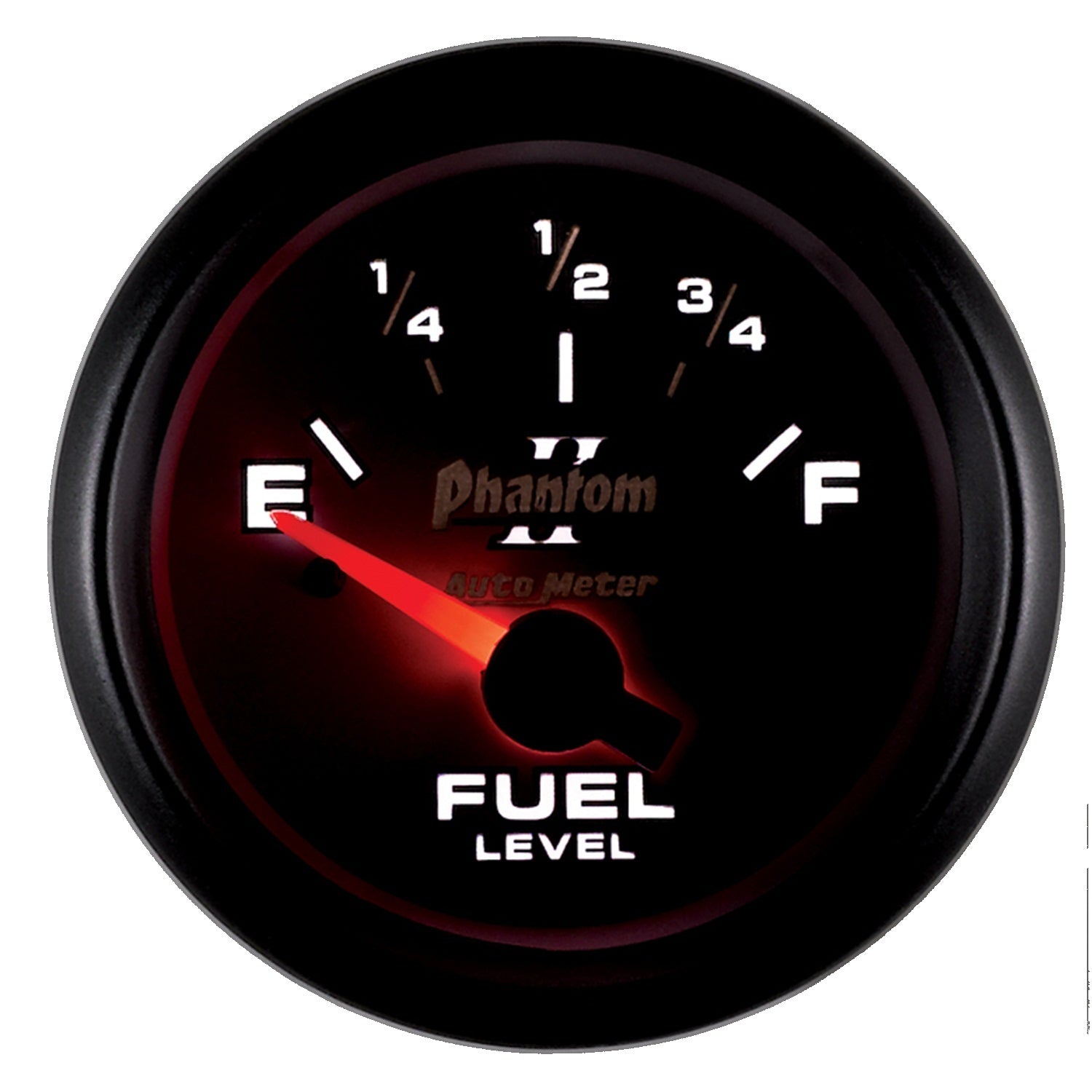

- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- User definable resistance setting programmable anywhere between 0-280 ohms
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Specifications
| Range | 0 O Empty / 90 O Full |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Cross Sell | 9114 |
| Upsell | 9114 |
| Bezel Color | Black |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Gauge Type | Fuel Level |
| Lighting Type | LED |
| Series | PHANTOM II |
| Bezel Style | Super Bezel |
| Dial Color | White |
| Lighting Color | White |
Short Description: 2-1/16" FUEL LEVEL
Invoice Description: 2-1/16" FUEL LEVEL, 0-90 OHMS, SSE, GM
Definition: Fuel Level Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
