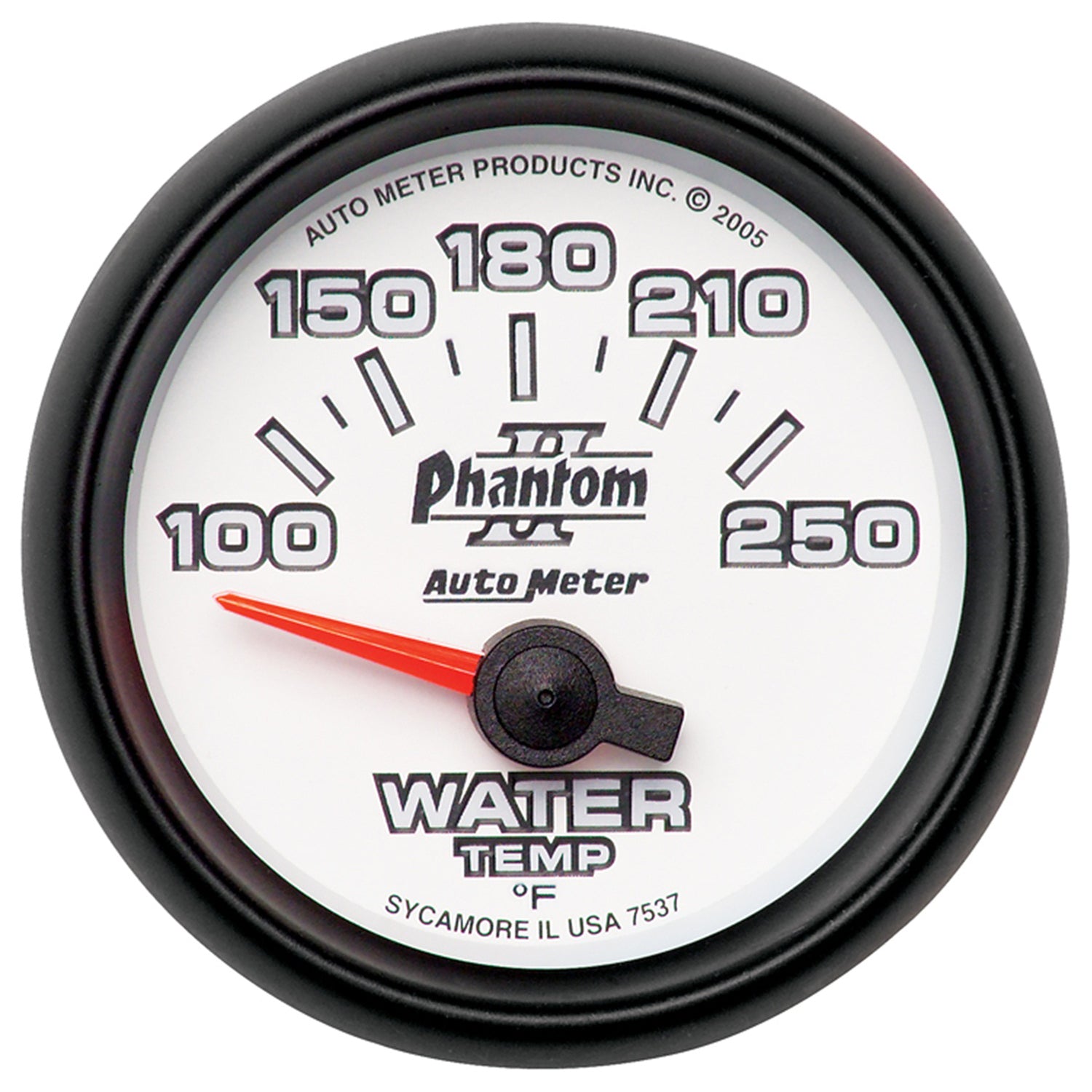

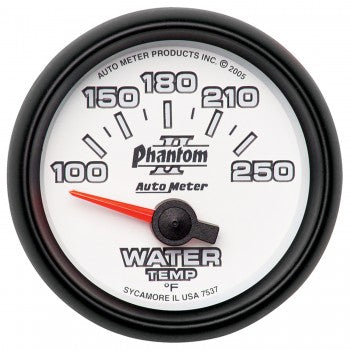

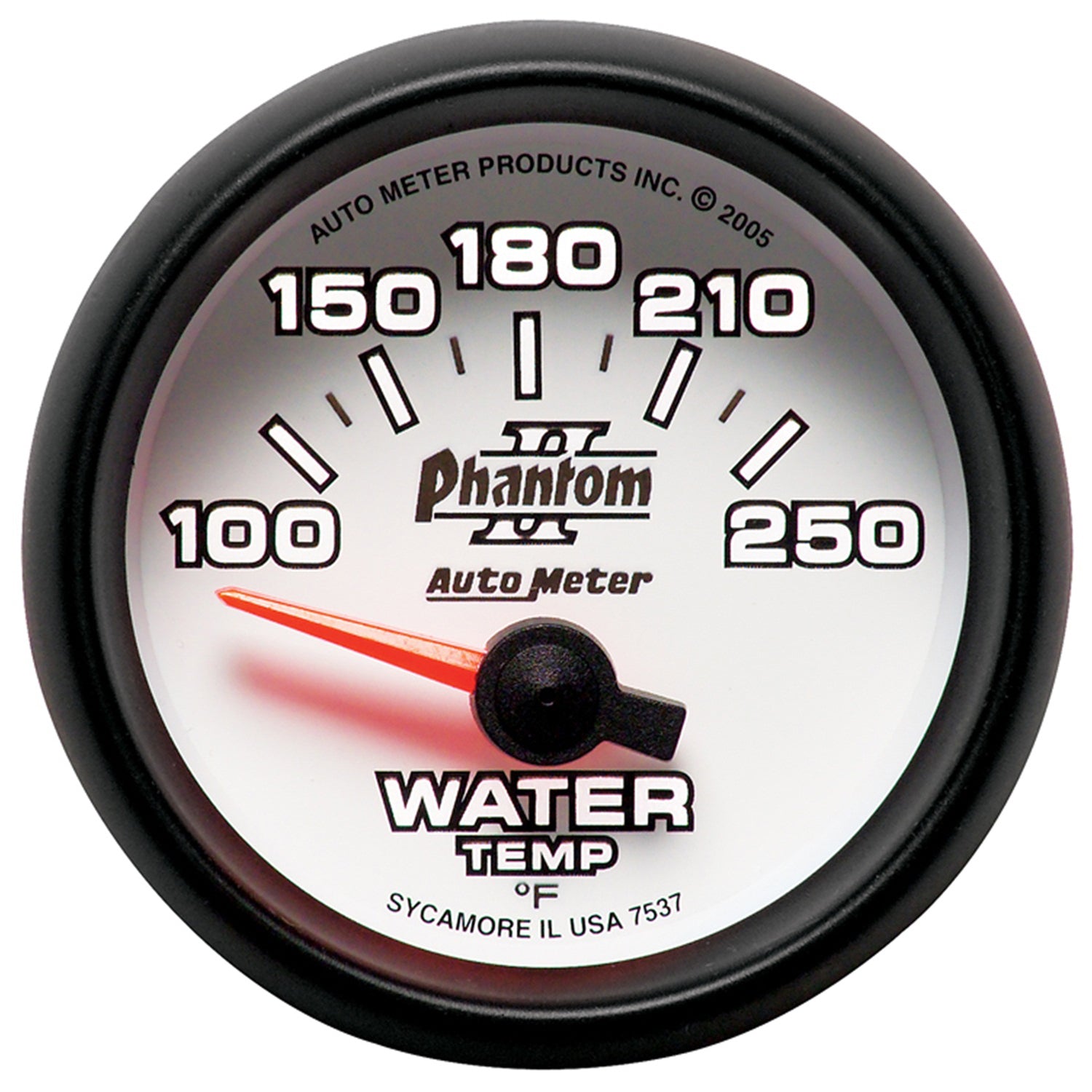

AutoMeter 7537 - GAUGE, WATER TEMP, 2 1/16", 100-250?F, ELECTRIC, PHANTOM II
Product Availability Request
Fill the form and our team will contact you.
2-1/16" WATER TEMPERATURE, 100-250 F, PHANTOM II
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.
Features
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 100-250 °F |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2258 |
| Cross Sell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Upsell | 2277, 2278, 2280, 2281, 2282, 2283 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Bezel Color | Black |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Series | PHANTOM II |
| Bezel Style | Super Bezel |
| Gauge Type | Water Temperature |
| Dial Color | White |
| Lighting Color | White |
Short Description: 2-1/16" WATER TEMP
Invoice Description: 2-1/16" WATER TEMP, 100- 250`F, SSE
Definition: Engine Coolant Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
