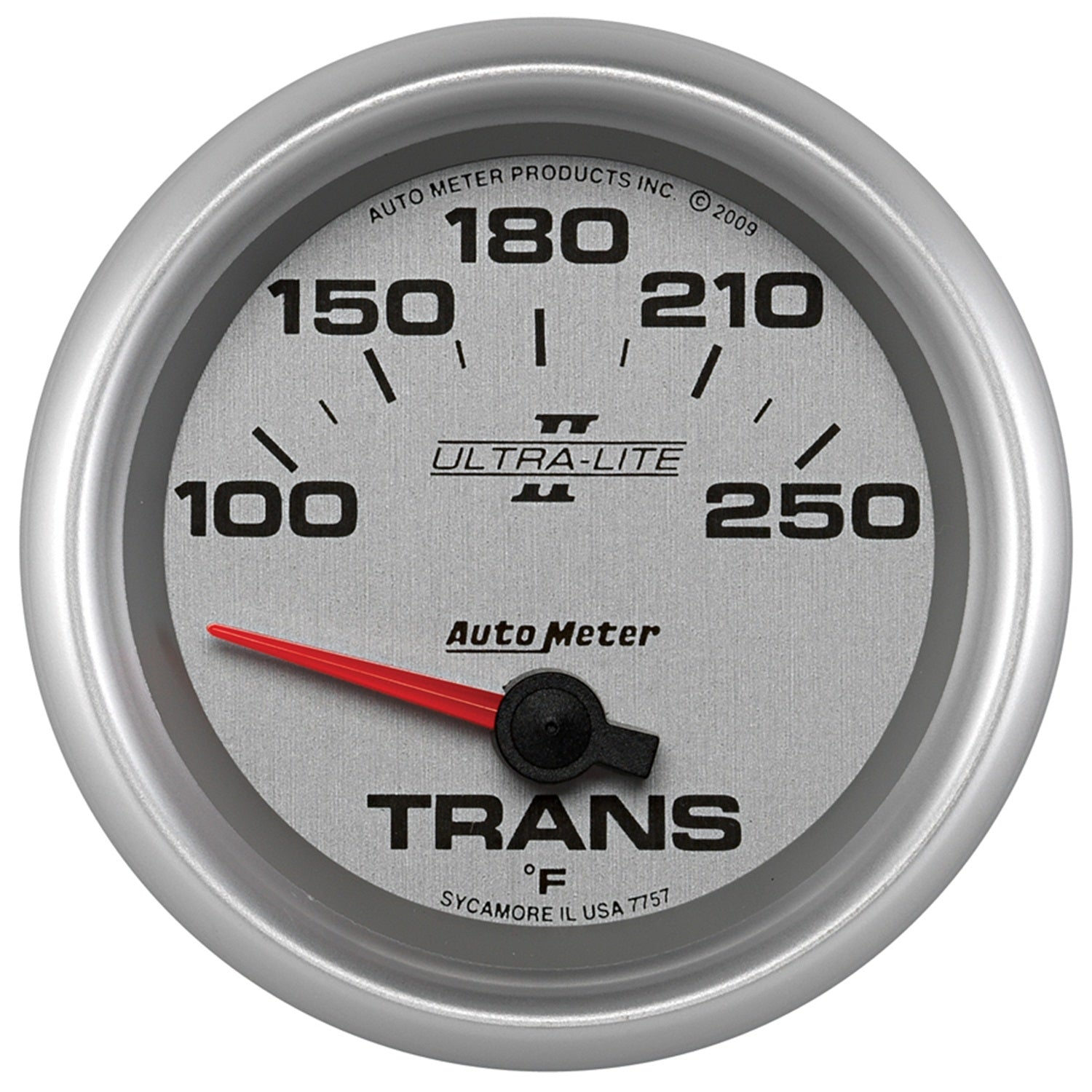

AutoMeter 7757 - GAUGE, TRANSMISSION TEMP, 2 5/8", 100-250?F, ELECTRIC, ULTRA-LITE II
Product Availability Request
Fill the form and our team will contact you.
2-5/8" TRANSMISSION TEMPERATURE, 100-250 F, ULTRA-LITE II
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
Features
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
- AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
Specifications
| Range | 100-250 °F |
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter | 2-7/8" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Sensor Unit | 2258 |
| Cross Sell | 2259, 2260, 2286, 2287, 9114 |
| Upsell | 2259, 2260, 2286, 2287, 9114 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Includes Mounting Hardware | 3245 |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Size - Metric - MM | 66.7mm MM |
| Bezel Color | Brushed Aluminum |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Gauge Type | Transmission Temperature |
| Series | ULTRA-LITE II |
| Lighting Color | White |
Short Description: 2-5/8" TRANS TEMP
Invoice Description: 2-5/8" TRANS TEMP, 100- 250`F, SSE
Definition: Automatic Transmission Oil Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
