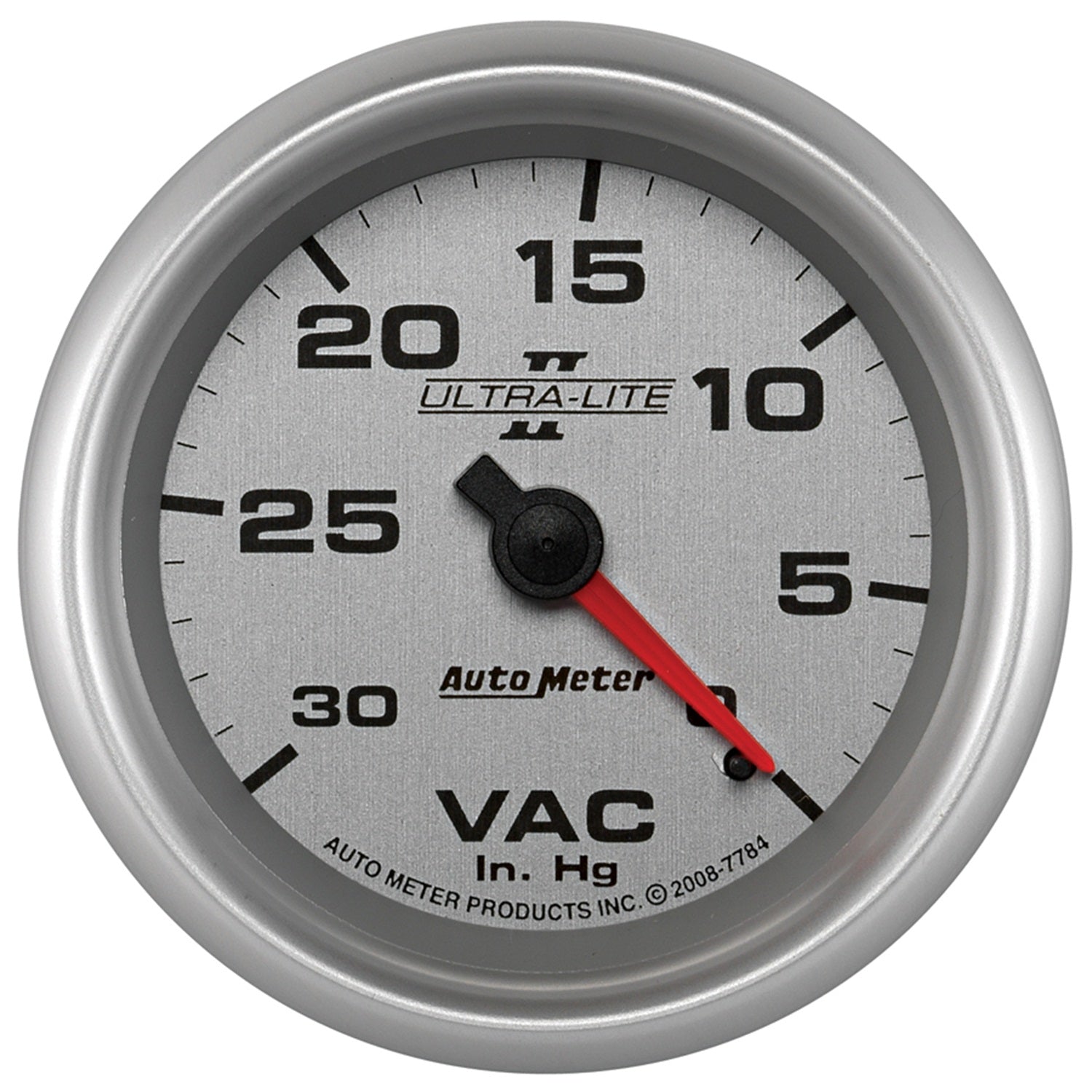

AutoMeter 7784 - GAUGE, VACUUM, 2 5/8", 30INHG, MECHANICAL, ULTRA-LITE II
Product Availability Request
Fill the form and our team will contact you.
2-5/8" VACUUM, 0-30 IN HG, ULTRA-LITE II
Whether tuning your vehicle for maximum performance or monitoring your driving for maximum fuel economy, AutoMeter’s Mechanical Vacuum Gauge has been the solution trusted by professionals for years. An ultra precise bourdon tube meter movement sits at the heart of this instrument, providing the kind of accuracy and durability necessary to compete at the highest levels. A simple 1/8” NPT fitting on the back makes installation easy, and 1/8” nylon line and fittings are included.
Features
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
- No electrical system required for gauge operation - compatible with every street or race vehicle
- Mechanical movements provide accuracy and durability even in the harshest environments
- Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, mounting hardware, and detailed instructions for installation
Specifications
| Range | 0-30 IN HG |
| Includes Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting |
| Includes Tubing | 10 ft. nylon tubing |
| Cup/Hole Size - Standard - IN | 2-5/8" IN |
| Outer Bezel Diameter - Standard | 2-5/8" IN |
| Size - Standard - IN | 2-5/8" IN |
| Bezel Color | Brushed Aluminum |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Movement | Mechanical |
| Dial Color | Silver |
| Bezel Style | Super Bezel |
| Series | ULTRA-LITE II |
| Gauge Type | Vacuum |
| Lighting Color | White |
| Size - Metric - MM | 66.7mm MM |
| Cup/Hole Size - Metric - MM | 66.7mm MM |
| Includes Mounting Hardware | 3245 |
| Upsell | 3224, 3227, 3228, 3229, 3226 |
| Cross Sell | 3224, 3227, 3228, 3229, 3226 |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Outer Bezel Diameter | 2-7/8" IN |
Short Description: 2-5/8" VACUUM
Invoice Description: 2-5/8" VACUUM, 30 IN. HG MECH, UL II
Definition: Vacuum Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
