AutoMeter 8100 Gauge Set
Product Availability Request
Fill the form and our team will contact you.

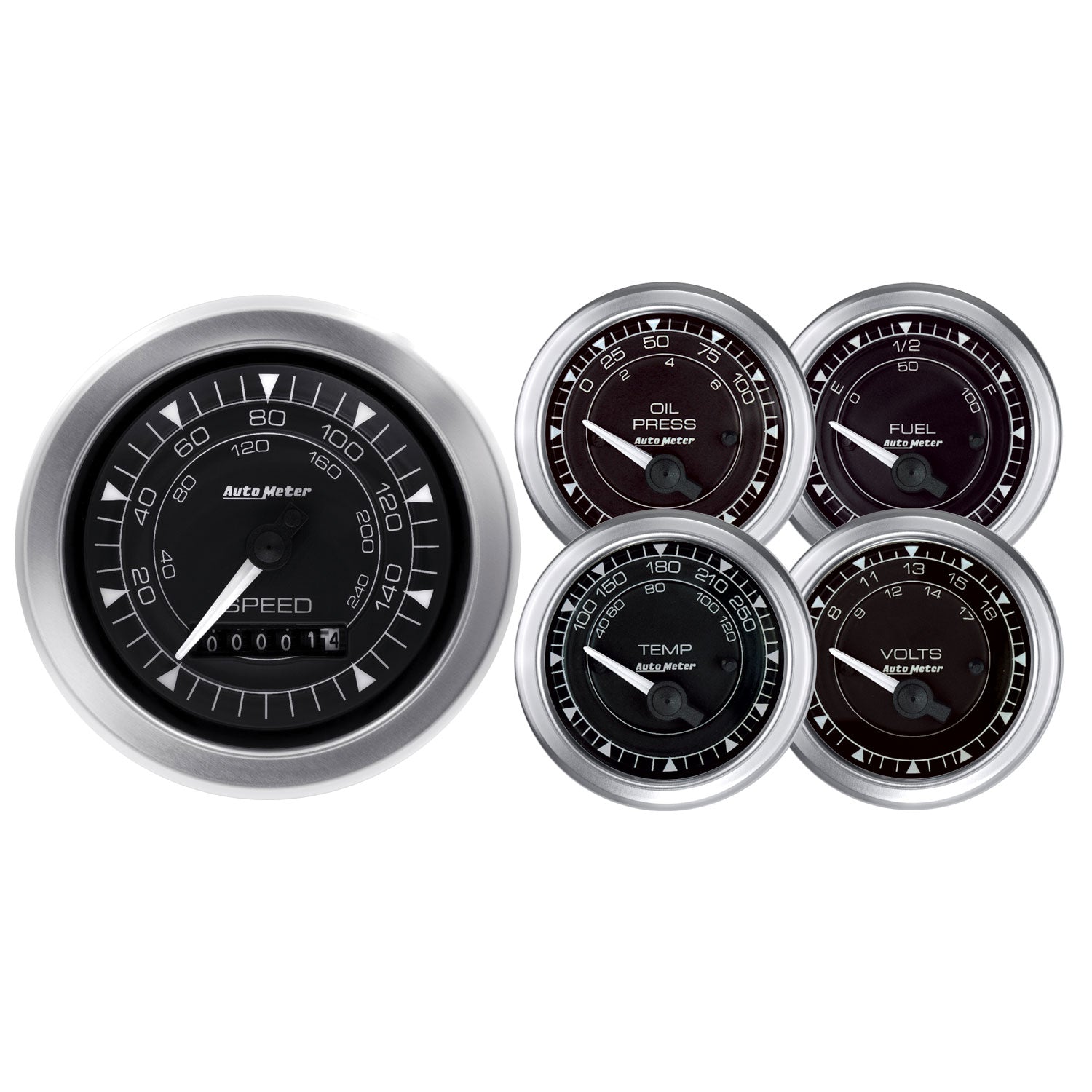

5 PC. GAUGE KIT, 3-3/8" & 2-1/16", ELEC. SPEEDOMETER, CHRONO
This five gauge kit is the latest addition to the Chrono series. This convenient, all-in-one kit includes an electric speedometer, fuel, oil, water, and volt gauges with a unique three-dimensional dial design that gives added depth and style to your custom dash.
Features
- Convenient and cost-effective kit includes short sweep electric fuel level, oil pressure, water temperature, and volt gauges with full sweep electric speedometer
- Unique three-dimensional beveled dials with modern white LED illumination and flush mounted windows
- Kit includes 2-wire GM style VSS, as well as sending units for fuel level (240E/33F), oil pressure, water temperature, and sending unit adapters (1/4", 3/8β, and 1/2" NPT adapters)
- AutoMeterβs race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers
Specifications
| Range | 160 MPH/100 PSI/100-250 Β°F/8-18V/240OE-33OF |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Cross Sell | 2198, 8197, 9114, 5284, 5289 |
| Upsell | 2198, 8197, 9114, 5284, 5289 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Gauge Type | 5 Piece Kit |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Dial Color | Black |
| Includes Mounting Hardware | Brackets Included |
| Bezel Color | Bright Anodized |
| Bezel Style | Stack |
| Lighting Color | White |
| Pointer Color | White |
| Series | CHRONO |
| Movement | Electric, Air-Core |
| Lens Style | Flat, Clear |
| Includes Sensor Unit | Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor |
| Lighting Type | LED |
Short Description: CHRONO 5 PC. KIT BOX
Definition: Gauge Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
