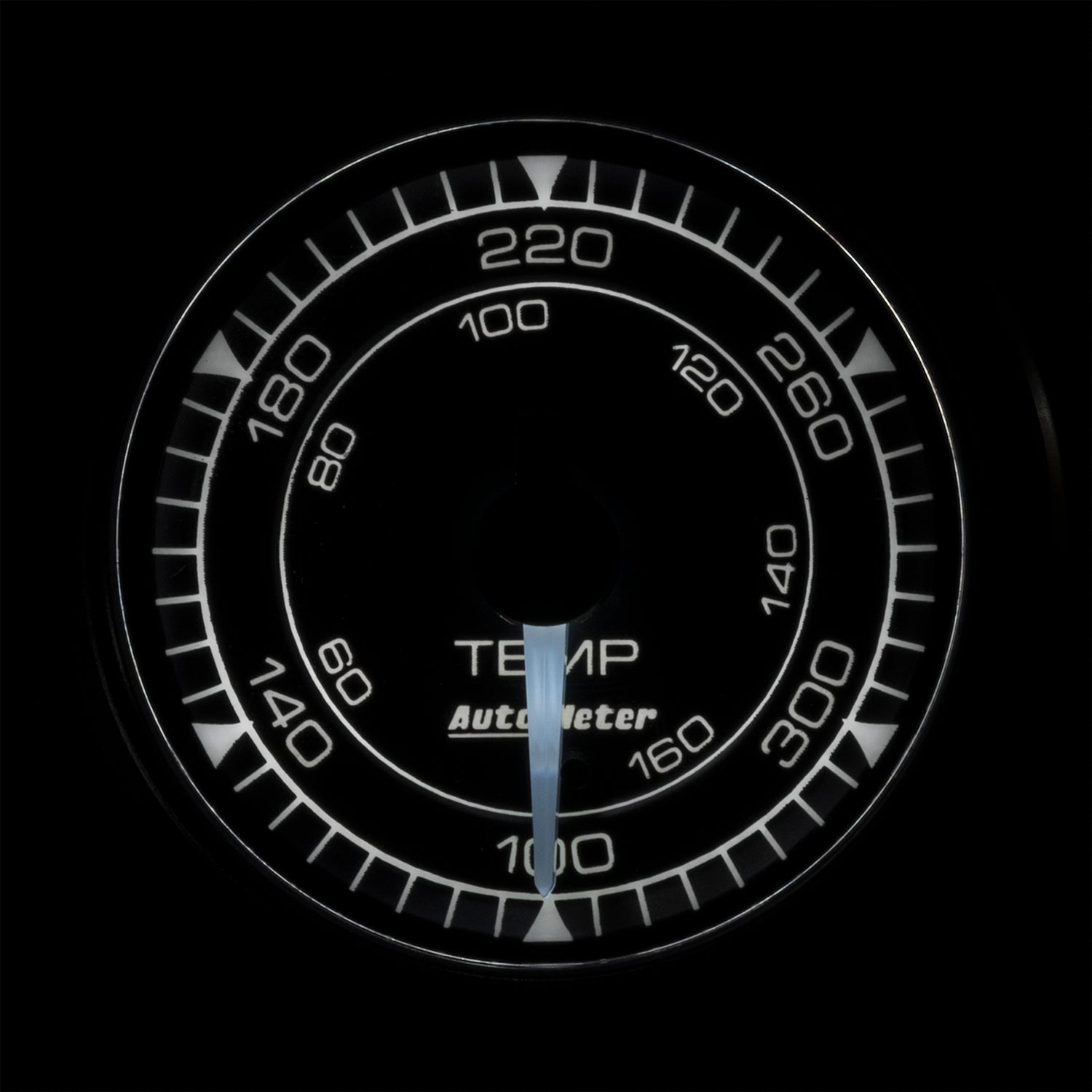

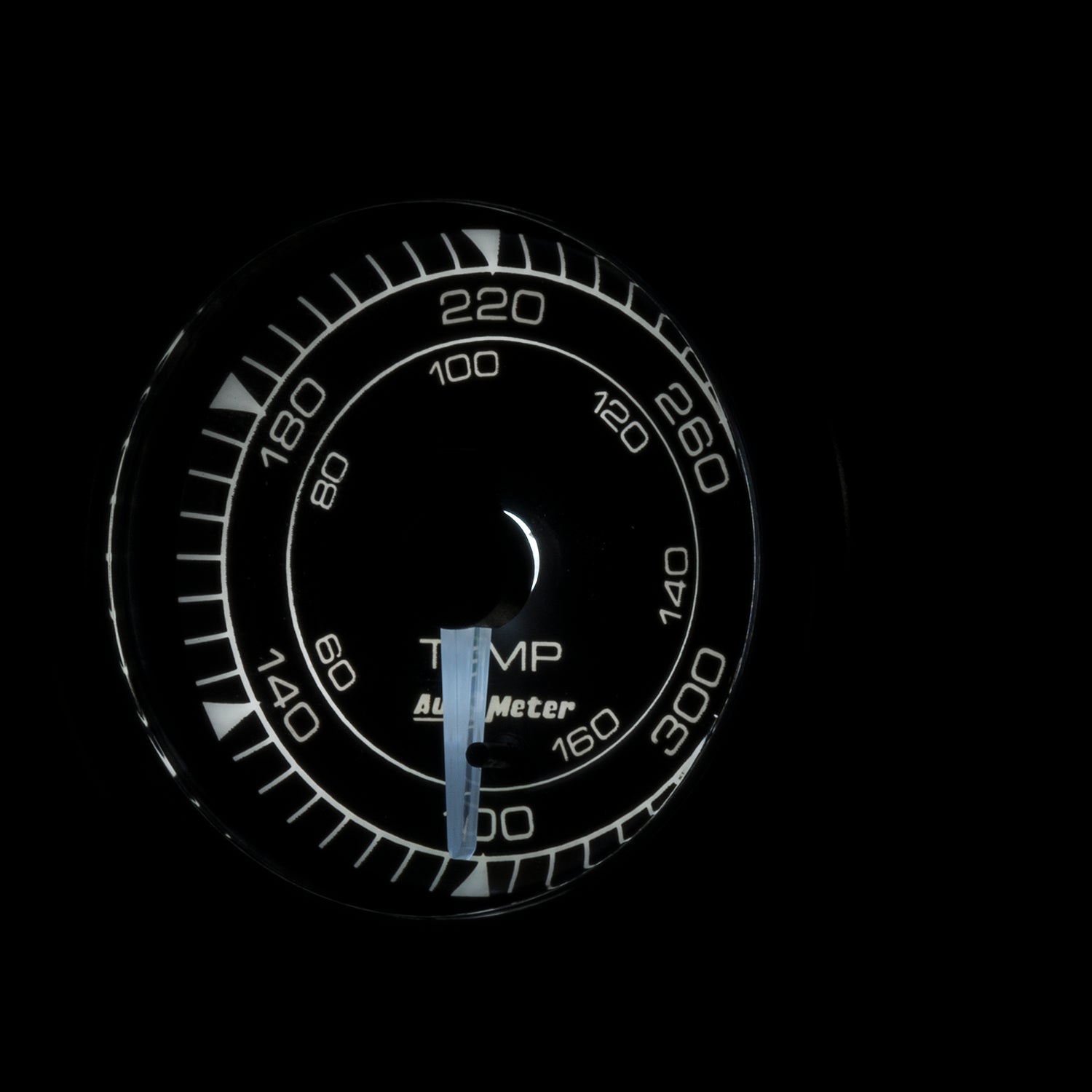

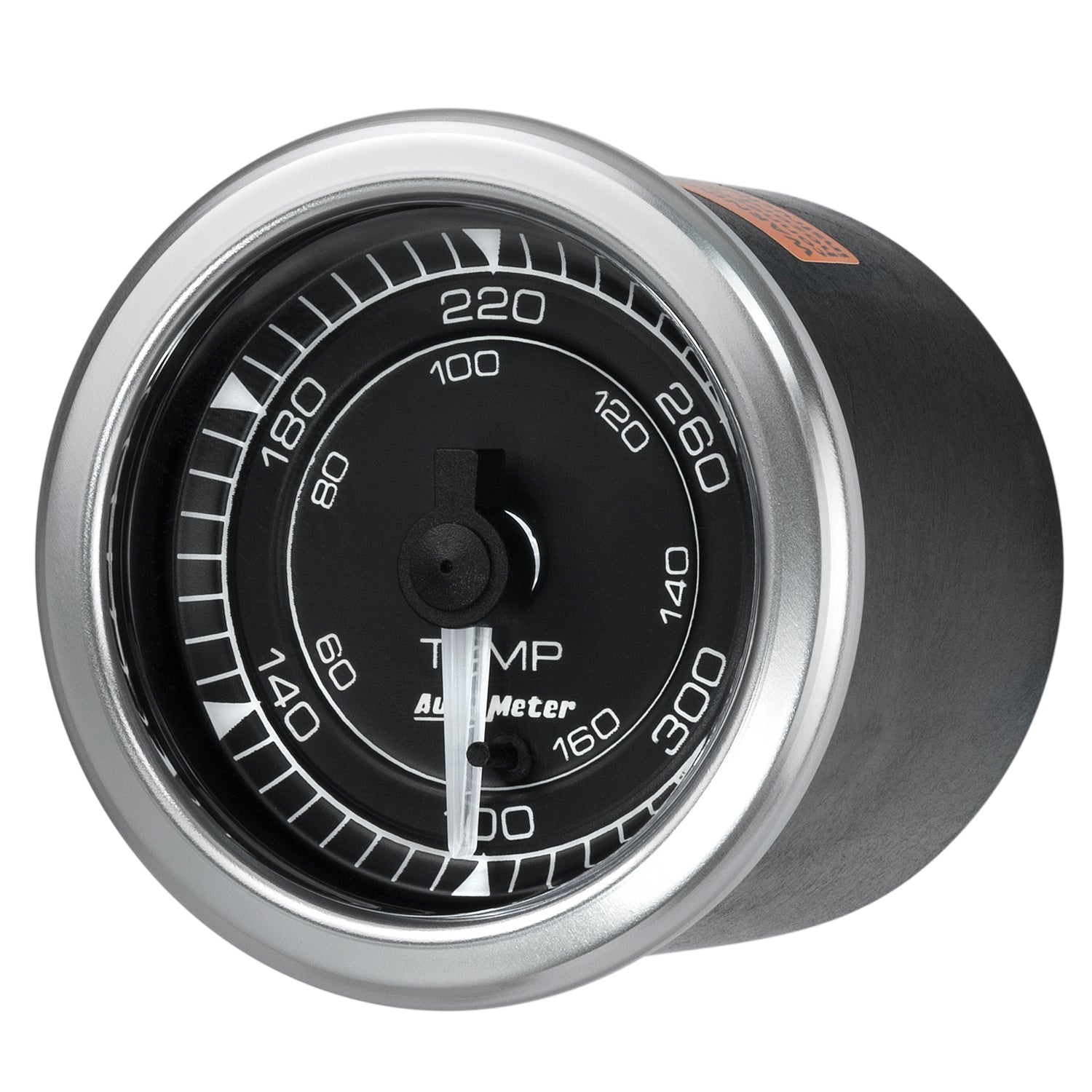

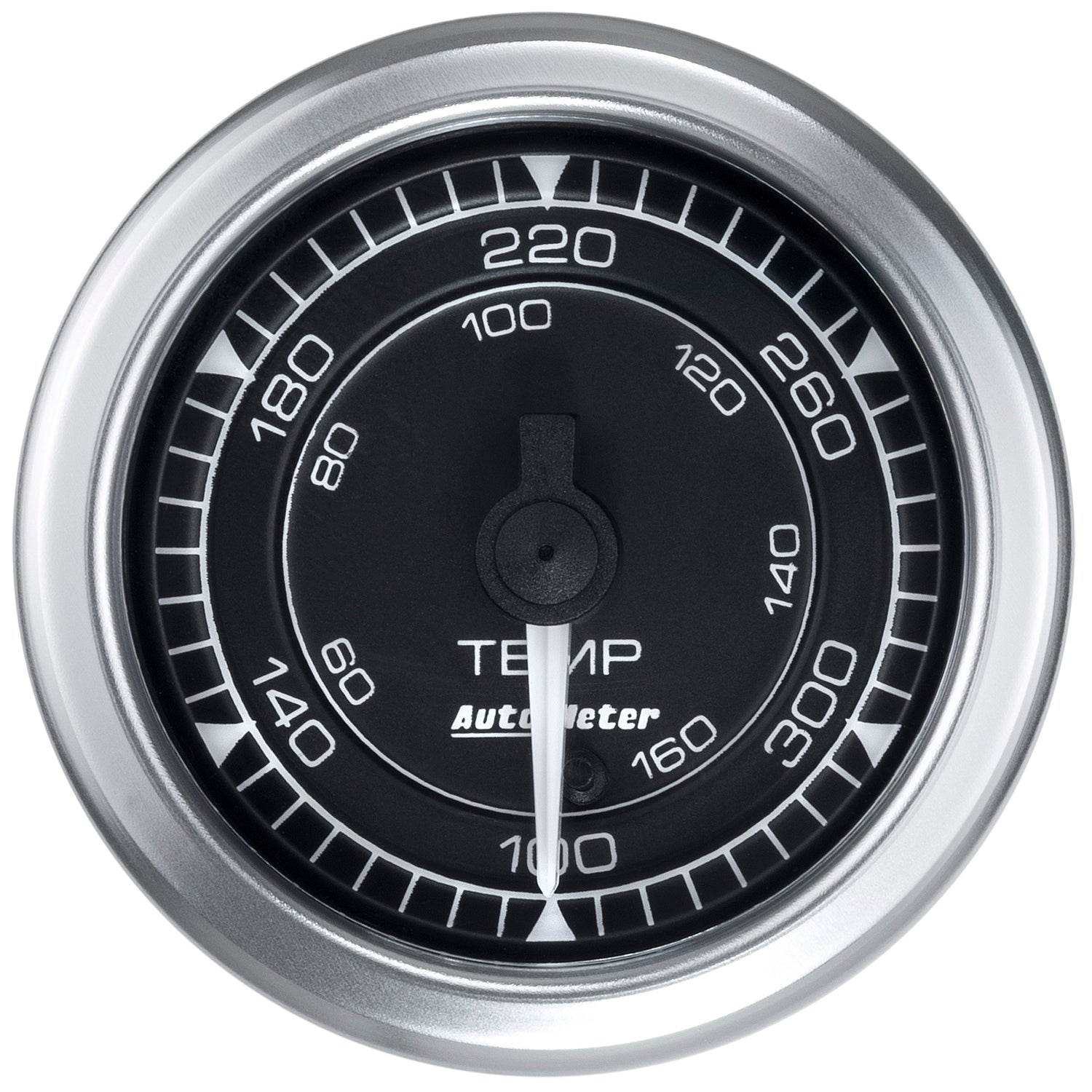

AutoMeter 8140 Engine Oil Temperature Gauge
Product Availability Request
Fill the form and our team will contact you.
2-1/16" TEMPERATURE 140-380ºF DIGITAL STEPPER MOTOR CHRONO
Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Features
- Unique three dimensional dial design gives added depth and style to your custom dash
- Over 320º of pointer movement adds dial scale and resolution, providing the most accurate reading in an analog dial
- Features metric and imperial scalings for easily relatable readings on applications around the world without the need for mental unit conversions
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Specifications
| Range | 140-380 ºF |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-5000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2252 |
| Cross Sell | 2260, 2286, 2287, 8153, 8154, 8162 |
| Upsell | 2260, 2286, 2287, 8153, 8154, 8162 |
| Includes Adapter/Fitting | 3/8" NPT and 1/2" NPT adapter fittings |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5226 |
| Dial Color | Black |
| Bezel Color | Bright Anodized |
| Series | CHRONO |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Lighting Type | LED |
| Gauge Type | Oil Temperature |
| Bezel Style | Stack |
| Lighting Color | White |
| Pointer Color | White |
Short Description: GA 2" TEMP 340F S CH
Invoice Description: 2-1/16" TEMP, 100-340'F, FSE, CHRONOS
Definition: Engine Oil Temperature Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
