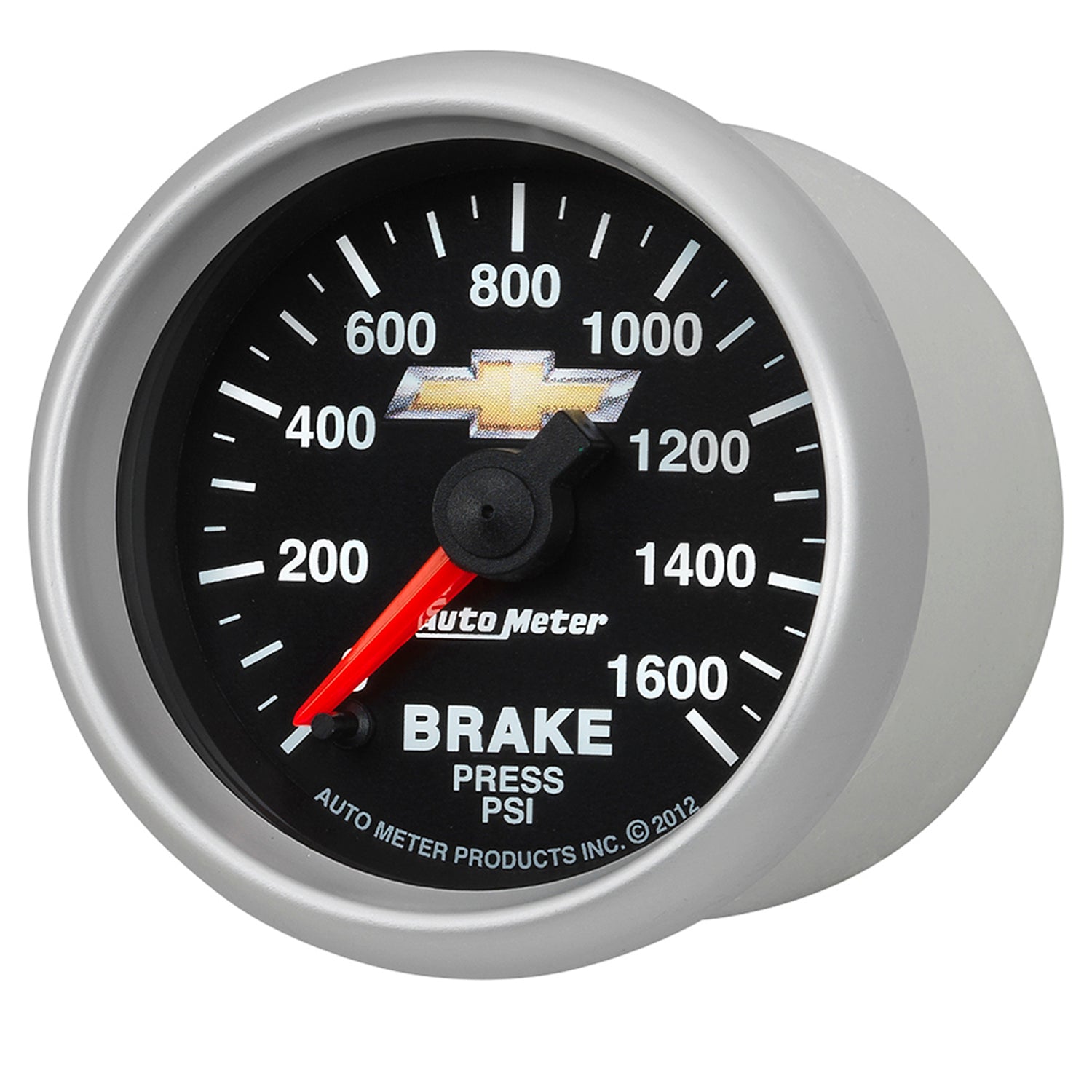

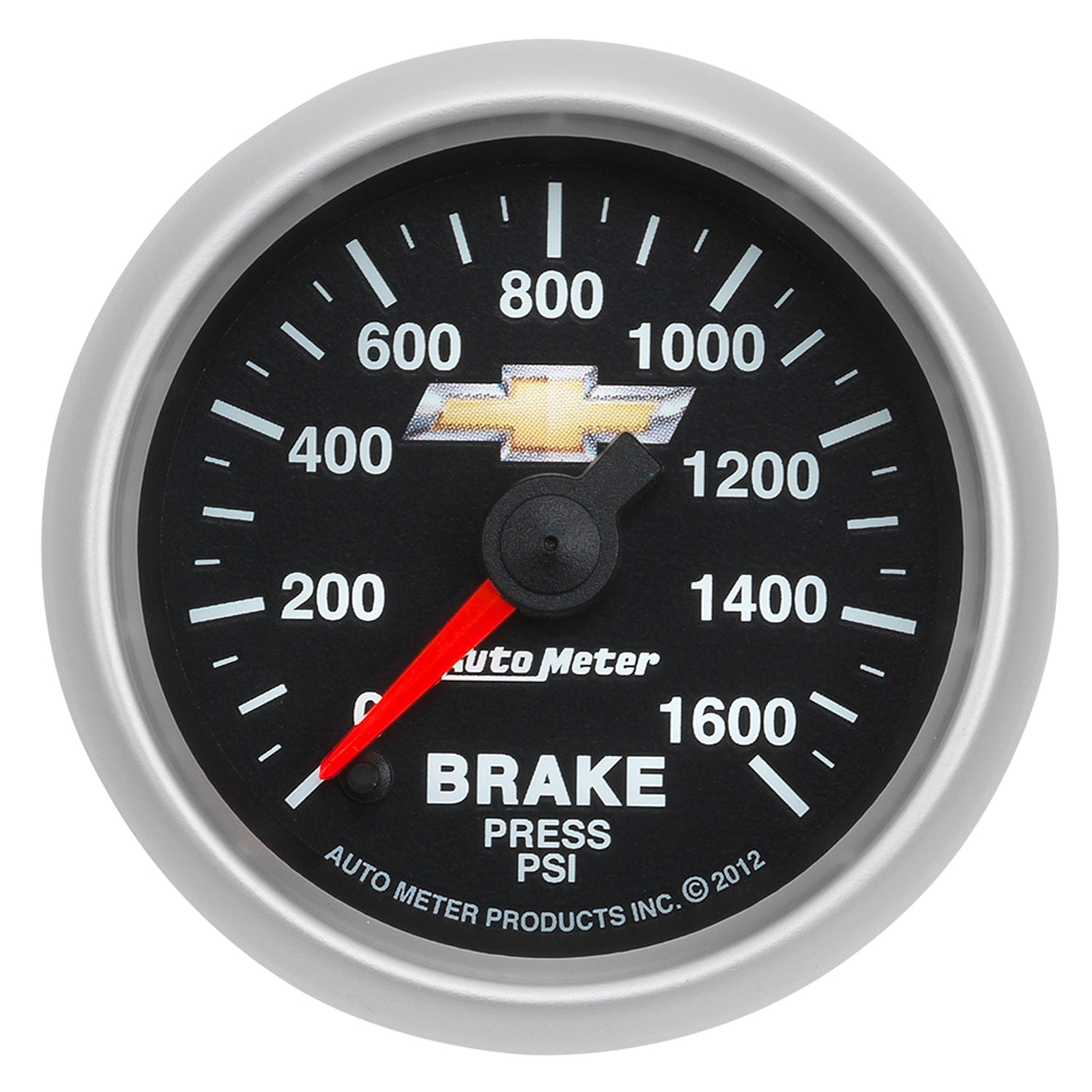

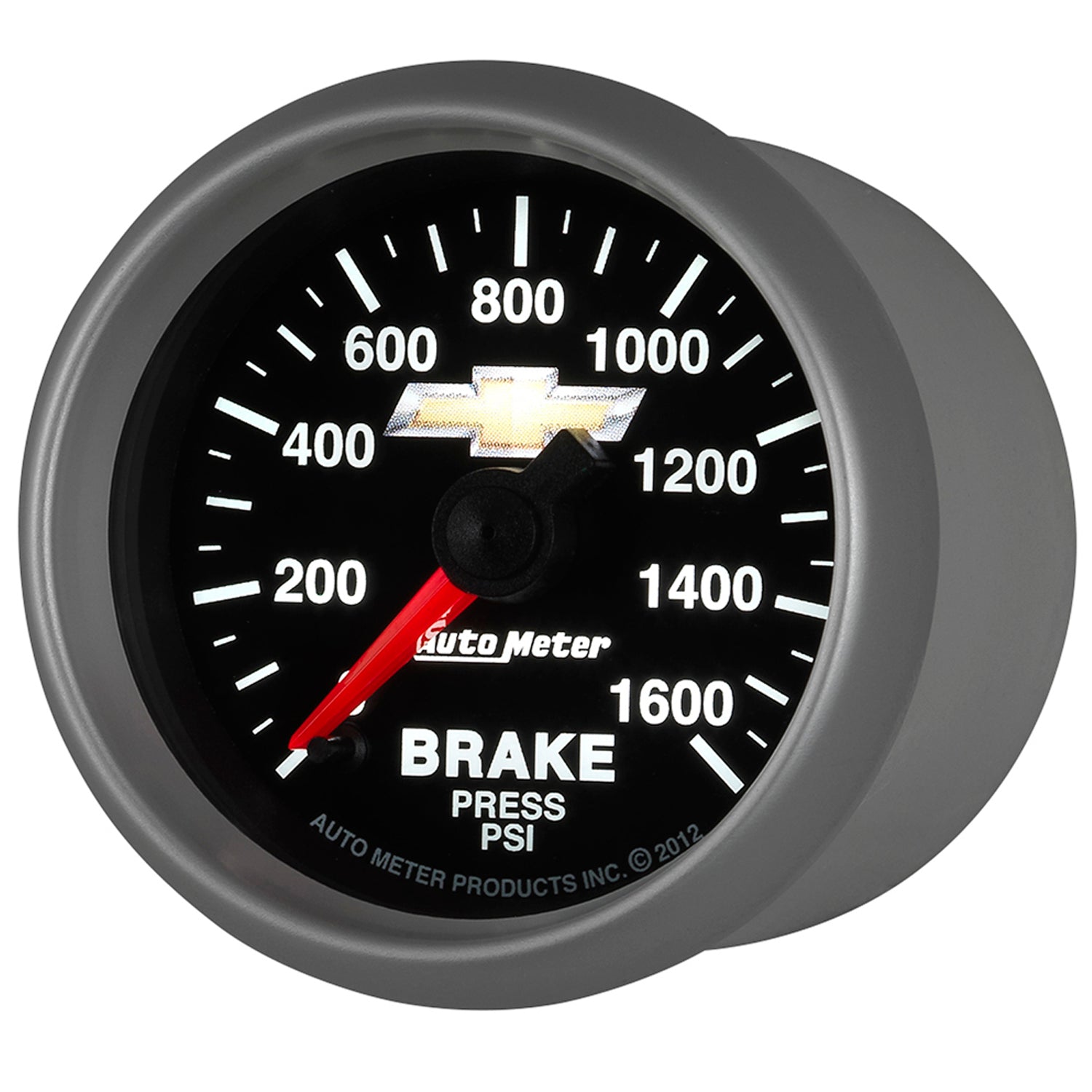

AutoMeter 880450 - GAUGE, BRAKE PRESS, 2 1/16", 1600PSI, DIGITAL STEPPER MOTOR, CHEVY GOLD BOWTIE
Product Availability Request
Fill the form and our team will contact you.
BRAKE PRESS, 2-1/16", 1600PSI, DIGITAL STEPPER MOTOR, CHEVY GOLD BOWTIE
High brake system pressures make this an environment that few gauges are up to the task of handling. AutoMeter’s Digital Stepper Motor Brake Pressure Gauge provides not only the accuracy you expect from a top of the line instrument, but the durability you need under even the most demanding conditions. Includes a highly advanced 1/8” NPT Pressure Transducer and wiring harness for ease of installation. Data Logging is also possible thanks to an analog .5 - 4.5v output.
Features
- Features Hi-Def™ through-the-dial white LED lighting
- Includes 8ft. Wiring Harness
- Includes 1/8" NPT Sender.
- Includes gauge mounting hardware and installation instructions
- Full sweep precision digital stepper motor meter movement
Specifications
| Range | 0-1600 PSI |
| Cup/Hole Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter - Standard | 2-1/16" IN |
| Size - Standard - IN | 2-1/16" IN |
| Outer Bezel Diameter | 2-1/4" IN |
| Related Item | 2160, BEX-3000, EP-800, 0423XL |
| Includes Mounting Hardware | 2230 |
| Includes Sensor Unit | 2246 |
| Cup/Hole Size - Metric - MM | 52.4mm MM |
| Size - Metric - MM | 52.4mm MM |
| Includes Wire Harness | 5227 |
| Cross Sell | 880445, 880446, 880447, 880444, 880448, 880449 |
| Upsell | 880445, 880446, 880447, 880444, 880448, 880449 |
| Dial Color | Black |
| Gauge Type | Brake Pressure |
| Bezel Color | Brushed Aluminum |
| Series | CHEVY GOLD BOWTIE |
| Movement | Electric, Digital Stepper Motor |
| Lens Style | Flat, Clear |
| Pointer Color | Fluorescent Red |
| Lighting Type | LED |
| Bezel Style | Super Bezel |
| Lighting Color | White |
Short Description: GA 2" BRAKEP CV
Invoice Description: 2-1/16" BRAKE PRESS, 0- 1600 PSI, FSE,CV
Definition: Brake Pressure Gauge
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
