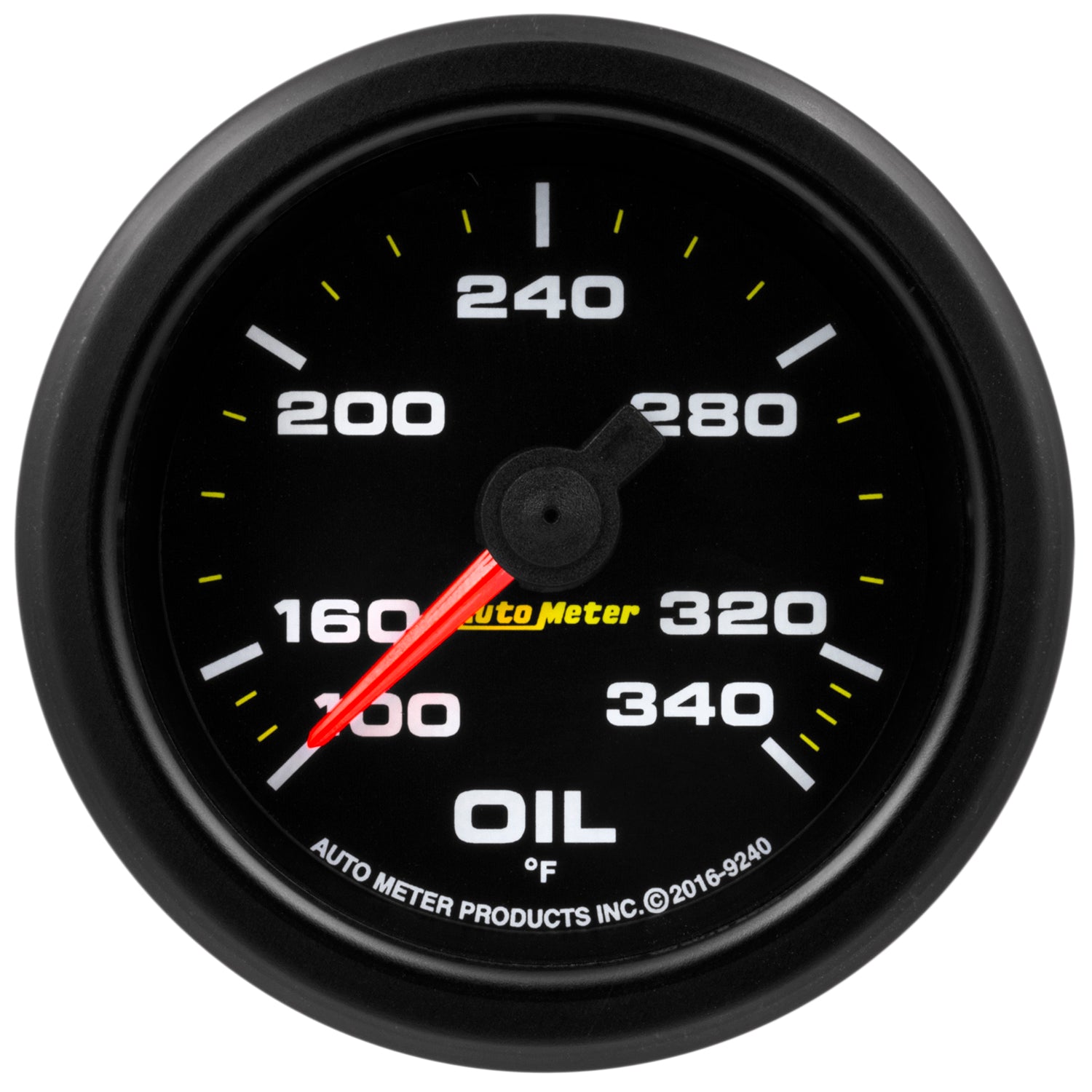

AutoMeter 9240 Engine Oil Temperature Gauge

Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits

Designed For The Absolute Harshest Environments, The Autometer Extreme Environment Series Gauges Provide The Very Best In Waterproof Sealing. One Of The Single Most Important Factors In Determining How Your Engine Performs (And How Long It Performs Between Rebuilds) Is Proper Oil Temperature During Operation. Knowing Your Exact Temp Allows You To Make Sure Youve Got The Proper Oil Weight And Cooling Capacity. Using Autometers Advanced 1/8" Npt Two Wire Temperature Transducer, You Can Be Assured Of The Most Accurate Possible Readings Of The Life Blood Of Your Engine. The Advanced Digital Stepper Motor Drive Keeps Needle Movement Smooth And Precise. Preconfigured Warning Points Change The Gauges Led Illumination From White To Red, Allowing You To Concentrate On The Work At Hand Or Taking The Checkered Flag. A Direct Plug In Wiring Harness Is Included For Ease Of Installation.

Features

• Waterproof Design - Sealed front and rear for protection against the elements in exposed cockpits

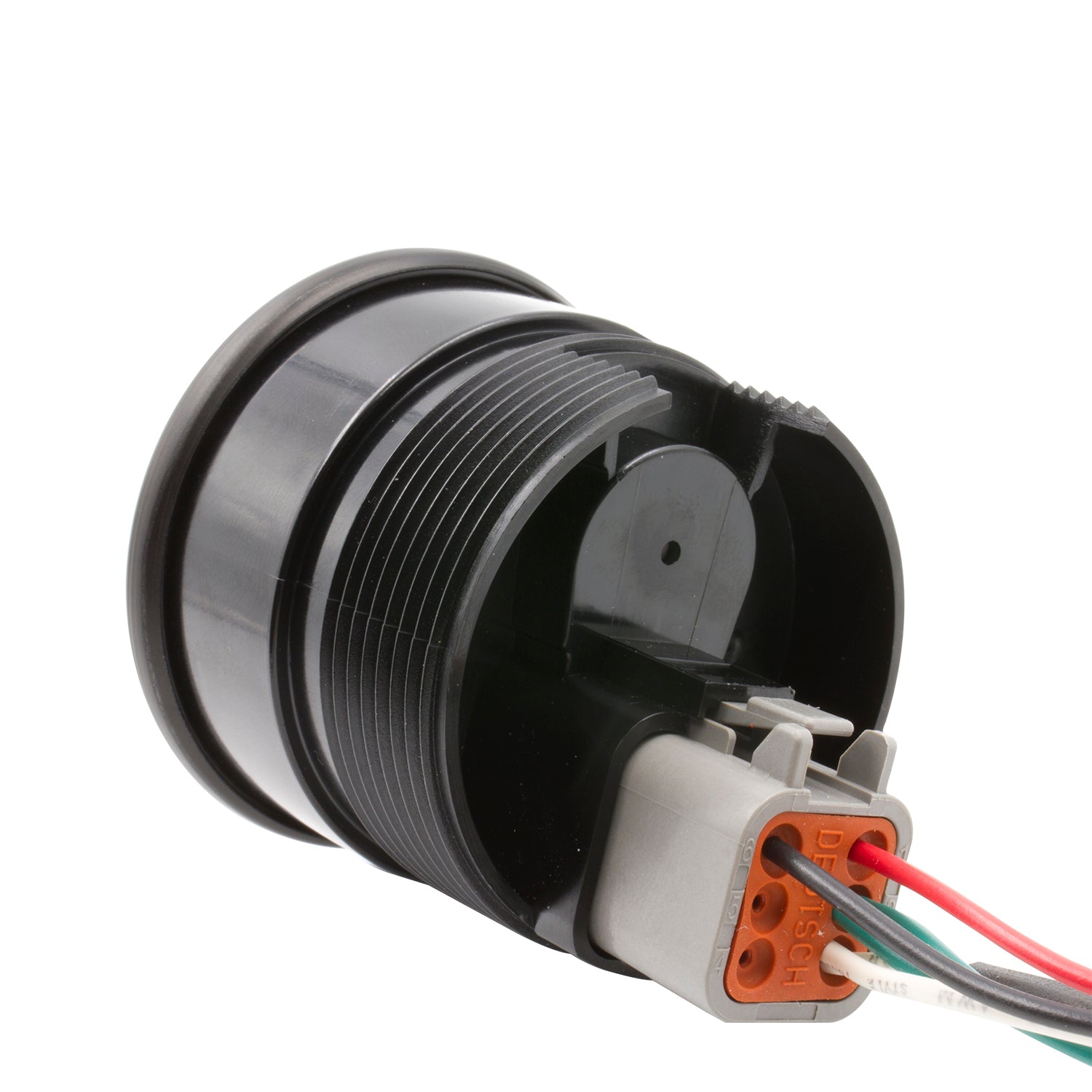

• 6 pin DTM connector at gauge makes for a sealed connection
• Ultra light weight construction - 70% Lighter than Pro-Comp Liquid Filled 2-5/8" gauges, 60% lighter than Ultra-Lite 2-5/8" Mechanical, 25% lighter than Spek, 10% less than Elite
• White through-dial LED lighting with red pre-set full dial warning with solid and blink transitions
• External momentary switch for control of brightness and peak recall
• Stepper motor design with unique multi-scale dial derived from NASCAR tech for optimized resolution and accuracy in critical operating range
• Preset backlight color change warning - 260 Degrees F

Specifications

Note: EXTREME ENVIRONMENT

Short Description: GA 2" OILT 340F EEG

Invoice Description: 2-1/16" OIL TEMP, 100-340'F, DIRT SERIES

Definition: Engine Oil Temperature Gauge

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
