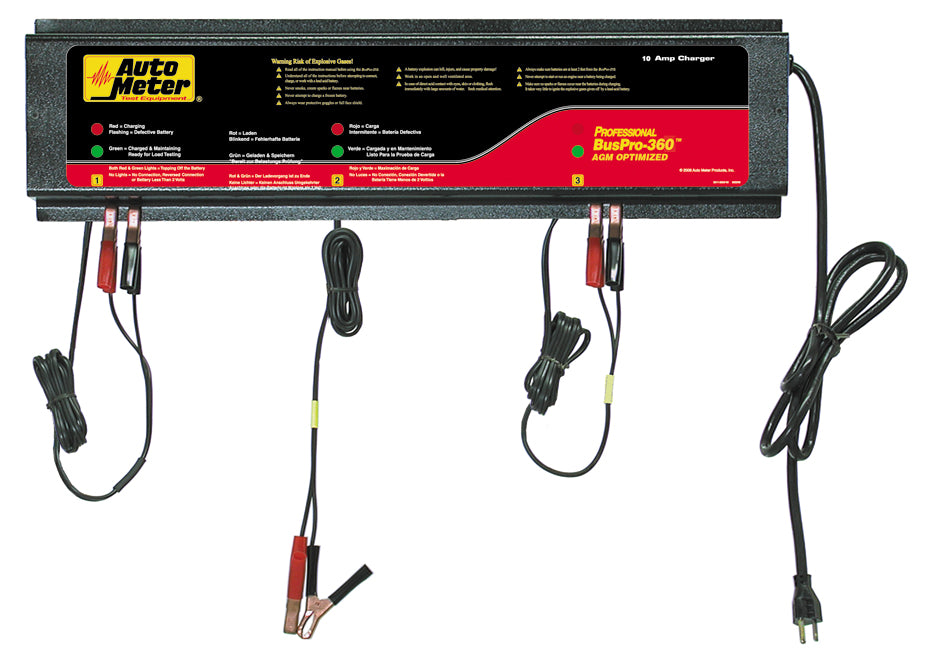

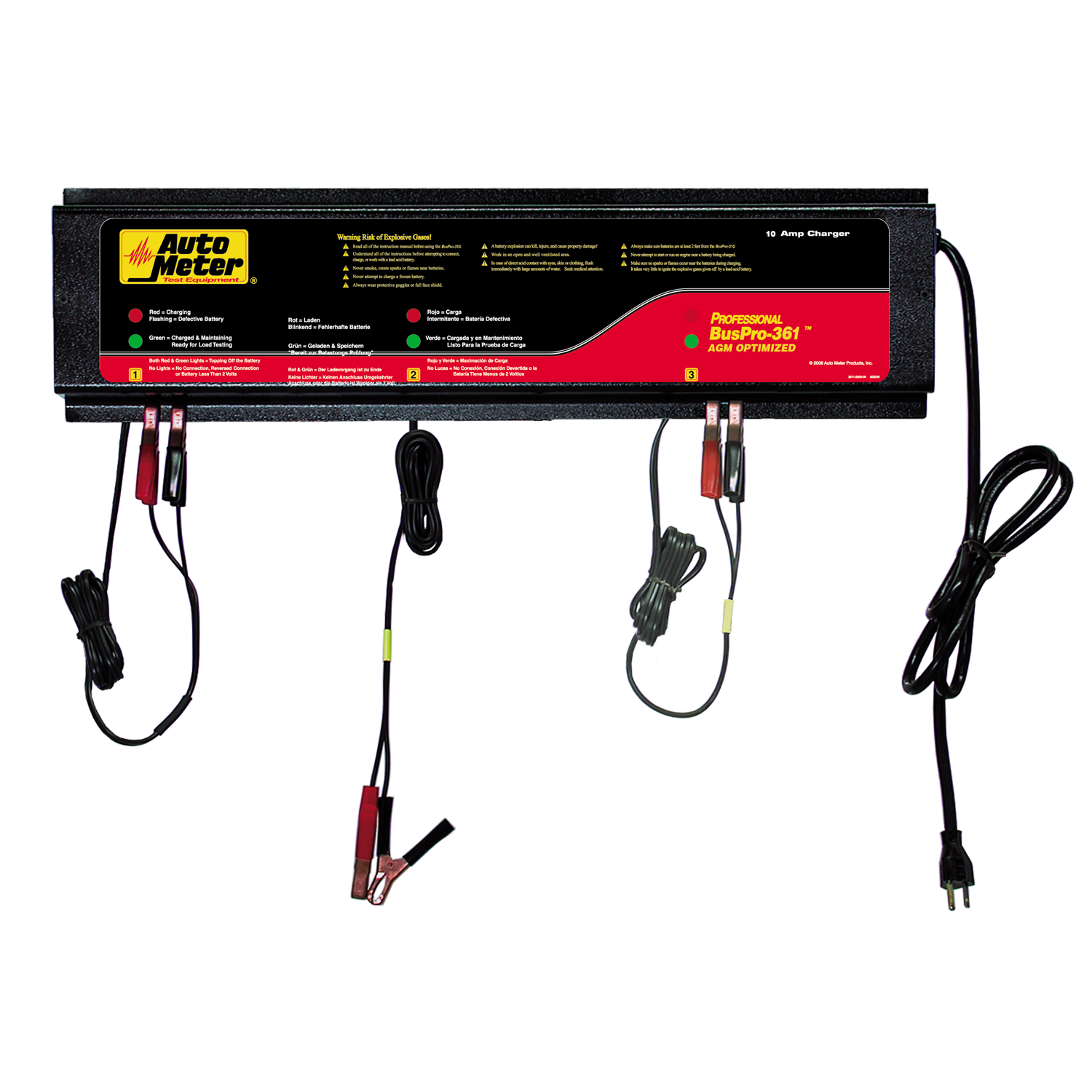

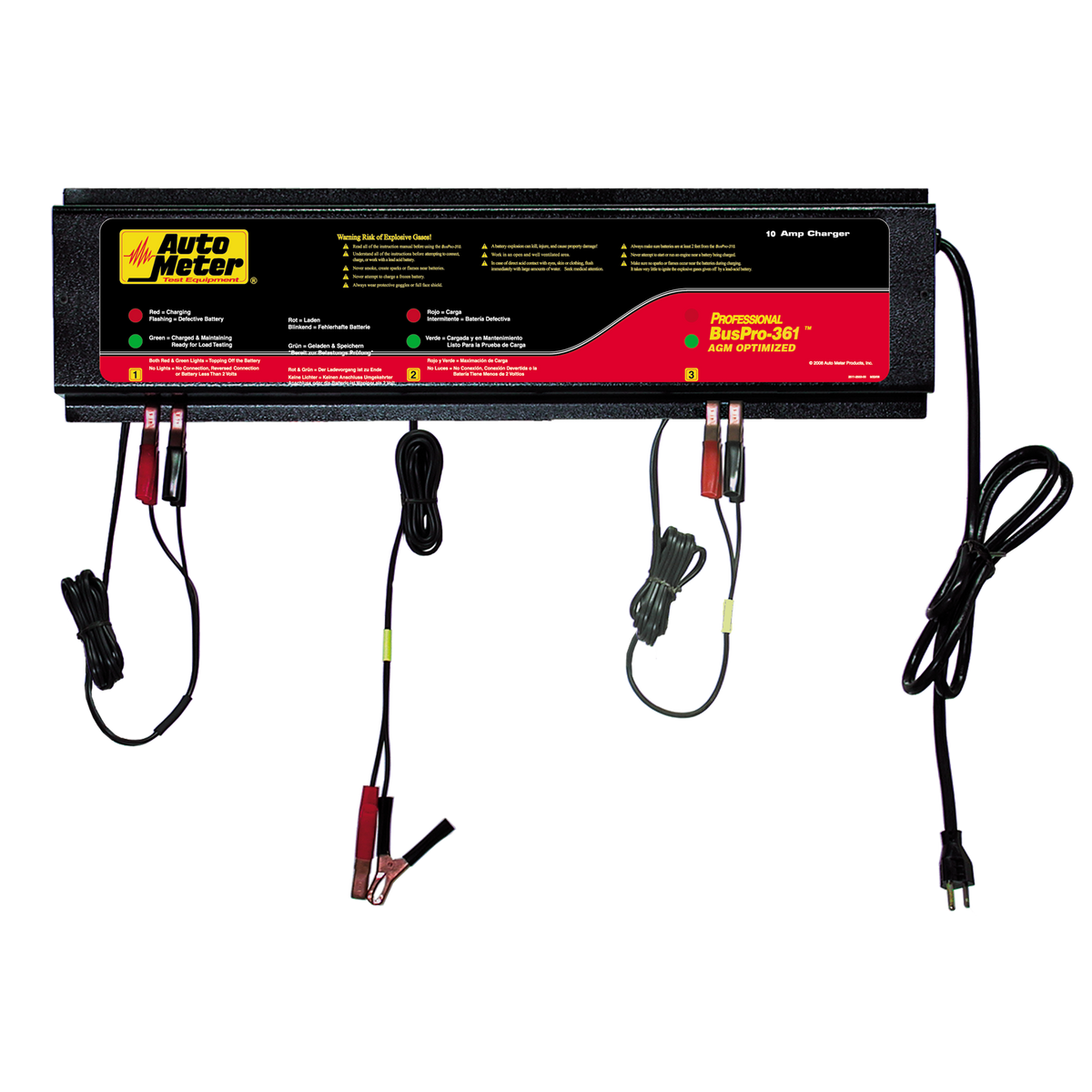

AutoMeter BUSPRO-361 - 3 STATION CHARGER, 10 AMPS/STATION, 120V, AGM

120 volt, 3 channel 10 amp smart charger

120 Volt Buspro-361 Model Multi-Station 10 Amp Smart Chargers Are Specifically Optimized For Use With Agm (Absorbent Glass Mat) Batteries. These Completely Automatic Charging Stations Are Ideal For Fleets, Shops, And Parts Stores Due To The Advanced New Circuitry Designs And Controls Specifically Designed For The Proper And Safe Charging And Maintenance Of Agm Batteries Which Makes Overcharge Impossible. The Flexible Buspro System Has Three 10 Amp Transformer Stations Which Can Be Split Out To Double The Chargers Capacity At A Lower 5 Amp Charge Rate If Bringing Up The Charge On The Batteries More Slowly Is Desired. The Charging Current Provided By Each Station Is Also Micro-Controlled And Helps Remove Sulfation From Batteries Connected To The Buspro-361 Unit.

Features & Benefits

• 120 volt, 3 channel 10 amp smart charger
• Utilizes two LED lights per channel to visibly indicate: 1) Battery is connected, charging, and is less than 70% charged.
• Products featuring the AGM Optimized feature set are preconfigured to work with AGM batteries, resulting in quicker charges with significantly reduced chance of battery damage."
• 2) Battery is connected, charging, and is at least 70% charged.
• 3) Battery is fully charged and being maintained at that level.
• 4) Battery is connected but is incapable of taking a charge.
• Capable Of Being Mounted On A Shop Wall To Help Reduce Clutter And Free Up Vital Floor Space. Heavy Duty Wall Mounting Brackets And 6 Leads Per Channel Come Standard.
• Includes Three 10 Amp Transformer Stations Which Can Be" Doubled Up" For Quicker 20 Amp Charging To Save Time Or Split Out To Double The Chargers Capacity At A Lower 5 Amp Charge Rate.
• Charging at each station is micro-controlled and helps remove sulfation from batteries connected to the BusPro 361 unit.
• Up to three BusPro units can be daisy chained to one another via integrated 3 prong power outlet on unit, utilizing only one wall outlet.
• Completely automatic smart charging with advanced circuitry enables station independent, safe charging that automatically adjusts the voltage/current relationship in order to maintain the battery at full charge.
• Agm Optimized" Autometers Engineers Have Worked Closely With The Leading Absorbent Glass Mat (Agm) Battery Manufacturers To Develop The Most Effective And Efficient Charging Practices For This Unique Battery Type.

Smart Battery Charger, agm battery charger, battery charger, wall charger, agm charger, buspro, buspro361, buspro-361, auto meter, autometer, auto meter test equipment, test equipment, autometer test, autometer test equipment,

Specifications

Installation Guide: Download PDF
