AutoMeter P315328 - GAUGE, FUEL PRESS, 2 1/16", 15PSI, STEPPER MOTOR W/PEAK & WARN, BLK/BLK, SPEK
Select your vehicle to confirm fit. Add to Cart unlocks once it fits.
Product Availability Request
Fill the form and our team will contact you.

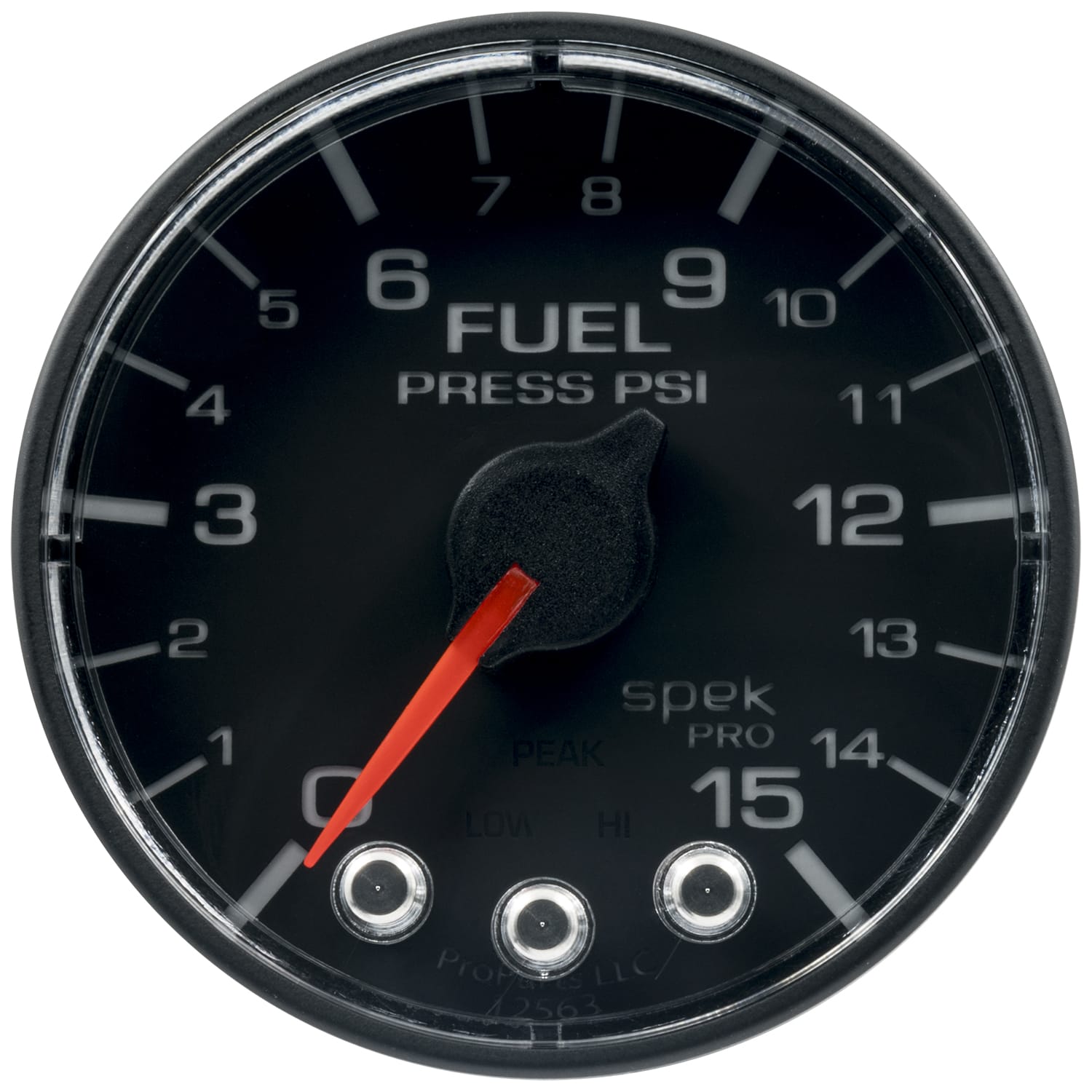

This fuel pressure gauge measures pressure from 0 to 15 psi using a solid-state pressure transducer with a 1/8" NPT connection. The AutoMeter P315328 features a 2-1/16 inch dial with a 280-degree brushless stepper motor movement for smooth and accurate pointer motion. A direct plug-in wiring harness is included for installation.

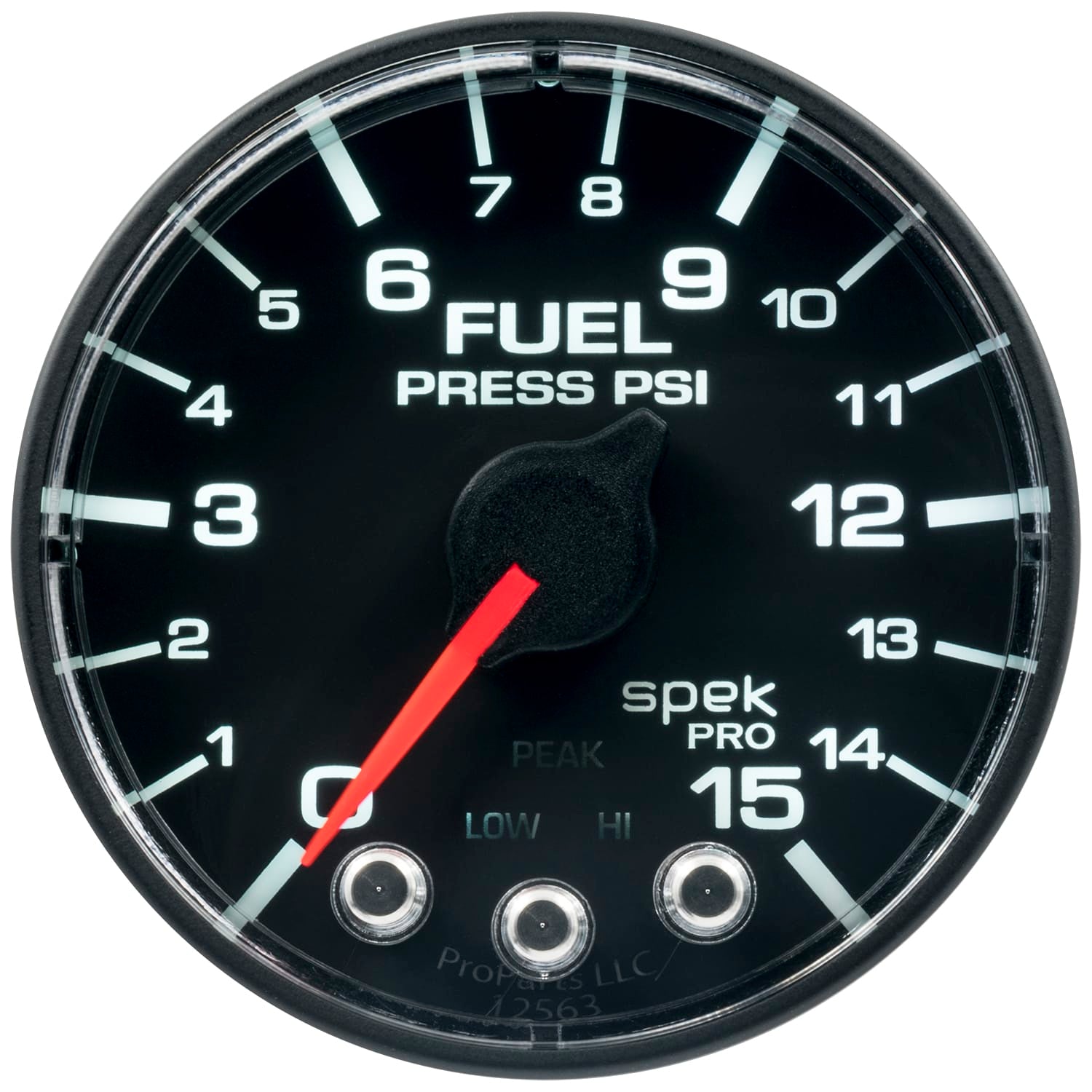

Seven user-selectable background colors (red, blue, green, white, yellow, orange, and violet) are available with adjustable brightness and independent dimming controls for dial and pointer. Configurable high and low warnings can be set using three on-instrument-face buttons. A peak recall function stores the highest gauge reading until it is manually cleared. The Pro-Control output can activate a 1.5 amp load to trigger a relay for external warning lights, buzzers, fans, pumps, or other features. The gauge includes a patented spin-on bracket and features a wide-angle dial design for maximum visibility.
- Fuel pressure range: 0 to 15 psi
- Stepper motor movement: 280 degrees
- Dial size: 2-1/16 inch
- Transducer type: Solid-state
- Connection: 1/8 inch NPT
- Pro-Control output: 1.5 amp
- Background colors: Red, blue, green, white, yellow, orange, violet
- Includes: Pre-wired harness and spin-on bracket
Weight: 1 lb
Country of Origin: United States
