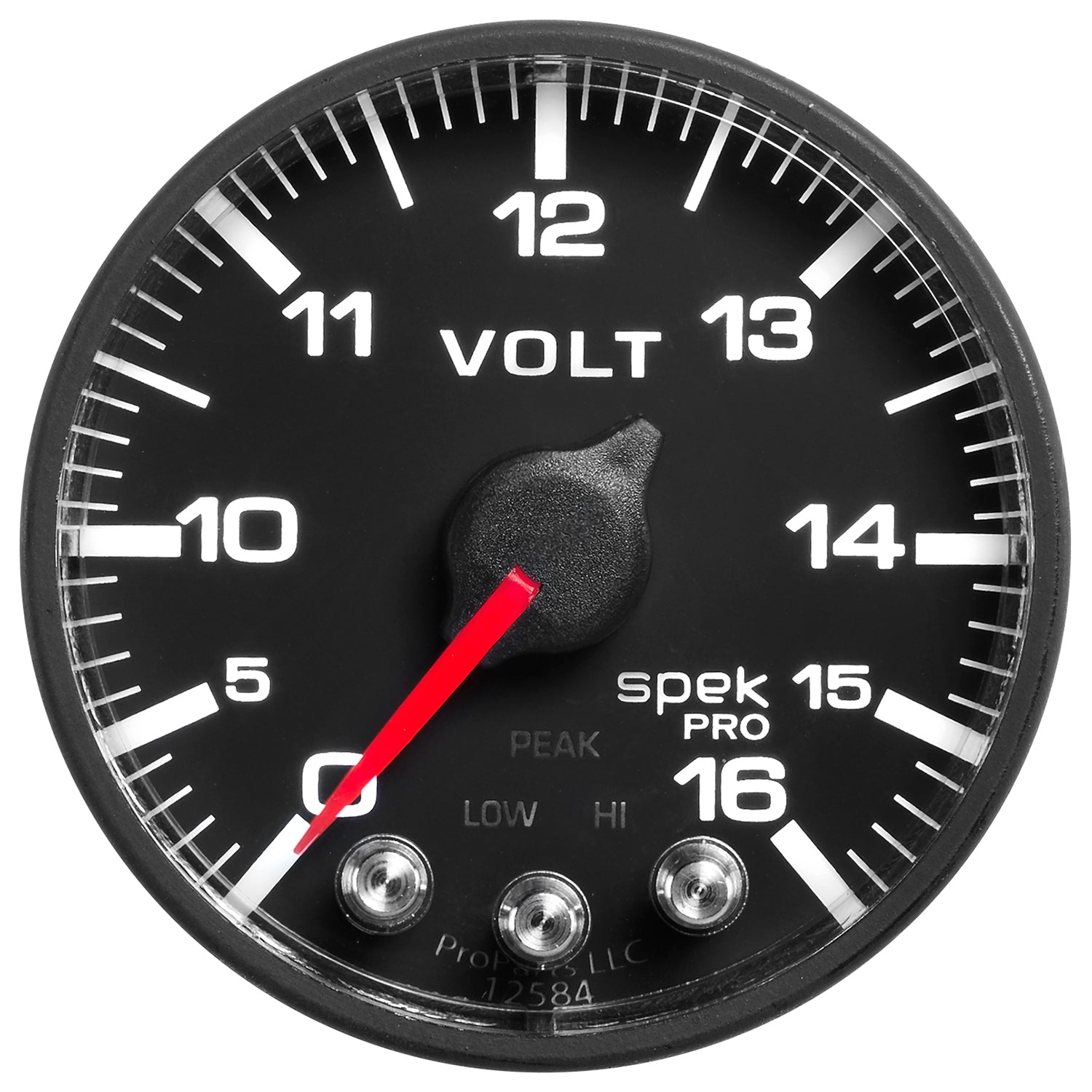

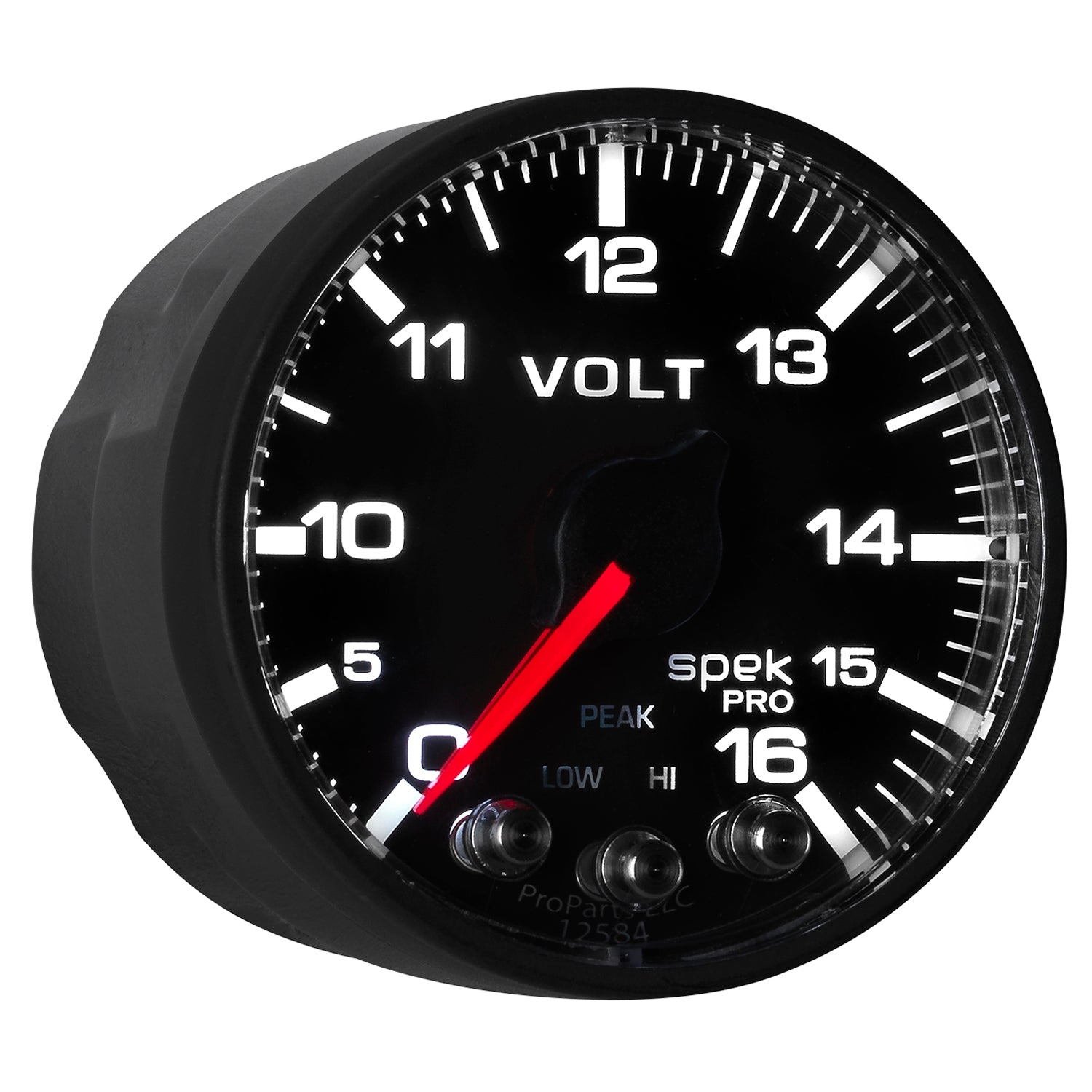

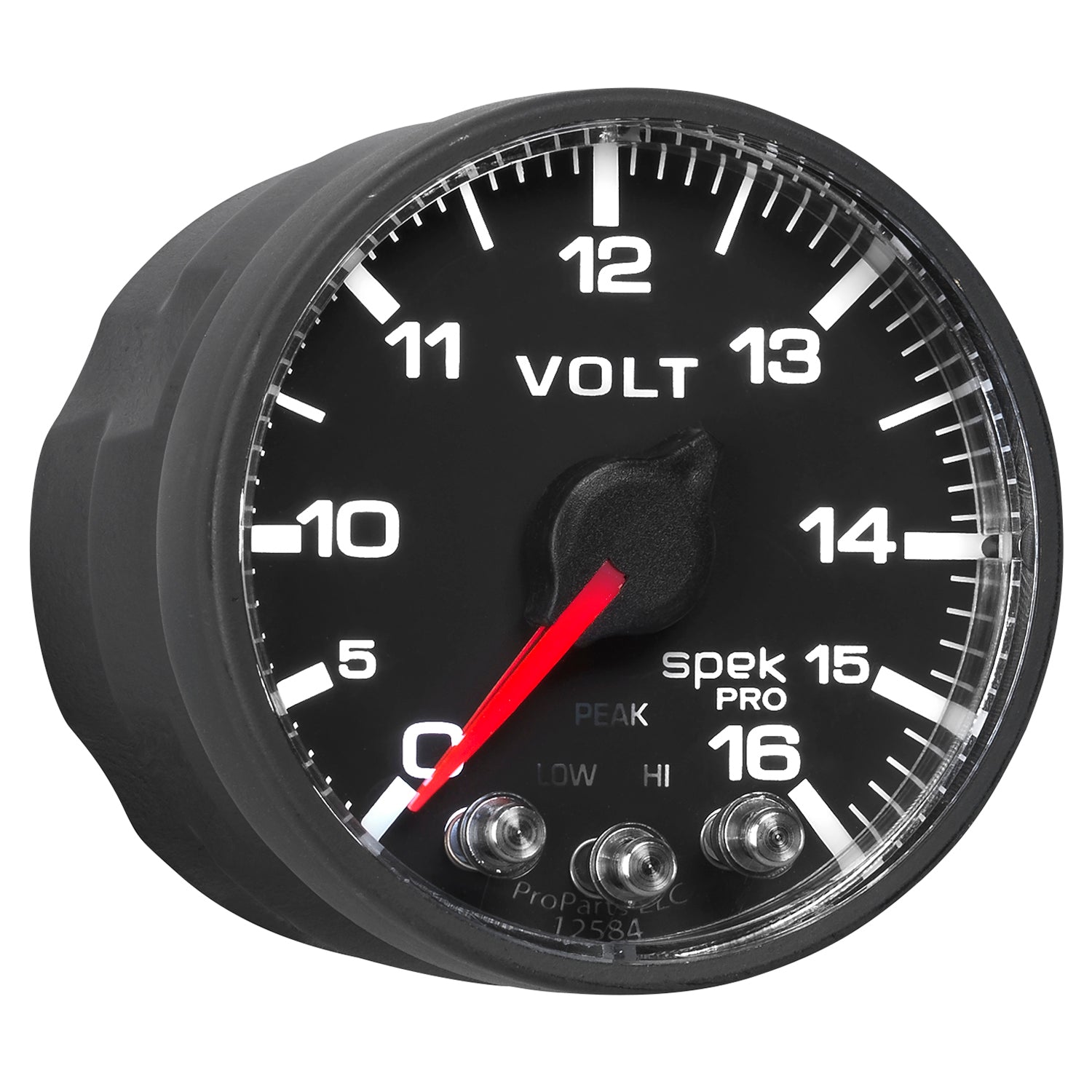

AutoMeter P344328 - GAUGE, VOLTMETER, 2 1/16", 16V, STEPPER MOTOR W/PEAK & WARN, BLK/BLK, SPEK-PRO

AutoMeter P344328 is a voltmeter gauge operating on a 0-16 volt range for negative ground electrical systems. The precision 280 degree brushless stepper motor delivers quiet, fluid pointer movement with high dial resolution. This gauge features seven user-selectable background illuminations in red, blue, green, white, yellow, orange, and violet, with adjustable brightness and independent dimming control for both dial and pointer to accommodate day and night visibility.

The instrument includes configurable high and low warning thresholds set via three on-instrument-face buttons. Its Pro-Control output enables a 1.5 amp load to activate a relay for external warning lights, buzzers, fans, pumps, or specialized injection systems. A peak recall function stores the highest gauge reading until manually cleared, allowing users to review maximum voltage spikes. Solid-state data acquisition grade sending units ensure accuracy in harsh environments. The gauge features a patented wide angle dial design in a 2-1/16 inch format. Installation is simplified with the included light-weight spin-on bracket and pre-wired harness.

• Operating range: 0-16 volts
• Pro-Control output: 1.5 amp load capacity
• Stepper motor movement: 280 degrees
• Illumination colors: red, blue, green, white, yellow, orange, violet
• Gauge diameter: 2-1/16 inch
• Includes spin-on bracket and pre-wired harness
