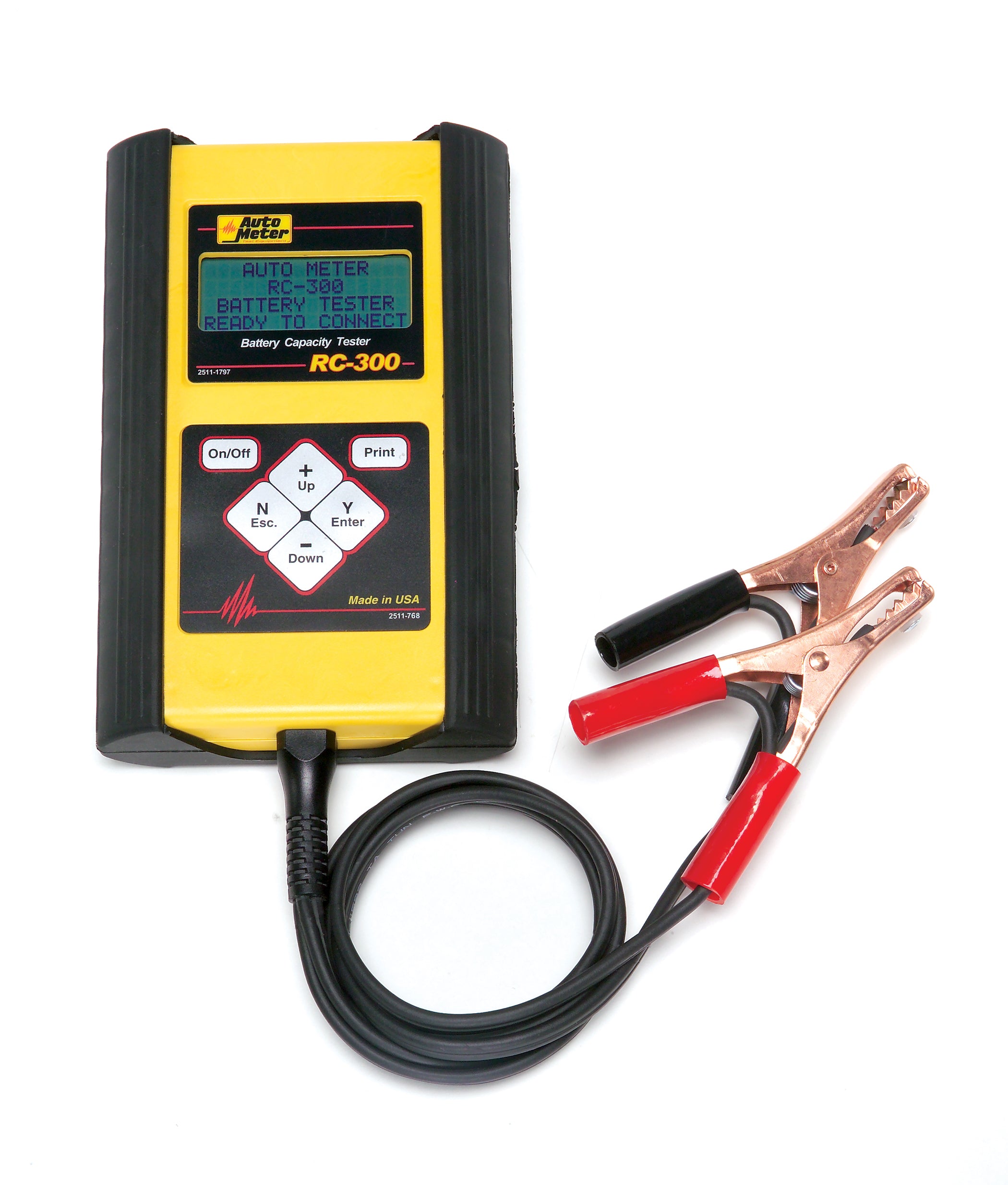

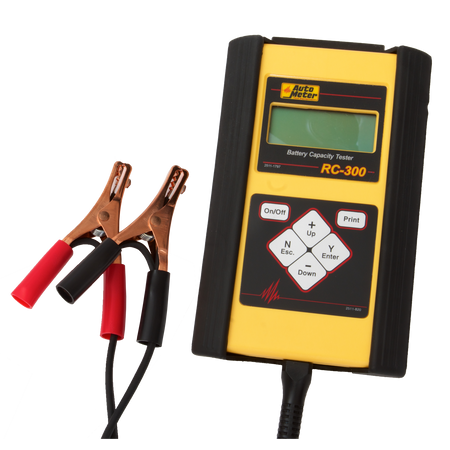

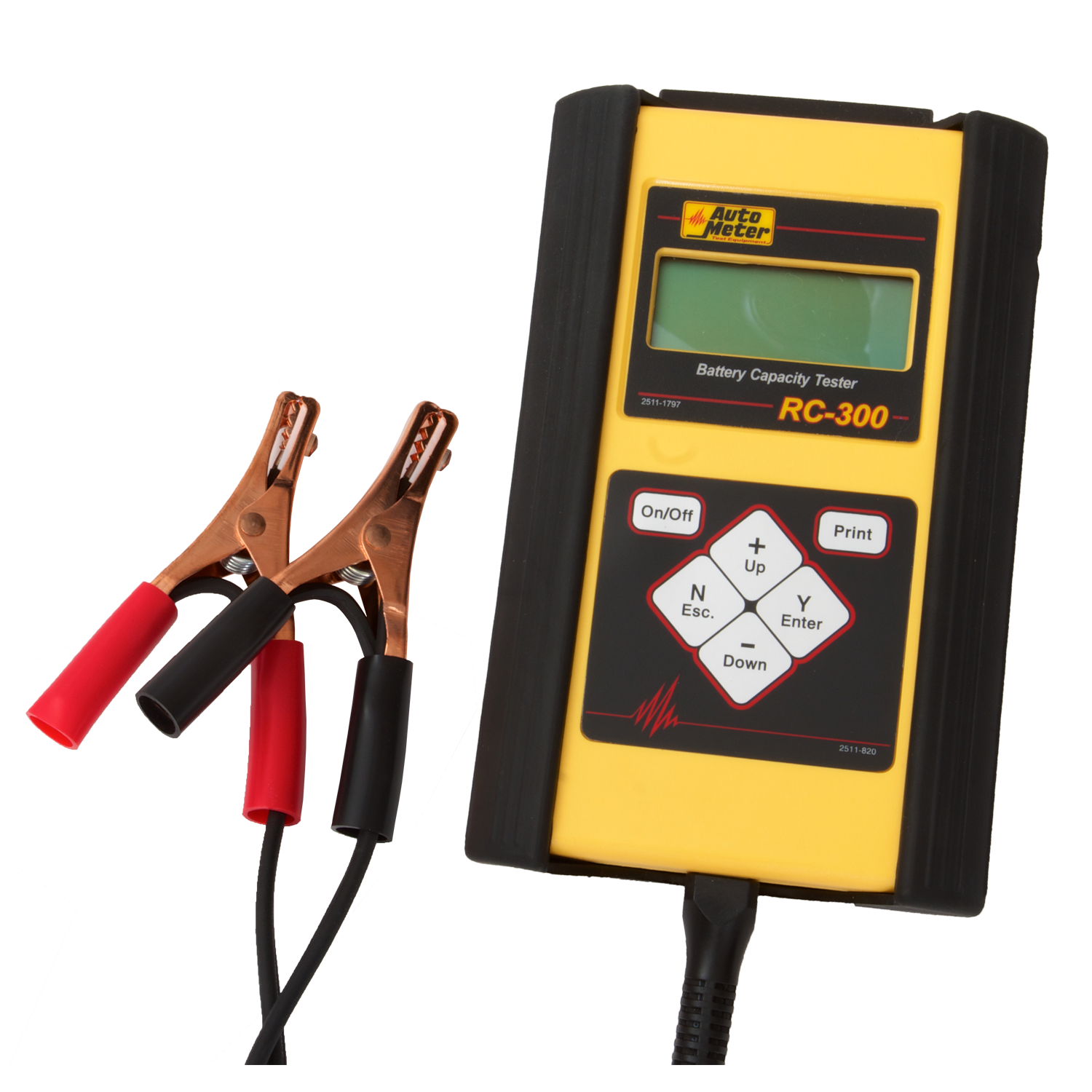

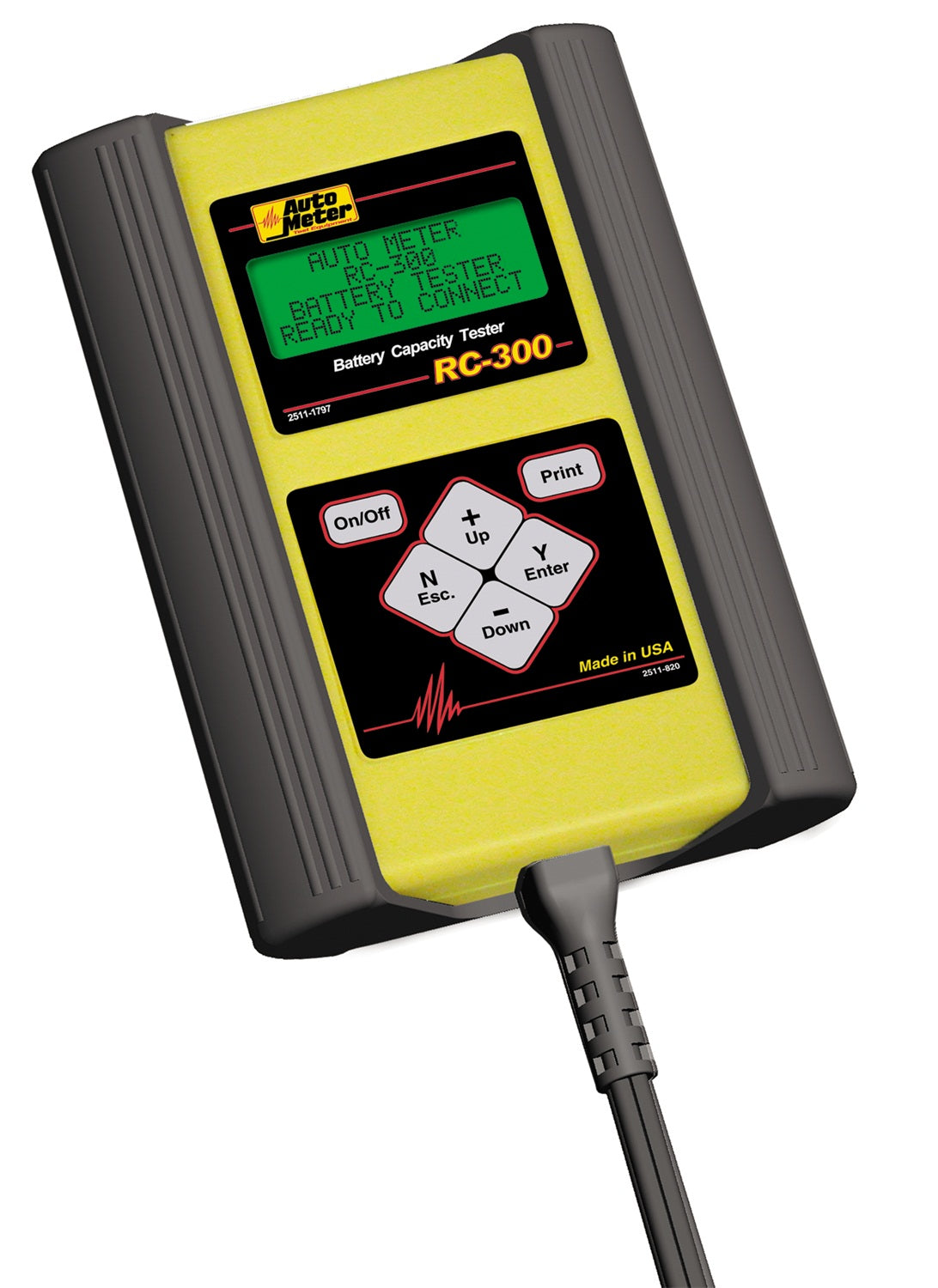

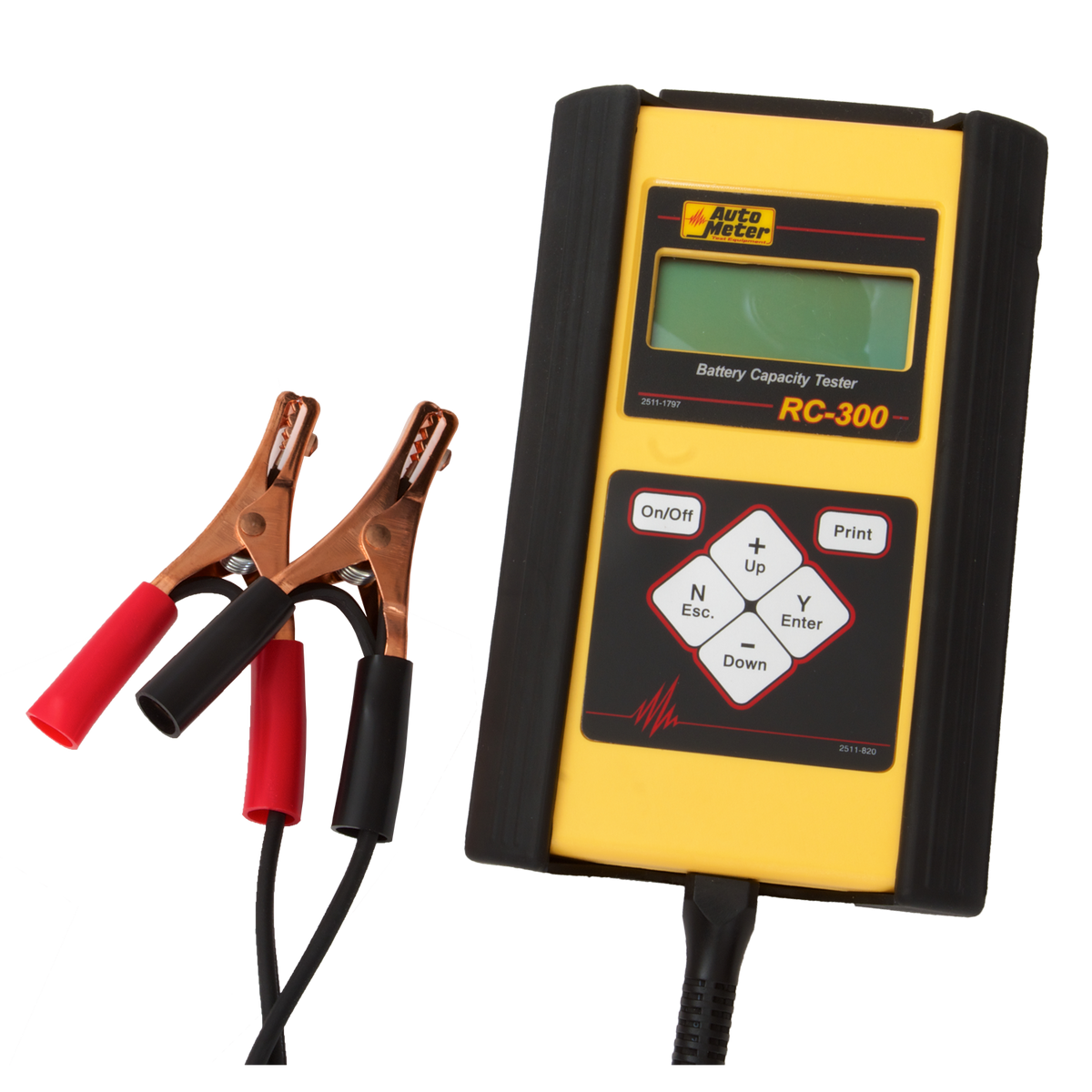

AutoMeter RC-300 - 4-50AH BATTERY CAPACITY TESTER, HANDHELD

Tests SLA , Flooded, Gel Cell, or AGM batteries. Also tests discharged batteries and detects bad cells.

The Rc-300 Is A Portable, Fully Featured Tester That Provides Quick And Accurate Results Utilizing Autometers Award Winning" Digital Pulse Load" Technology. The Rc-300 Is Uer Friendly, Instructing The User Exactly What To Do While Testing An Sla Battery. Professionally Accurate Test Results Are Shown On A Lcd Display After Each Test. The Rc-300 Has A Built In Memory So You Can Easily Review And/Or Print Test Results.

Features & Benefits

• Tests SLA , Flooded, Gel Cell, or AGM batteries. Also tests discharged batteries and detects bad cells.
• The RC-300 enables the user to" blue print" known good batteries of different types/sizes to drive improved testing accuracy.
• The unit will store up to 40 different" blue printed" battery types.
• The user can also set customized pass/fail settings based on their preferred profile.
• Applies a true 40 amp load during testing to simulate real world operating conditions and provide more accurate test results.
• Tests 6V and 12V batteries rated between 4AH - 50AH.
• Stores the last 50 tests in memory
• Test Results Include: Batterys Measured Amp Hour (Ah) Capacity, Battery Voltage And Percent Of Charge, And What The Batterys State Of Health Is (Good, Near End Of Life, Or Bad).
• 30" - 16 gauge leads
• Customer communication with optional PR-12 (external printer), PR-20 (bolt-on printer), or AC-12 (PC cable).
• Tough impact resistant plastic housing with easy grip rubber booth that prevents damage to the unit.

handheld battery tester, tester, handheld tester, battery tester, rc300, rc-300, auto meter, autometer, auto meter test equipment, test equipment, autometer test, autometer test equipment,

Specifications

Installation Guide: Download PDF
