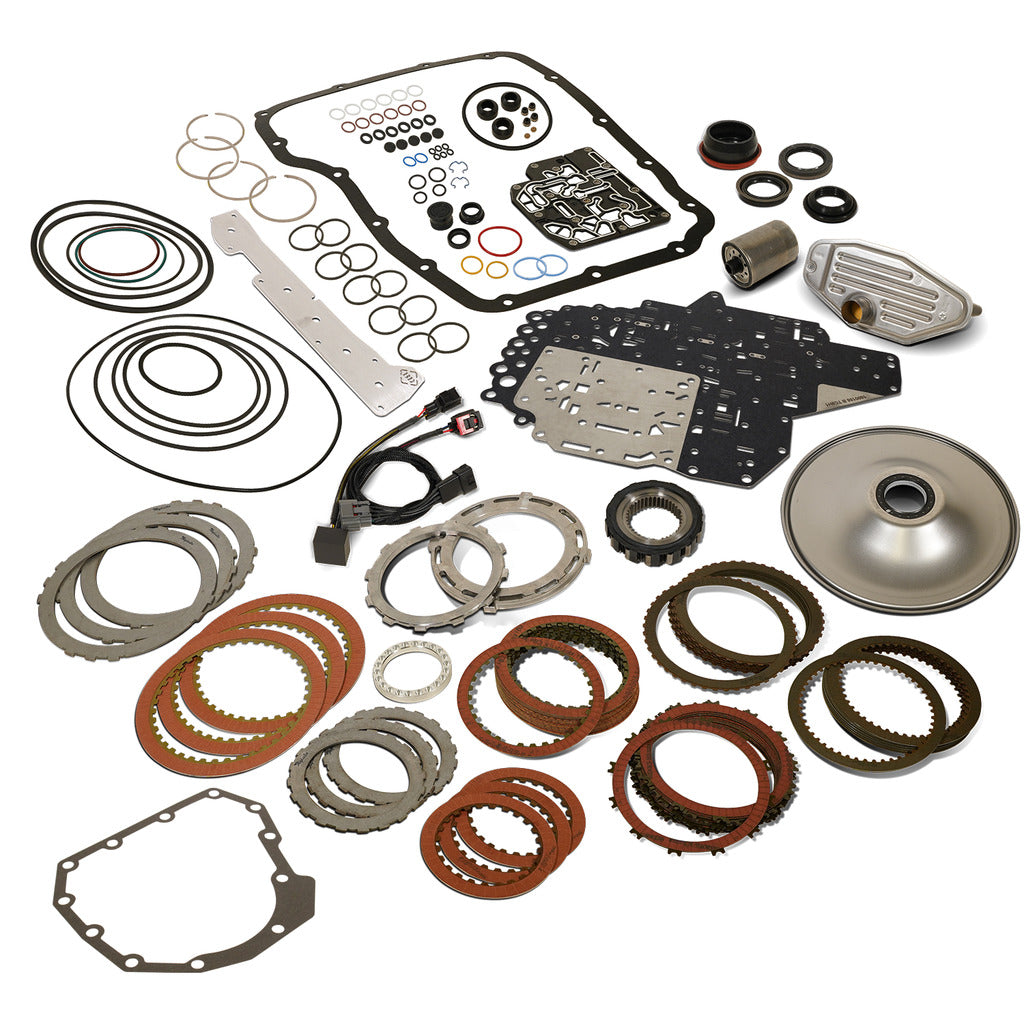

BD Build-It Dodge 68RFE Trans Kit 2007.5-2018 Stage 4 Master Kit c/w ProTect 68
Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds.
Features
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Over Drive clutches 17% increase and Under Drive clutches 20% increase
- Qty 2: Check Balls 1/4in
- Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
- Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
- Qty 15: OD Clutch Friction, OD Clutch Steel
- Filter - Pan, Spin On
- Pump Cover
- Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
- Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
- Billet 4C Spring Retaining Ring
- Seal - Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
- Gasket Kit - Oil Cooler, Oil Pan, Solenoid Pack
- Seal Kit - 2-4C, Input Drum, Solenoid Pack, Internal, External
- Heavy duty accumulator plate to prevent accumulator blowout
- O-Ring - pump Cover
- Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
- Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Upgraded One Way Clutch/Sprag
Specifications
| Category | Overhaul Kits & Parts |
| Engine | 6.7L Cummins 07.5-12 |
| Engine | 6.7L Cummins 13-18 |
| Make | Dodge |
| Suggested Product | 1061525 |
| Suggested Product | 1061529 |
| Suggested Product | 1071220X |
| Suggested Product | 1600189 |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
⚠️ California Proposition 65 Warning
California Residents: This product can expose you to chemicals which are known to the State of California to cause cancer or other reproductive harm. Please visit www.p65warnings.ca.gov for more information.
Warranty: 12 Months
