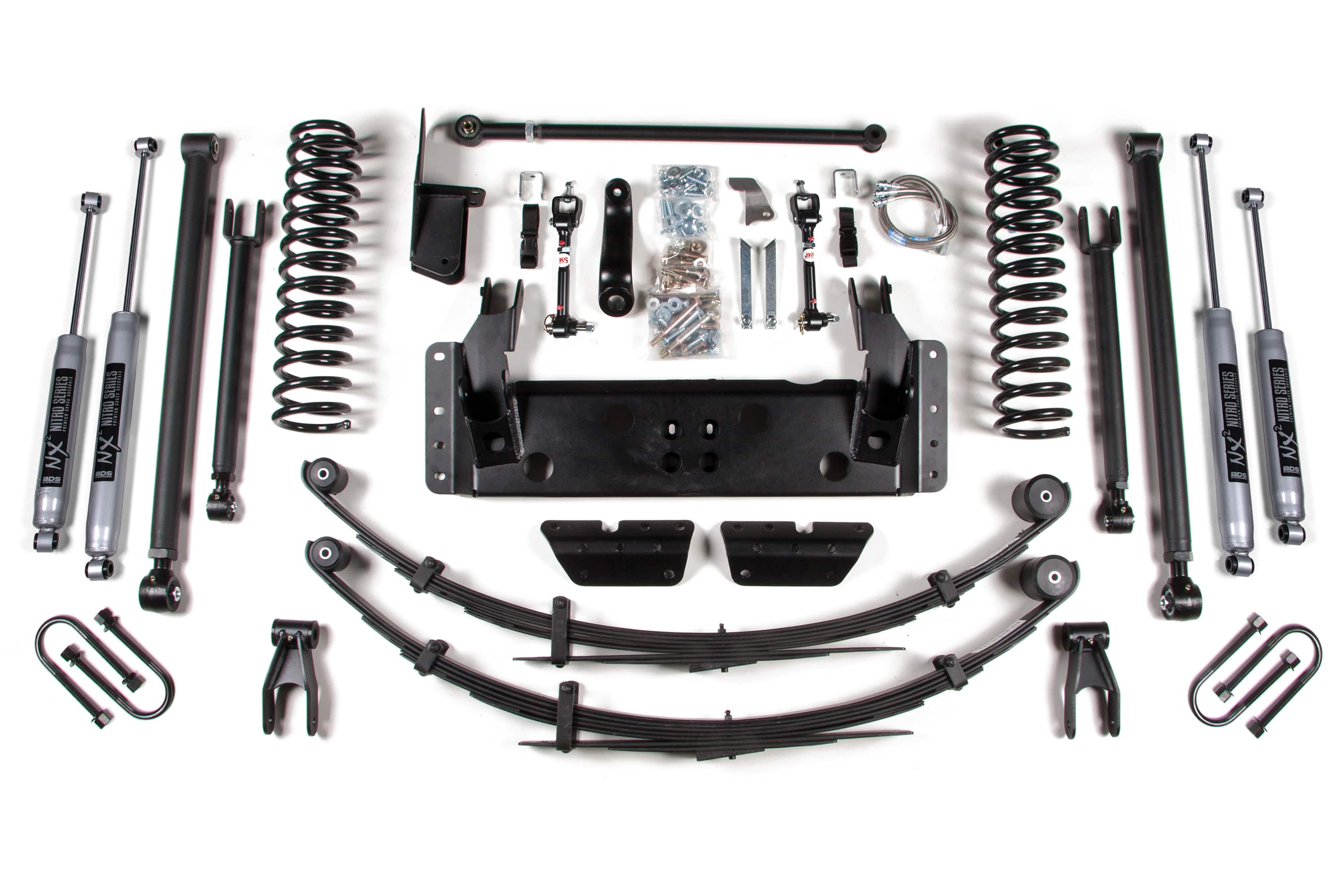

BDS Suspension 1441FS - 6.5 Inch Lift Kit Long Arm Jeep Cherokee XJ 84-01 Dana 35 Fox 2.0 Performance Shocks

Maximize the capability of your 1984-2001 Jeep Cherokee XJ with this 6.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires. By maximizing the length of both the upper and lower control arms, BDS has minimized caster change for optimal handling and minimized road forces. The control arm geometry is setup with a massive belly pan that incorporates the link mounts and is built to smash rocks. Believe it or not, this system is completely bolt-on with no welding to the unibody required!

Up front the lift kit includes a belly pan with new pivot mounts, heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4.5 inch Pro-Ride coil springs capable of full coil bind and bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, ultimate sway bar disconnects, and front adjustable track bar with flex joint fits into the existing frame mount and a drop pitman arm to improve the steering and handling geometry.

The rear kit utilizes Glide-Ride leaf springs for maximum travel, stainless braided brake line, and extended shackles that let the spring flex. Finish off the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Long Arm Conversion

Upgrading the standard control arms to a long arm adds strength, improves handling and takes offroad articulation to the next level. This upgrade consists of massive 1/4 inch steel frame mounted brackets to install the oversized upper and lower formed long arms.

The arms are formed for maximum Tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

• Fox 2.0 Performance Shocks
• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 6.5 inch
• Rear Lift Height: 6 inch

1. Measure the rear u-bolts before ordering. Some XJ's are equipped with a Dana 44 rear axle.
2. CV style rear driveshaft (not included) and slip yoke eliminator kit is required.
3. The system only works with 4.0L motor and automatic transmission.
4. Some welding is required.
5. '96 and earlier models may require a longer emergency brake cable.

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Massive belly pan that incorporates the link mounts and is built to smash rocks
• Glideride leaf springs to provide full lift height and increased capacity
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Front HD track bar to correctly position the front axle and control lateral movement
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Easy, 100 percent Bolt-on installation
• Allows clearance for 33 inch Tires

Rear Axle Option

Dana 35 Axle

The Jeep Cherokee was produced with two different rear axles (Chrysler 8.25 or Dana 35). You will need to measure your rear u-bolts to ensure that you get the correct new u-bolts. Basically, just measure the diameter of the axle or the I.D. of your rear u-bolts.

Chrysler axles require 3 inch wide u-bolts and Dana 35 axles require 2-3/4 inch wide u-bolts. Some 1987-90 models came with a Dana 44. Measure and call BDS for proper u-bolt fitment.

Kit Components:

• Includes two BDS004509, 84-01 Jeep XJ 5in Rear Spring, UPC Code 658848611584
• Includes one BDS014641, Jeep XJ 6.5 inch Long Arm Box Kit, UPC Code 658848614257
• Includes one BDS014654, Jeep XJ 6.5in Long Arm Xmember Box Kit, UPC Code 658848614264
• Includes one BDS014655, XJ Long Arm Box Kit, UPC Code 658848614271
• Includes one BDS014658, Jeep XJ 6.5in Rear Box Kit w/Dana35, UPC Code 658848614295
• Includes one BDS034652, Jeep XJ 6.5in Front Coil Kit, UPC Code 658848616978
• Includes one BDS174002, 97-01 Jeep XJ Frt Bumpstops (small dia), UPC Code 711745608153
• Includes two FOX98224920, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
• Includes two FOX98224961, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• Includes one JKS2001, Quicker Disconnect, UPC Code 814897010017

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
