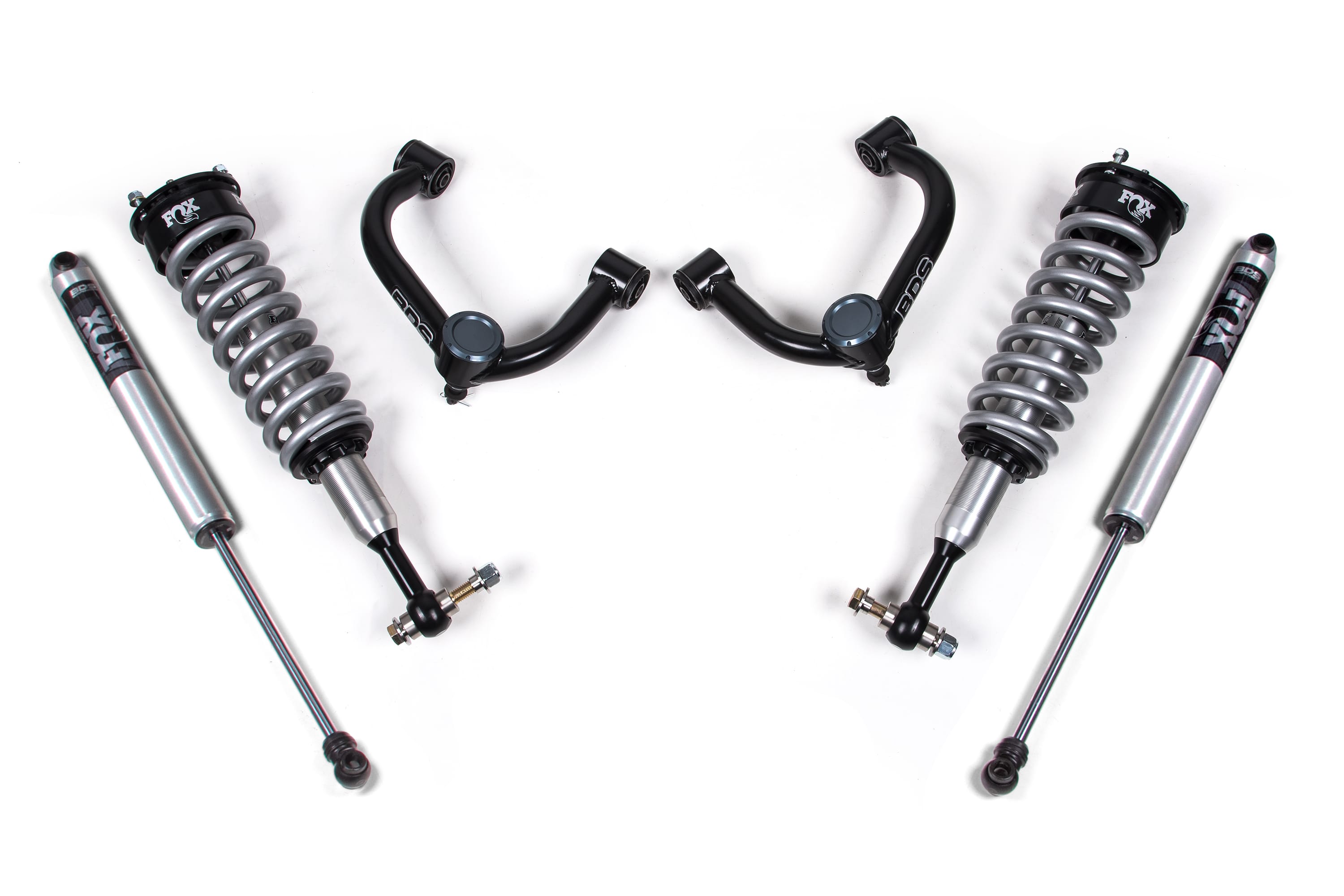

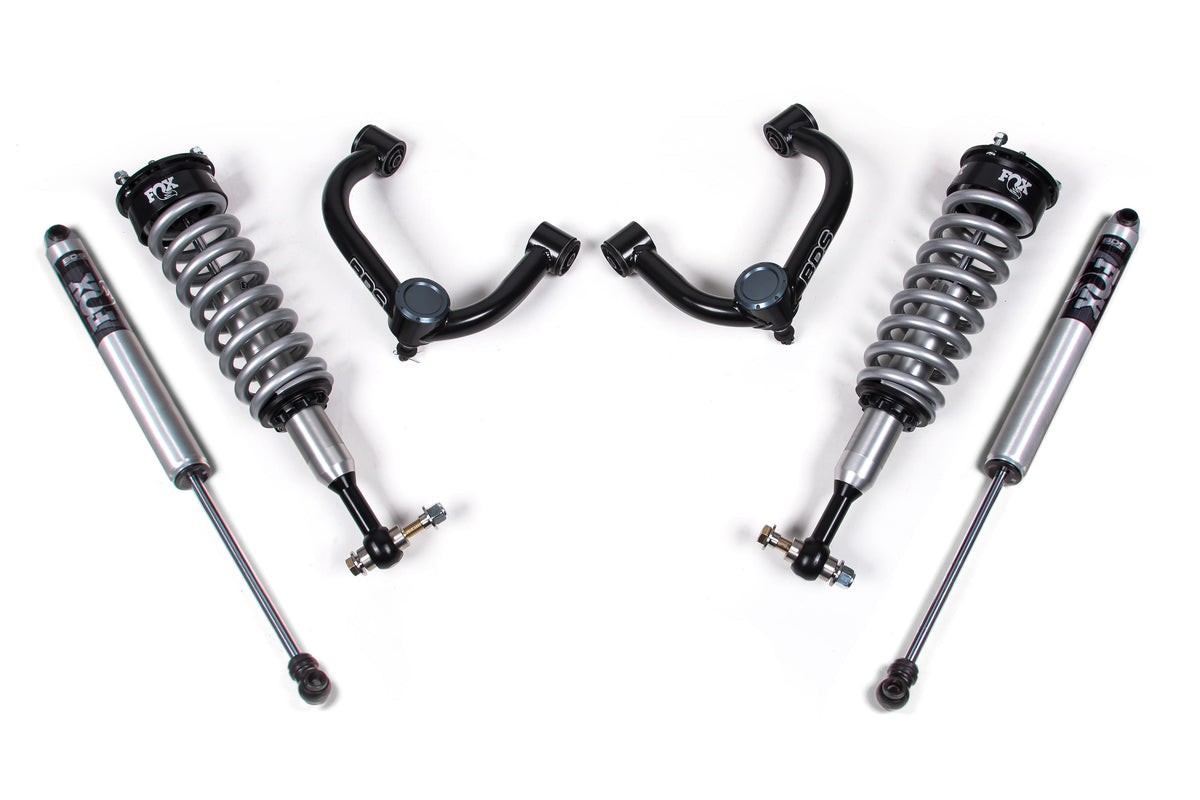

BDS Suspension BDS1553FSL - 2 Inch Lift Kit FOX 2.0 Coil-Over Ford F150 14-20 4WD

Level out your 2014-2020 Ford F150 truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Coil-Over Shocks

These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

1. Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
2. Will not fit HD models (7 lug).

• FOX Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
• HD Upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• Provides level stance from front to rear
• Easy, 100 percent Bolt On installation
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Kit Components:

• Includes one BDS123253, 2004-2020 F150 Upper Control Arm Box Kit, UPC Code 711745604100
• Includes two FOX98224651, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
• Includes two FOX98502015, 14-ON Ford F150 4wd Front Coilover, PS, 2.0, Internal Floating Piston, 4.9 inch, 0-2 inch Lift, UPC Code 714686858779

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
