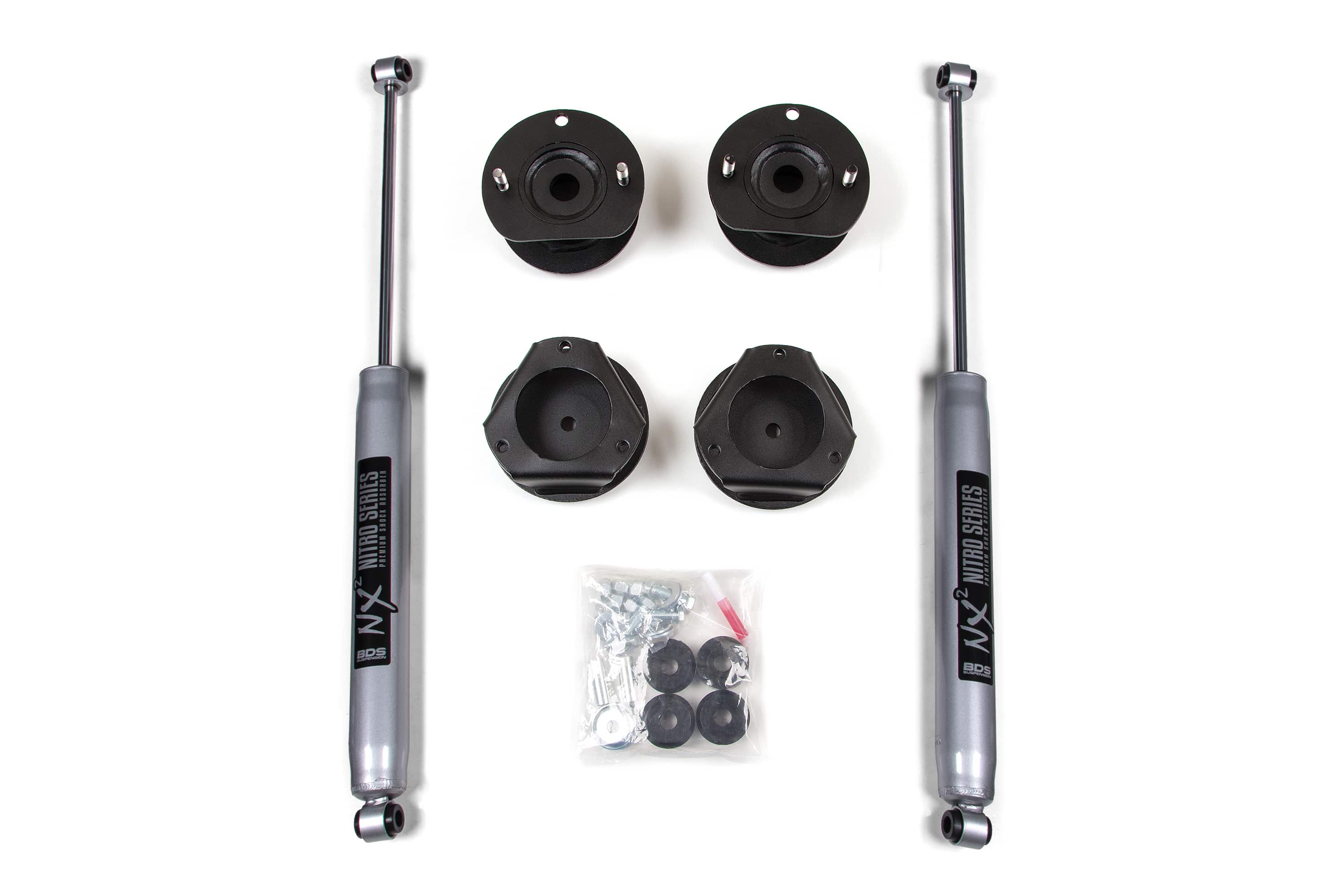

BDS Suspension 168H - 2 Inch Lift Kit Chevy Trailblazer or GMC Envoy 02-09 NX2 Nitro Shocks

Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUV's, this 2 inch lift kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount increases the pre-load of the strut as well as increases the over all length of the strut assembly.

The lift kit Includes steel top mount strut spacers, rear coil spring mounts and custom-tuned NX2 Nitro or FOX Performance series shocks.

• Front Lift Method: Strut Spacer
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 2 inch

1. Strut compressor required for installation
2. Will not fit vehicles equipped with a rear air-ride system
3. Will fit Ext and XL models
4. Front only kit available as part #121201

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS011201, 02-09 GM Trail/Envoy 2 Inch Box Kit, UPC Code 658848611676
• Includes two BDS85619, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609396

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
