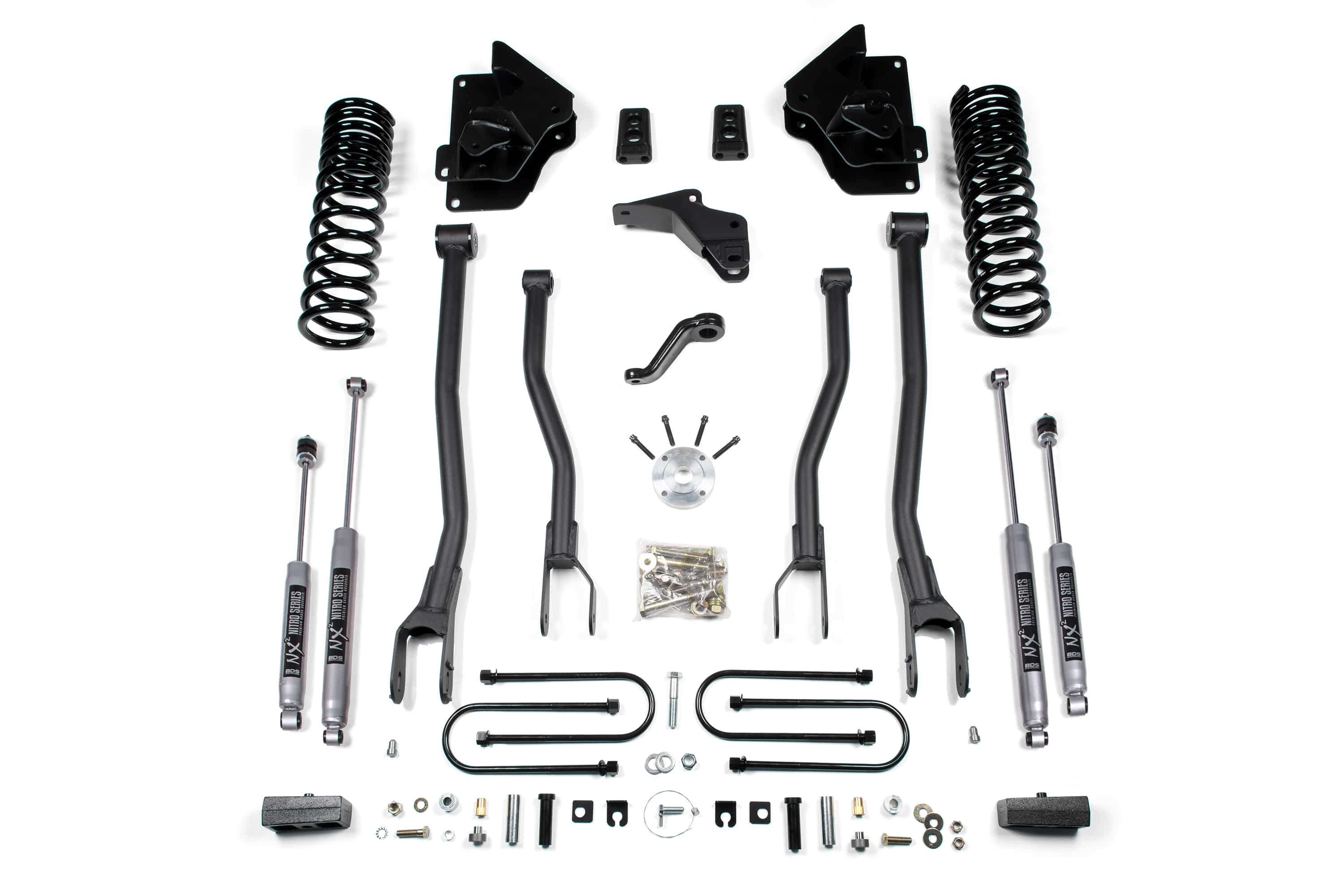

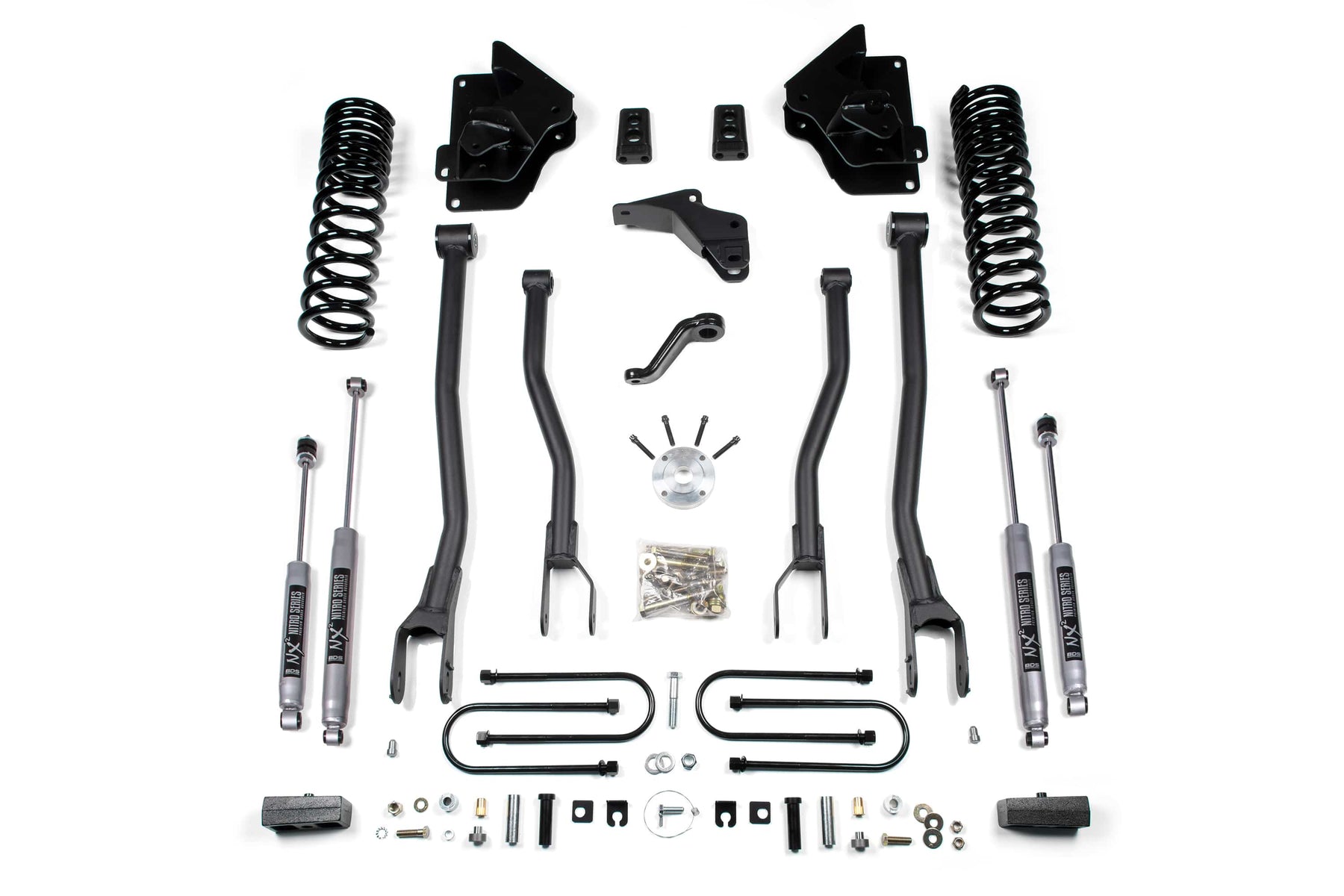

BDS Suspension 1776H - 4 Inch Lift Kit w/ 4-Link Ram 3500 13-18 4WD Diesel 2 Inch Block NX2 Nitro Shocks

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. The carrier bearing drop kit is necessary for models equipped with two piece rear drive shaft.

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

• 2 Inch Block Kit - Level to slightly low rear stance
• Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS012207, 03-13 Dodge 2500 2 Inch Rear Box w/4, UPC Code 658848612093
• Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
• Includes one BDS012414, 2013-2018 Dodge Ram 2500/3500 4 inch 4-Link Box Kit (1of2), UPC Code 658848612390
• Includes one BDS032401, 2013-2018 Ram 3500 / 2014-2018 2500 Ram - Front Coils 4 inch Diesel - 5.5 inch Gas, UPC Code 658848616367
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
