BDS Suspension 403H - 4 Inch Lift Kit Jeep Cherokee SJ Wagoneer Grand Wagoneer or J10/J20 74-89 Block Kit NX2 Nitro

Update the style of your Jeep Cherokee SJ Full Size,Wagoneer, and Grand Wagoneer with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Glide-Ride leaf springs, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

• Front Lift Method: Leaf Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. 083402 Pitman arm will increase turning radius. (cannot turn as sharp)
2. Not recommended for Wagoneers or Cherokees with front and/or rear track rods.
3. 1974-1975 models must have 131 inchwheelbase and 7200# GVWR or more for #004408 rear springs to fit.
4. Some 1974 J20s with stock 401 come with a rear 15/16 inch spring eye stud.
5. #004402 and #004408 come with OE rubber bushings installed.
6. Rear shock mount may need to be relocated.
7. If equipped with Dana 44 rear axle will require a 9/16 X3-1/4 inch X 7-1/2 inch rear u-bolt. (Not supplied by BDS)

• Easy, 100 percent Bolt-on installation
• Glideride leaf springs to provide full lift height and increased capacity
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

Rear Lift Option Block Kit

• Blocks are made from cast iron for strength.
• Tapered for correct pinion angle.
• Steel pin and hole are offset to restore axle position.

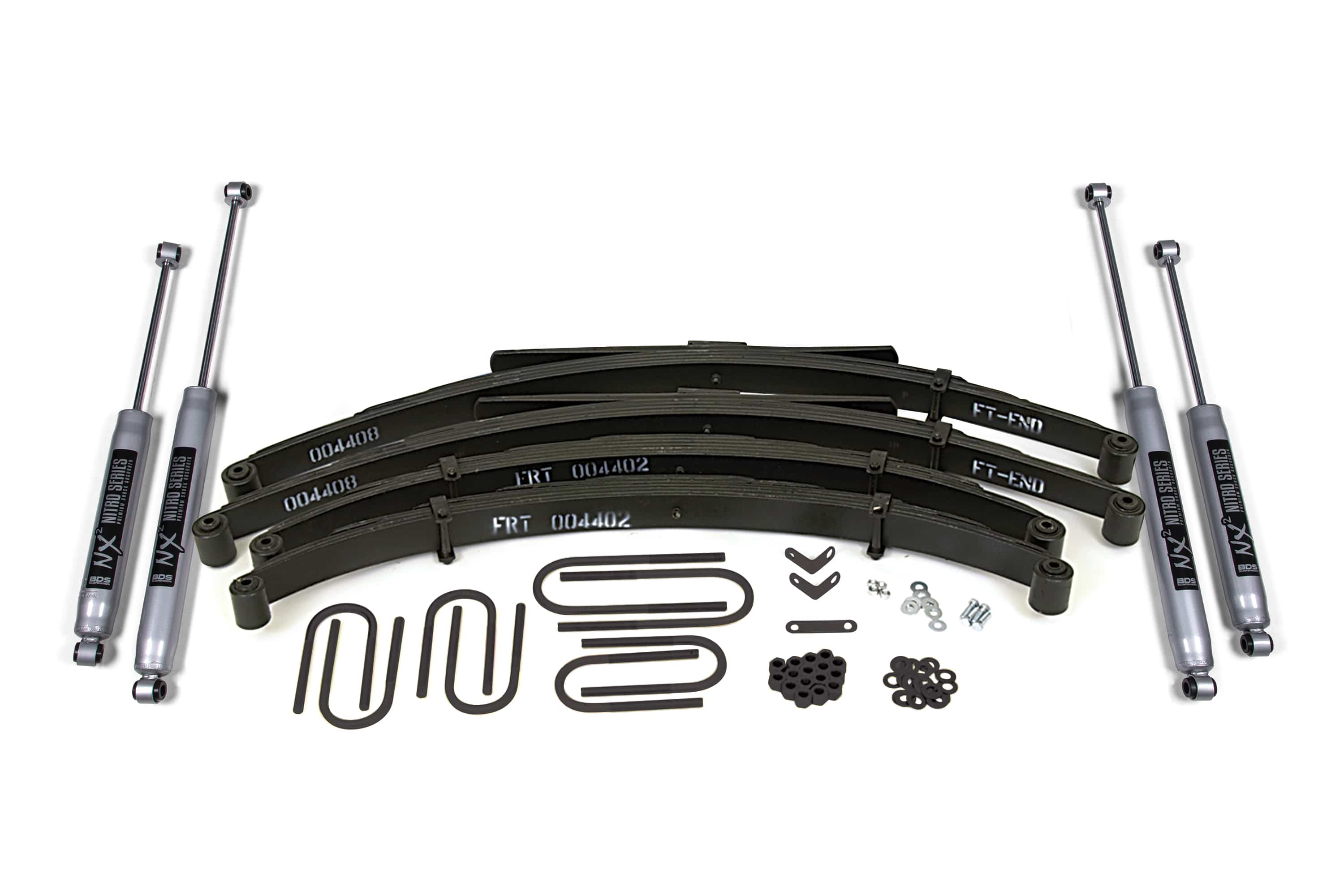

Kit Components:

• Includes two BDS004402, Jeep J10/20 Gr Wagoneer 4 Inch Front Spring, UPC Code 658848611546
• Includes one BDS014401, 74-90 Jeep J10/20 Block & U-bolt Kit, UPC Code 658848614103
• Includes two BDS85875, Shock- 23.10 x 14.25 x 2-3/8 - EB1/EB1, UPC Code 711745609914
• Includes two BDS85920, Shock - 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609983

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
