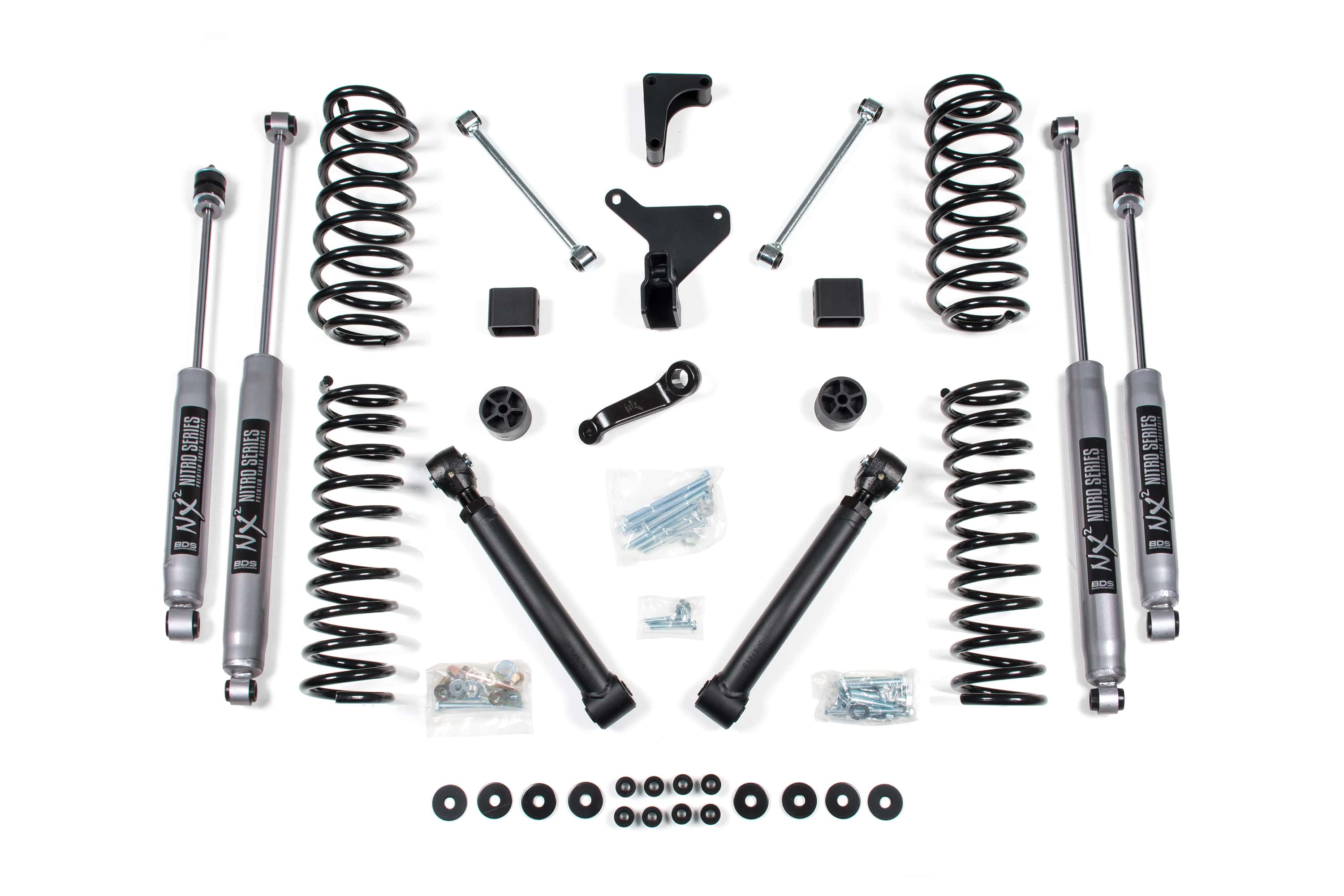

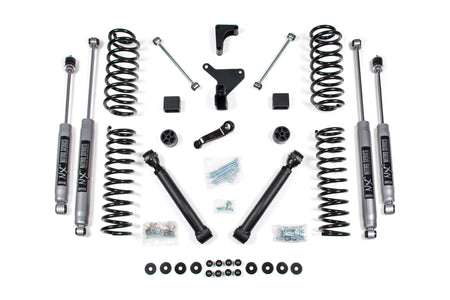

BDS Suspension BDS448H - 4 Inch Lift Kit Jeep Grand Cherokee WJ 99-04 NX2 Nitro

BDS steps up the performance and capability of the 1999-2004 Jeep Grand Cherokee WJ with a 4-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your Jeep up right with clearance for up to 31 inch Tires.

The lift kit includes front BDS Pro-Ride Coil Springs, a heavy duty track bar relocation bracket and drop pitman arm that corrects steering geometry, transfer case drop kit to reduce drive line angles, and heavy duty adjustable lower control arms to allow you to adjust the axle rotation.

The rear kit utilizes Glide-Ride coil springs for maximum travel, rear upper tri-link spacer, and extended sway bar links. Finish of the kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.

This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3.5 inch

1. Vehicles equipped with a V8 may not achieve the stated height.
2. Front drive line modification may be required.

• ProRide coil springs offer improved ride quality and more articulation
• Extended rear link for improved offroad flex
• New lower control arms to properly control the front axle positions
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 31 inchTires

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes one BDS014404, 99-04 Jeep WJ 4 Inch Box Kit, UPC Code 658848614127
• Includes one BDS034359, 99-04 Jeep WJ 3.5 in Rear Coil Springs, UPC Code 658848616824
• Includes one BDS034401, 99-04 Jeep WJ 4 Inch Front Coil Springs, UPC Code 658848616831
• Includes two BDS85971, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745610200
• Includes two BDS85978, Shock- 24.70 x 14.80 x 2-3/8 - S1/EB1, UPC Code 711745610262

Warranty

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Specifications
