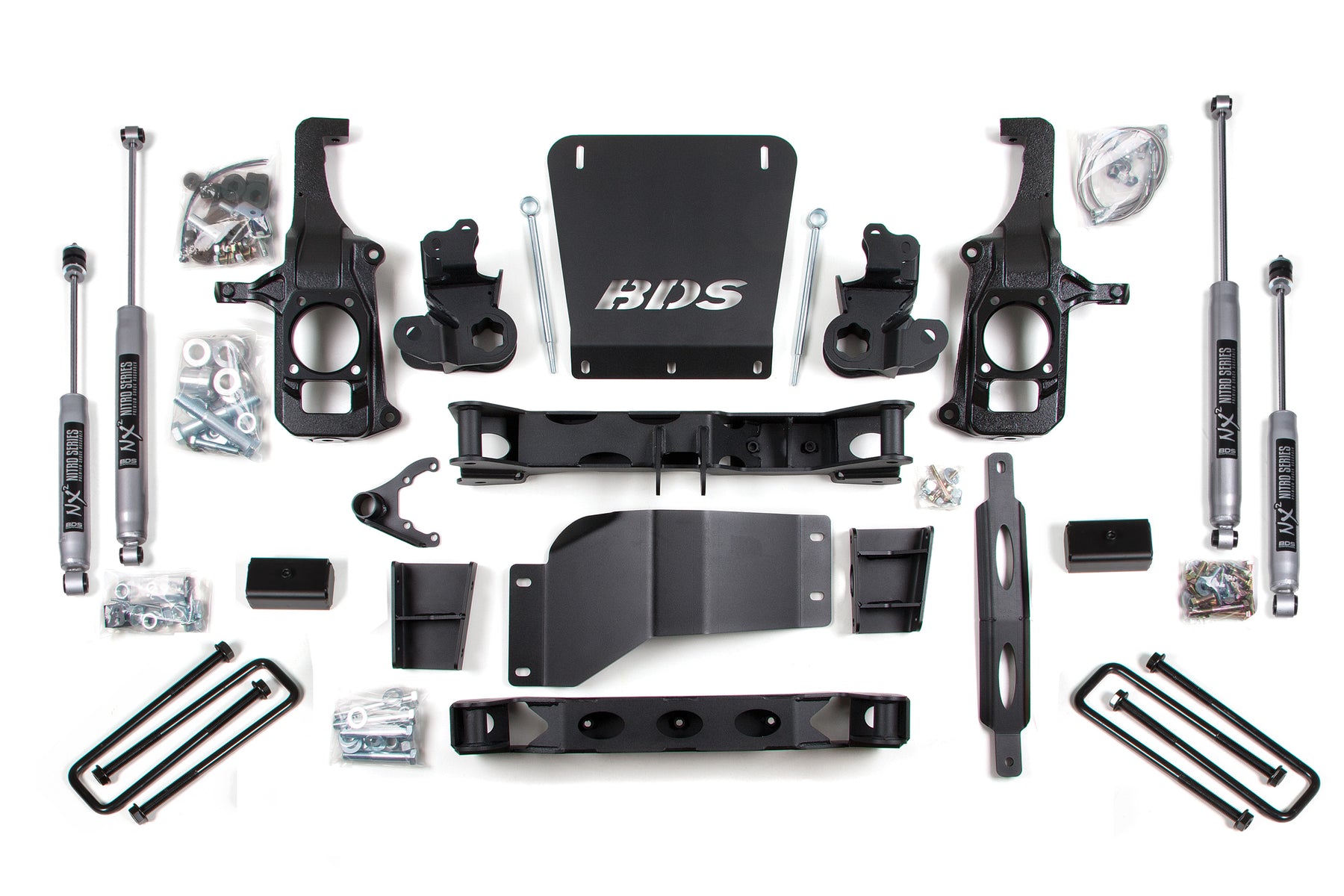

BDS Suspension BDS1827FS Suspension Lift Kit

Improve the stance, performance, and off-road capability of your 2011-2019 Chevy Silverado or GMC Sierra 2500HD 4WD with the BDS 6.5-inch lift kit. Engineered for maximum ground clearance and serious durability, this system features BDS’s innovative No Torsion Bar Drop design, which mounts the torsion bars directly to the top of the lower control arms to eliminate the need for a dropped torsion bar crossmember. The result is increased clearance under the truck along with improved off-road protection and capability. Designed to clear up to 37-inch tires, this kit delivers the aggressive look and performance heavy-duty truck owners demand.

Built around BDS’s proven high-clearance suspension design, this system improves ground clearance while maintaining excellent on-road handling and ride quality. Up front, the kit includes heavy-duty torsion bar relocation brackets, high-arched 1/4-inch steel crossmembers, multi-piece differential relocation brackets, and rugged skid plates for added strength and protection on the trail. Suspension and steering geometry are corrected using CNC-machined ductile iron steering knuckles to provide confident handling and proper alignment at the new ride height. Also included are sway bar links, bump stop extensions, stainless steel brake lines, and all necessary installation hardware to create a complete and dependable suspension system ready for daily driving, towing, or off-road adventures.

Out back, BDS offers multiple rear lift block options so you can dial in the exact stance you want for your truck. A 3-inch rear block provides a level stance front to rear, while the optional 4-inch rear block retains approximately half of the factory rake for a slightly nose-high appearance that works well for towing and hauling. For drivers wanting a more traditional heavy-duty truck stance, the 5-inch rear block restores most of the fac

Features

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection

Definition: Suspension Lift Kit

Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
