BDS Suspension BDS419H Suspension Lift Kit

Improve the style and handling of your 2003-2006 Jeep Wrangler TJ with this 3-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes Glide-Ride coil springs, JKS sway bar link disconnects to improve offroad articulation, bump stop extensions, and a transfer case drop to maintain proper driveline angles.

In the rear the kit utilizes matching Glide-Ride coil springs to add height without creating a harsh ride to level out the Jeep and rear track bar bracket. These kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, Jeep-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter.

This results in maximum reliability without premature coil bind.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 3 inch

1. Models with manual transmissions may need shifter opening in the floorboard enlarged.
2. Stabilizer and front lower control arms are highly recommended.
3. Will NOT work with Rubicon Models.

• ProRide coil springs offer improved ride quality and more articulation
• Sway bar quicker disconnects and extended rear link for improved offroad flex
• Rear track bar bracket repositions rear axle under vehicle
• Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
• Allows clearance for 33 inch Tires

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

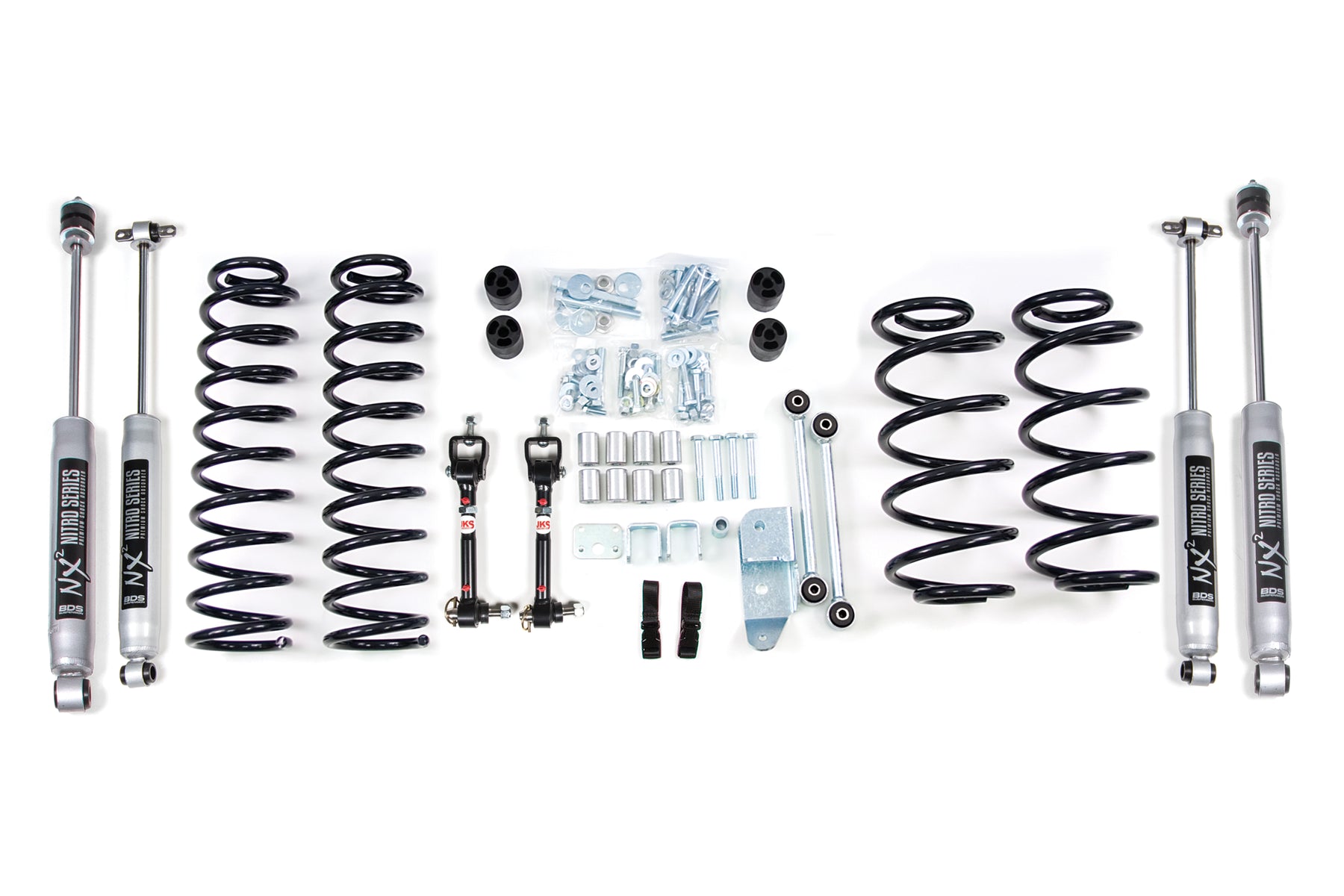

Kit Components:

• Includes one BDS014301, 2003-2006 Jeep TJ 3in Box Kit, UPC Code 658848613991
• Includes one BDS034302, 97-04 Jeep TJ 3in Front Coil Kt, UPC Code 658848616756
• Includes one BDS034308, 1997-2004 Jeep Wrangler (TJ) 3in Rear Coil Kit, UPC Code 658848616763
• Includes two BDS85965, Shock- 24.90 x 14.80 x 2-3/8 - S1/BP7, UPC Code 711745610149
• Includes two BDS85980, Shock- 22.95 x 14.65 x 2 - BP18/EB1, UPC Code 711745610286

Installation / Product Video: Watch on YouTube

Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
