The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

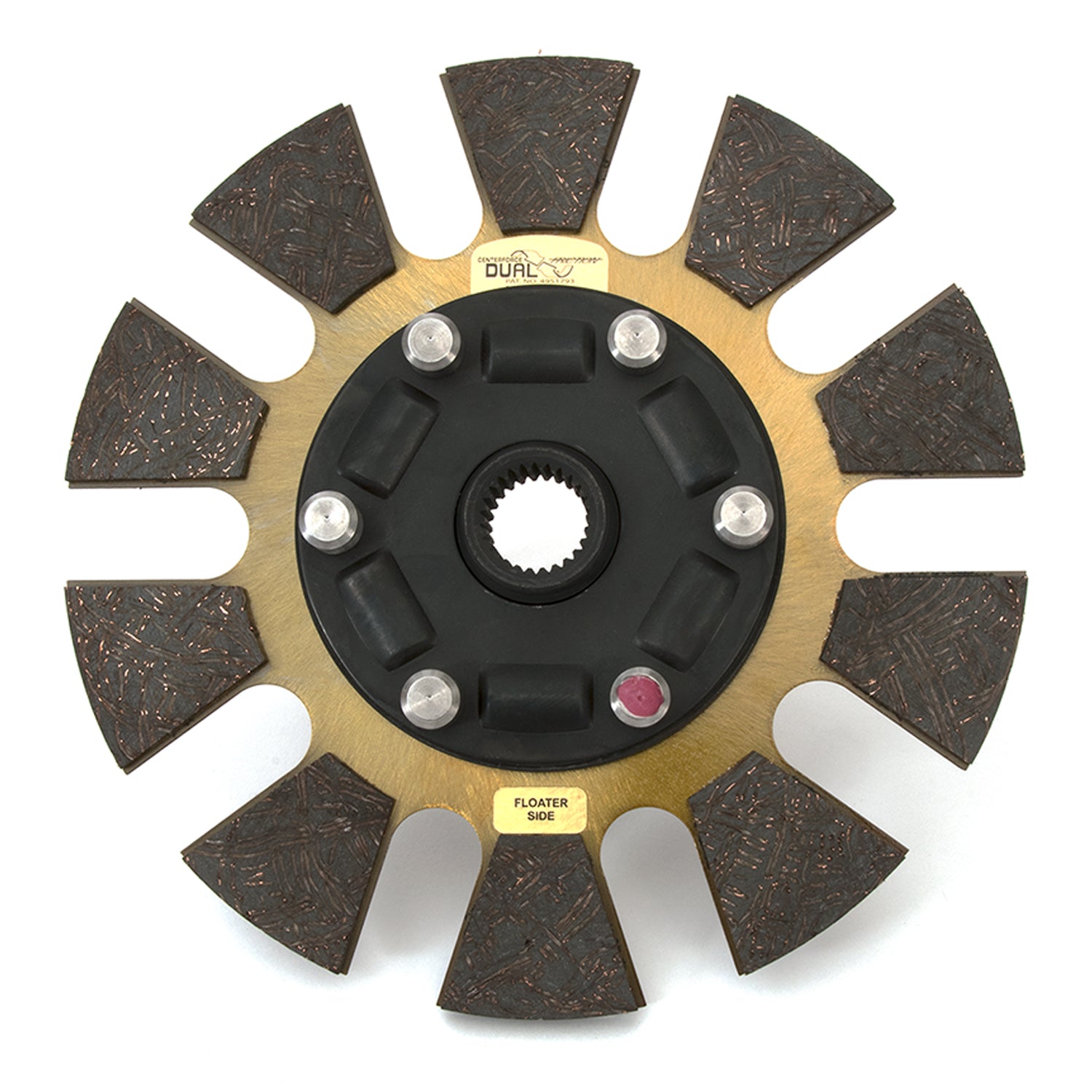

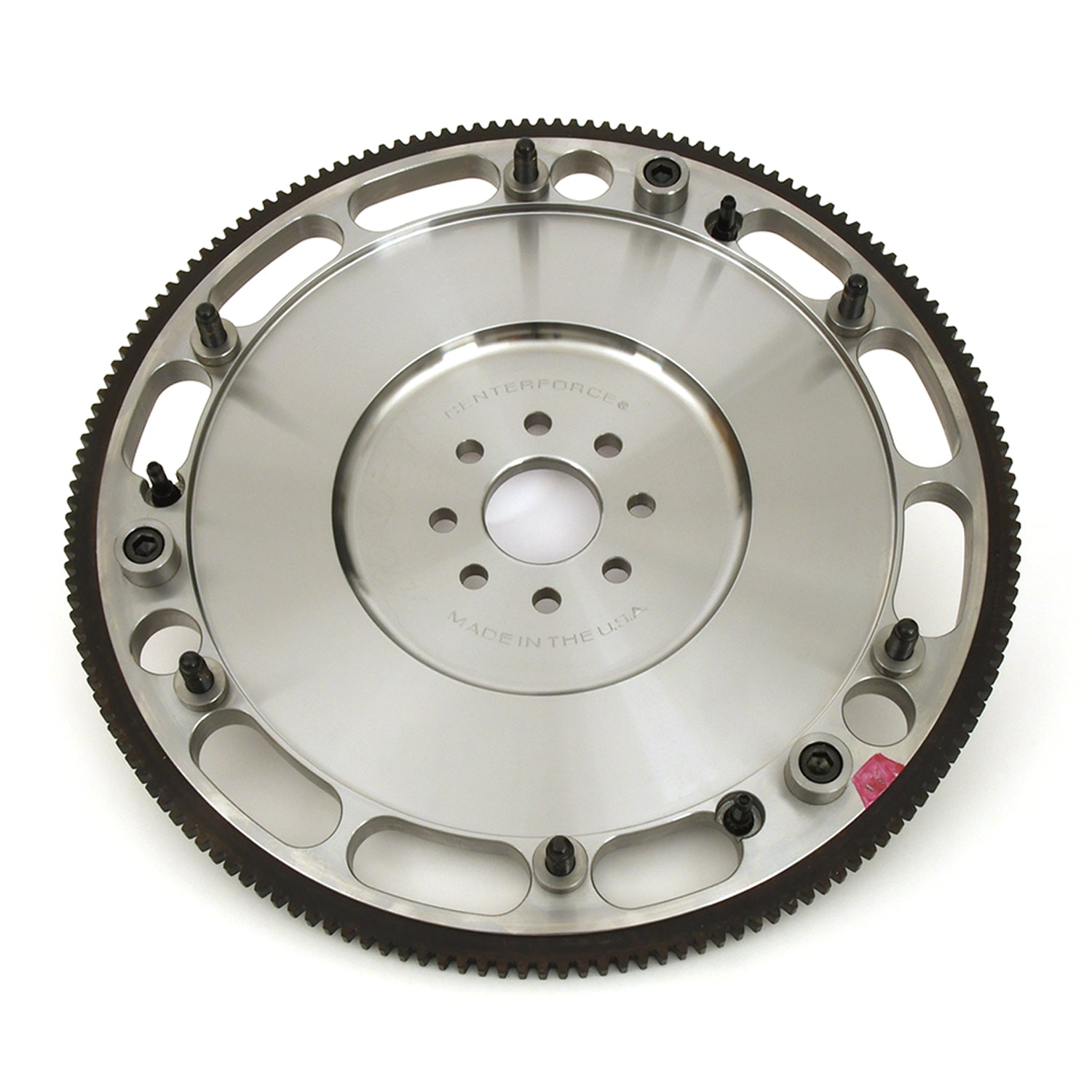

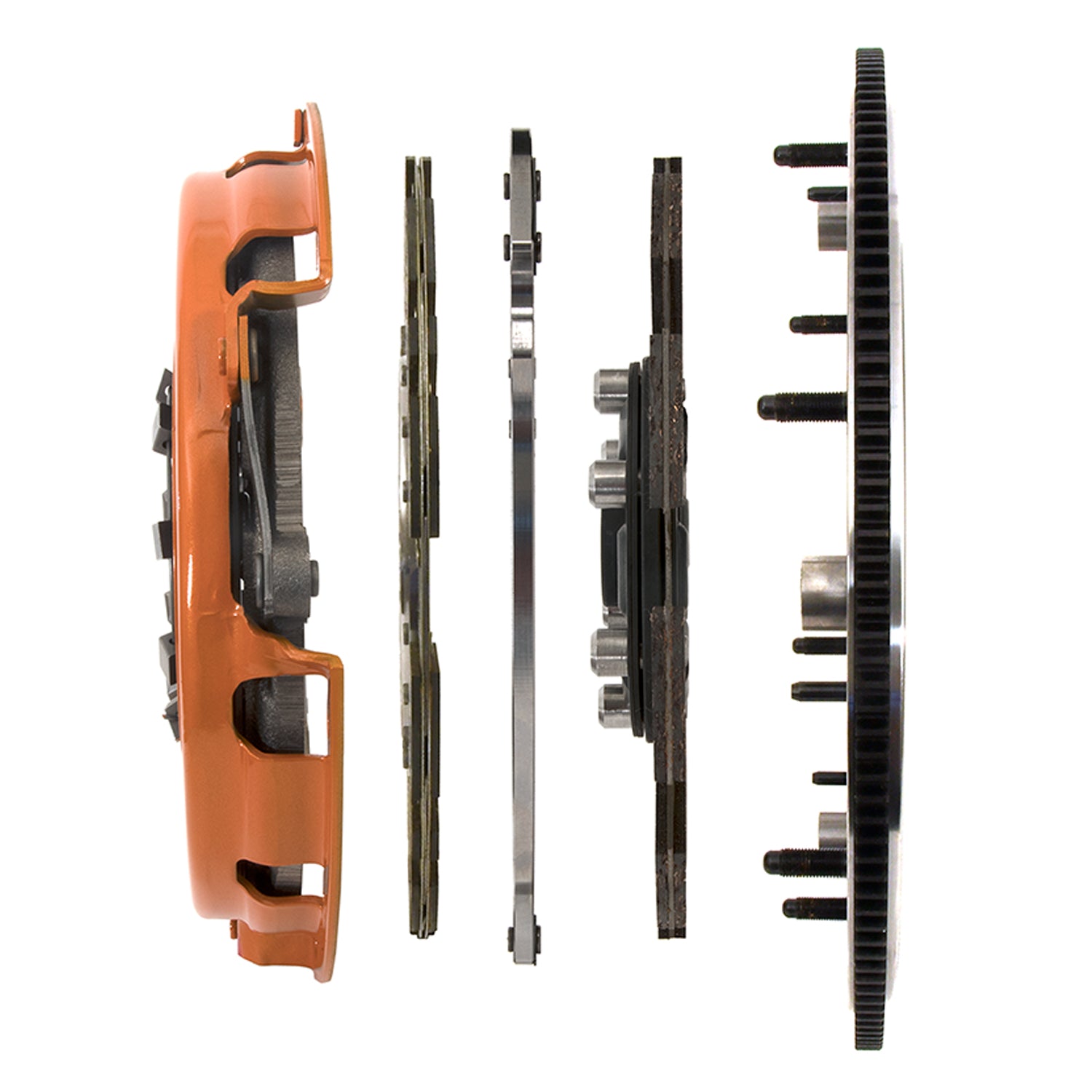

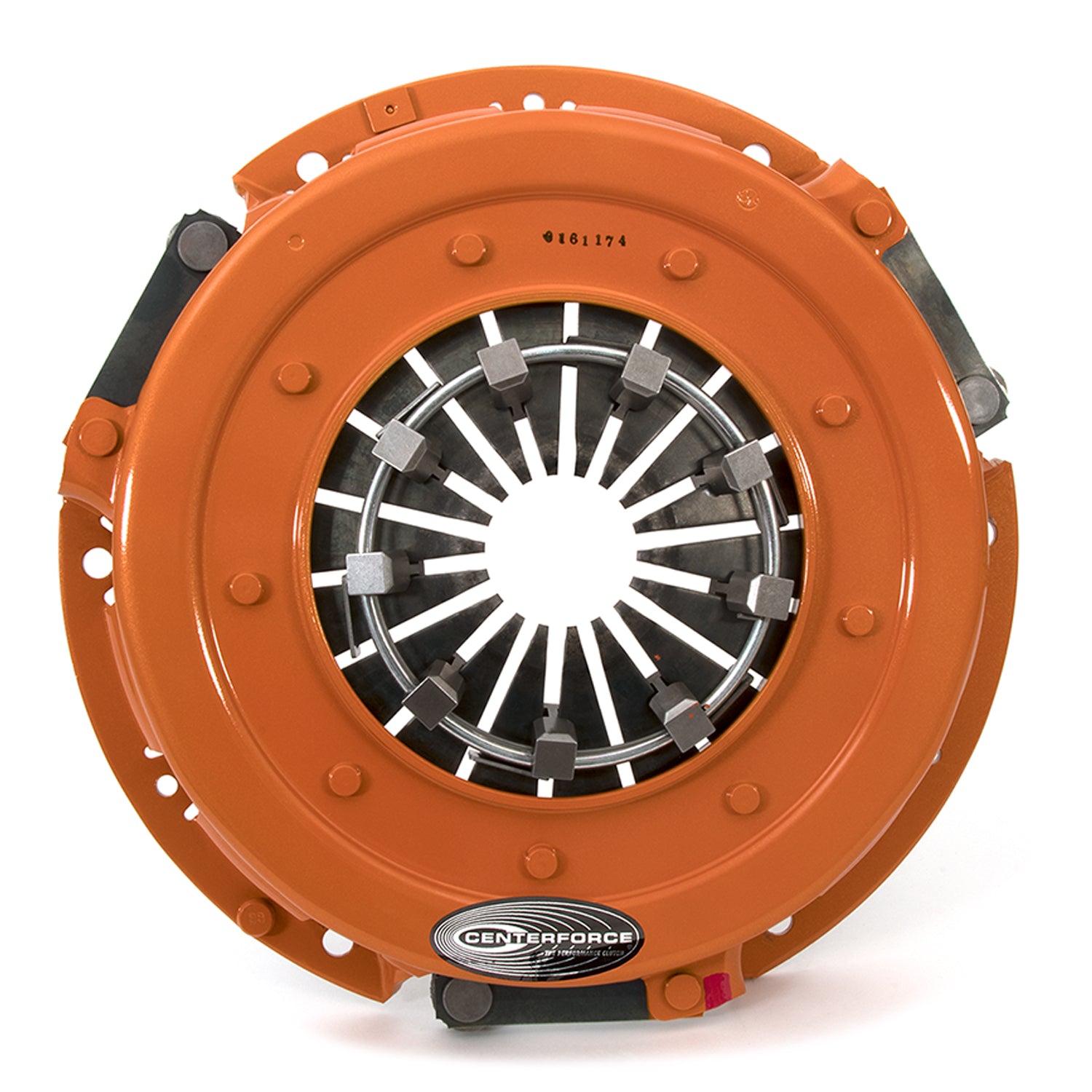

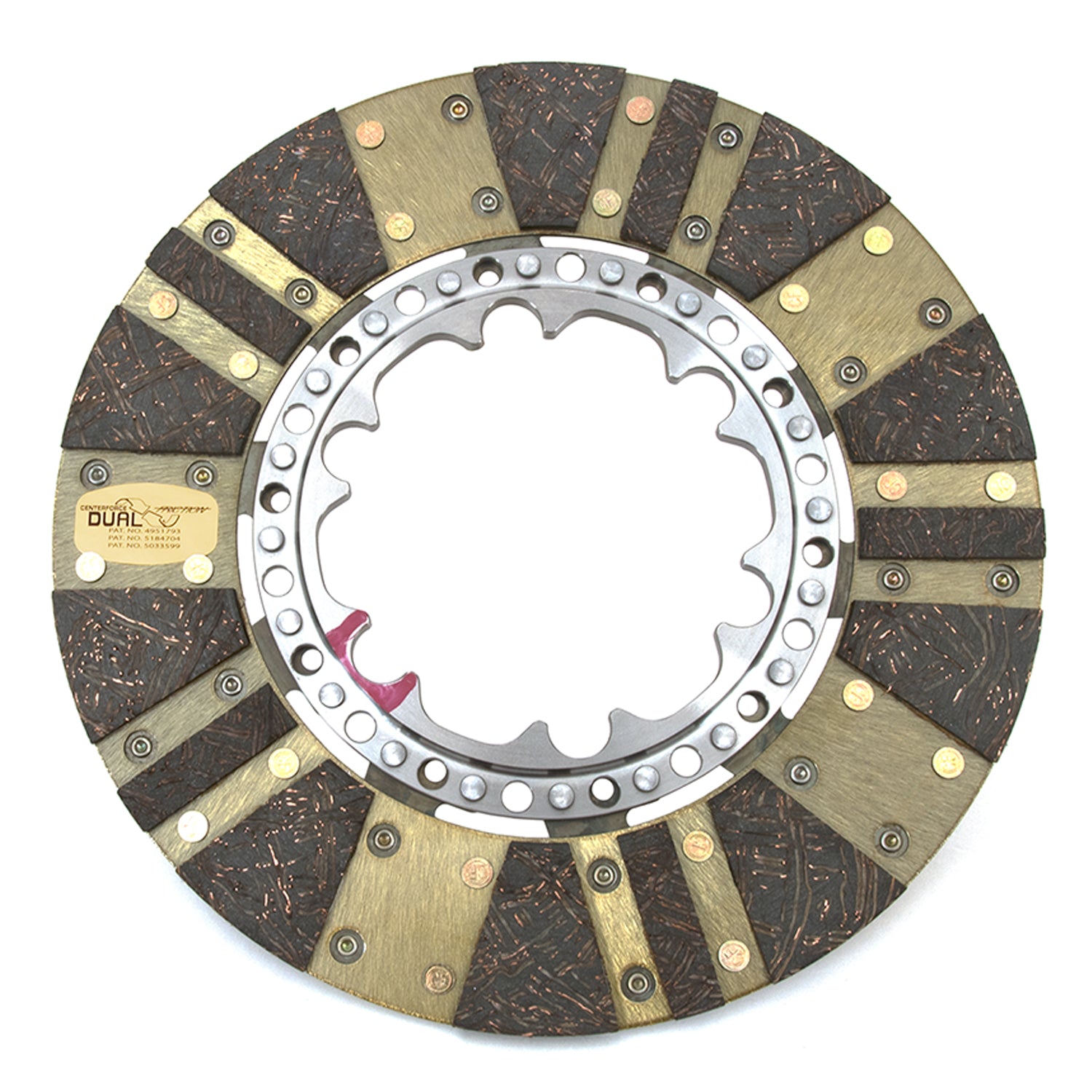

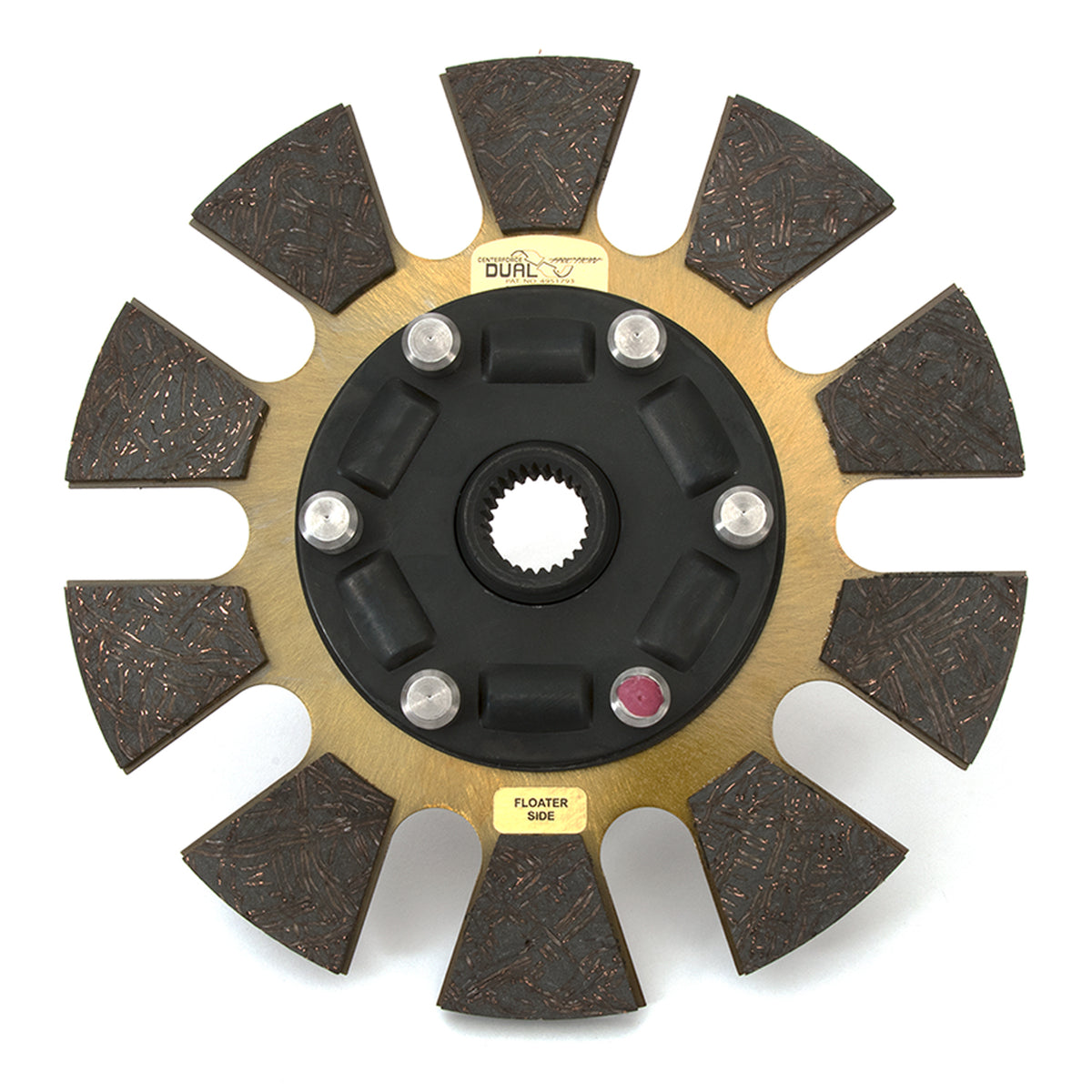

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Out of Package Weight | 45.95 |
| Torque Capacity | 1300 |
| Tooth Quantity | 164 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Sprung |
| Disc Quantity | 2 |
| Input Shaft Diameter | 1-1/8 IN |
| Counterweight Assist | YES |
| Input Spline Quantity | 26 |
| Disc Material | Organic/Carbon composite |
| Disc Type | Segmented face |
| Ring Gear O.D. | 14.236 IN |
| Clutch Disc Diameter | 10.4 IN |
| Material | Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction |
| Crankshaft Bolt Hole Quantity | 8 |
| Flywheel Crank Flange Register | 1.750 IN |
| Flywheel Counter Balance Weight | 0 |
| Flywheel Crank Bolt Size | M10 x 1.00 x 25 MM |
| Installed Height | 2.960 IN |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 45.95 lbs, 164 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Ford Mustang 8 Cyl |
| Made In The USA | Assembled |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
