Centerforce 413613098 - DYAD(R) DS 10.4, Clutch and Flywheel Kit
Couldn't load pickup availability
The Centerforce(R) DYAD(R) DS (Drive Sys.) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs. See extended description for more info.

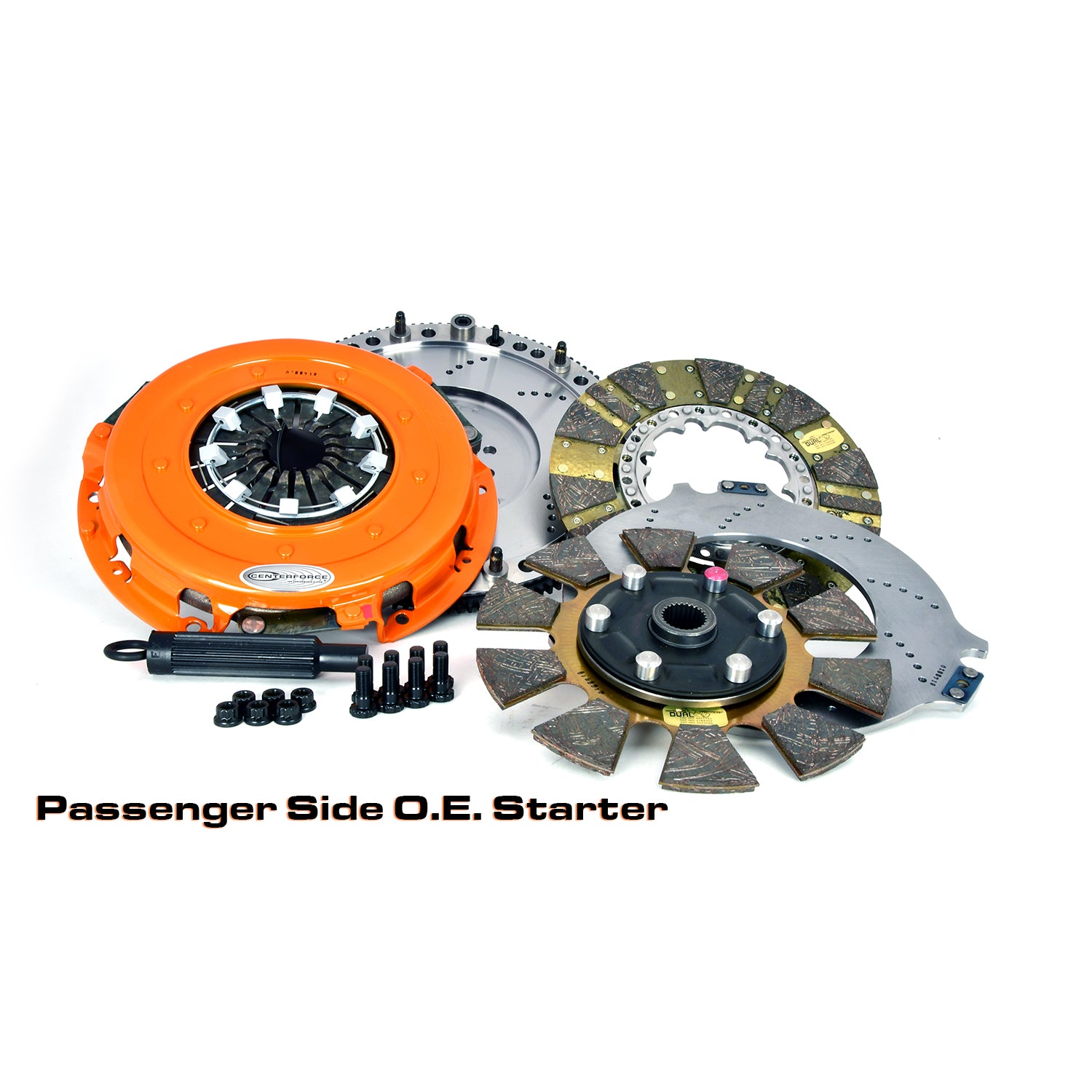

Please Note: Gen III Chrysler Hemi engines and transmissions have a few different variations, including bellhousing depth and starter position. This kit is designed for use with a short aftermarket bellhousing (i.e. short deck) and an OE type starter positioned on the passenger side of the engine The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Tooth Quantity | 130 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Input Shaft Diameter | 1-1/8 IN |
| Counterweight Assist | YES |
| Input Spline Quantity | 26 |
| Ring Gear O.D. | 13.205 IN |
| Clutch Disc Diameter | 10.4 IN |
| Material | Cast Iron Pressure Plate / Segmented Organic Friction |
| Crankshaft Bolt Hole Quantity | 8 |
| Flywheel Counter Balance Weight | 0 |
| Flywheel Crank Bolt Size | M10 x 1.00 x 25 MM |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 130 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 10.4in Dia., 26-Spline, Fits Dodge s Crate Engines & Swaps Gen III HEMI 8 Cyl |
| Made In The USA | Assembled |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
