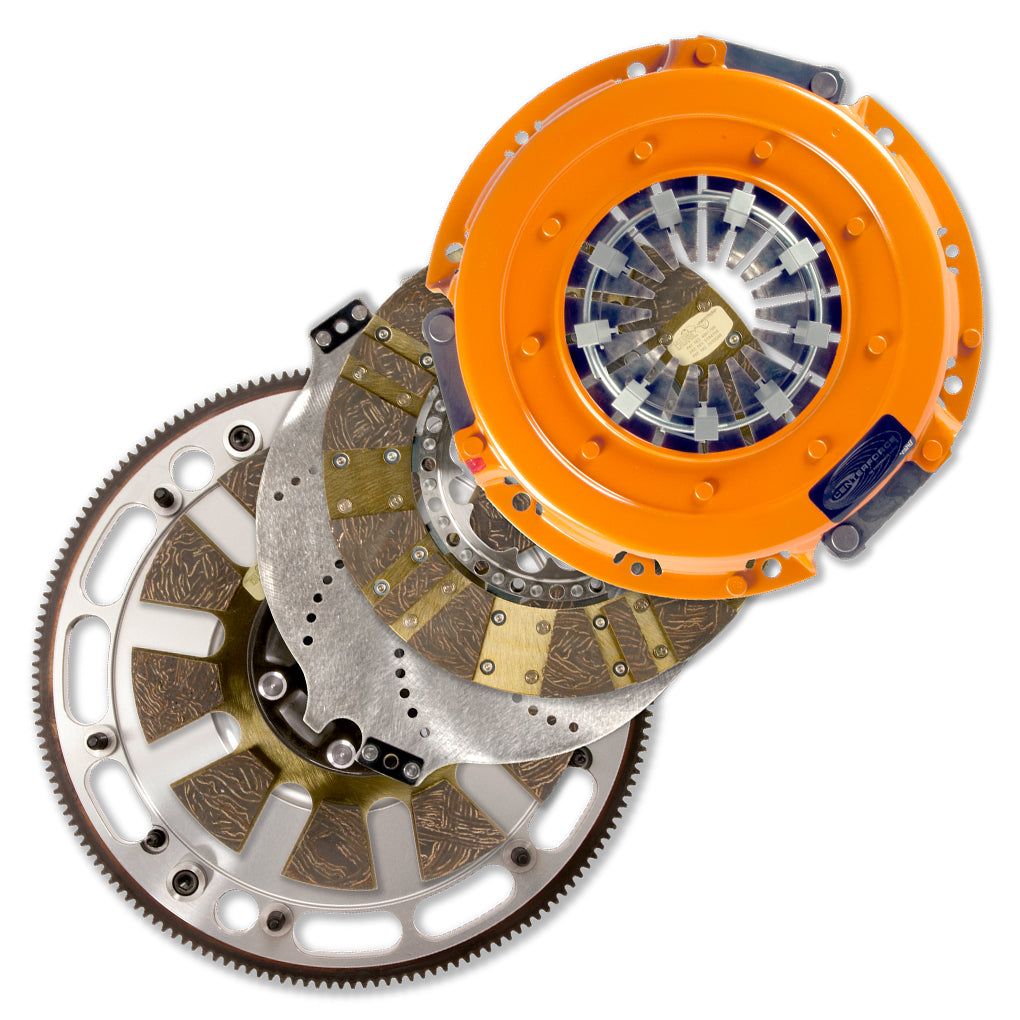

Centerforce 413614869 - DYAD(R) DS 10.4, Clutch and Flywheel Kit

Contact Us for Availability
$1,816.95 USD
✓ Need help confirming fitment?
✓ Ships in 2 - 5 business days
✓ Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Centerforce
  • SKU 413614869
  • Barcode 00788442034219

Do you have questions about this product?

Ask an expert!

Description Fitment Table Shipping information

The Centerforce(R) DYAD(R) DS (Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 500 to 1300 ft /lbs.

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications

Torque Capacity 1300
Disc Type Segmented face
Ring Gear O.D. 14.105 IN
Clutch Disc Diameter 10.4 IN
Material Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
Crankshaft Bolt Hole Quantity 9
Flywheel Crank Flange Register 2.068 IN
Flywheel Counter Balance Weight 0
Flywheel Crank Bolt Size MM11 x 1.50 x 23 MM
Installed Height 2.760 IN
Pilot Bushing Included Yes
Alignment Tool Included Yes
Mounting Hardware Included Yes
Title Centerforce DYAD ? DS 10.4, Multi-Disc Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 9 Bolt Crank, 1300 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Chevrolet Crate Engines & Swaps LS9 6.2L
Made In The USA Assembled
Tooth Quantity 168
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Disc Type Sprung Solid Sprung
Input Shaft Diameter 1-1/8 IN
Counterweight Assist YES
Input Spline Quantity 26
Disc Material Organic/Carbon composite

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
