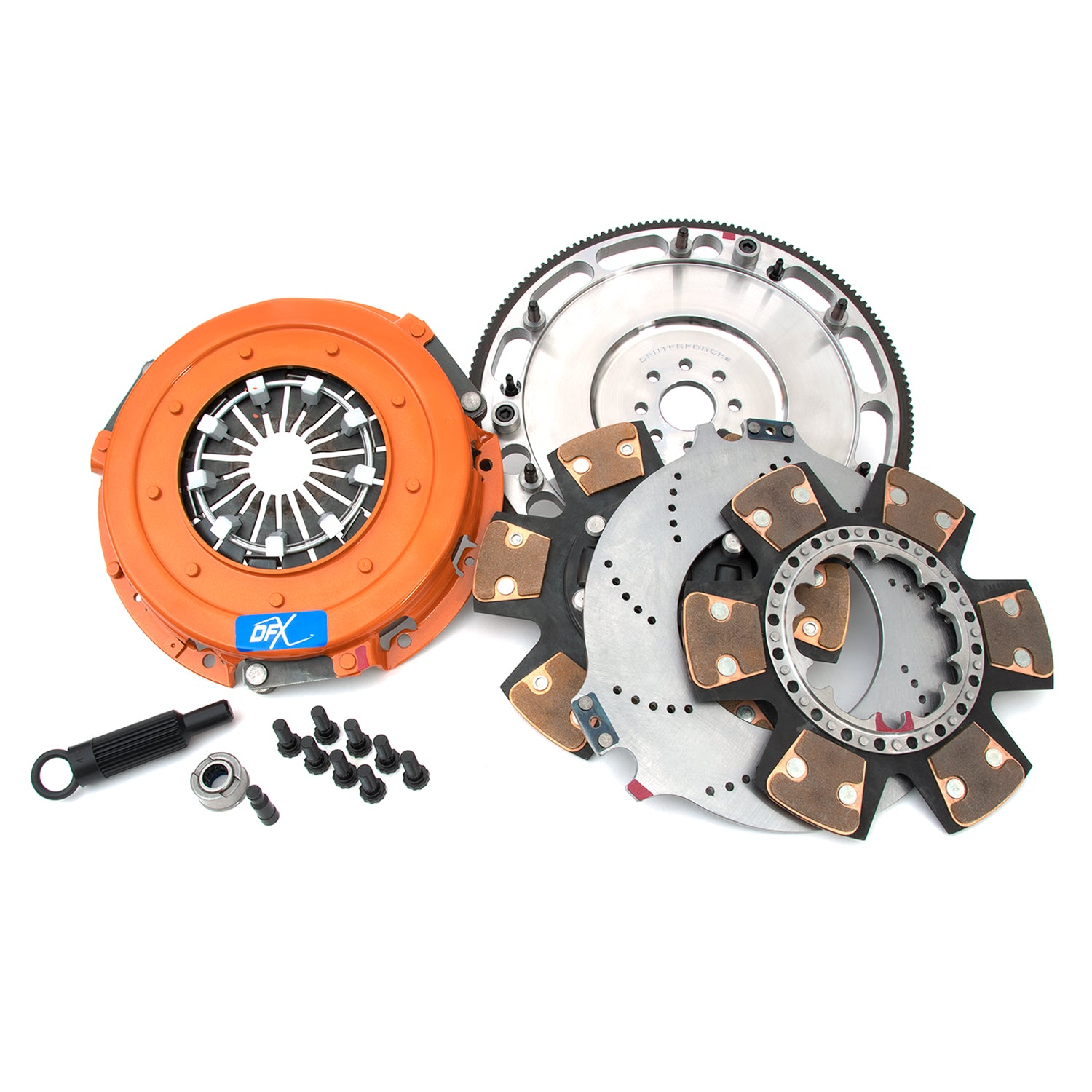

Centerforce 415114805 - DYAD(R) XDS 10.4, Clutch and Flywheel Kit

Contact Us for Availability
$1,816.95 USD
✓ Need help confirming fitment?
✓ Ships in 2 - 5 business days
✓ Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Centerforce
  • SKU 415114805
  • Barcode 00788442033915

Do you have questions about this product?

Ask an expert!

Description Fitment Table Shipping information

The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.

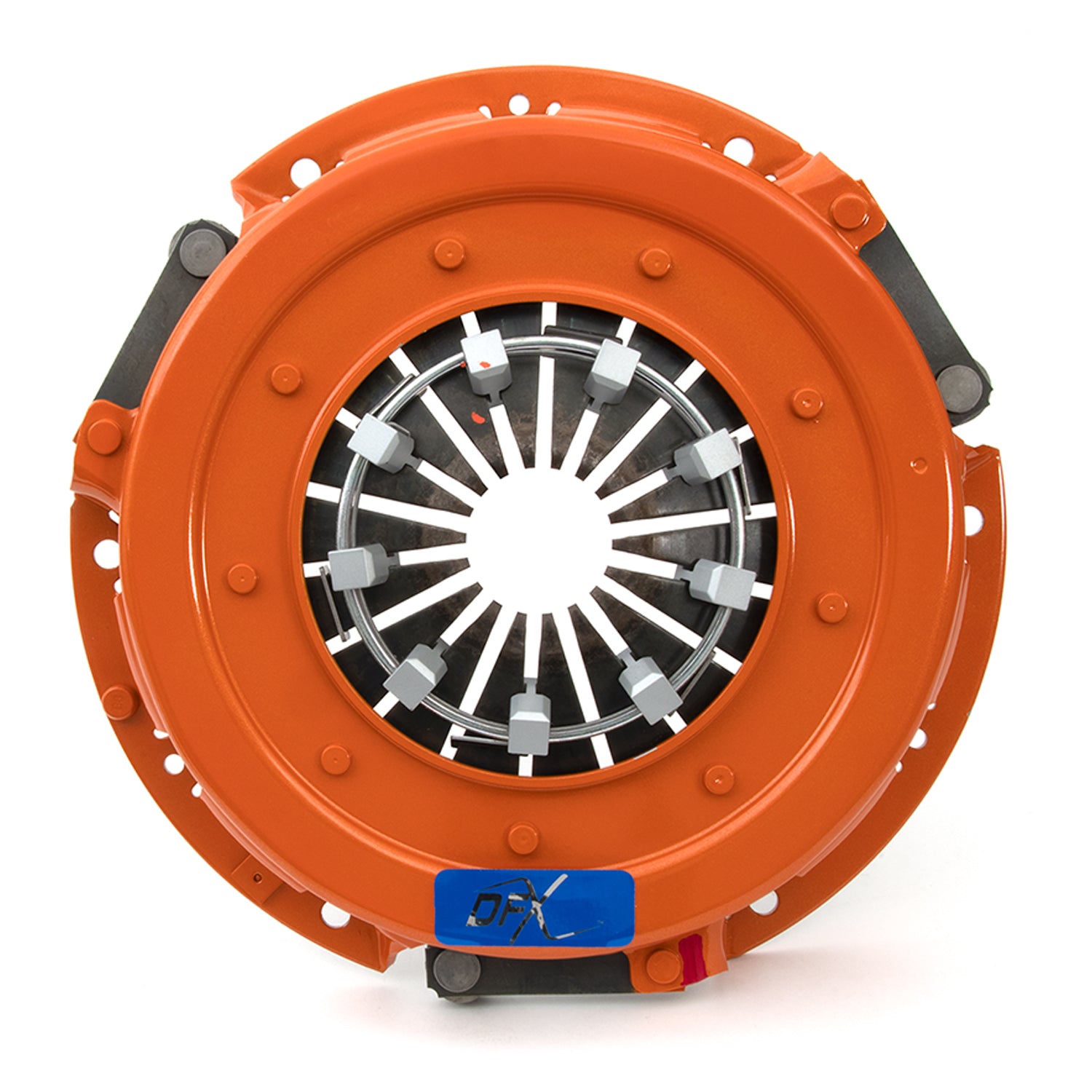

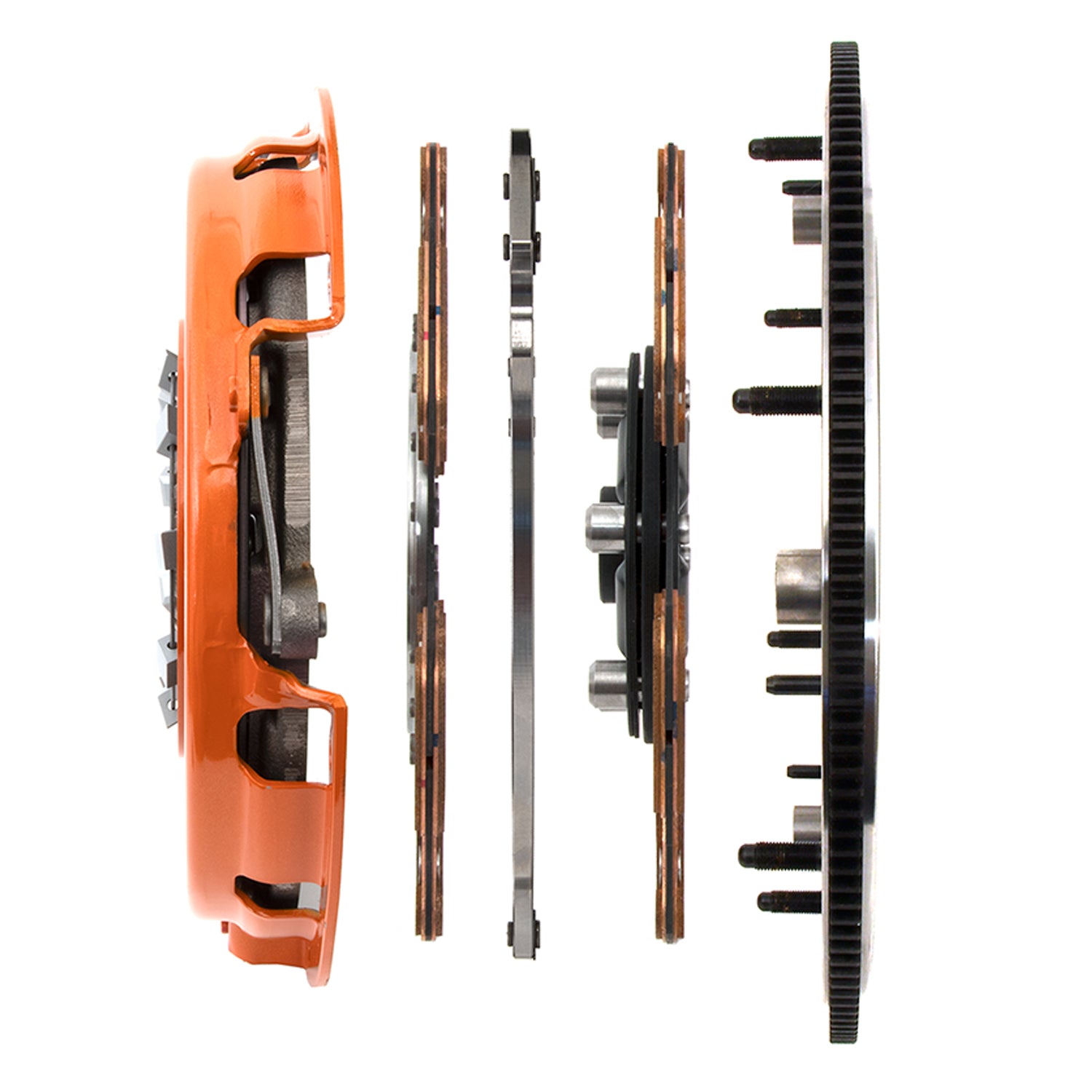

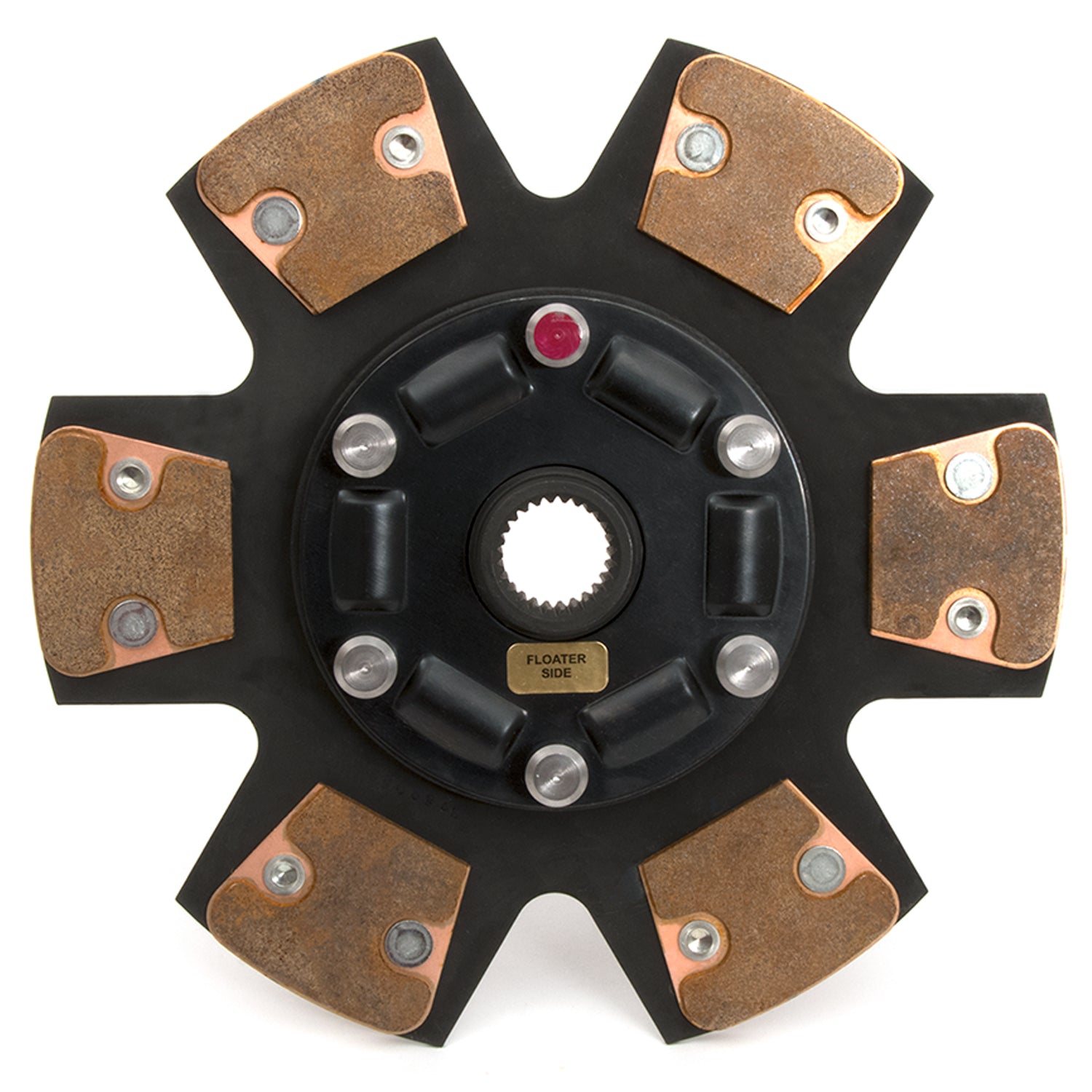

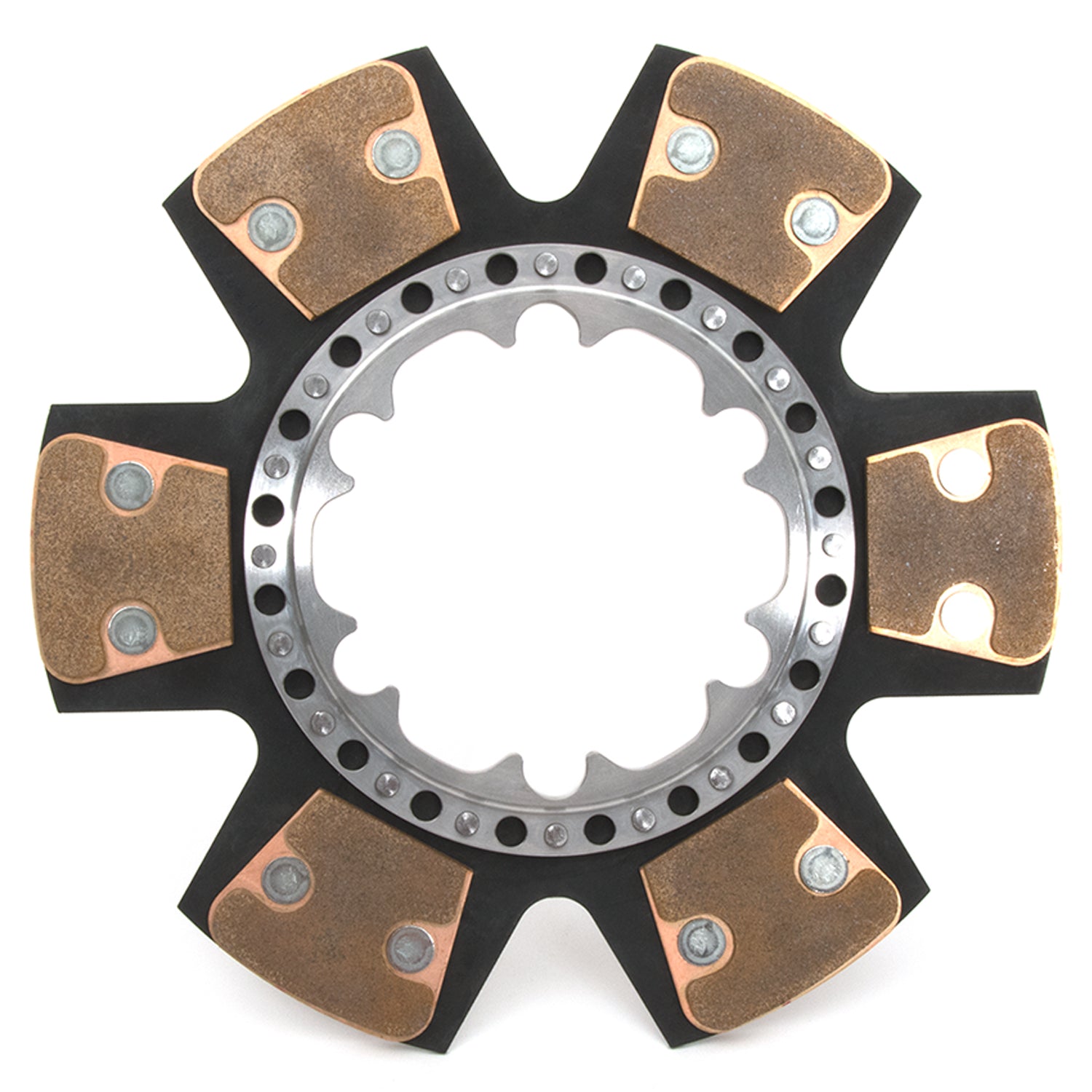

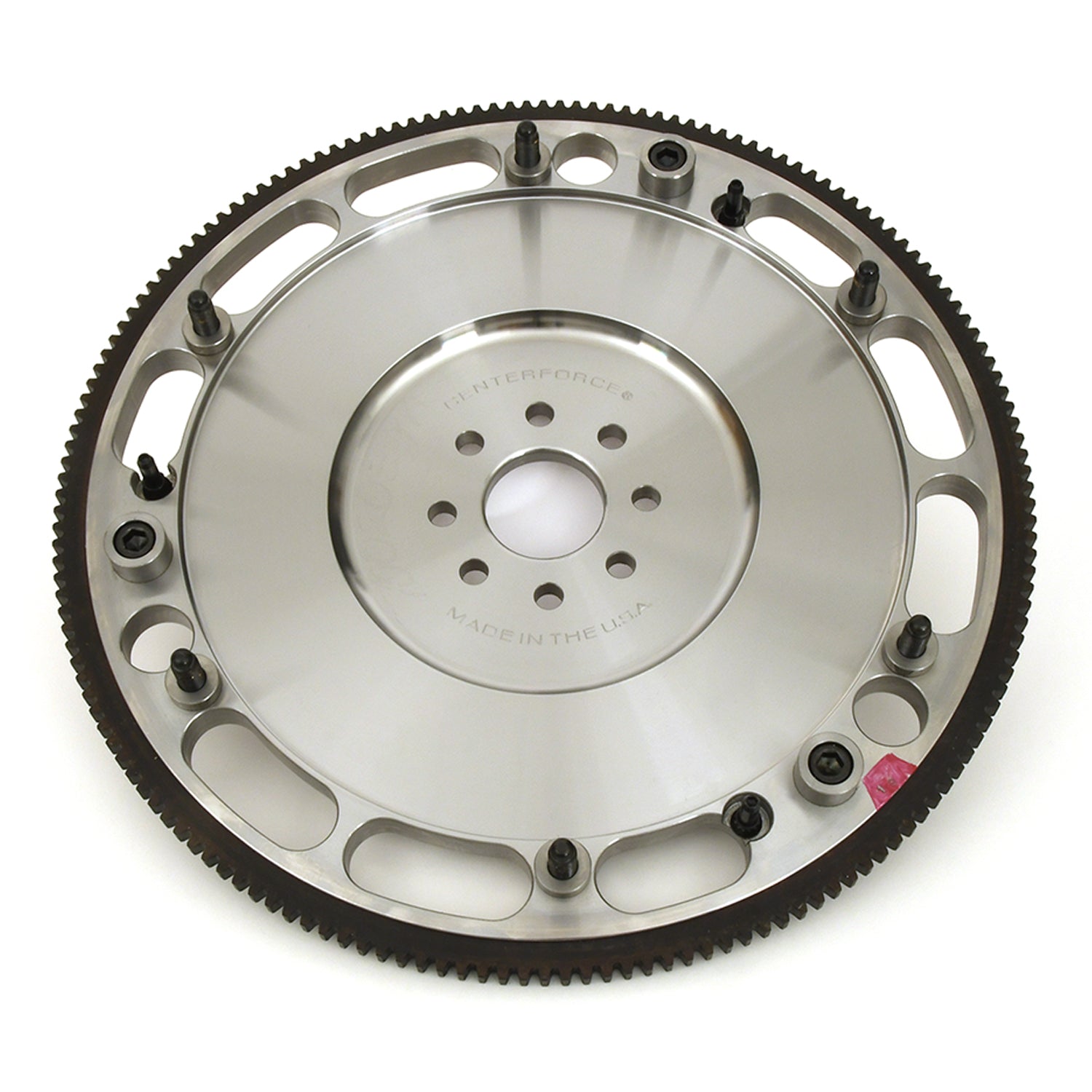

The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications

Out of Package Weight 48.45
Input Spline Quantity 26
Disc Material Cerametallic
Disc Type 6-Paddle
Ring Gear O.D. 14.236 IN
Clutch Disc Diameter 10.4 IN
Material Billet Steel Flywheel / Nodular Iron Pressure Plate / Cerametallic Button Style Friction
Crankshaft Bolt Hole Quantity 8
Flywheel Crank Flange Register 1.750 IN
Flywheel Counter Balance Weight 0
Flywheel Crank Bolt Size M10 x 1.00 x 25 MM
Installed Height 2.960 IN

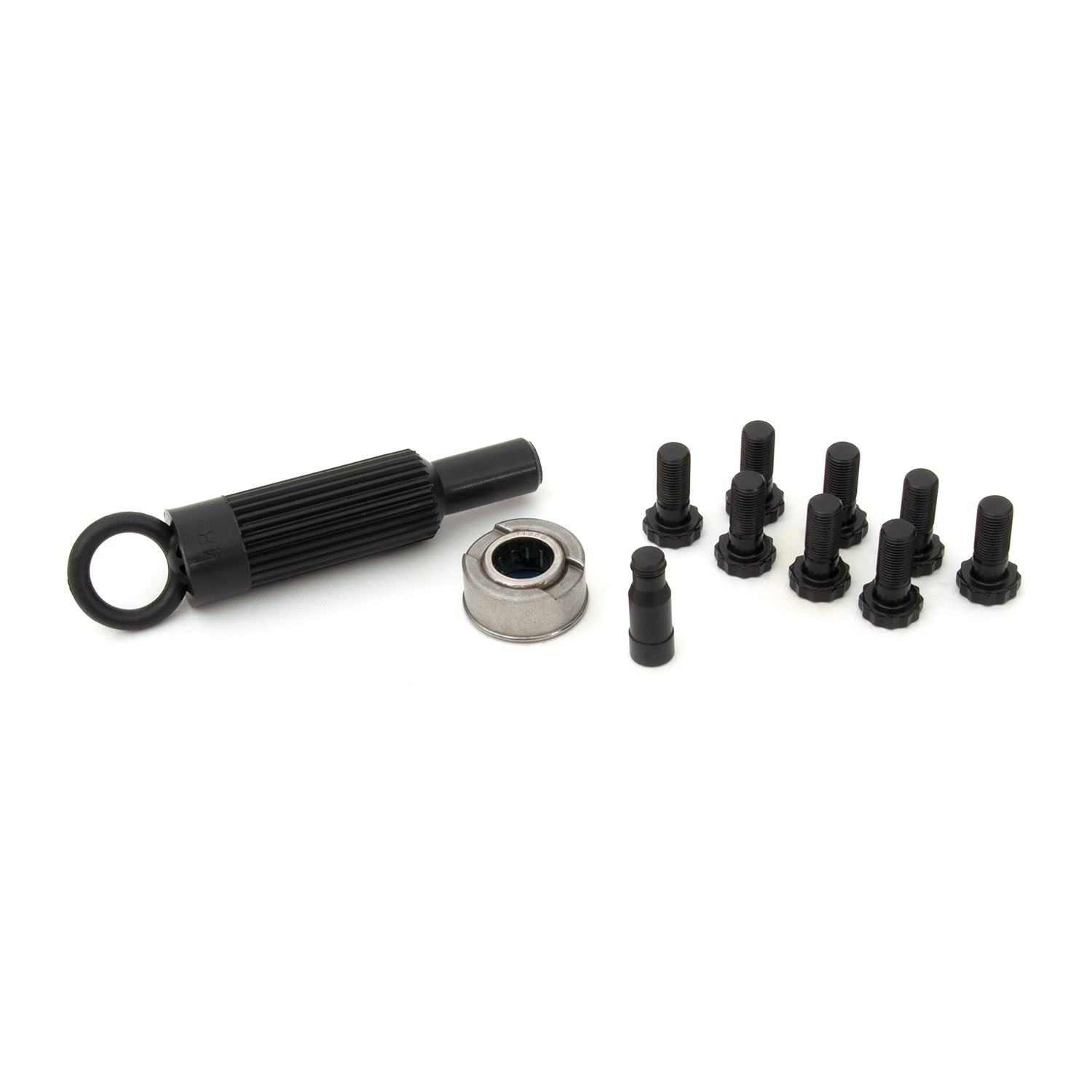

Pilot Bushing Included Yes
Alignment Tool Included Yes
Mounting Hardware Included Yes
Title Centerforce DYAD ? XDS 10.4, Extreme Multi-Disc Clutch and Flywheel Kit, 48.45 lbs, 164 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1600 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Ford Mustang 8 Cyl
Torque Capacity 1600
Tooth Quantity 164
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Disc Type Sprung Solid Sprung
Disc Quantity 2
Input Shaft Diameter 1-1/8 IN
Counterweight Assist YES
Made In The USA Assembled

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
