Centerforce 427613096 - DYAD(R) XDS 10.4, Clutch and Flywheel Kit
Product Availability Request
Fill the form and our team will contact you.
The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 10.4 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 700 to 1600 ft /lbs.

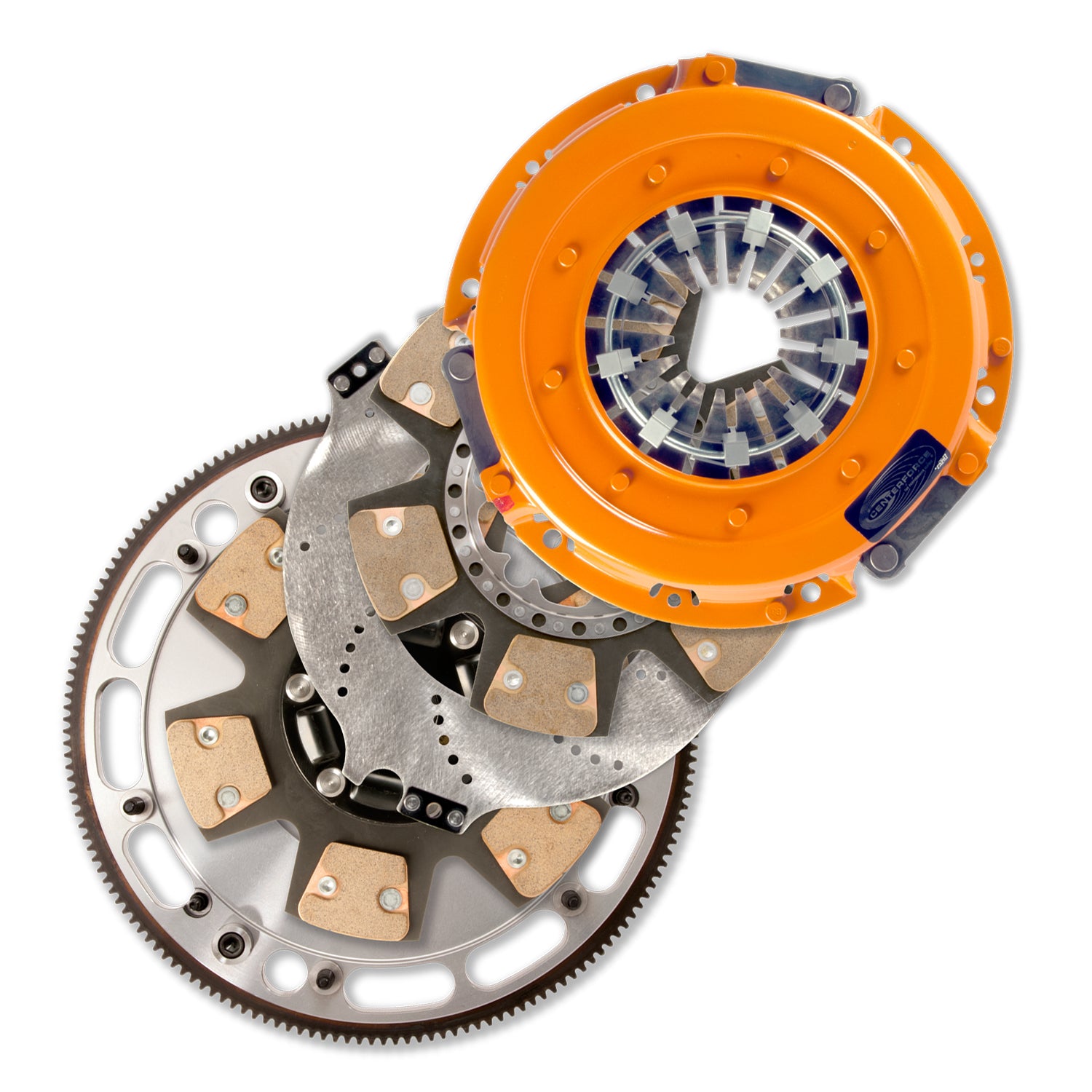

The Centerforce(R) DYAD XDS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 700 to 1600 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with metallic paddle/button style friction material providing increased holding capacity. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Flywheel Crank Bolt Size | M10 x 1.00 x 25 MM |
| Installed Height | 3.770 IN |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce DYAD ? XDS 10.4, Extreme Multi-Disc Clutch and Flywheel Kit, 48.40 lbs, 143 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1600 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Dodge/SRT Viper 8.4L |
| Counterweight Assist | YES |
| Input Spline Quantity | 26 |
| Disc Material | Cerametallic |
| Disc Type | 6-Paddle |
| Ring Gear O.D. | 14.579 IN |
| Clutch Disc Diameter | 10.4 IN |
| Material | Billet Steel Flywheel / Aluminum Pressure Plate / Cerametallic Button Style Friction |
| Crankshaft Bolt Hole Quantity | 8 |
| Flywheel Crank Flange Register | 2.159 IN |
| Flywheel Counter Balance Weight | 0 |
| Made In The USA | Assembled |
| Out of Package Weight | 48.40 |
| Torque Capacity | 1600 |
| Tooth Quantity | 143 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Sprung |
| Input Shaft Diameter | 1-1/8 IN |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
