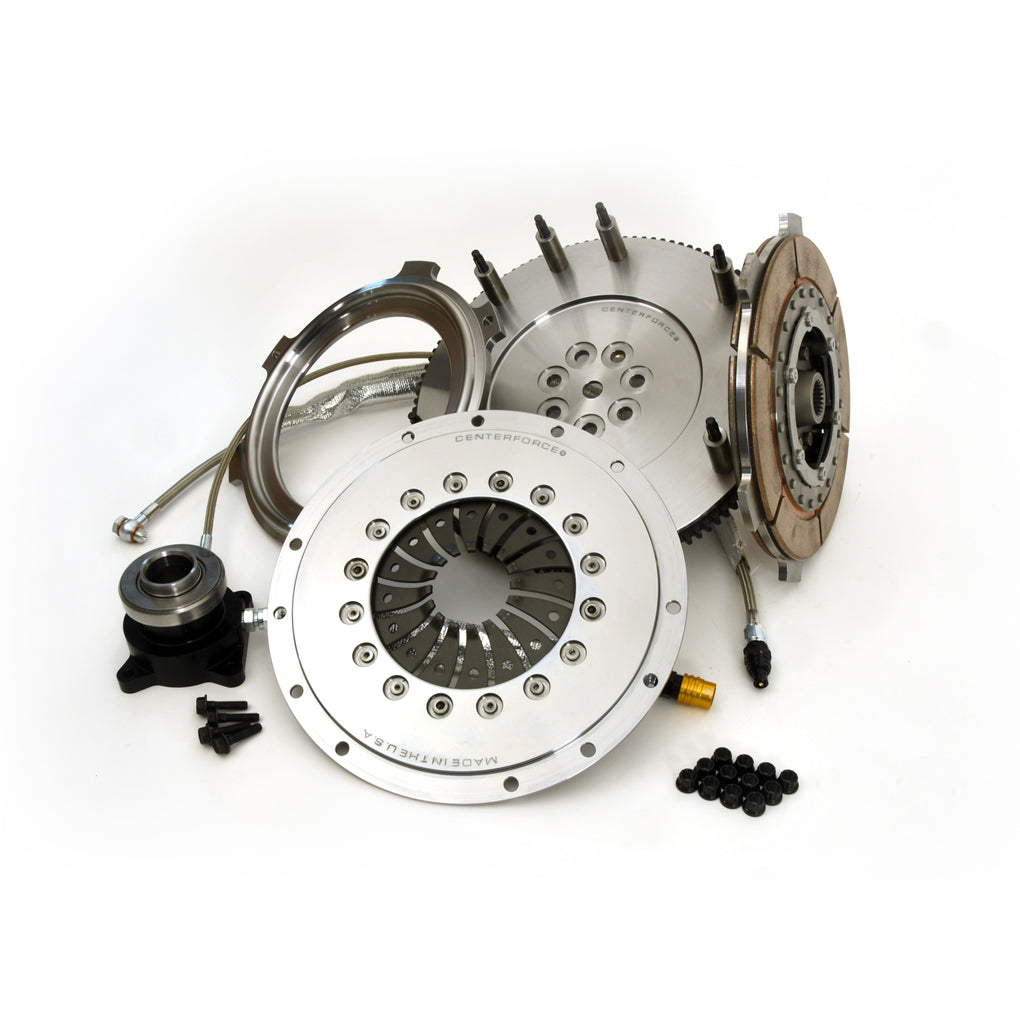

Centerforce 818231520 - DYAD(R) XDS 8.75, Clutch and Flywheel Kit
Product Availability Request
Fill the form and our team will contact you.
The Centerforce(R) DYAD(R) XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 400 to 800 ft /lbs.
The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Out of Package Weight | 30.70 |
| Torque Capacity | 400-800 |
| Tooth Quantity | 114 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Solid |
| Input Shaft Diameter | 1 IN |
| Counterweight Assist | No |
| Input Spline Quantity | 23 |
| Disc Material | Sintered Metallic |
| Disc Type | Full face |
| Ring Gear O.D. | 11.513 IN |
| Clutch Disc Diameter | 8.75 IN |
| Material | Ceramic |
| Crankshaft Bolt Hole Quantity | 7 |
| Flywheel Crank Bolt Size | M12 x 1.50 x 15 MM |
| Mounting Hardware Included | Yes |
| Title | Centerforce DYAD ? XDS 8.75, Extreme Multi-Disc Clutch and Flywheel Kit, 30.70 lbs, 114 Tooth Gear, 7 Bolt Crank, 400-800 ft/lbs Capacity, 8.75in Dia., 23-Spline, Fits Mitsubishi Lancer Evolution 2.0L |
| Made In The USA | Assembled |
Installation / Product Video: Watch on YouTube
