Centerforce 824231820 - DYAD(R) DS 8.75, Clutch and Flywheel Kit

Contact Us for Availability
$2,057.95 USD
✓ Need help confirming fitment?
✓ Ships in 2 - 5 business days
✓ Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Centerforce
  • SKU 824231820
  • Barcode 00788442031232

Do you have questions about this product?

Ask an expert!

Description Fitment Table Shipping information

The Centerforce(R) DYAD(R) DS (Drive System) 8.75 Inch patented multi-disc clutch offers smooth engagement, light pedal, and high-end holding capacity for engine torque levels from 300 to 600 ft /lbs.

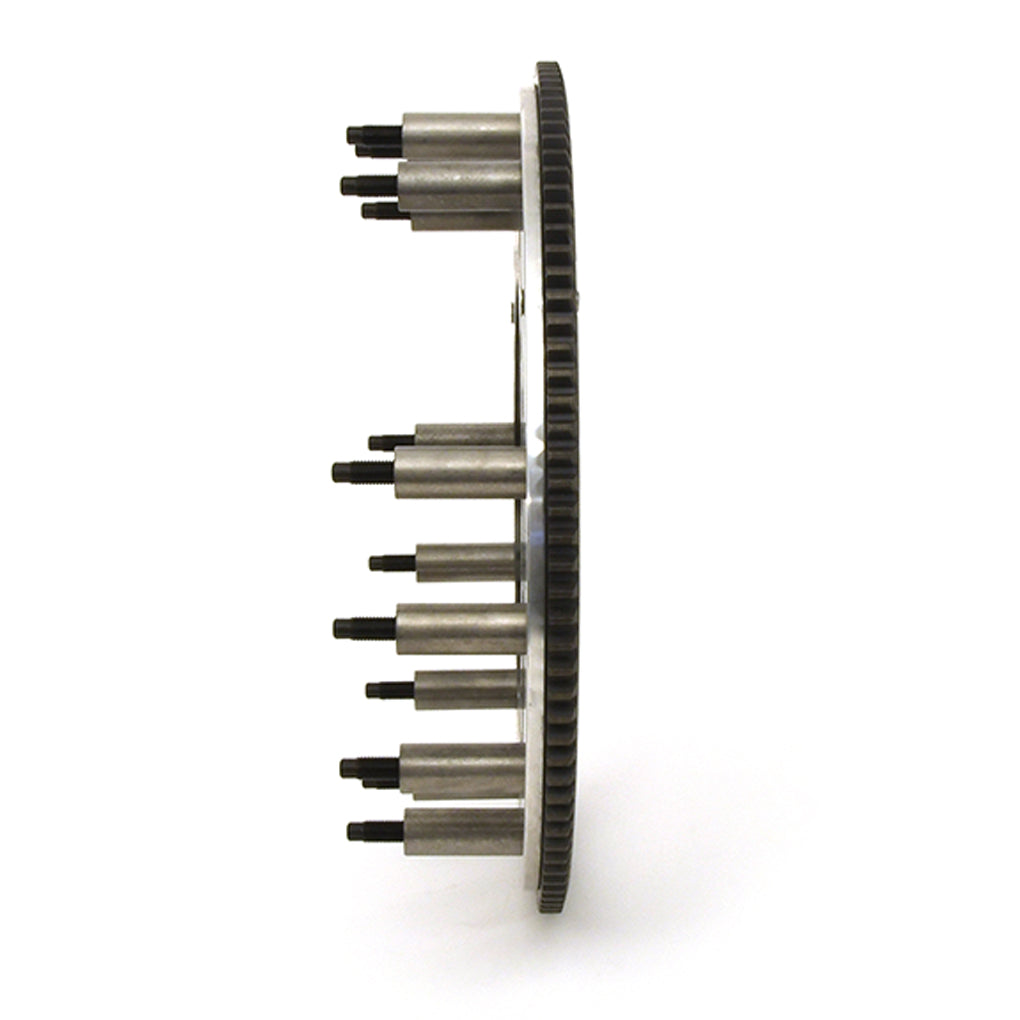

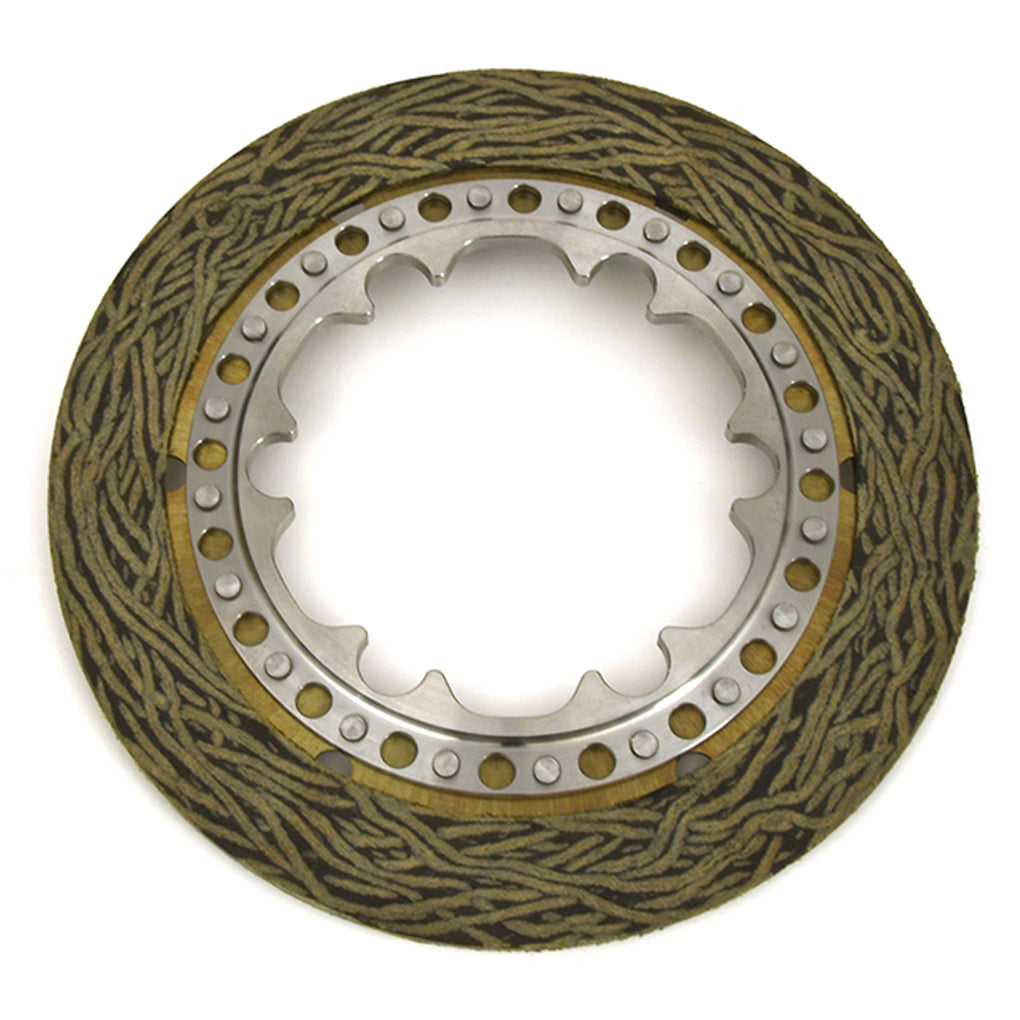

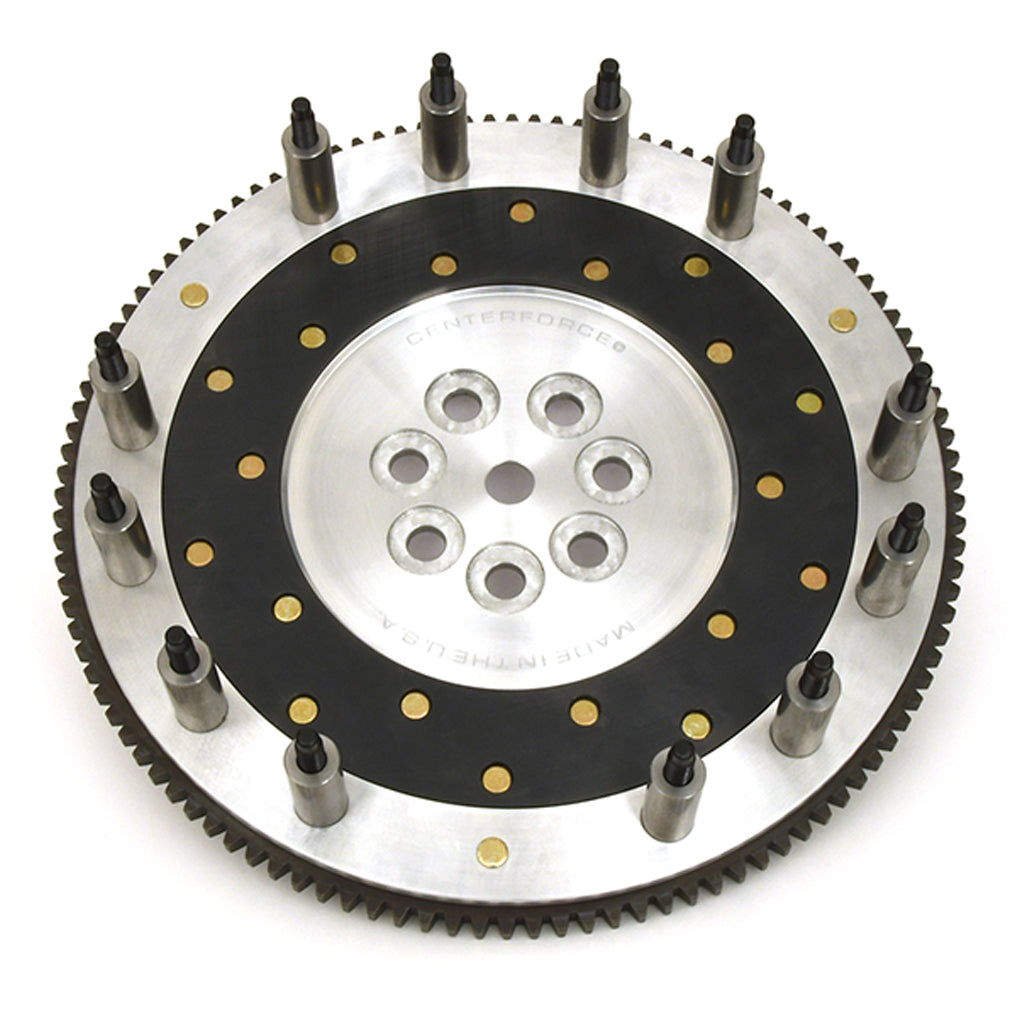

The Centerforce(R) DYAD DS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications

Out of Package Weight 21.20
Torque Capacity 300-600
Tooth Quantity 114
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Disc Type Sprung Solid Solid
Input Shaft Diameter 1 IN
Counterweight Assist No
Input Spline Quantity 23
Disc Material Organic/Kevlar
Disc Type Full face
Ring Gear O.D. 11.513 IN
Clutch Disc Diameter 8.75 IN
Material Organic
Crankshaft Bolt Hole Quantity 7
Flywheel Crank Bolt Size M12 x 1.50 x 15 MM
Mounting Hardware Included Yes
Title Centerforce DYAD ? DS 8.75, Multi-Disc Clutch and Flywheel Kit, 21.20 lbs, 114 Tooth Gear, 7 Bolt Crank, 300-600 ft/lbs Capacity, 8.75in Dia., 23-Spline, Fits Mitsubishi Lancer Evolution 2.0L
Made In The USA Assembled
