Centerforce 836264042 - TRIAD(R) DS, Clutch and Flywheel Kit
Product Availability Request
Fill the form and our team will contact you.
The Centerforce(R) TRIAD DS (Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1100 ft/lbs.

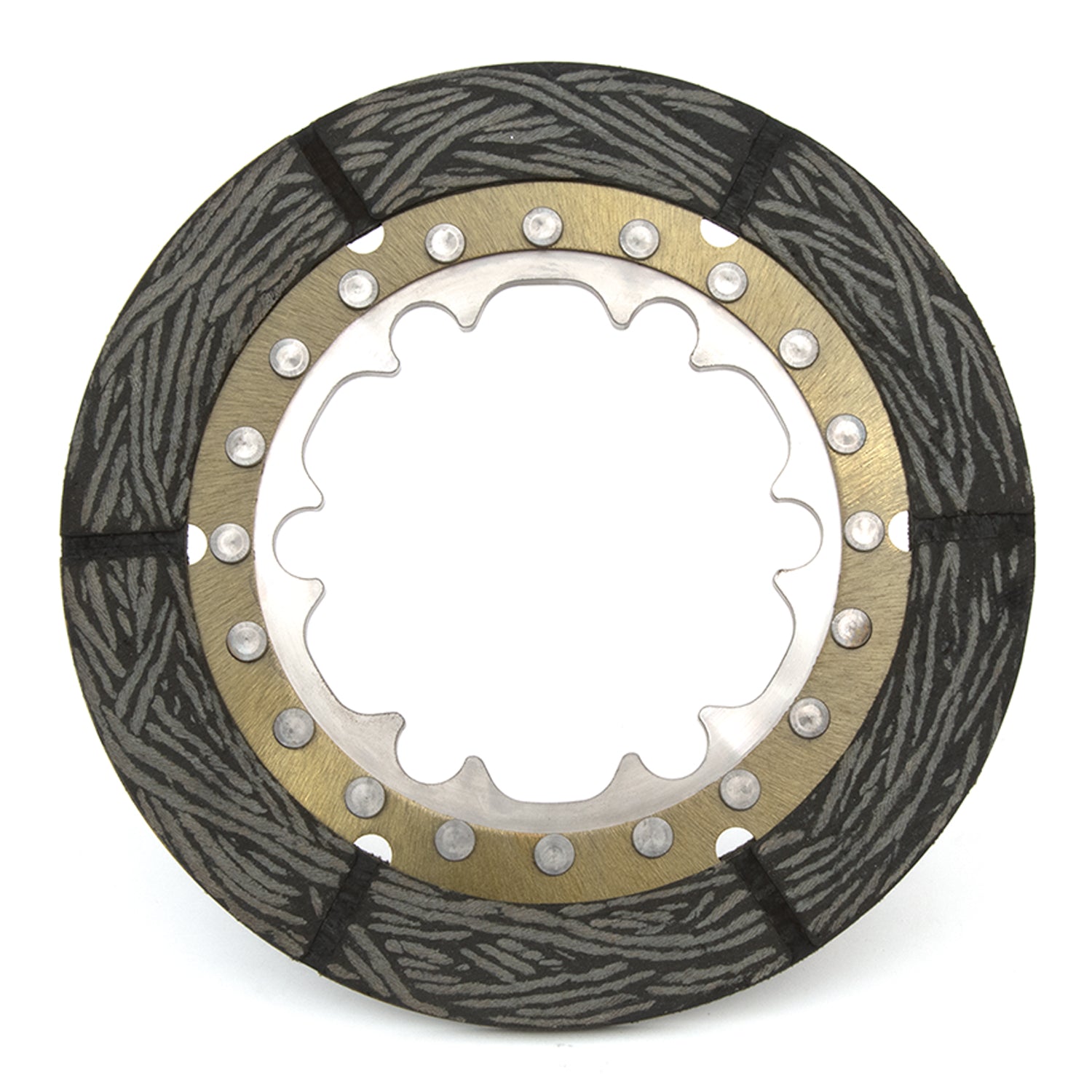

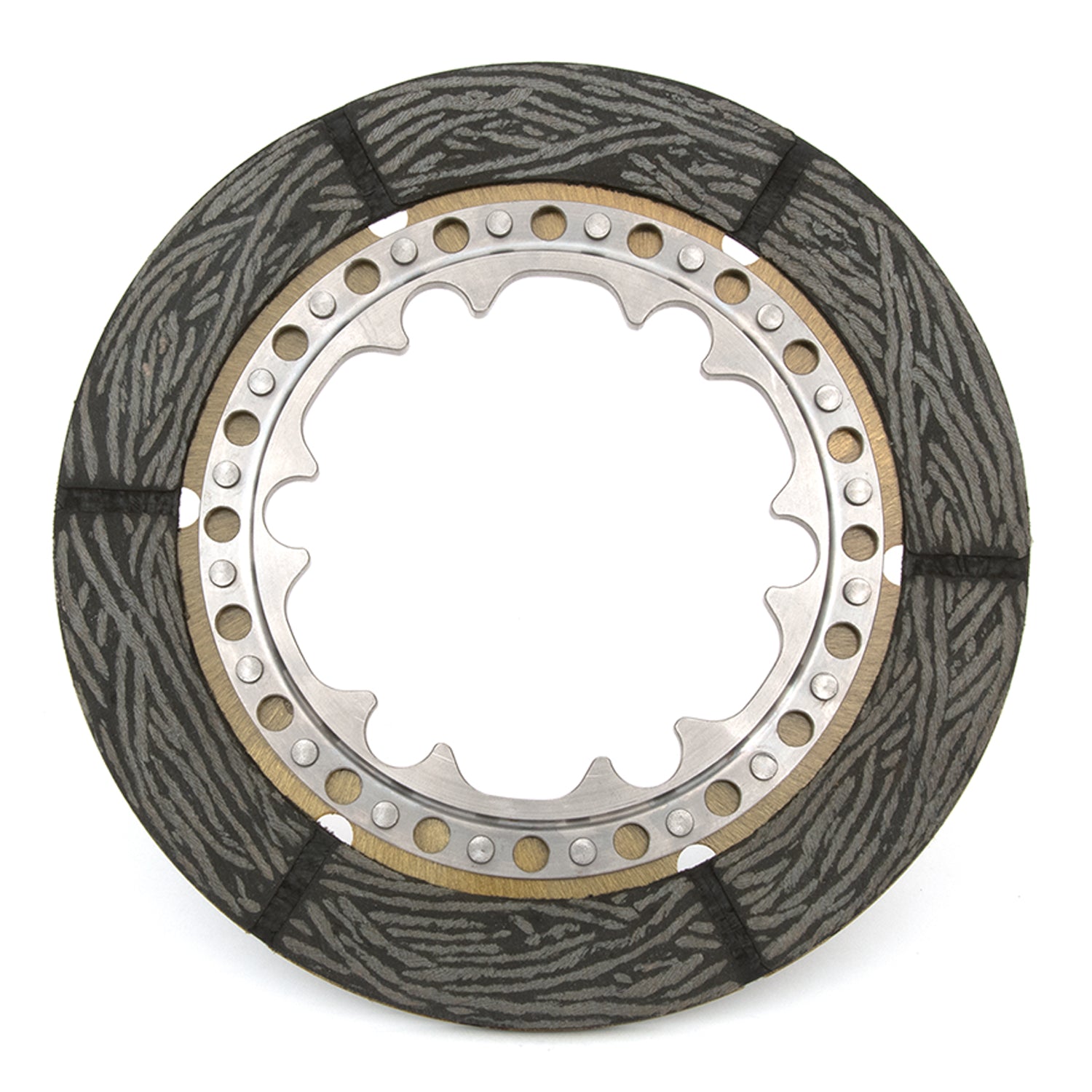

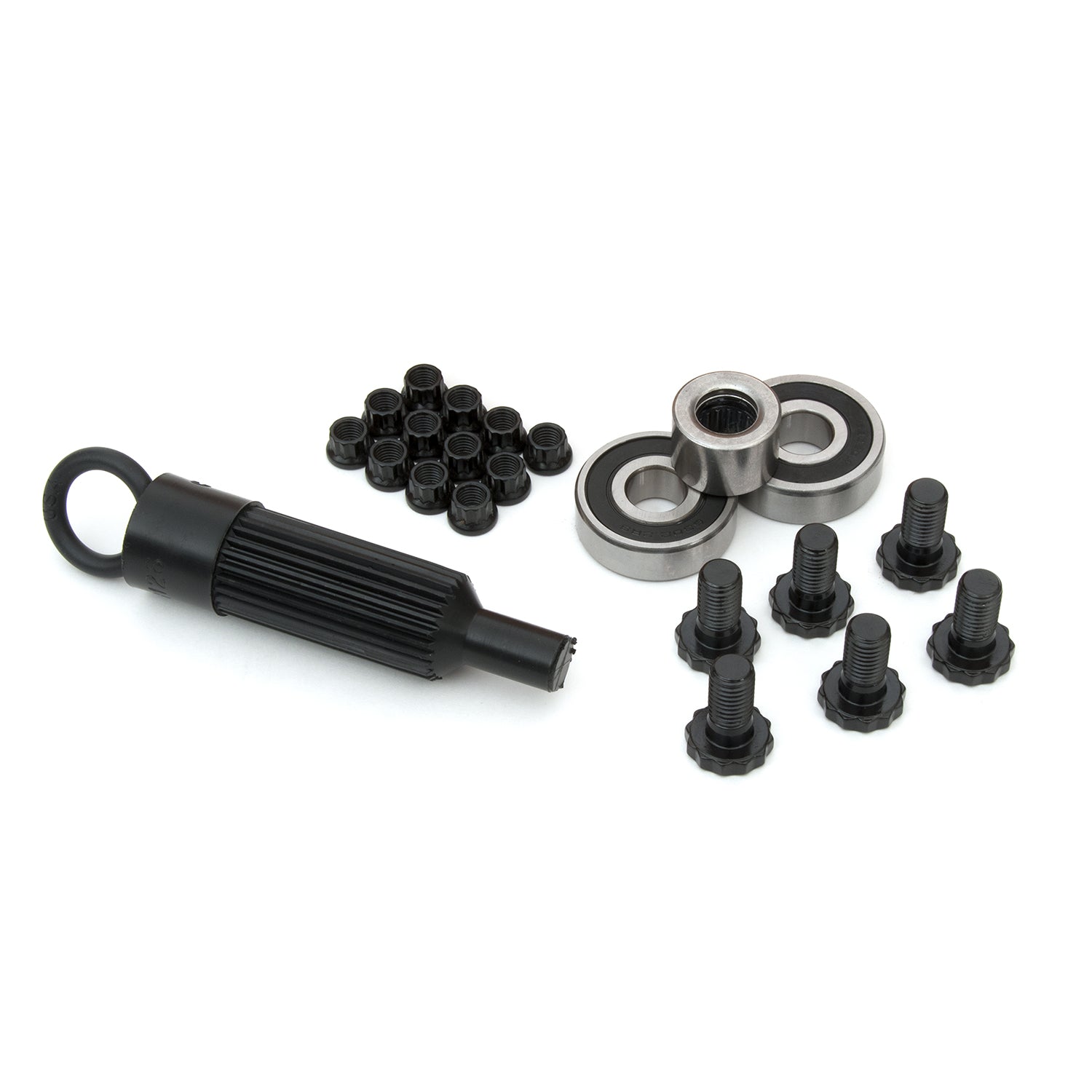

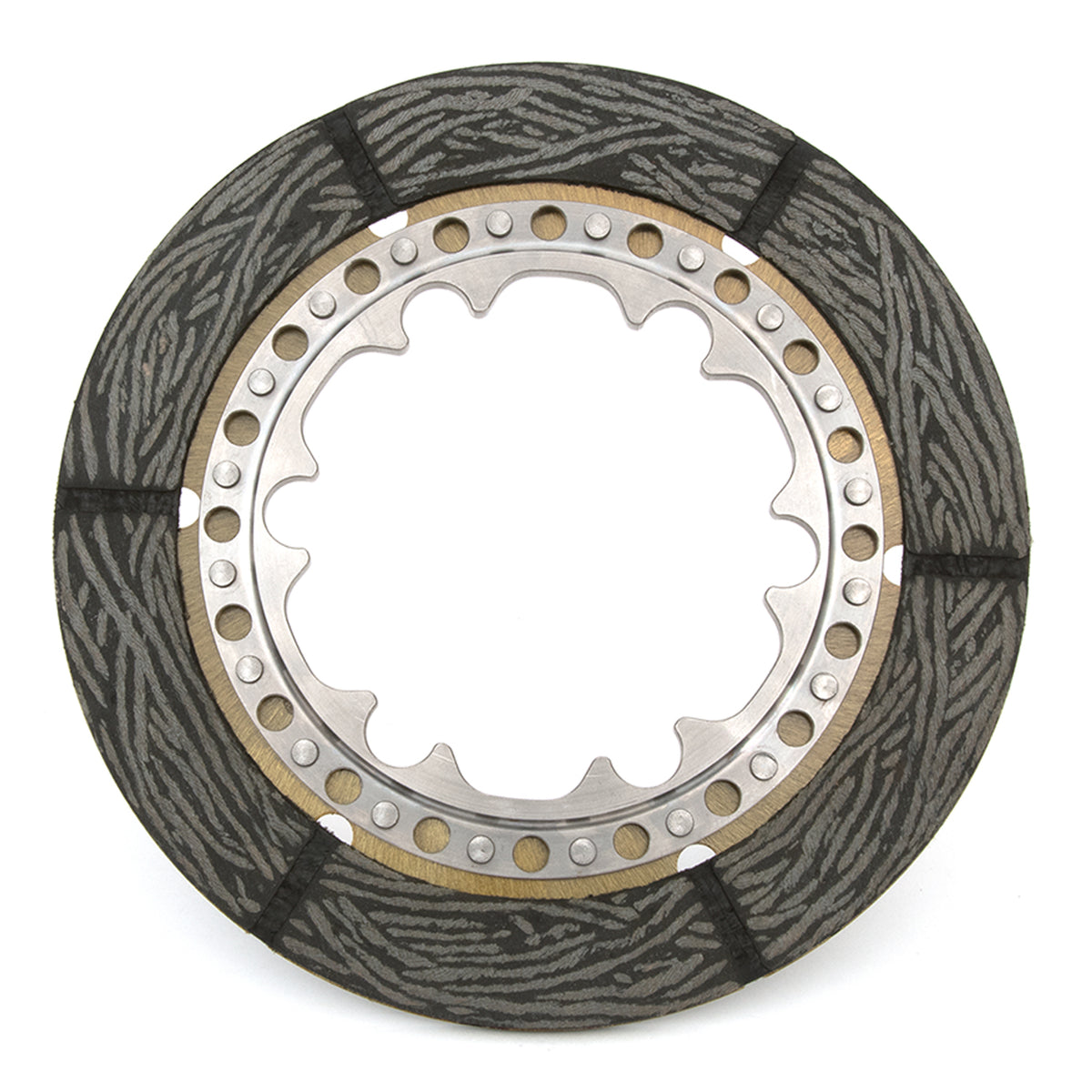

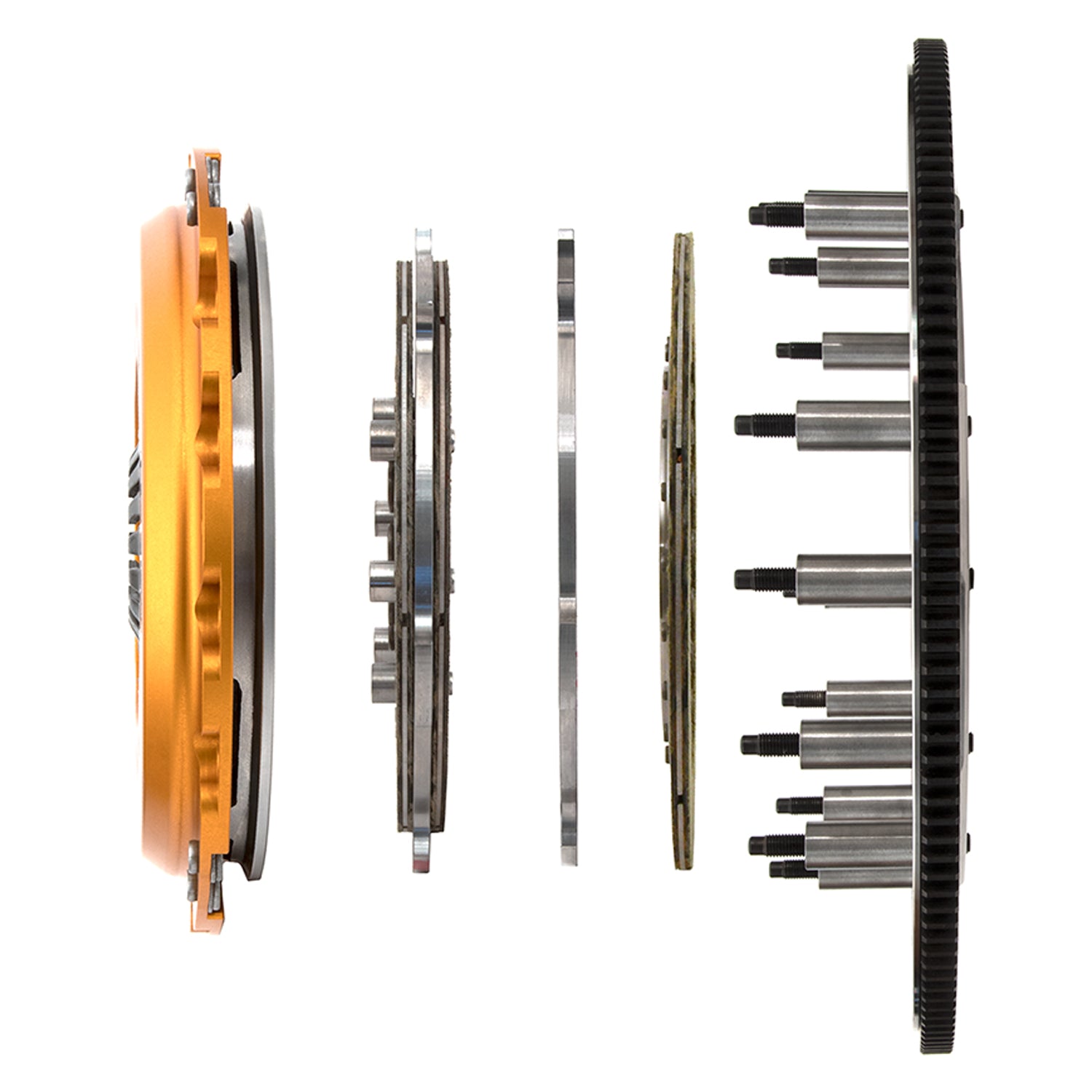

The Centerforce(R) TRIAD DS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Ring Gear O.D. | 14.105 IN |
| Clutch Disc Diameter | 8.750 IN |
| Material | Cast Iron Pressure Plate / Full Face Metalic Friction |
| Crankshaft Bolt Hole Quantity | 6 |
| Flywheel Crank Bolt Size | MM11 x 1.50 x 23 MM |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce TRIAD ? DS, Extreme Multi-Disc Clutch and Flywheel Kit, 32.90 lbs, 168 Tooth Gear, 6 Bolt Crank, 900 ft/lbs Capacity, 8.750in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl |
| Made In The USA | Assembled |
| Out of Package Weight | 32.90 |
| Torque Capacity | 900 |
| Tooth Quantity | 168 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Solid |
| Input Shaft Diameter | 1-1/8 IN |
| Counterweight Assist | No |
| Input Spline Quantity | 26 |
| Disc Material | Sintered Metallic |
| Disc Type | Full face |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
