Centerforce

Centerforce 836264077 - TRIAD(R) DS, Clutch and Flywheel Kit

Contact Us for Availability
$2,288.95 USD
✓ Need help confirming fitment?
✓ Ships in 2 - 5 business days
✓ Easy return process
Please verify fitment first. Select your vehicle in the Verify Fitment widget and confirm that this part fits your car before adding it to cart.
Product details
  • Vendor Centerforce
  • SKU 836264077
  • Barcode 00788442034769

Do you have questions about this product?

Ask an expert!

Description Fitment Table Shipping information

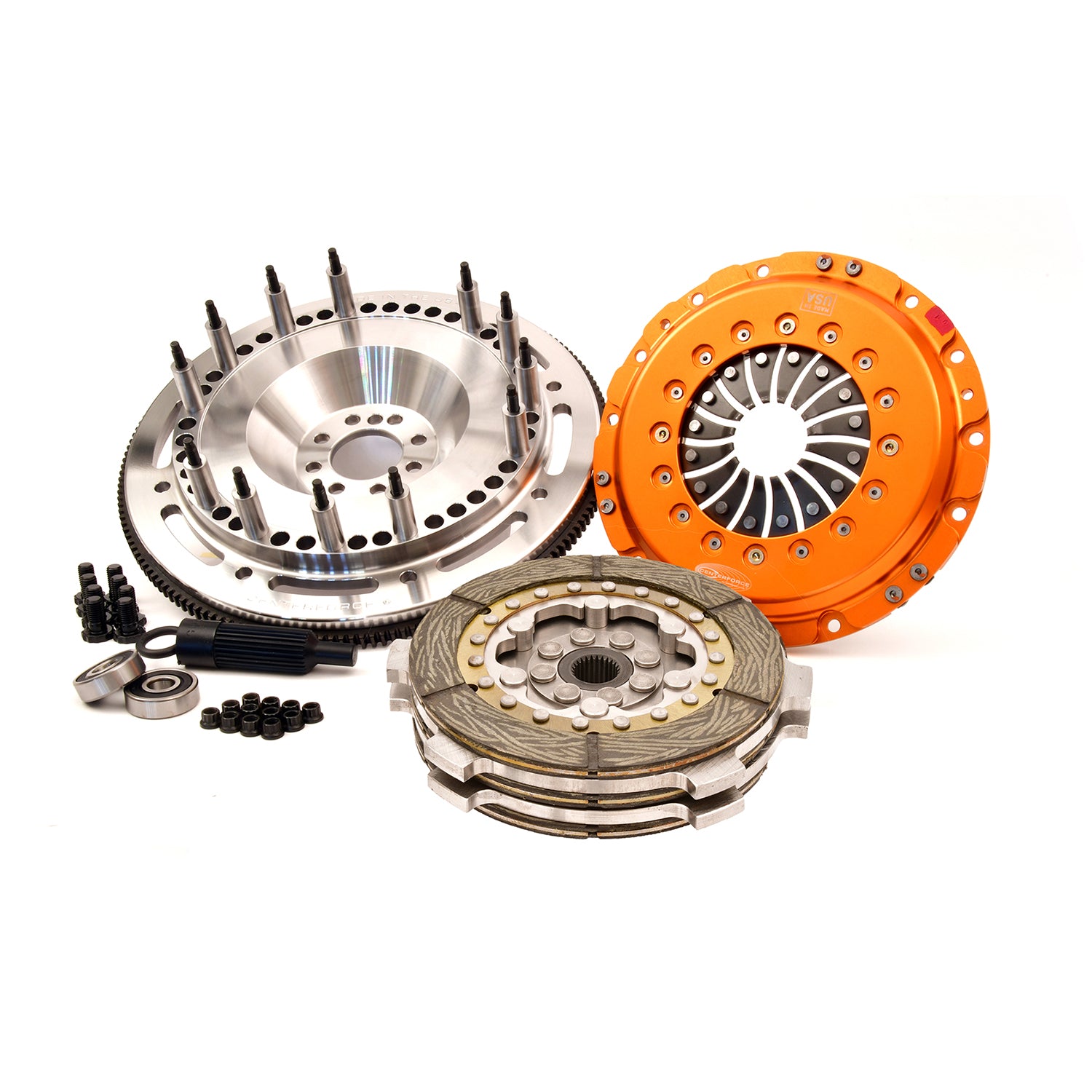

The Centerforce(R) TRIAD DS (Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1100 ft/lbs.

The Centerforce(R) TRIAD DS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1100 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA. TRIAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Specifications

Torque Capacity 900
Tooth Quantity 168
California Proposition 65 WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov.
Disc Type Sprung Solid Solid
Input Shaft Diameter 1-1/8 IN
Counterweight Assist No
Input Spline Quantity 26
Ring Gear O.D. 14.105 IN
Clutch Disc Diameter 8.75 IN
Material Cast Iron Pressure Plate / Full Face Organic Friction
Replaceable Friction Surface N
Crankshaft Bolt Hole Quantity 8
Flywheel Crank Bolt Size MM11 x 1.50 x 23 MM
Pilot Bushing Included Yes
Alignment Tool Included Yes
Mounting Hardware Included Yes
Title Centerforce TRIAD ? DS, Extreme Multi-Disc Clutch and Flywheel Kit, 168 Tooth Gear, 8 Bolt Crank, 900 ft/lbs Capacity, 8.75in Dia., 26-Spline, Fits Chevrolet Camaro and Corvette 6.2L
Made In The USA Assembled

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube
