The Centerforce(R) TRIAD XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1200 ft/lbs.

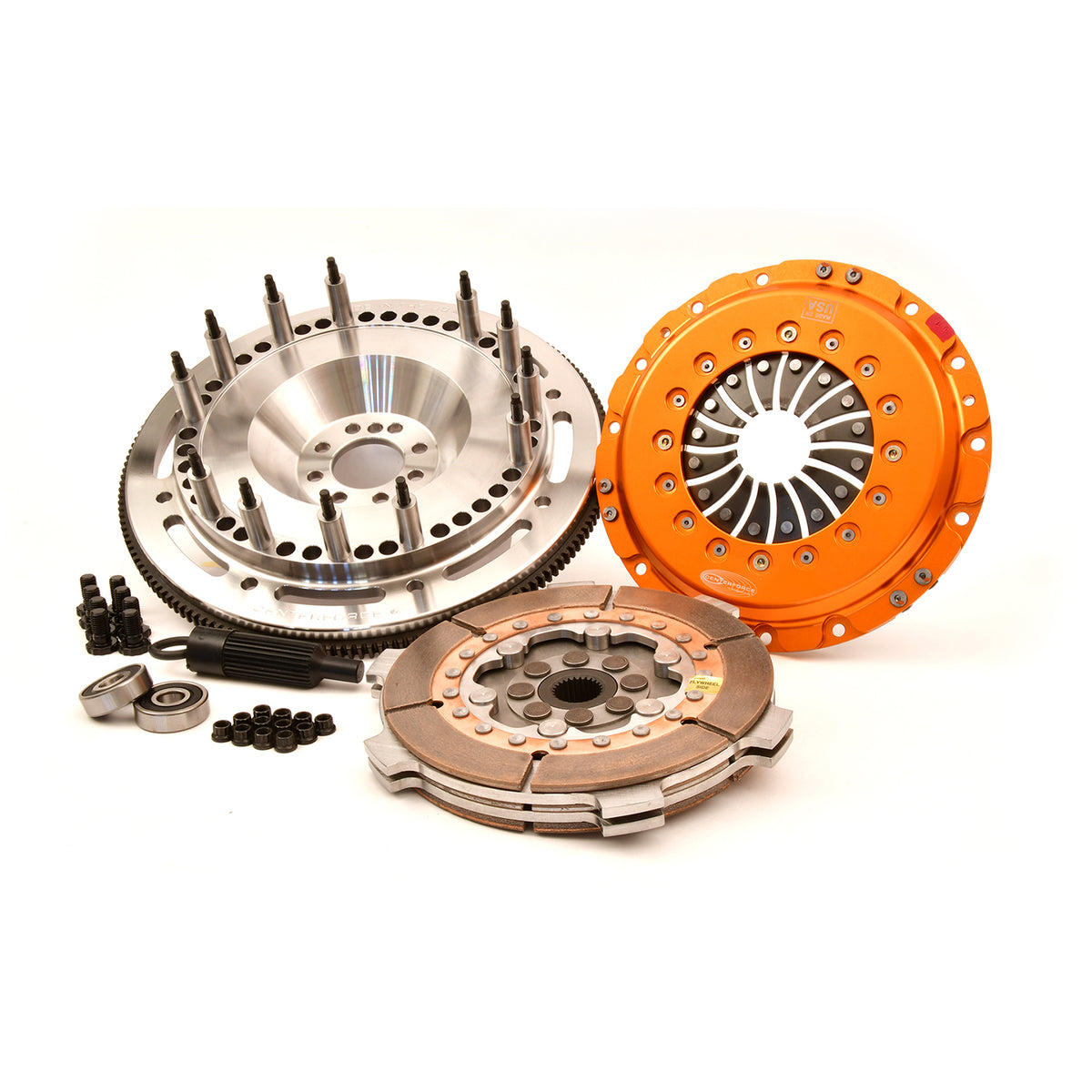

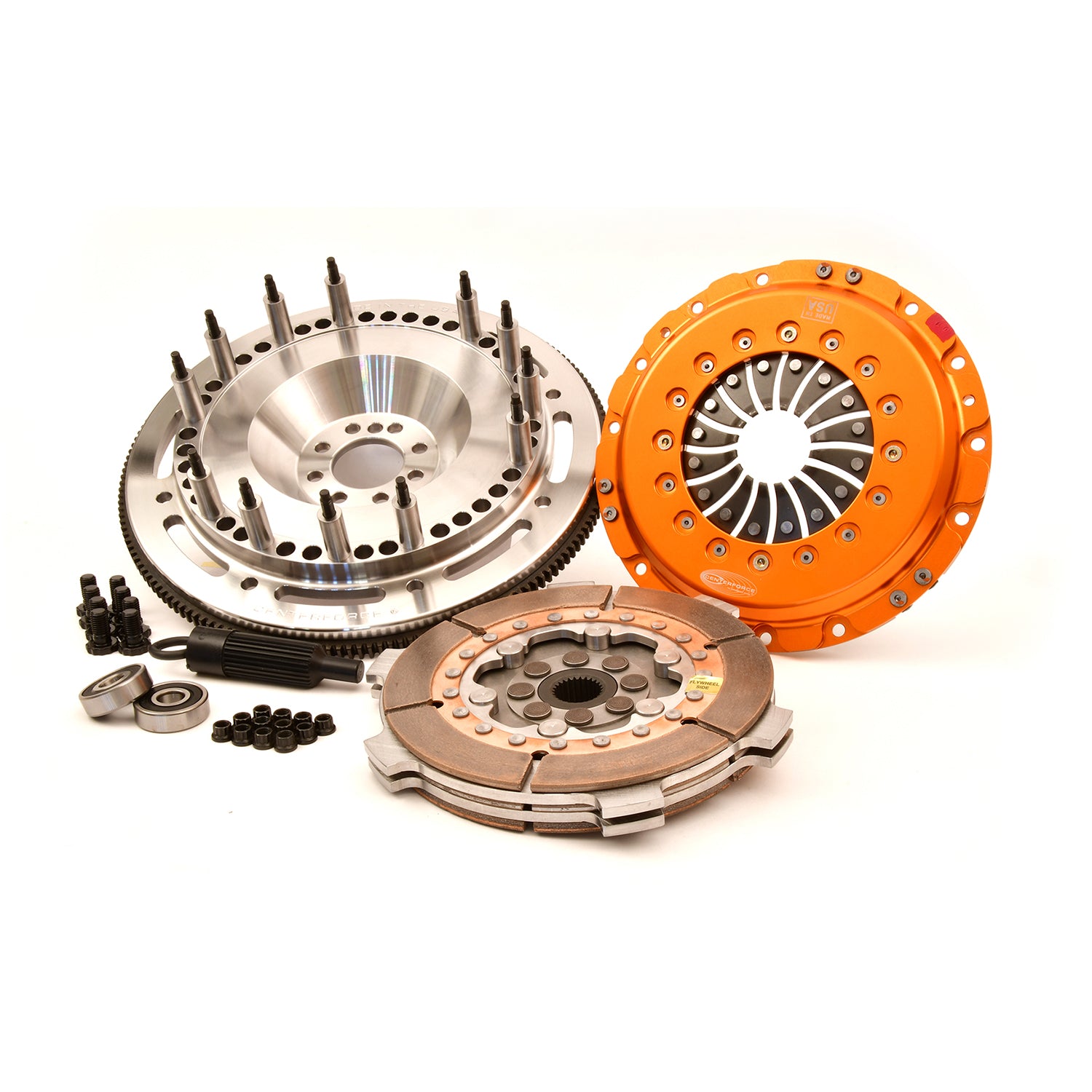

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Specifications
| Disc Type Sprung Solid | Solid |
| Input Shaft Diameter | 1-1/8 IN |
| Counterweight Assist | No |
| Input Spline Quantity | 26 |
| Ring Gear O.D. | 14.105 IN |
| Clutch Disc Diameter | 8.75 IN |
| Material | Cast Iron Pressure Plate / Full Face Metalic Friction |
| Replaceable Friction Surface | N |
| Crankshaft Bolt Hole Quantity | 8 |
| Flywheel Crank Bolt Size | MM11 x 1.50 x 23 MM |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce TRIAD ? XDS, Extreme Multi-Disc Clutch and Flywheel Kit, 168 Tooth Gear, 8 Bolt Crank, 1100 ft/lbs Capacity, 8.75in Dia., 26-Spline, Fits Chevrolet Camaro and Corvette 6.2L |
| Made In The USA | Assembled |
| Torque Capacity | 1100 |
| Tooth Quantity | 168 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
