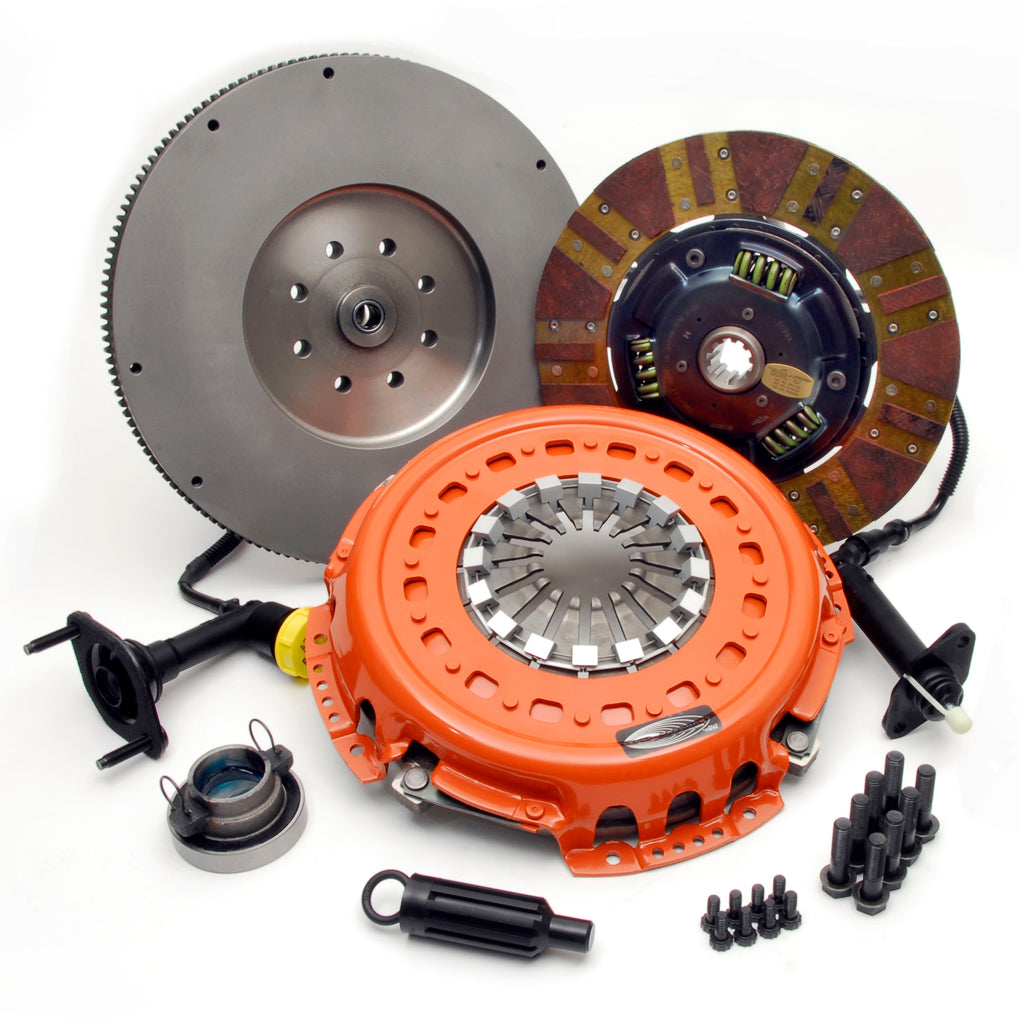

Centerforce DF143253 - Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set
Product Availability Request
Fill the form and our team will contact you.
The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Specifications
| Torque Capacity | 900 |
| Tooth Quantity | 152 |
| California Proposition 65 | WARNING - Includes Nickel - cancer. www.P65Warnings.ca.gov. |
| Disc Type Sprung Solid | Sprung |
| Disc Quantity | 1 |
| Input Shaft Diameter | 1-3/8 IN |
| Counterweight Assist | YES |
| Input Spline Quantity | 10 |
| Disc Material | Organic/Carbon composite |
| Disc Type | Segmented face |
| Clutch Bolt Pattern | 23 |
| Ring Gear O.D. | 15.625 IN |
| Clutch Disc Diameter | 13 IN |
| Material | Cast Iron Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction |
| Crankshaft Bolt Hole Quantity | 8 |
| Flywheel Counter Balance Weight | 0 |
| Flywheel Crank Bolt Size | 12 MM |
| Release Bearing Included | Yes |
| Pilot Bushing Included | Yes |
| Alignment Tool Included | Yes |
| Mounting Hardware Included | Yes |
| Title | Centerforce Dual Friction ?, High Performance Clutch Pressure Plate, High Performance Disc, High Performance and Flywheel Set, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 900 ft/lbs Capacity, 13in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L |
| Made In The USA | Assembled |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
