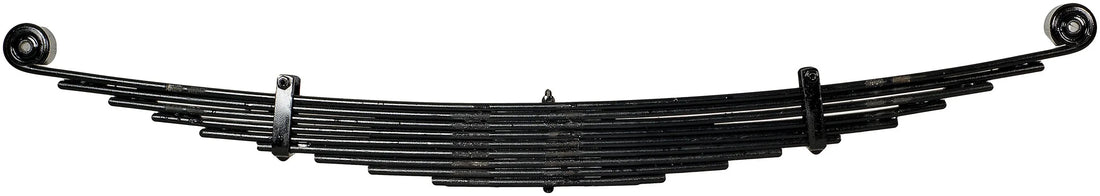

Dorman 22-1209 Suspension Leaf Spring

Supporting rear suspension loads of up to 3710 pounds, the Dorman 22-1209 is a leaf spring assembly constructed from black steel with nine leaves for enhanced load capacity in demanding applications. Fits the 1996-2024 Chevrolet Express 3500 and GMC Savana 3500. The spring measures 30 inches in length with a 2.5-inch width and features up-turned eye attachments at both ends for secure connection to the suspension frame and axle housing. With a pack thickness of 4.821 inches and an arch length of 3.688 inches, this standard grade leaf spring includes black bushings for a complete assembly. The spring arrives fully prepared for installation as a direct replacement without additional hardware required.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 3710 LB
• Suspension Grade Type: Standard
• Leaf Quantity: 9
• Leaf Width: 2.5 IN
• Axle Orientation: Rear
• Bushings Included: Yes
• Length Axis 1: 30 IN
• Length Axis 2: 30 IN
• Pack Thickness: 4.821 IN
• Leaf Spring Arch Length: 3.688 IN
• Spring Research Institute Number: 22-1209

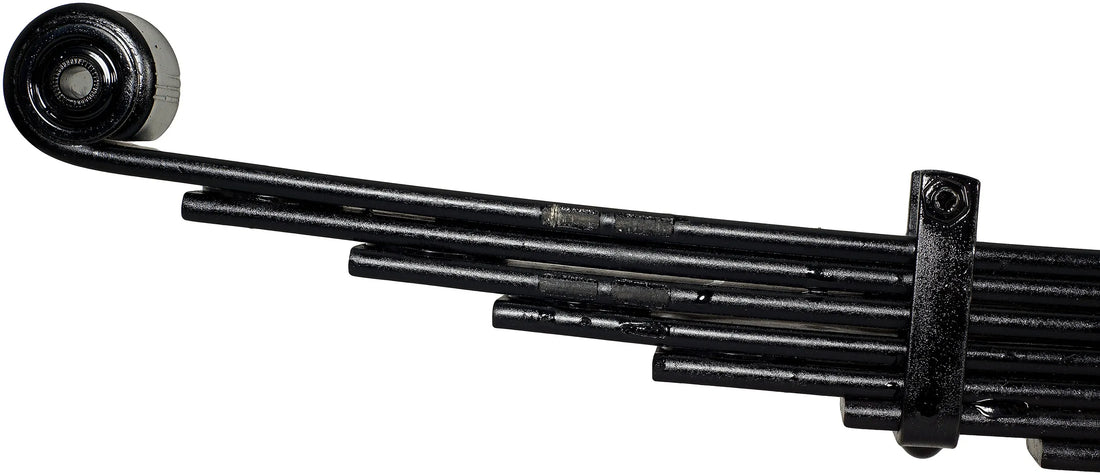

• End 1 Attachment Type: Up Turned Eye
• End 2 Attachment Type: Up Turned Eye
• Length B: 30 in
• Package Contents: 1 Leaf Spring
