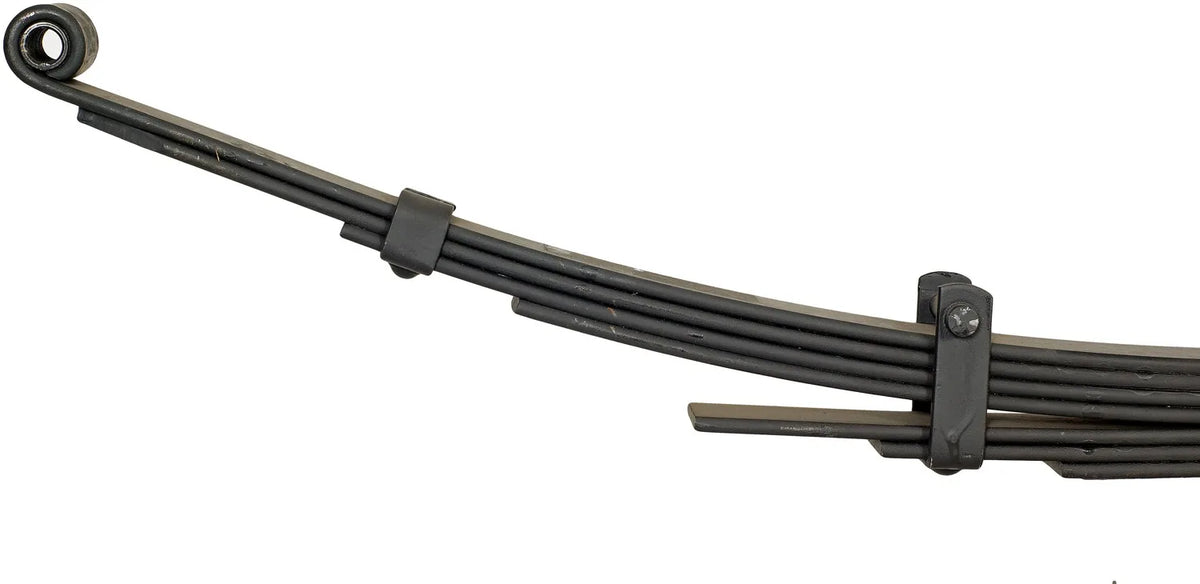

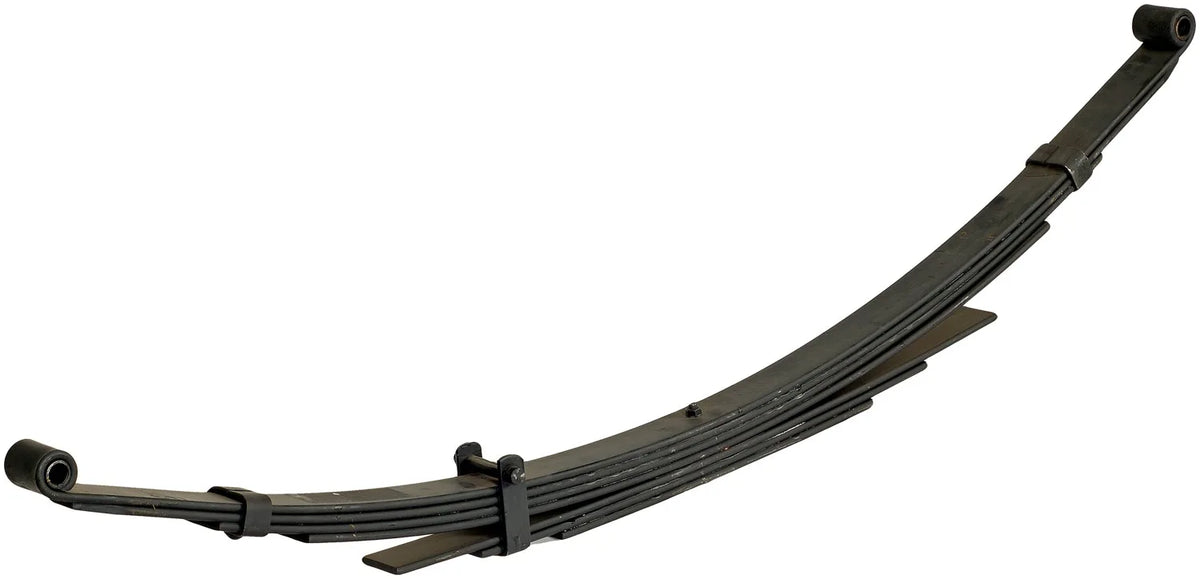

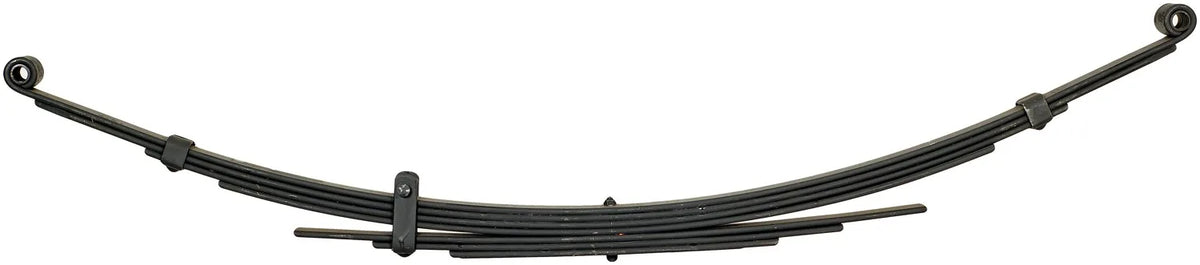

Dorman 22-231 Suspension Leaf Spring

Supporting the weight of a vehicle or trailer while maintaining suspension compliance is the function of a leaf spring assembly. Fits the 1955-1959 Chevrolet Truck and GMC Truck. The Dorman 22-231 is a replacement leaf spring constructed from steel with black finish, designed for rear axle suspension systems. This spring assembly contains seven leaves 2 inches wide, each stacked and compressed to a pack thickness of 2.069 inches, with an overall arch length of 6.375 inches across a span of 26 inches. Both attachment points feature up-turned eye connections for mounting, and a 1150-pound load rating indicates the designed weight capacity. The suspension grade is standard type. Black bushings are included with the assembly. Mounting hardware is not included.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 1150 LB
• Suspension Grade Type: Standard
• Leaf Quantity: 7
• Leaf Width: 2 IN
• Axle Orientation: Rear
• Bushings Included: Yes
• Length Axis 1: 26 IN
• Length Axis 2: 26 IN
• Pack Thickness: 2.069 IN
• Leaf Spring Arch Length: 6.375 IN
• Spring Research Institute Number: 22-231
• End 1 Attachment Type: Up Turned Eye
• End 2 Attachment Type: Up Turned Eye
• Length B: 26 in
• Package Contents: 1 Leaf Spring
