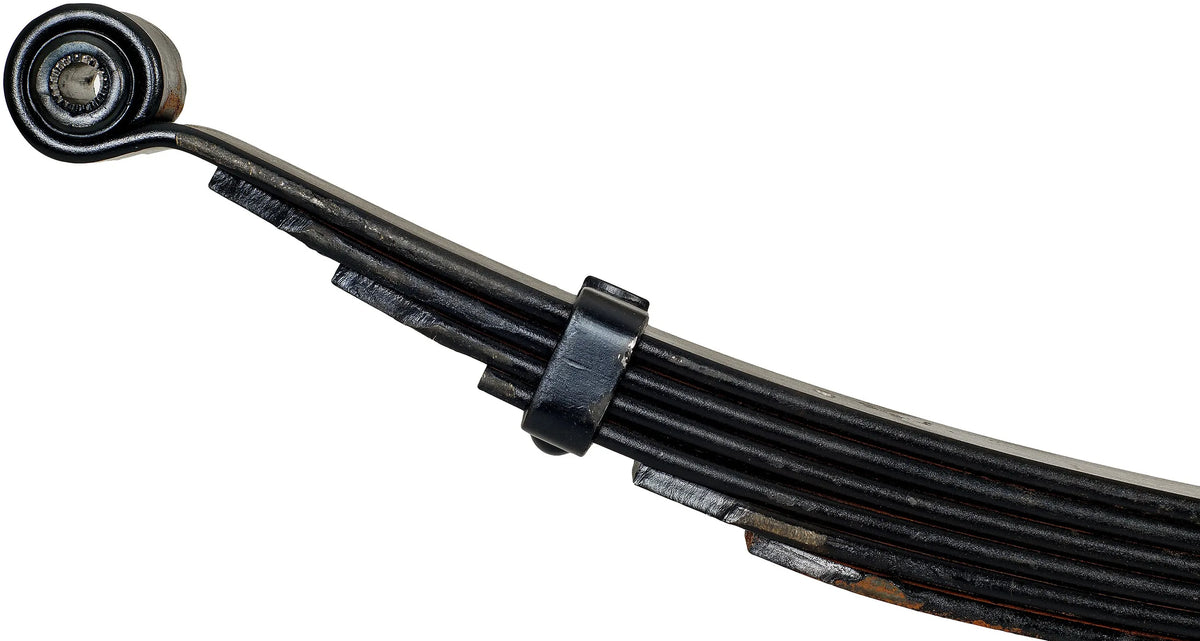

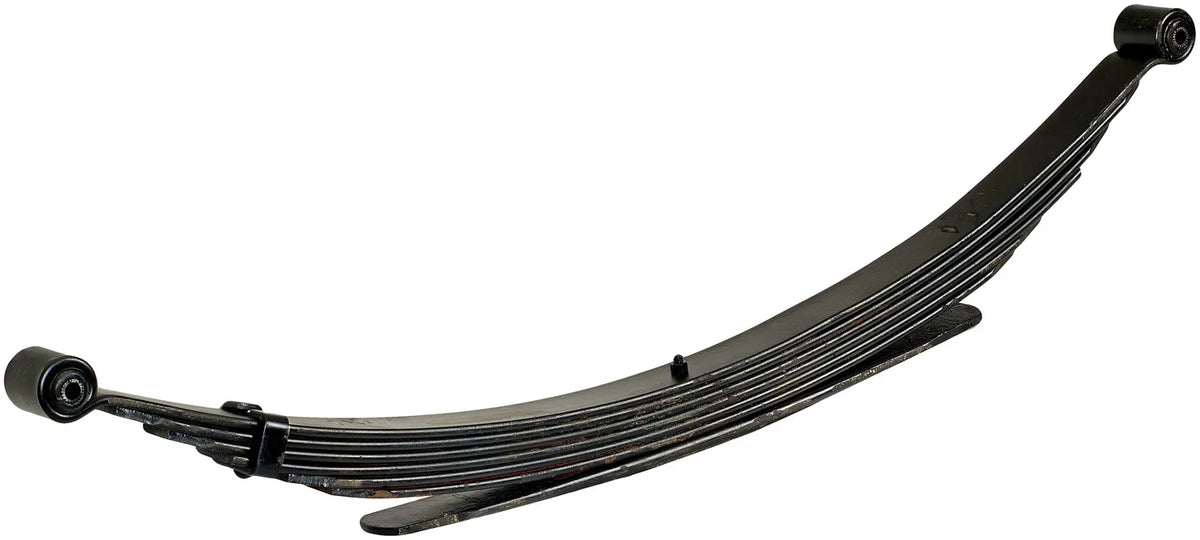

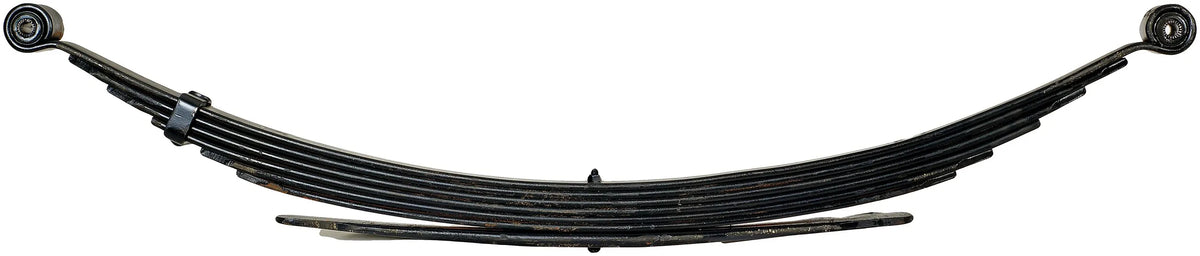

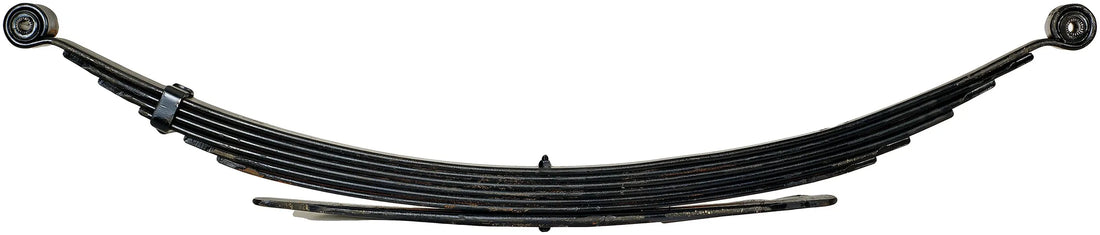

Dorman 22-419 Suspension Leaf Spring

Bearing suspension loads and vehicle payload, the Dorman 22-419 is a replacement rear leaf spring with a limited warranty. Fits the 1969-1972 Chevrolet C20 Pickup, C30 Pickup, K10 Pickup, K20 Pickup, P20 Van and P30 Van and GMC C25/C2500 Pickup, C35/C3500 Pickup, K15/K1500 Pickup, K25/K2500 Pickup, P25/P2500 Van and P35/P3500 Van. The assembly features seven steel leaves, each 2.5 IN wide, with a combined load capacity of 3390 LB for standard suspension use. The springs measure 26 IN along both axes with an arch length of 6.625 IN and additional length B of 26 in, having a pack thickness of 2.825 IN. Both attachment points feature Berlin eye connections. Black bushings are included, but mounting hardware is not. One leaf spring is included in the package.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 3390 LB
• Suspension Grade Type: Standard
• Leaf Quantity: 7
• Leaf Width: 2.5 IN
• Axle Orientation: Rear
• Bushings Included: Yes
• Length Axis 1: 26 IN
• Length Axis 2: 26 IN
• Pack Thickness: 2.825 IN
• Leaf Spring Arch Length: 6.625 IN
• Spring Research Institute Number: 22-419
• End 1 Attachment Type: Berlin Eye
• End 2 Attachment Type: Berlin Eye
• Length B: 26 in
• Package Contents: 1 Leaf Spring
