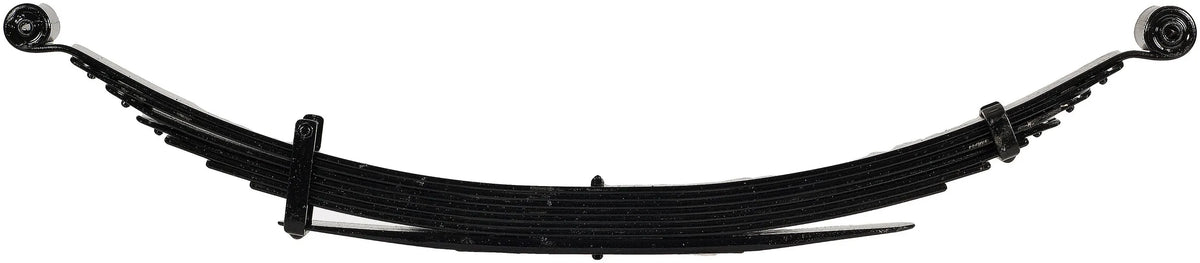

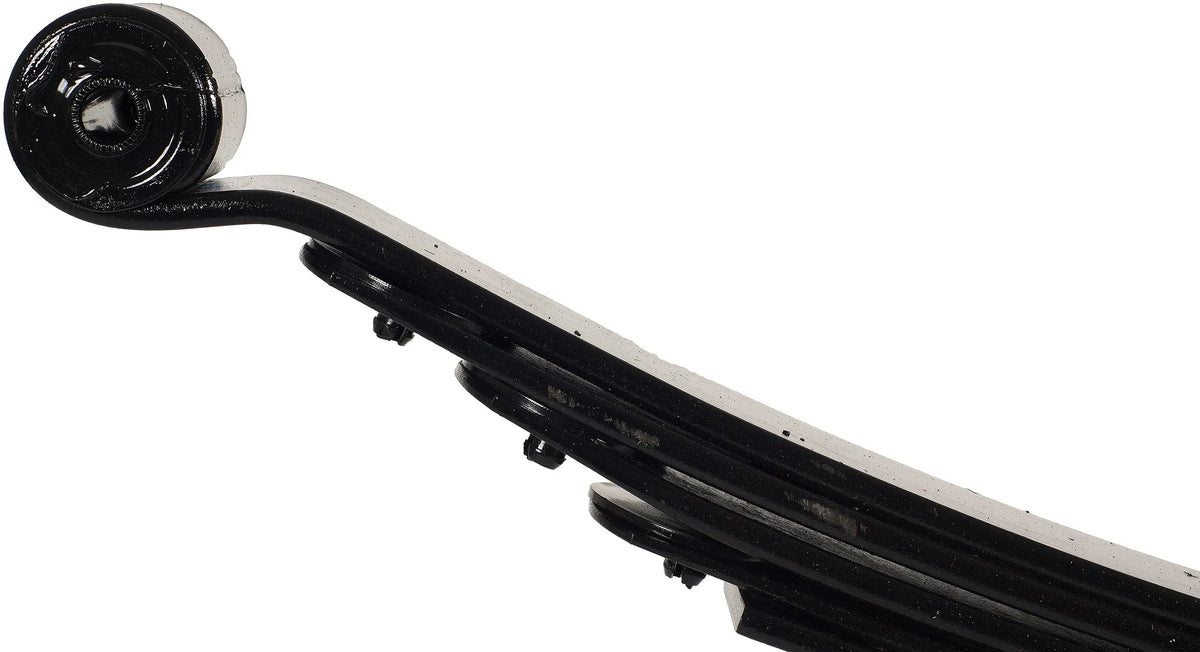

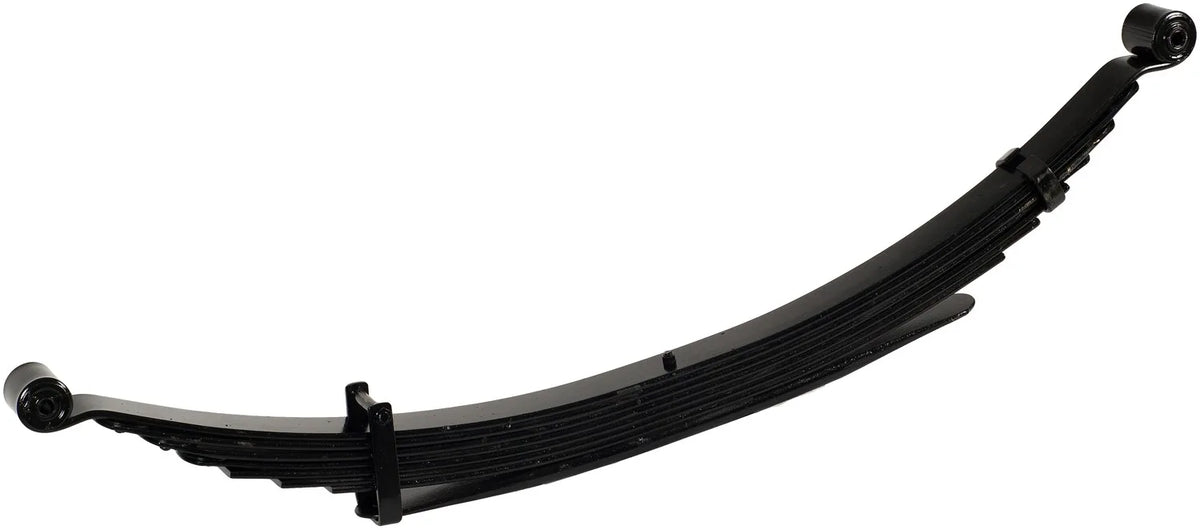

Dorman 22-597 Suspension Leaf Spring

With a load capacity of 3600 pounds, the Dorman 22-597 is a steel leaf spring that provides suspension support for heavy-duty applications requiring substantial load-bearing strength. Fits the 1979-1994 GMC G3500; the 1975-1991 Chevrolet G30; the 1975-1978 GMC G35; the 1971-1974 Chevrolet G30 Van; and the 1973-1974 GMC G35/G3500 Van. The spring features eight leaves, each measuring 2.5 inches in width, with a pack thickness of 3.116 inches and an arch length of 7.875 inches. Measuring 28 inches in length, this spring includes black bushings for mounting and uses Berlin Eye attachments on both ends for secure frame and axle connection. The spring comes with a limited warranty and includes only the leaf spring itself; mounting hardware is not included.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 3600 LB
• Suspension Grade Type: Standard
• Leaf Quantity: 8
• Leaf Width: 2.5 IN
• Axle Orientation: Rear
• Bushings Included: Yes
• Length Axis 1: 28 IN
• Length Axis 2: 28 IN
• Pack Thickness: 3.116 IN
• Leaf Spring Arch Length: 7.875 IN
• Spring Research Institute Number: 22-597
• End 1 Attachment Type: Berlin Eye
• End 2 Attachment Type: Berlin Eye
• Length B: 28 in
• Package Contents: 1 Leaf Spring
