Dorman 22-797XHD Suspension Leaf Spring

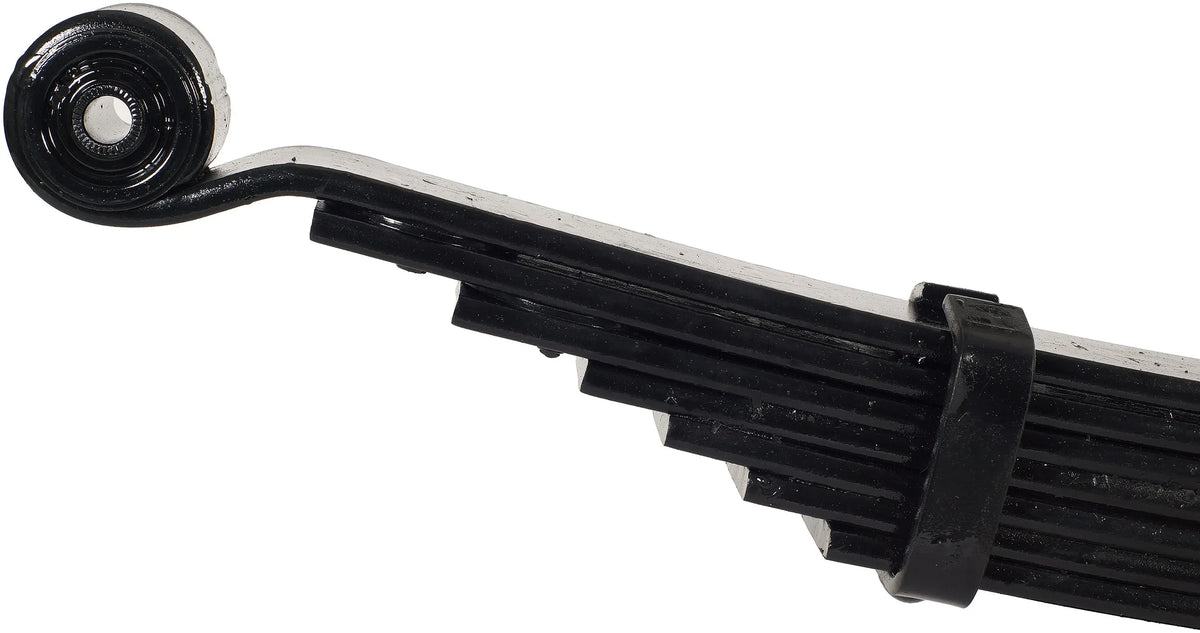

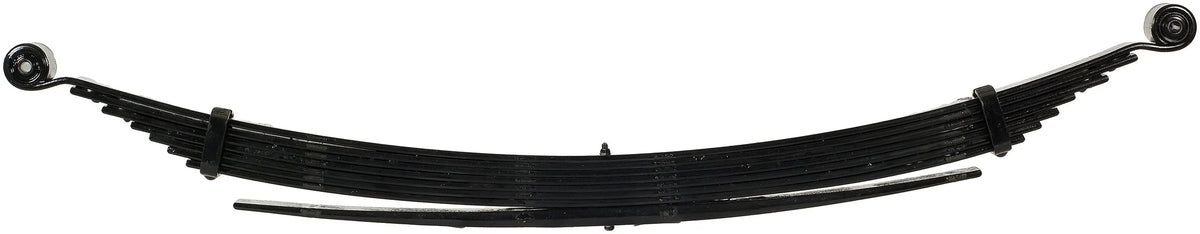

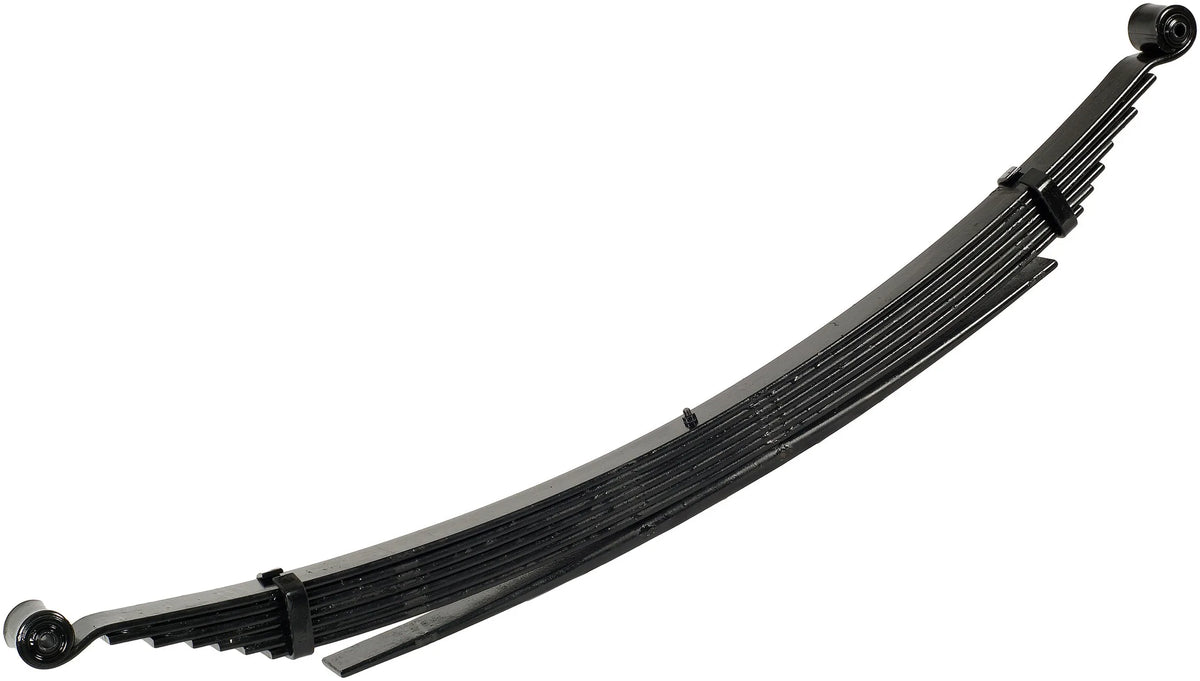

Carrying the weight and payload of a heavy-duty suspension, the Dorman 22-797XHD is a leaf spring assembly made from steel with eight leaves that are 2.5 inches wide and have a combined pack thickness of 3.806 inches. Fits the 1988-2000 Chevrolet C2500, C3500, K2500 and K3500 and GMC C2500, C3500, K2500 and K3500. This rear-axle spring features Berlin Eye attachments at both ends and includes black bushings for vibration damping and noise reduction. With a load rate of 3300 pounds and a leaf spring arch length of 5.75 inches, the assembly spans 32 inches in overall length and provides the heavy-duty suspension support required for light trucks and commercial trailers.

• Material: Steel
• Color: Black
• Mounting Hardware Included: No
• Bushing Color: Black
• Load Rate: 3300 LB
• Suspension Grade Type: Heavy Duty
• Leaf Quantity: 8
• Leaf Width: 2.5 IN
• Axle Orientation: Rear
• Bushings Included: Yes
• Length Axis 1: 32 IN
• Length Axis 2: 32 IN
• Pack Thickness: 3.806 IN
• Leaf Spring Arch Length: 5.75 IN
• Spring Research Institute Number: 22-797XHD
• End 1 Attachment Type: Berlin Eye
• End 2 Attachment Type: Berlin Eye
• Length B: 32 in
• Package Contents: 1 Leaf Spring
